VPC

Features and applications

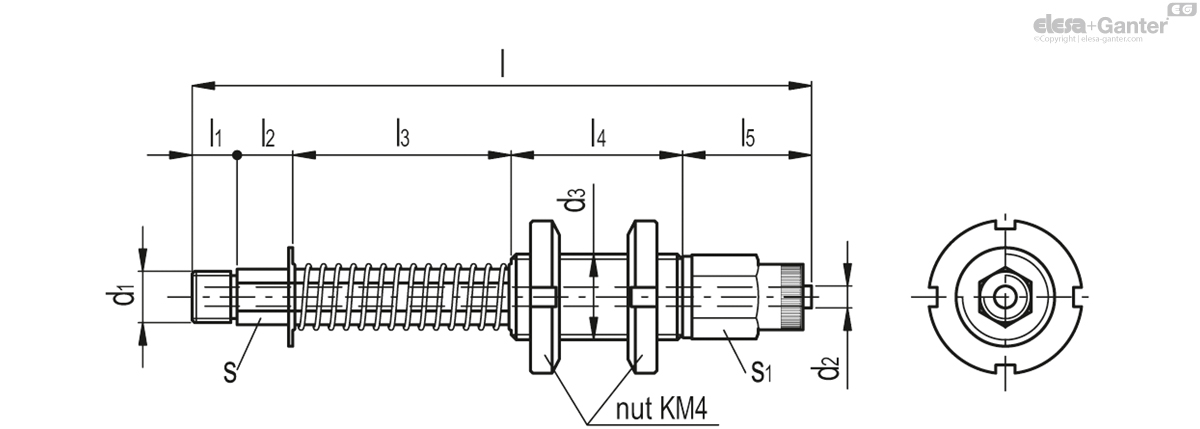

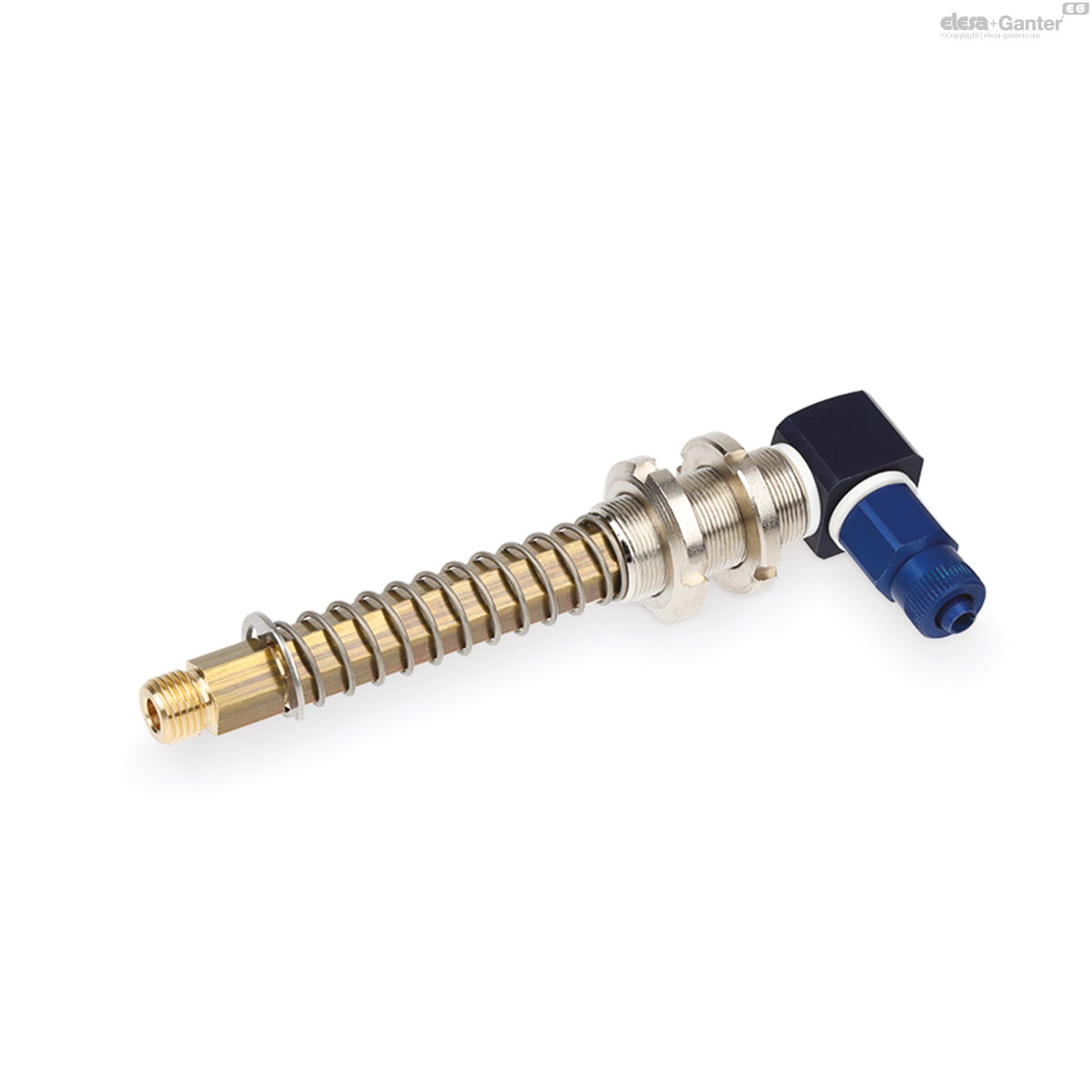

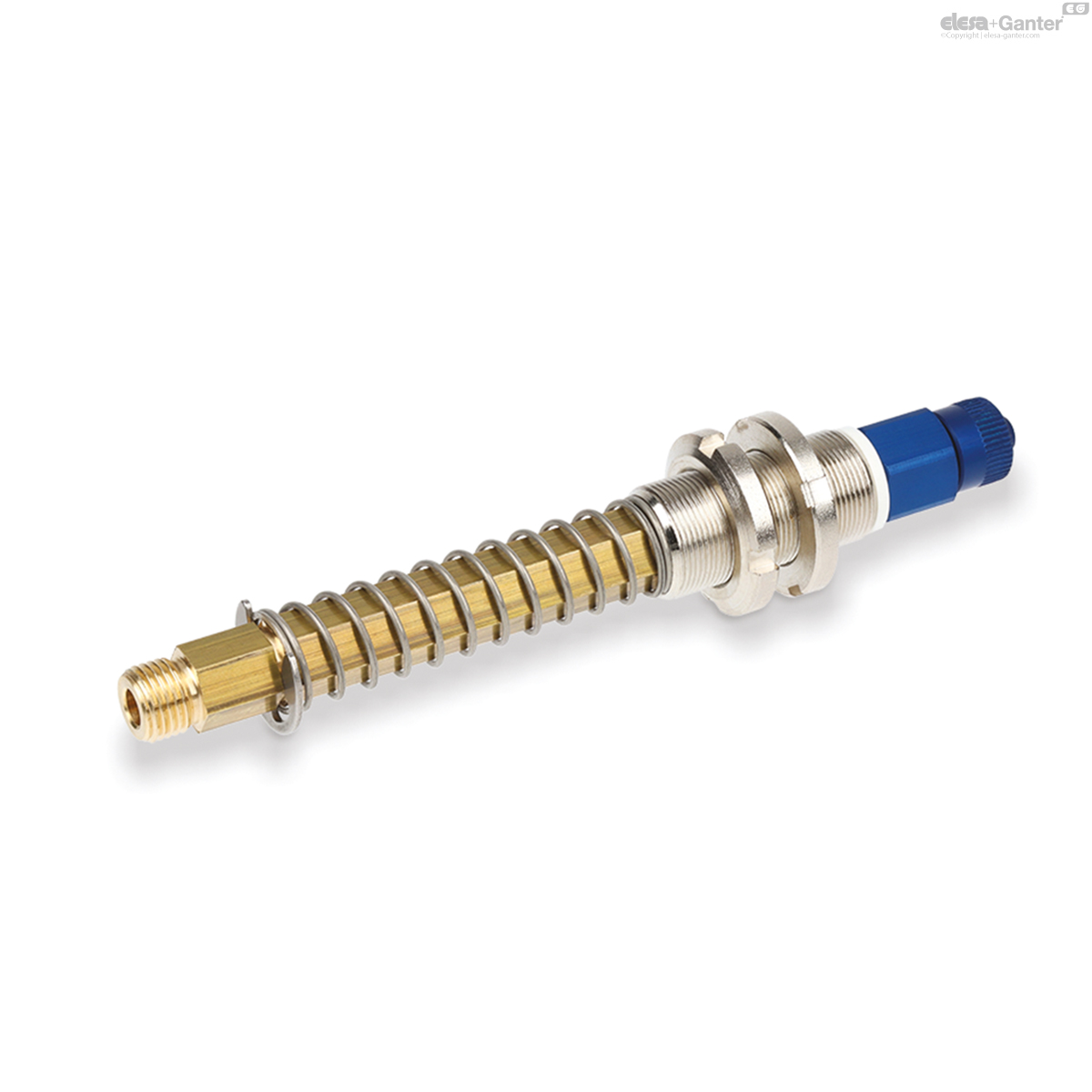

VPC vacuum cup suspensions comprise:

• a brass stem with a hexagonal section for fixing the vacuum cup. This conformation prevents the shank and the vacuum cup fixed on it from rotating on its axis;

• a steel or brass threaded sleeve, equipped with two tightening ring nuts, for quick assembly of the vacuum cup suspension to the automation device;

• a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;

• a quick fitting for connection to the suction hose.

Suitable for vacuum cups with a minimum diameter of 45 mm and a maximum of 110 mm.

The effective spring stroke is functional to the length (l3) of the stem, in particular:

• 16 mm for a length of 28 mm

• 49 mm for a length of 65 mm

• 74 mm for a length of 95 mm

Compatible with 6x8 diameter plastic hose.

See Technical Data for vacuum cups .
