VPA
Vacuum cup holders
Threaded connection male or female, steel, aluminium and brass
VPA-F
Vacuum cup holders
Female threaded connection and straight quick fitting
VPA-F-L
Vacuum cup holders
Female threaded connection and L-shaped quick fitting
VPA-M
Vacuum cup holders
Male threaded connection and straight quick fitting
VPA-M-L
Vacuum cup holders
Male threaded connection and L-shaped quick fitting
Description
Main specifications
Material
Brass stem.
Steel spring.
Zinc-plated steel threaded sleeve and hexagonal nuts.
Quick fitting in blue anodised aluminium.
Standard executions
- VPA-F:Â with female threaded connection and straight quick fitting.
- VPA-F-L:Â with female threaded connection and L-shaped quick fitting.
- VPA-M:Â with male threaded connection and straight quick fitting.
- VPA-M-L:Â with male threaded connection and L-shaped quick fitting.
General information
Features
VPA vacuum cup suspensions comprise:
- a brass stem to fix the vacuum cup;
- a steel threaded sleeve, equipped with two hexagonal nuts, for quick assembly of the vacuum cup suspension to the automation device;
- a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;
- a quick fitting for connection to the suction hose.
The effective spring stroke is functional to the length (l3) of the stem, in particular:
- 16 mm for a length of 28 mm
- 49 mm for a length of 65 mm
- 74 mm for a length of 95 mm
Compatible with 6x8 diameter plastic hose.
See Technical Data for vacuum cups .

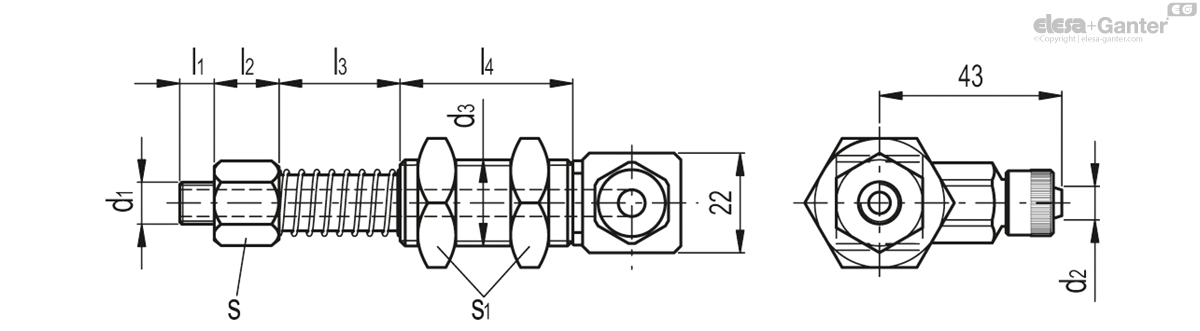

VPA-M-L
| d1 | d2* | d3 | l1 | l2 | l3 | l4 | s | s1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| VV.39102 | VPA-08-28-G1/8-M-L | G1/8 | 6 | M20 | 8 | 15 | 28 | 40 | 17 | 30 | 231 |
|
| VV.39104 | VPA-08-65-G1/8-M-L | G1/8 | 6 | M20 | 8 | 15 | 65 | 40 | 17 | 30 | 267 |
|
| VV.39106 | VPA-08-95-G1/8-M-L | G1/8 | 6 | M20 | 8 | 15 | 95 | 40 | 17 | 30 | 297 |
|
| VV.39108 | VPA-10-28-G1/4-M-L | G1/4 | 6 | M20 | 8 | 15 | 28 | 40 | 17 | 30 | 240 |
|
| VV.39110 | VPA-10-65-G1/4-M-L | G1/4 | 6 | M20 | 8 | 15 | 65 | 40 | 17 | 30 | 281 |
|
| VV.39112 | VPA-10-95-G1/4-M-L | G1/4 | 6 | M20 | 8 | 15 | 95 | 40 | 17 | 30 | 310 |
|
| VV.39114 | VPA-11-28-M12-M-L | M12 | 6 | M20 | 8 | 15 | 28 | 40 | 17 | 30 | 238 |
|
| VV.39116 | VPA-11-65-M12-M-L | M12 | 6 | M20 | 8 | 15 | 65 | 40 | 17 | 30 | 279 |
|
| VV.39118 | VPA-11-95-M12-M-L | M12 | 6 | M20 | 8 | 15 | 95 | 40 | 17 | 30 | 308 |
|
| VV.39120 | VPA-12-28-G3/8-M-L | G3/8 | 6 | M20 | 8 | 15 | 28 | 40 | 17 | 30 | 252 |
|
| VV.39122 | VPA-12-65-G3/8-M-L | G3/8 | 6 | M20 | 8 | 15 | 65 | 40 | 17 | 30 | 289 |
|
| VV.39124 | VPA-12-95-G3/8-M-L | G3/8 | 6 | M20 | 8 | 15 | 95 | 40 | 17 | 30 | 318 |
|
