VPA
Vacuum cup holders
Threaded connection male or female, steel, aluminium and brass
VPA-F
Vacuum cup holders
Female threaded connection and straight quick fitting
VPA-F-L
Vacuum cup holders
Female threaded connection and L-shaped quick fitting
VPA-M
Vacuum cup holders
Male threaded connection and straight quick fitting
VPA-M-L
Vacuum cup holders
Male threaded connection and L-shaped quick fitting
Description
Main specifications
Material
Brass stem.
Steel spring.
Zinc-plated steel threaded sleeve and hexagonal nuts.
Quick fitting in blue anodised aluminium.
Standard executions
- VPA-F:Â with female threaded connection and straight quick fitting.
- VPA-F-L:Â with female threaded connection and L-shaped quick fitting.
- VPA-M:Â with male threaded connection and straight quick fitting.
- VPA-M-L:Â with male threaded connection and L-shaped quick fitting.
General information
Features
VPA vacuum cup suspensions comprise:
- a brass stem to fix the vacuum cup;
- a steel threaded sleeve, equipped with two hexagonal nuts, for quick assembly of the vacuum cup suspension to the automation device;
- a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;
- a quick fitting for connection to the suction hose.
The effective spring stroke is functional to the length (l3) of the stem, in particular:
- 16 mm for a length of 28 mm
- 49 mm for a length of 65 mm
- 74 mm for a length of 95 mm
Compatible with 6x8 diameter plastic hose.
See Technical Data for vacuum cups .

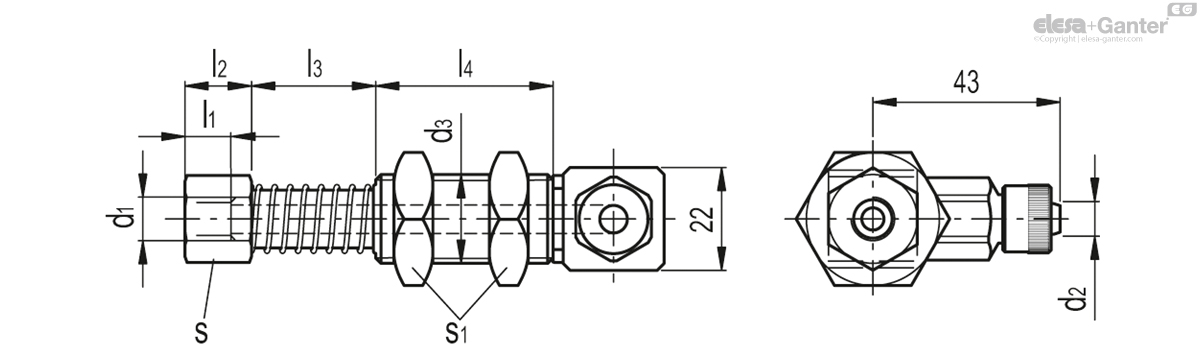

VPA-F-L
| d1 | d2* | d3 | l1 | l2 | l3 | l4 | s | s1 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| VV.39002 | VPA-08-28-G1/8-F-L | G1/8 | 6 | M20 | 8 | 15 | 28 | 40 | 17 | 30 | 222 |
|
| VV.39004 | VPA-08-65-G1/8-F-L | G1/8 | 6 | M20 | 8 | 15 | 65 | 40 | 17 | 30 | 243 |
|
| VV.39006 | VPA-08-95-G1/8-F-L | G1/8 | 6 | M20 | 8 | 15 | 95 | 40 | 17 | 30 | 272 |
|
| VV.39008 | VPA-10-28-G1/4-F-L | G1/4 | 6 | M20 | 8 | 20 | 28 | 40 | 17 | 30 | 239 |
|
| VV.39010 | VPA-10-65-G1/4-F-L | G1/4 | 6 | M20 | 8 | 20 | 65 | 40 | 17 | 30 | 277 |
|
| VV.39012 | VPA-10-95-G1/4-F-L | G1/4 | 6 | M20 | 8 | 20 | 95 | 40 | 17 | 30 | 304 |
|
| VV.39014 | VPA-11-28-M12-F-L | M12 | 6 | M20 | 8 | 20 | 28 | 40 | 17 | 30 | 241 |
|
| VV.39016 | VPA-11-65-M12-F-L | M12 | 6 | M20 | 8 | 20 | 65 | 40 | 17 | 30 | 279 |
|
| VV.39018 | VPA-11-95-M12-F-L | M12 | 6 | M20 | 8 | 20 | 95 | 40 | 17 | 30 | 306 |
|
| VV.39020 | VPA-12-28-G3/8-F-L | G3/8 | 6 | M20 | 8 | 25 | 28 | 40 | 17 | 30 | 235 |
|
| VV.39022 | VPA-12-65-G3/8-F-L | G3/8 | 6 | M20 | 8 | 25 | 65 | 40 | 17 | 30 | 274 |
|
| VV.39024 | VPA-12-95-G3/8-F-L | G3/8 | 6 | M20 | 8 | 25 | 95 | 40 | 17 | 30 | 300 |
|
