Vacuum cup holders
Threaded connection male or female, steel, aluminium and brass
__logo__RoHS__

Description

Main specifications

Material

Brass stem.

Steel spring.

Zinc-plated steel threaded sleeve and hexagonal nuts.

Quick fitting in blue anodised aluminium.

Standard executions

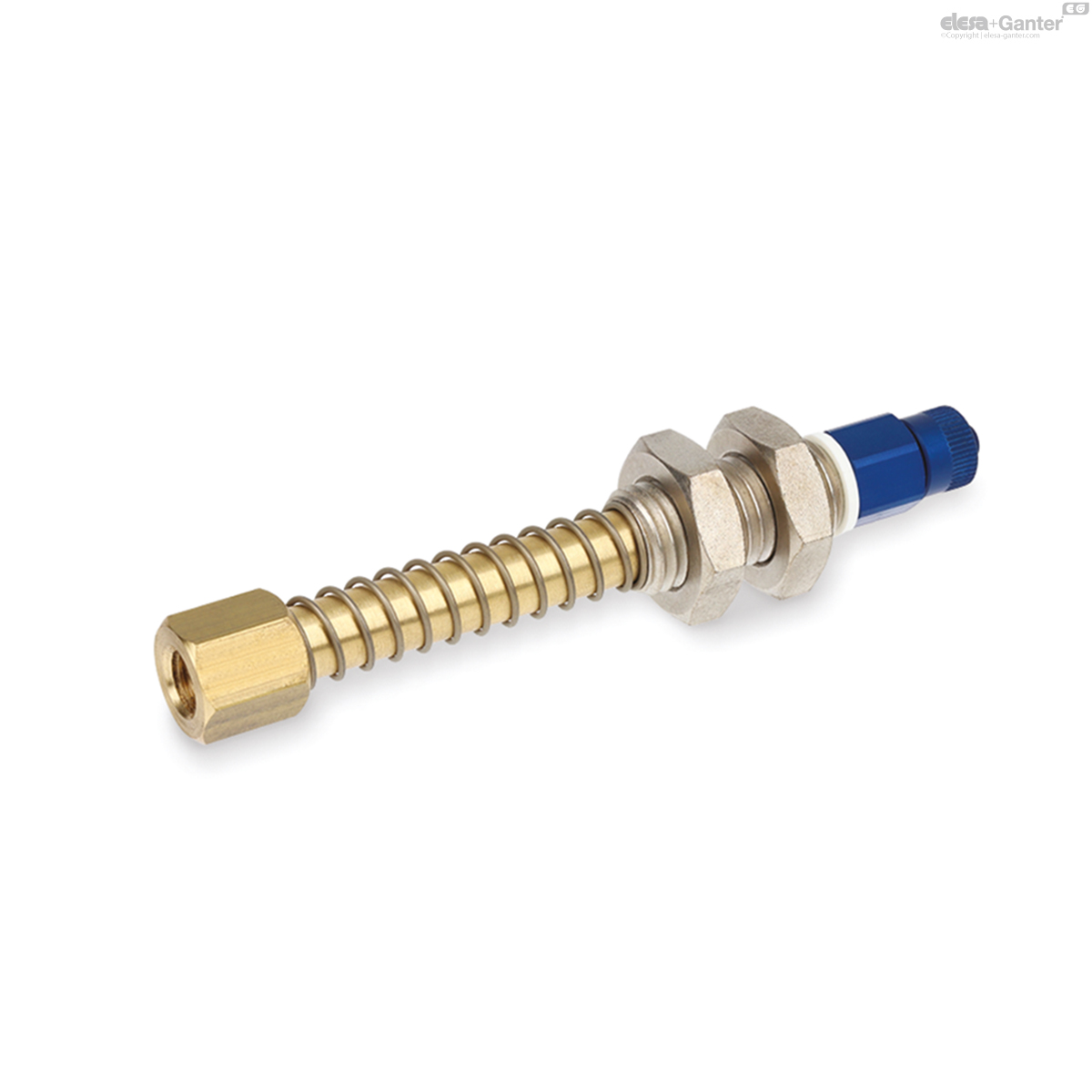

  • VPA-F: with female threaded connection and straight quick fitting.

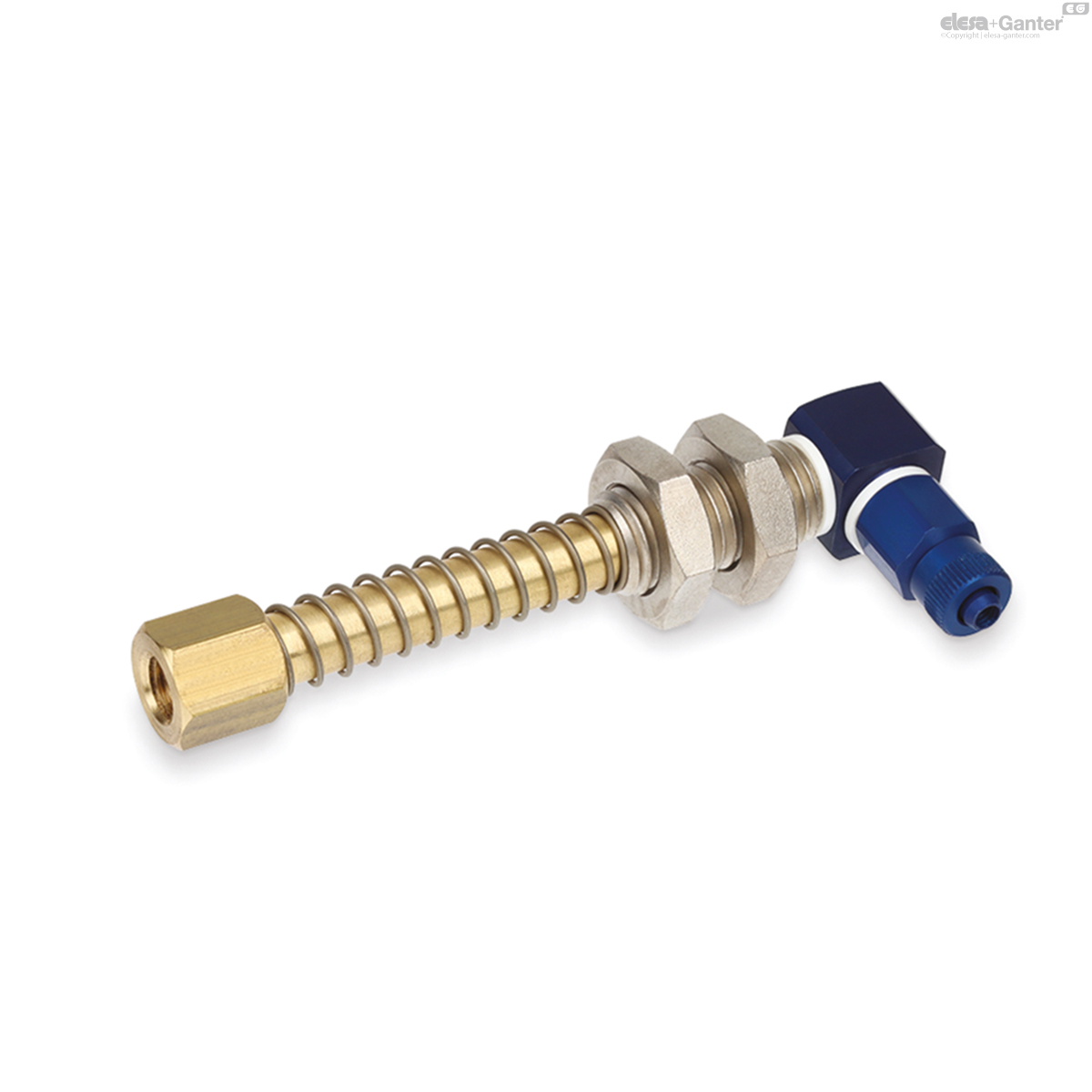

  • VPA-F-L: with female threaded connection and L-shaped quick fitting.

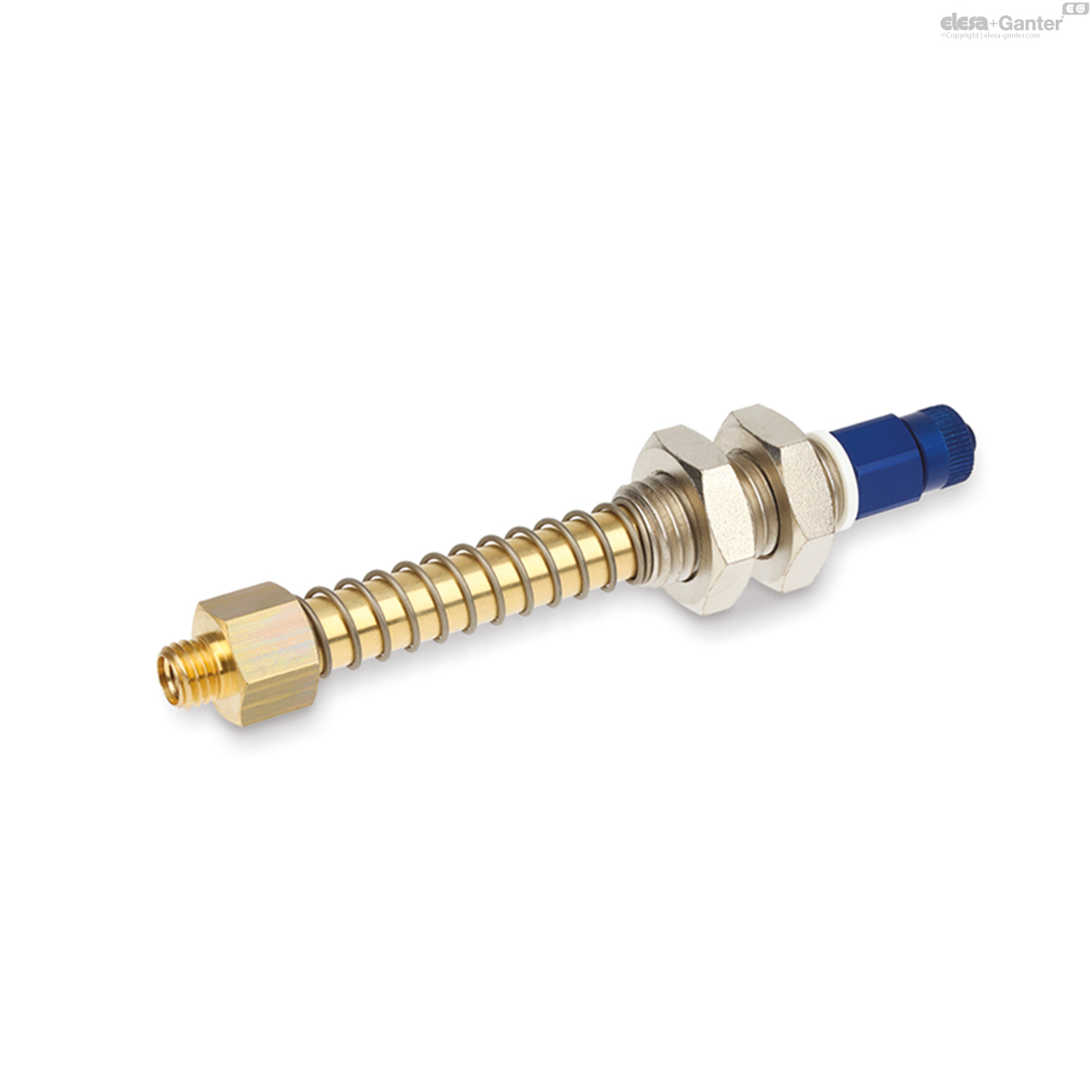

  • VPA-M: with male threaded connection and straight quick fitting.

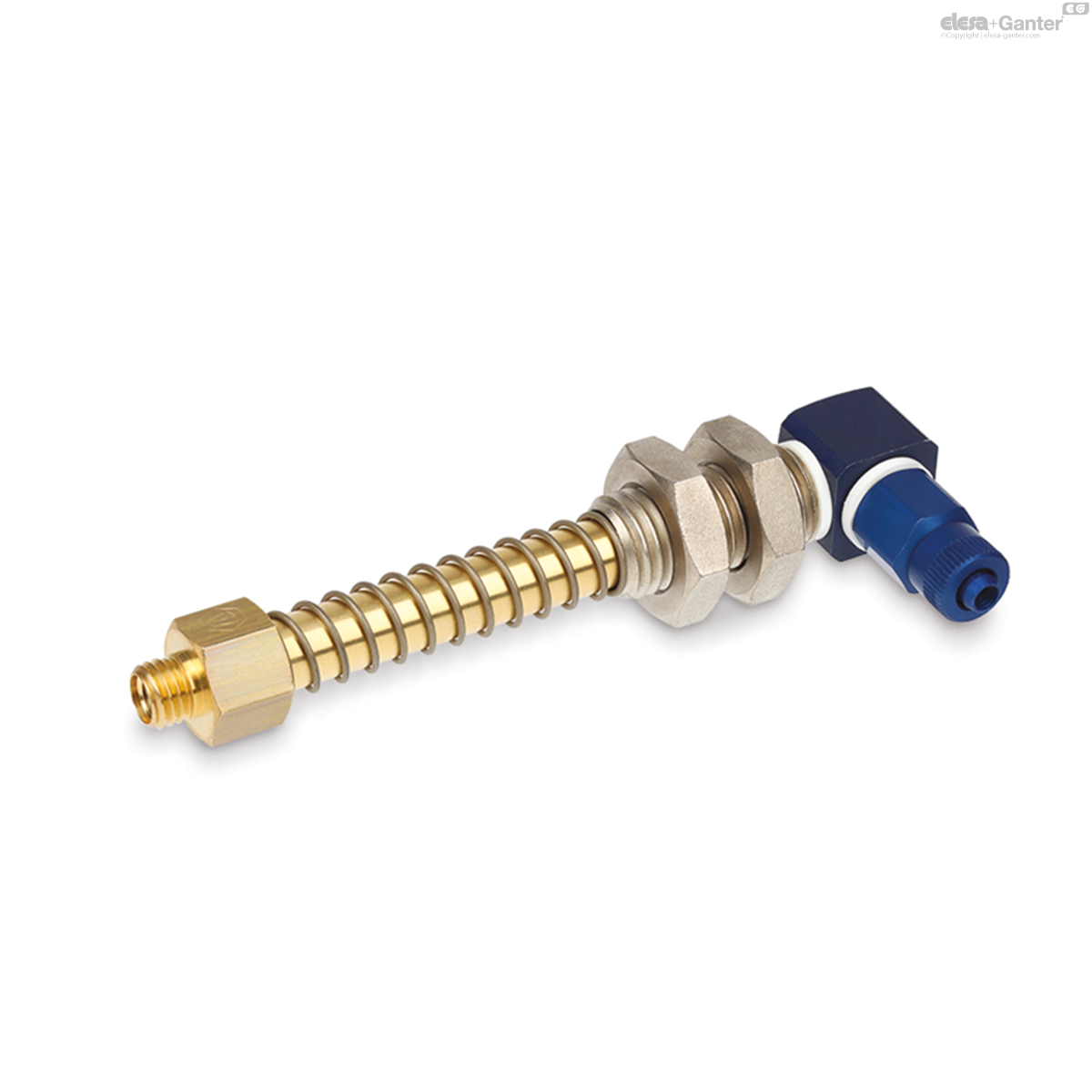

  • VPA-M-L: with male threaded connection and L-shaped quick fitting.
General information

Features

VPA vacuum cup suspensions comprise:

  • a brass stem to fix the vacuum cup;
  • a steel threaded sleeve, equipped with two hexagonal nuts, for quick assembly of the vacuum cup suspension to the automation device;
  • a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;
  • a quick fitting for connection to the suction hose.

The effective spring stroke is functional to the length (l3) of the stem, in particular:

  • 16 mm for a length of 28 mm
  • 49 mm for a length of 65 mm
  • 74 mm for a length of 95 mm

Compatible with 6x8 diameter plastic hose.

See Technical Data for vacuum cups .

VPA-F

d1 d2* d3 l l1 l2 l3 l4 l5 s s1 __logo__weight__
Code Description Actions
VV.39001 VPA-08-28-G1/8-F G1/8 6 M20 115 8 15 28 40 32 17 30 207 cart-icon
VV.39003 VPA-08-65-G1/8-F G1/8 6 M20 152 8 15 65 40 32 17 30 243 cart-icon
VV.39005 VPA-08-95-G1/8-F G1/8 6 M20 182 8 15 95 40 32 17 30 272 cart-icon
VV.39007 VPA-10-28-G1/4-F G1/4 6 M20 120 8 20 28 40 32 17 30 224 cart-icon
VV.39009 VPA-10-65-G1/4-F G1/4 6 M20 157 8 20 65 40 32 17 30 262 cart-icon
VV.39011 VPA-10-95-G1/4-F G1/4 6 M20 187 8 20 95 40 32 17 30 289 cart-icon
VV.39013 VPA-11-28-M12-F M12 6 M20 120 8 20 28 40 32 17 30 226 cart-icon
VV.39015 VPA-11-65-M12-F M12 6 M20 157 8 20 65 40 32 17 30 264 cart-icon
VV.39017 VPA-11-95-M12-F M12 6 M20 187 8 20 95 40 32 17 30 291 cart-icon
VV.39019 VPA-12-28-G3/8-F G3/8 6 M20 125 8 25 28 40 32 17 30 220 cart-icon
VV.39021 VPA-12-65-G3/8-F G3/8 6 M20 162 8 25 65 40 32 17 30 259 cart-icon
VV.39023 VPA-12-95-G3/8-F G3/8 6 M20 192 8 25 95 40 32 17 30 285 cart-icon
