Solid handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Acetal resin based (POM) technopolymer, light-grey colour, push-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VDS.: without handle.
VDS+I: with revolving handle I.621+x in technopolymer.
VDS+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).
VDS+IR: with fold-away handle IR.620 in technopolymer.
VDS+IRS: with safety fold-away handle IRS.820 in technopolymer.

AISI 304 stainless steel boss, H7 reamed hole.

K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

72641-R-K VDS.80-A-8-K

Accessories on request

ECB.D: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VDS.125, VDS.150 and VDS.175 (see table).

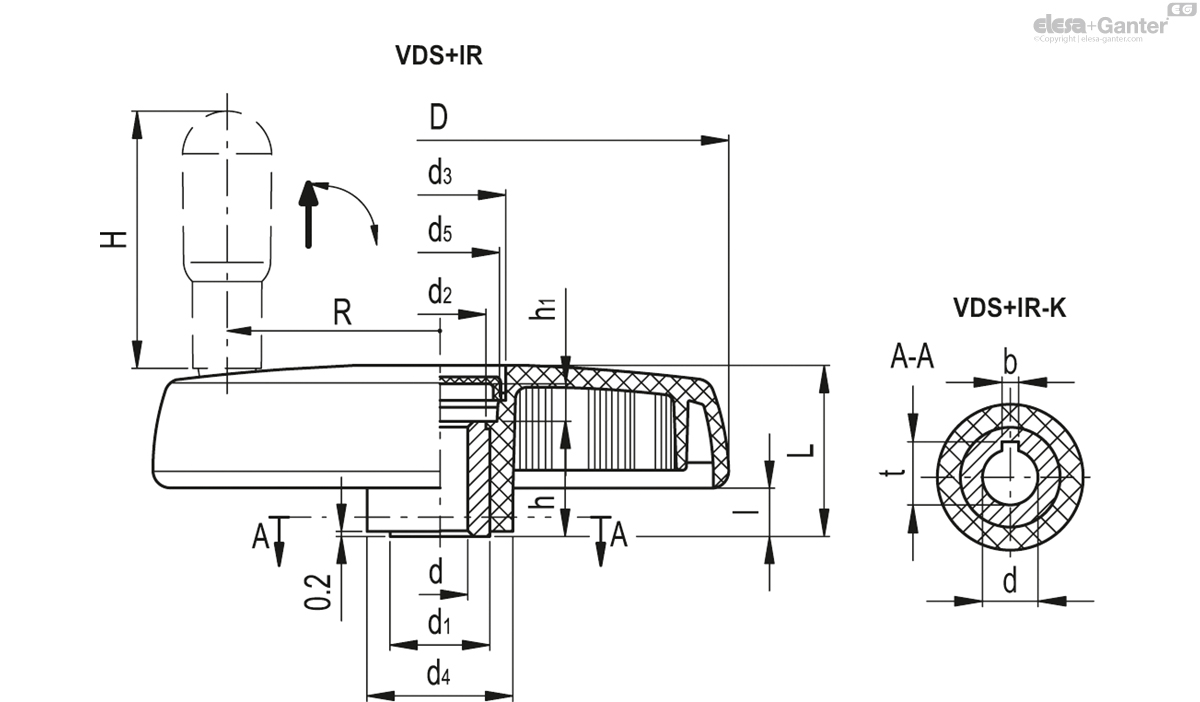

		D	d_H7	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	R	C# [Nm]	L# [J]
Code	Description																	Actions
72656-R	VDS.80+IR-A8	83	8	38	18	16	16.5	25	13.5	18.5	17	3.5	45	28	34	6	117
72657-R	VDS.80+IR-A10	83	10	38	18	16	16.5	25	13.5	18.5	17	3.5	45	28	34	6	112
72680-R	VDS.100+IR-A8	102	8	34	22	20	27	30	25	10	22	9	45	38	60	14	175
72681-R	VDS.100+IR-A10	102	10	34	22	20	27	30	25	10	22	9	45	38	60	14	178
72682-R	VDS.100+IR-A12	102	12	34	22	20	27	30	25	10	22	9	45	38	60	14	174
72683-R	VDS.100+IR-A14	102	14	34	22	20	27	30	25	10	22	9	45	38	60	14	170
72710-R	VDS.125+IR-A8	125	8	39.5	26	24	31	35	28	11	27	11	60	49	125	14	275
72711-R	VDS.125+IR-A12	125	12	39.5	26	24	31	35	28	11	27	11	60	49	125	14	260
72712-R	VDS.125+IR-A14	125	14	39.5	26	24	31	35	28	11	27	11	60	49	125	14	257
72760-R	VDS.150+IR-A8	150	8	44	26	24	34	38	30	12	30	10	65	56.5	180	15	432
72761-R	VDS.150+IR-A14	150	14	44	26	24	34	38	30	12	30	10	65	56.5	180	15	371
72762-R	VDS.150+IR-A16	150	16	44	26	24	34	38	30	12	30	10	65	56.5	180	15	359
72810-R	VDS.175+IR-A8	176	8	49	35	33	39	44	35	12	28	16	80	70	195	20	577
72811-R	VDS.175+IR-A16	176	16	49	35	33	39	44	35	12	28	16	80	70	195	20	546
72812-R	VDS.175+IR-A20	176	20	49	35	33	39	44	35	12	28	16	80	70	195	20	520
72860-R	VDS.200+IR-A8	200	8	53	40	38	44	50	40	14	36	13	90	81	320	27	751
72861-R	VDS.200+IR-A20	200	20	53	40	38	44	50	40	14	36	13	90	81	320	27	758
72862-R	VDS.200+IR-A24	200	24	53	40	38	44	50	40	14	36	13	90	81	320	27	684
72921-R	VDS.250+IR-A20	250	20	60	40	38	50	57	48	17	36	19	90	104	500	30	945
72971-R	VDS.300+IR-A20	300	20	66	40	36.5	68.5	72	66	20	44	20	90	124	500	30	1375

		D	d_H7	d_H9	L	t	b	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	R	C# [Nm]	L# [J]
Code	Description																				Actions
72656-R-K	VDS.80+IR-A8-K	83	8	8	38	9	2	18	16	16.5	25	13.5	18.5	17	3.5	45	28	34	6	116
72657-R-K	VDS.80+IR-A10-K	83	10	10	38	11.4	3	18	16	16.5	25	13.5	18.5	17	3.5	45	28	34	6	110
72680-R-K	VDS.100+IR-A8-K	102	8	8	34	9	2	22	20	27	30	25	10	22	9	45	38	60	14	175
72681-R-K	VDS.100+IR-A10-K	102	10	10	34	11.4	3	22	20	27	30	25	10	22	9	45	38	60	14	178
72682-R-K	VDS.100+IR-A12-K	102	12	12	34	13.8	4	22	20	27	30	25	10	22	9	45	38	60	14	171
72683-R-K	VDS.100+IR-A14-K	102	14	14	34	16.3	5	22	20	27	30	25	10	22	9	45	38	60	14	161
72710-R-K	VDS.125+IR-A8-K	125	8	8	39.5	9	2	26	24	31	35	28	11	27	11	60	49	125	14	307
72711-R-K	VDS.125+IR-A12-K	125	12	12	39.5	13.8	4	26	24	31	35	28	11	27	11	60	49	125	14	259
72712-R-K	VDS.125+IR-A14-K	125	14	14	39.5	16.3	5	26	24	31	35	28	11	27	11	60	49	125	14	252
72760-R-K	VDS.150+IR-A8-K	150	8	8	44	9	2	26	24	34	38	30	12	30	10	65	56.5	180	15	432
72761-R-K	VDS.150+IR-A14-K	150	14	14	44	16.3	5	26	24	34	38	30	12	30	10	65	56.5	180	15	409
72762-R-K	VDS.150+IR-A16-K	150	16	16	44	18.3	5	26	24	34	38	30	12	30	10	65	56.5	180	15	409
72810-R-K	VDS.175+IR-A8-K	176	8	8	49	9	2	35	33	39	44	35	12	28	16	80	70	195	20	577
72811-R-K	VDS.175+IR-A16-K	176	16	16	49	18.3	5	35	33	39	44	35	12	28	16	80	70	195	20	541
72812-R-K	VDS.175+IR-A20-K	176	20	20	49	22.8	6	35	33	39	44	35	12	28	16	80	70	195	20	565
72860-R-K	VDS.200+IR-A8-K	200	8	8	53	9	2	40	38	44	50	40	14	36	13	90	81	320	27	751
72861-R-K	VDS.200+IR-A20-K	200	20	20	53	22.8	6	40	38	44	50	40	14	36	13	90	81	320	27	742
72862-R-K	VDS.200+IR-A24-K	200	24	24	53	27.3	8	40	38	44	50	40	14	36	13	90	81	320	27	751
72921-R-K	VDS.250+IR-A20-K	250	20	20	60	22.8	6	40	38	50	57	48	17	36	19	90	104	500	30	953
72971-R-K	VDS.300+IR-A20-K	300	20	20	66	22.8	6	40	36.5	68.5	72	66	20	44	20	90	124	500	30	1375

		D	d_H7	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	R	C# [Nm]	L# [J]
Code	Description																	Actions
72685-R	VDS.100+IR-SST-10	102	10	34	22	20	27	30	25	10	22	9	45	38	60	14	170
72715-R	VDS.125+IR-SST-12	125	12	42	26	24	31	35	28	11	27	11	60	49	125	14	264
72765-R	VDS.150+IR-SST-14	150	14	44	26	24	34	38	30	12	30	10	65	56.5	180	15	409
72865-R	VDS.200+IR-SST-20	200	20	53	40	38	44	50	40	14	36	13	90	81	320	27	722

		D	d_H7	d_H9	L	t	b	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	R	C# [Nm]	L# [J]
Code	Description																				Actions
72685-R-K	VDS.100+IR-SST-10-K	102	10	10	34	11.4	3	22	20	27	30	25	10	22	9	45	38	60	14	170
72715-R-K	VDS.125+IR-SST-12-K	125	12	12	42	13.8	4	26	24	31	35	28	11	27	11	60	49	125	14	310
72765-R-K	VDS.150+IR-SST-14-K	150	14	14	44	16.3	5	26	24	34	38	30	12	30	10	65	56.5	180	15	370
72865-R-K	VDS.200+IR-SST-20-K	200	20	20	53	22.8	6	40	38	44	50	40	14	36	13	90	81	320	27	751
