Solid handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Acetal resin based (POM) technopolymer, light-grey colour, push-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VDS.: without handle.
VDS+I: with revolving handle I.621+x in technopolymer.
VDS+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).
VDS+IR: with fold-away handle IR.620 in technopolymer.
VDS+IRS: with safety fold-away handle IRS.820 in technopolymer.

AISI 304 stainless steel boss, H7 reamed hole.

K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

72641-R-K VDS.80-A-8-K

Accessories on request

ECB.D: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VDS.125, VDS.150 and VDS.175 (see table).

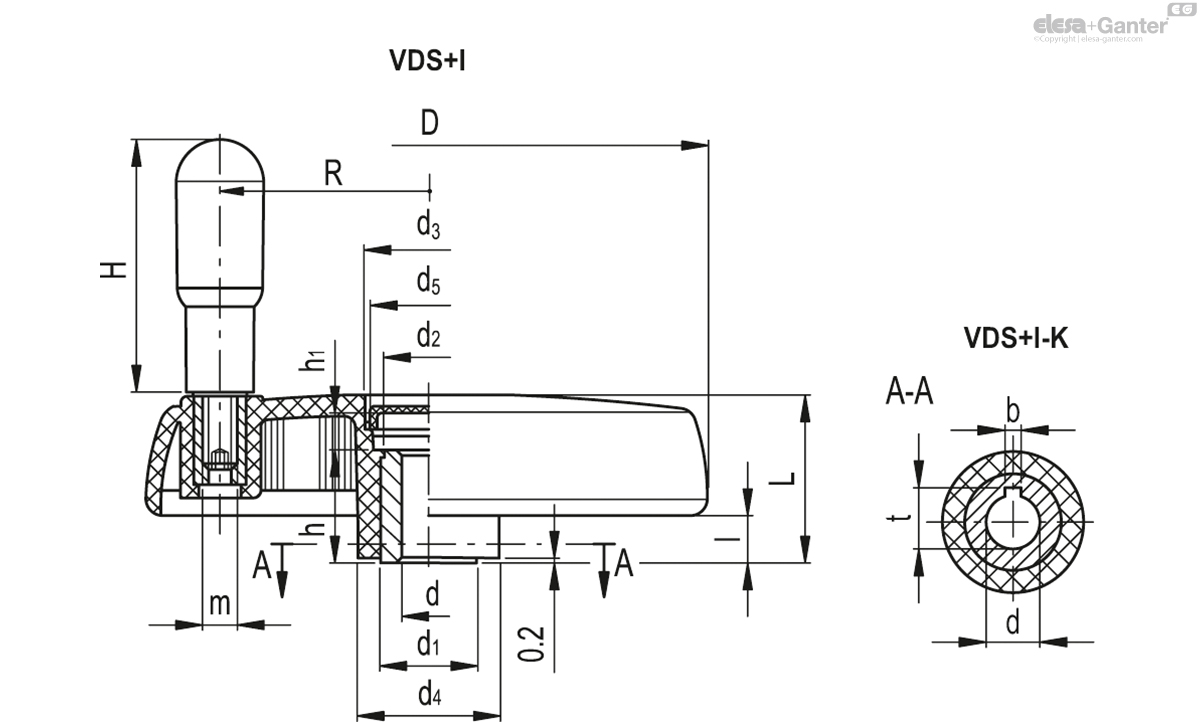

		D	d_H7	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	m	R	C# [Nm]	L# [J]
Code	Description																		Actions
72651-R	VDS.80+I-A8	83	8	29	18	16	21	26	19	9	17	8	45	M6	30.5	34	6	114
72652-R	VDS.80+I-A10	83	10	29	18	16	21	26	19	9	17	8	45	M6	30.5	34	6	111
72670-R	VDS.100+I-A8	102	8	34	22	20	27	30	25	10	22	9	60	M6	38	60	13	181
72671-R	VDS.100+I-A10	102	10	34	22	20	27	30	25	10	22	9	60	M6	38	60	13	175
72672-R	VDS.100+I-A12	102	12	34	22	20	27	30	25	10	22	9	60	M6	38	60	13	169
72700-R	VDS.125+I-A8	125	8	39.5	26	24	31	35	28	11	27	11	60	M6	49	125	25	268
72701-R	VDS.125+I-A12	125	12	39.5	26	24	31	35	28	11	27	11	60	M6	49	125	25	249
72702-R	VDS.125+I-A14	125	14	39.5	26	24	31	35	28	11	27	11	60	M6	49	125	25	258
72750-R	VDS.150+I-A8	150	8	44	26	24	34	38	30	12	30	10	65	M8	56.5	180	26	396
72751-R	VDS.150+I-A14	150	14	44	26	24	34	38	30	12	30	10	65	M8	56.5	180	26	367
72752-R	VDS.150+I-A16	150	16	44	26	24	34	38	30	12	30	10	65	M8	56.5	180	26	353
72800-R	VDS.175+I-A8	176	8	49	35	33	39	44	35	12	28	16	80	M10	70	195	26	500
72801-R	VDS.175+I-A16	176	16	49	35	33	39	44	35	12	28	16	80	M10	70	195	26	514
72802-R	VDS.175+I-A20	176	20	49	35	33	39	44	35	12	28	16	80	M10	70	195	26	510
72850-R	VDS.200+I-A8	200	8	53	40	38	44	50	40	14	36	13	90	M10	81	320	27	674
72851-R	VDS.200+I-A20	200	20	53	40	38	44	50	40	14	36	13	90	M10	81	320	27	674
72852-R	VDS.200+I-A24	200	24	53	40	38	44	50	40	14	36	13	90	M10	81	320	27	634
72911-R	VDS.250+I-A20	250	20	60	40	38	50	57	48	17	36	19	90	M10	104	500	30	934
72961-R	VDS.300+I-A20	300	20	66	40	36.5	68.5	72	66	20	44	20	90	M10	124	500	30	1255

		D	d_H7	d_H9	L	t	d₁	b	d₂	d₃	d₄	d₅	l	h	h₁	H	m	R	C# [Nm]	L# [J]
Code	Description																					Actions
72651-R-K	VDS.80+I-A8-K	83	8	8	29	9	18	2	16	21	26	19	9	17	8	45	M6	30.5	34	6	102
72652-R-K	VDS.80+I-A10-K	83	10	10	29	11.4	18	3	16	21	26	19	9	17	8	45	M6	30.5	34	6	106
72670-R-K	VDS.100+I-A8-K	102	8	8	34	9	22	2	20	27	30	25	10	22	9	60	M6	38	60	13	173
72671-R-K	VDS.100+I-A10-K	102	10	10	34	11.4	22	3	20	27	30	25	10	22	9	60	M6	38	60	13	230
72672-R-K	VDS.100+I-A12-K	102	12	12	34	13.8	22	4	20	27	30	25	10	22	9	60	M6	38	60	13	167
72700-R-K	VDS.125+I-A8-K	125	8	8	39.5	9	26	2	24	31	35	28	11	27	11	60	M6	49	125	25	268
72701-R-K	VDS.125+I-A12-K	125	12	12	39.5	13.8	26	4	24	31	35	28	11	27	11	60	M6	49	125	25	268
72702-R-K	VDS.125+I-A14-K	125	14	14	39.5	16.3	26	5	24	31	35	28	11	27	11	60	M6	49	125	25	268
72750-R-K	VDS.150+I-A8-K	150	8	8	44	9	26	2	24	34	38	30	12	30	10	65	M8	56.5	180	26	396
72751-R-K	VDS.150+I-A14-K	150	14	14	44	16.3	26	5	24	34	38	30	12	30	10	65	M8	56.5	180	26	362
72752-R-K	VDS.150+I-A16-K	150	16	16	44	18.3	26	5	24	34	38	30	12	30	10	65	M8	56.5	180	26	353
72800-R-K	VDS.175+I-A8-K	176	8	8	49	9	35	2	33	39	44	35	12	28	16	80	M10	70	195	26	500
72801-R-K	VDS.175+I-A16-K	176	16	16	49	18.3	35	5	33	39	44	35	12	28	16	80	M10	70	195	26	500
72802-R-K	VDS.175+I-A20-K	176	20	20	49	22.8	35	6	33	39	44	35	12	28	16	80	M10	70	195	26	488
72850-R-K	VDS.200+I-A8-K	200	8	8	53	9	40	2	38	44	50	40	14	36	13	90	M10	81	320	27	674
72851-R-K	VDS.200+I-A20-K	200	20	20	53	22.8	40	6	38	44	50	40	14	36	13	90	M10	81	320	27	674
72852-R-K	VDS.200+I-A24-K	200	24	24	53	27.3	40	8	38	44	50	40	14	36	13	90	M10	81	320	27	674
72911-R-K	VDS.250+I-A20-K	250	20	20	60	22.8	40	6	38	50	57	48	17	36	19	90	M10	104	500	30	934
72961-R-K	VDS.300+I-A20-K	300	20	20	66	22.8	40	6	36.5	68.5	72	66	20	44	20	90	M10	124	500	30	1255

		D	d_H7	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	H	m	R	C# [Nm]	L# [J]
Code	Description																		Actions
72675-R	VDS.100+I-SST-10	102	10	34	22	20	27	30	25	10	22	9	60	M6	38	60	13	173
72705-R	VDS.125+I-SST-12	125	12	42	26	24	31	35	28	11	27	11	60	M6	49	125	25	268
72755-R	VDS.150+I-SST-14	150	14	44	26	24	34	38	30	12	30	10	65	M8	56.5	180	26	370
72855-R	VDS.200+I-SST-20	200	20	53	40	38	44	50	40	14	36	13	90	M10	81	320	27	684

		D	d_H7	d_H9	L	t	d₁	b	d₂	d₃	d₄	d₅	l	h	h₁	H	m	R	C# [Nm]	L# [J]
Code	Description																					Actions
72675-R-K	VDS.100+I-SST-10-K	102	10	10	34	11.4	22	3	20	27	30	25	10	22	9	60	M6	38	60	13	173
72705-R-K	VDS.125+I-SST-12-K	125	12	12	42	13.8	26	4	24	31	35	28	11	27	11	60	M6	49	125	25	247
72755-R-K	VDS.150+I-SST-14-K	150	14	14	44	16.3	26	5	24	34	38	30	12	30	10	65	M8	56.5	180	26	370
72855-R-K	VDS.200+I-SST-20-K	200	20	20	53	22.8	40	6	38	44	50	40	14	36	13	90	M10	81	320	27	674
