VDSC-XX

Handwheels for positions indicators

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Boss H7 reamed through hole.

VDSC-GXX+I: with revolving handle I.621+x in polyamide based (PA) technopolymer, black colour, matte finish.

Black-oxide steel boss.

VDSC-GXX-SST+I: with revolving handle I.621+x-SST in polyamide based (PA) technopolymer, black colour, matte finish.

AISI 303 stainless steel boss.

VDSC-GXX+IR: with fold-away handle IR.620 in polyamide based (PA) technopolymer, black colour, matte finish.

Black-oxide steel boss.

VDSC-GXX-SST+IR: with fold-away handle IR.620-SST in polyamide based (PA) technopolymer, black colour, matte finish.

AISI 303 stainless steel boss.

General information

VDSC-XX solid handwheels can be used with analogue and digital-analogue gravity indicators.

To choose the indicator see the table below for possible assembly with indicators.

See also Assembly instructions for gravity indicators type G.

Accessories on request

Cover CP-XXfor fitting instead of the indicator.

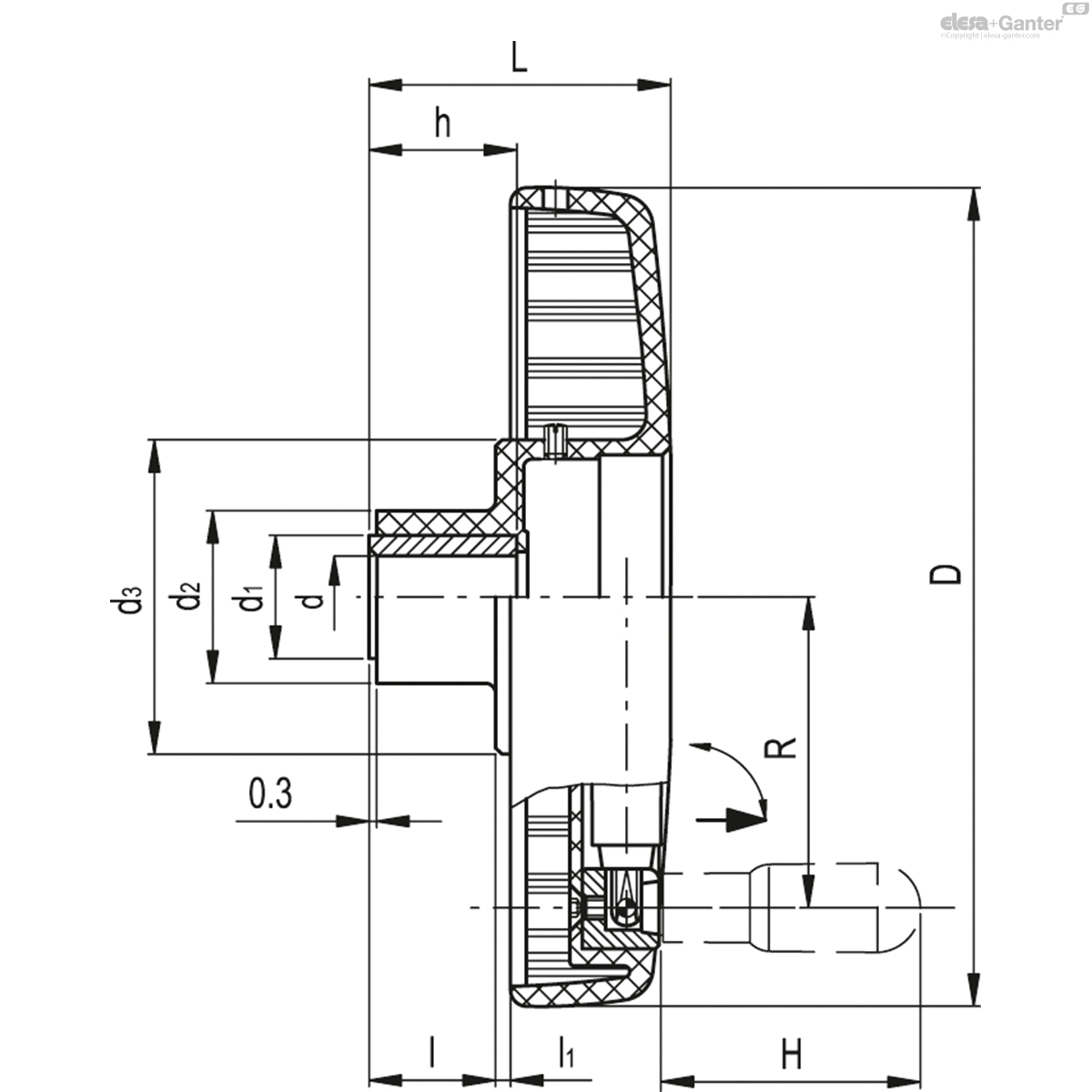

		D	L	d_H7	h	d₁	d₂	d₃	l	l₁	H	R		Handwheel indicator combinations
Code	Description														Actions
CE.34001	VDSC.125-GXX1 A-8+IR	125	59.5	8	22	22	34	57.5	22	11	45	46	290	GA01 - GA11
CE.34005	VDSC.125-GXX1 A-10+IR	125	59.5	10	22	22	34	57.5	22	11	45	46	290	GA01 - GA11
CE.34045	VDSC.160-GXX2 A-10+IR	160	66	10	30	26	38.5	77	25.5	7.5	60	63	455	GA02 - GA12 - GW12
CE.34051	VDSC.160-GXX2 A-12+IR	160	66	12	30	26	38.5	77	25.5	7.5	60	63	444	GA02 - GA12 - GW12
CE.34085	VDSC.200-GXX2 A-16+IR	200	77	16	36	40	49	77	35	4	80	77	833	GA02 - GA12 - GW12
CE.34091	VDSC.200-GXX2 A-20+IR	200	77	20	36	40	49	77	35	4	80	77	801	GA02 - GA12 - GW12
