VDS.

Solid handwheels

Technopolymer

Enquire Now

Description

Main specifications

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Acetal resin based (POM) technopolymer, light-grey colour, push-fit assembly.

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

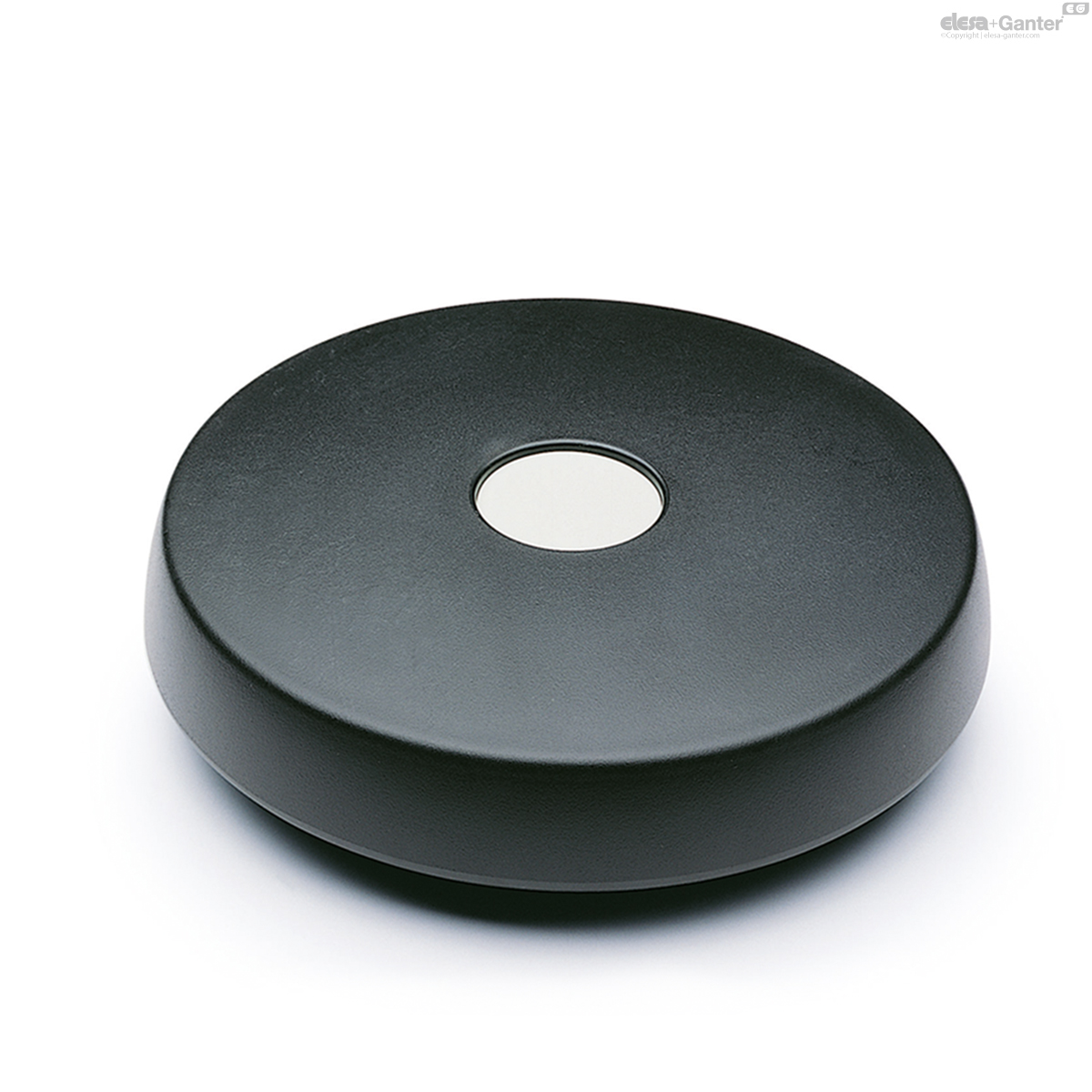

VDS.: without handle.

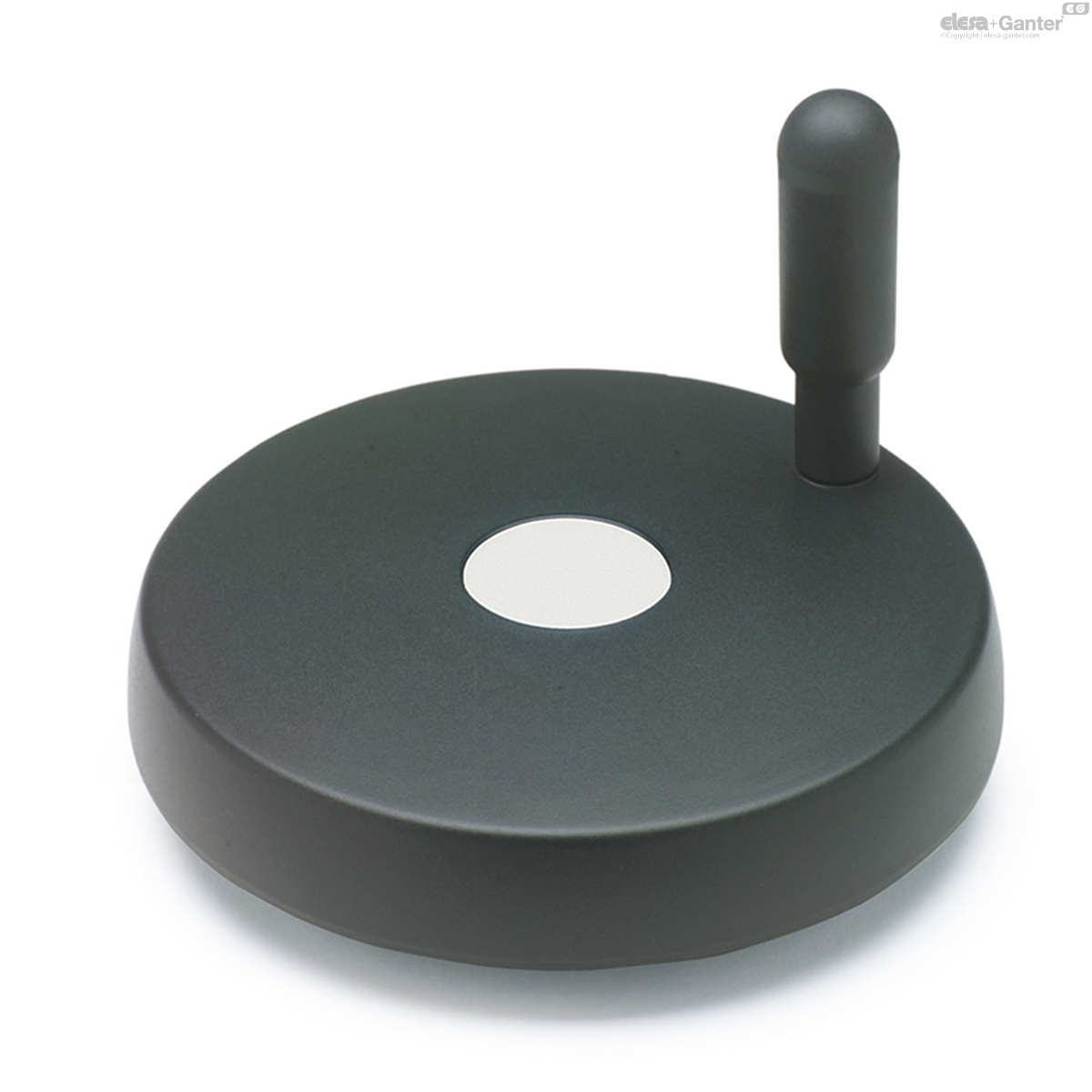

VDS+I: with revolving handle I.621+x in technopolymer.

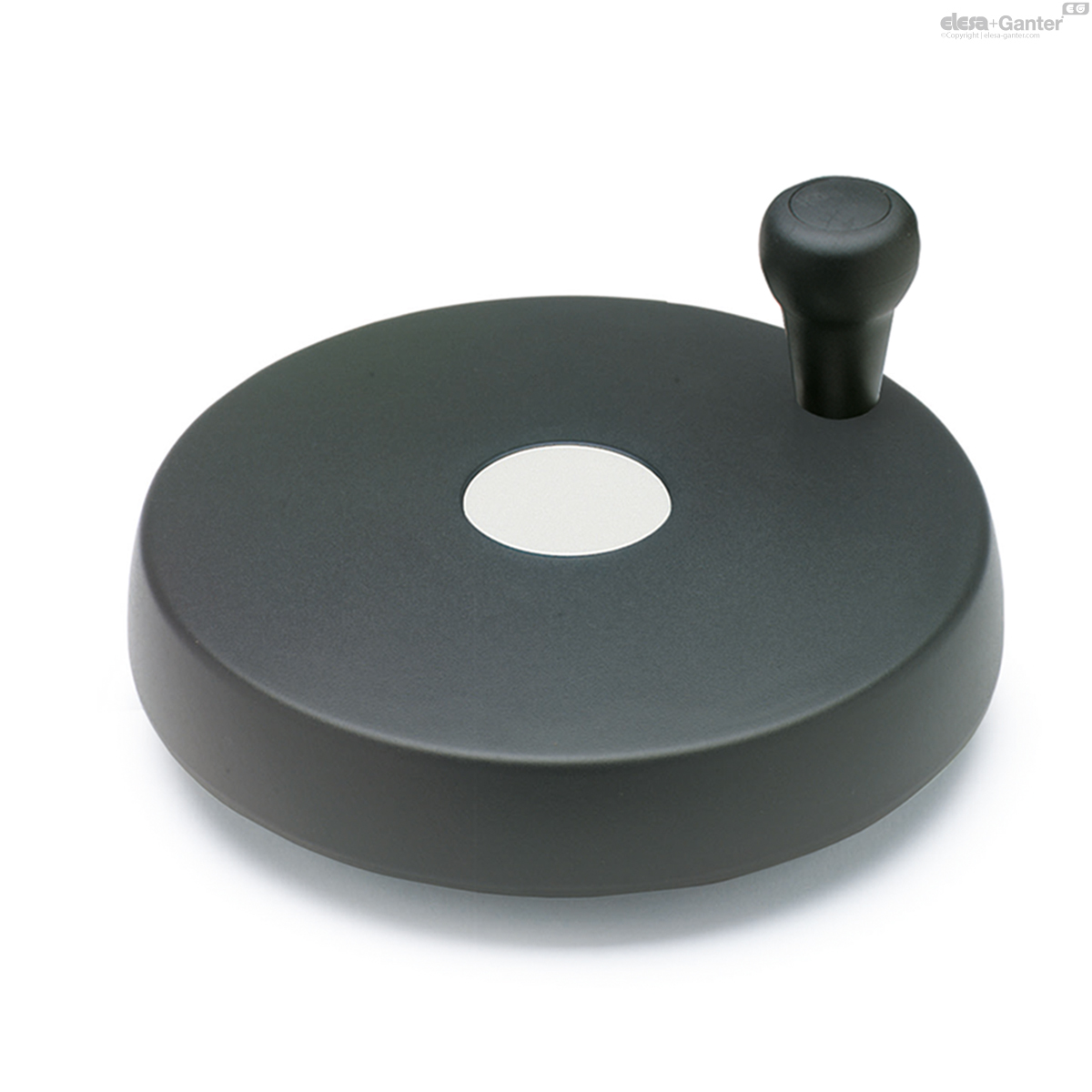

VDS+IEL: with revolving handle IEL+x SOFT in technopolymer coated with 'Soft-touch' thermoplastic elastomer (TPE).

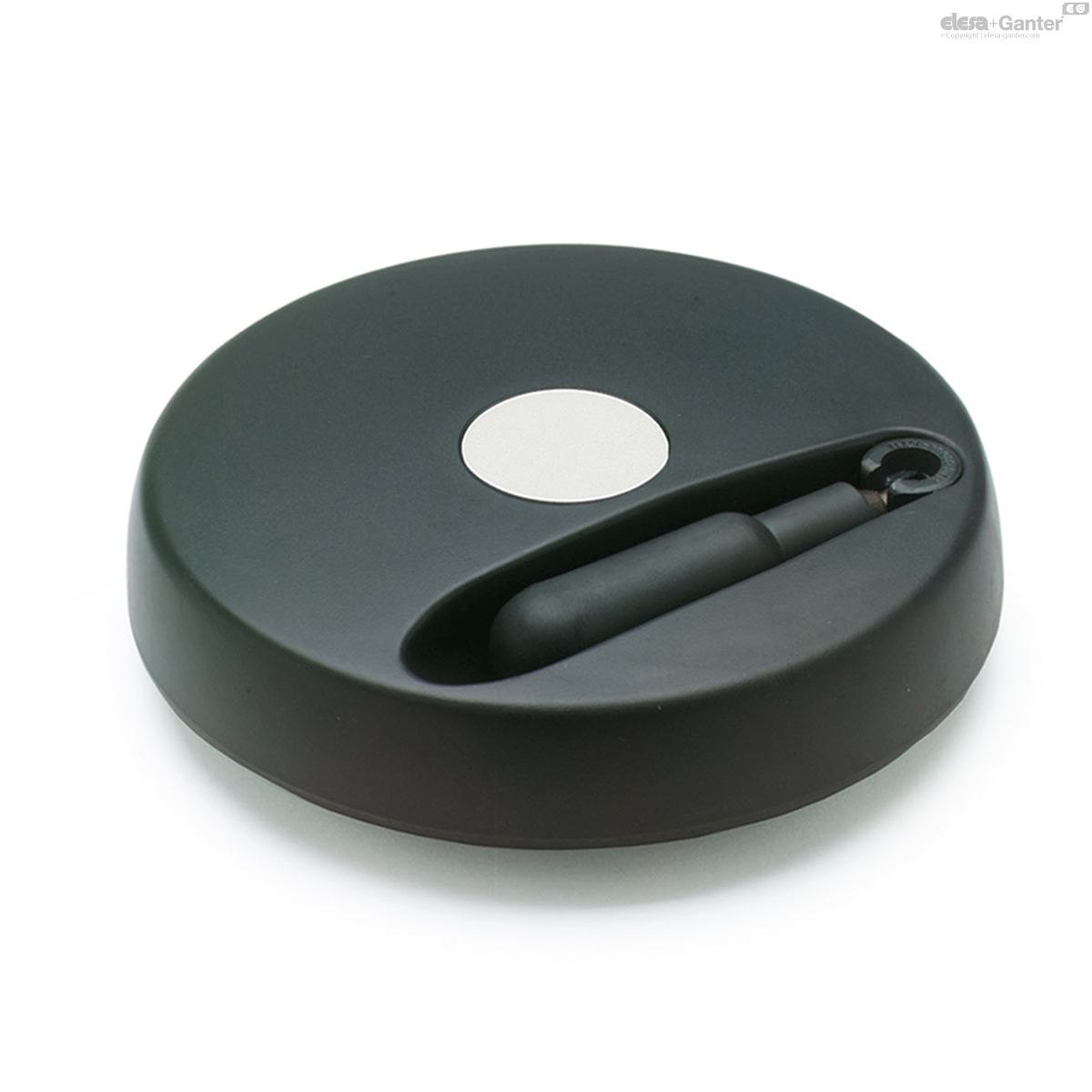

VDS+IR: with fold-away handle IR.620 in technopolymer.

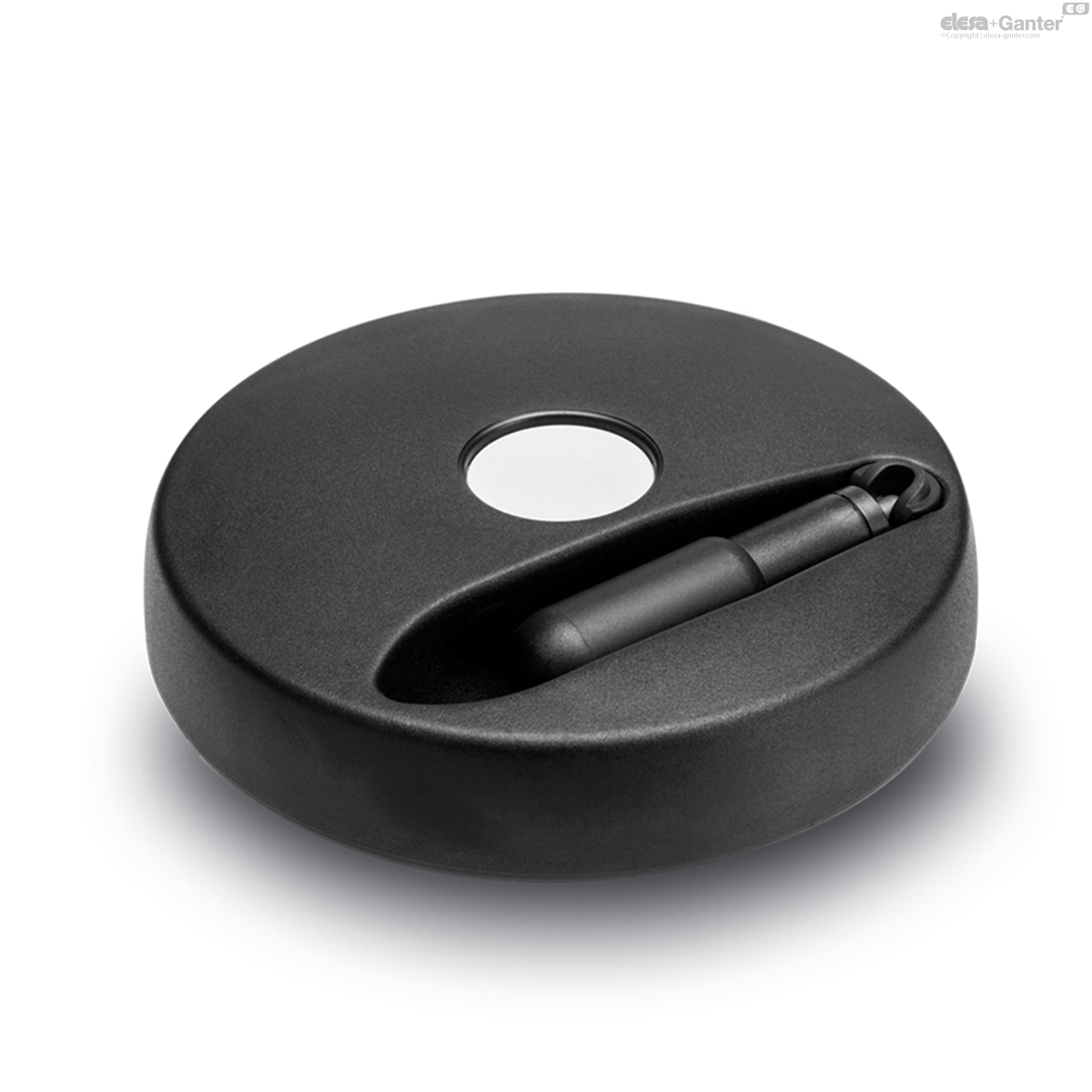

VDS+IRS: with safety fold-away handle IRS.820 in technopolymer.

AISI 304 stainless steel boss, H7 reamed hole.

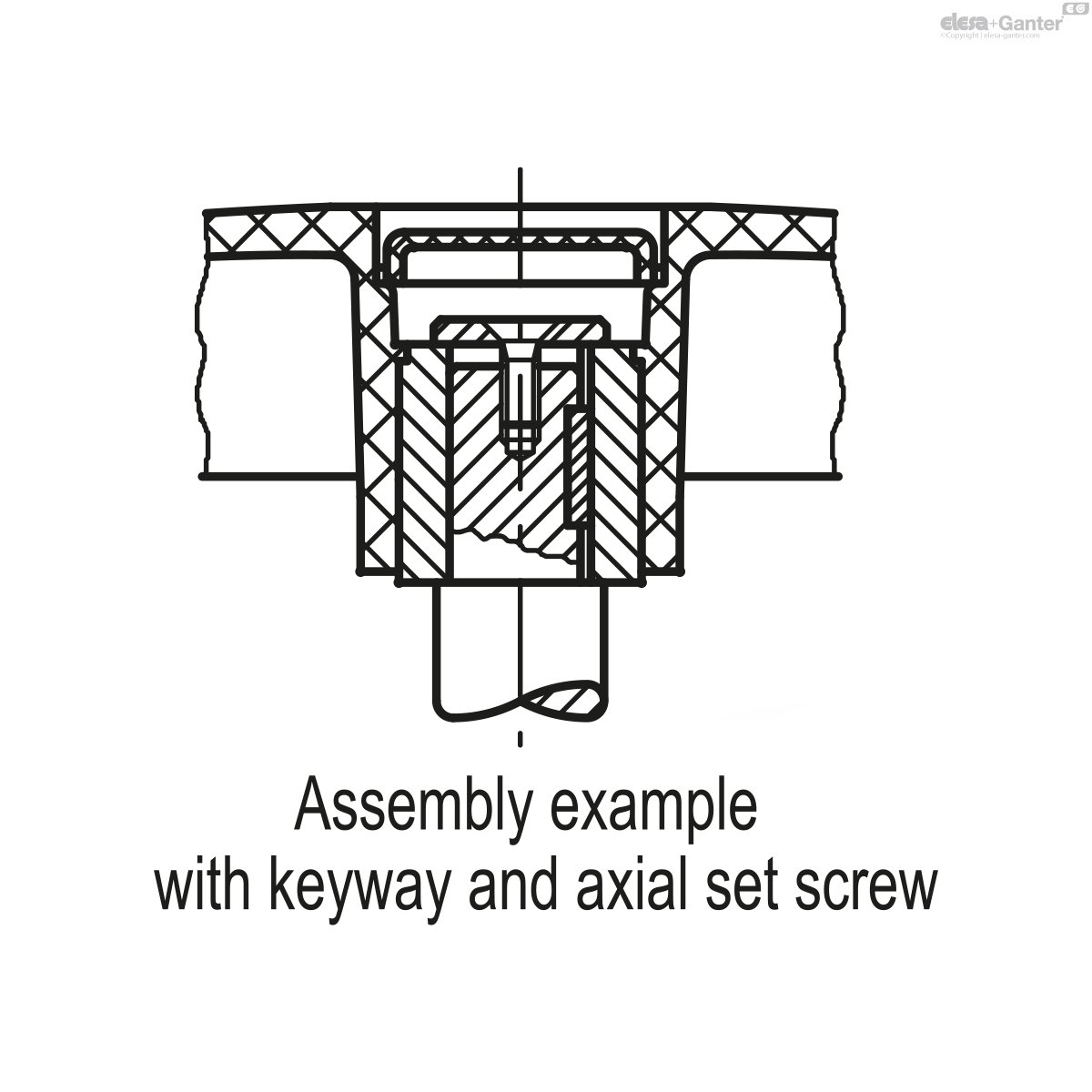

K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

72641-R-K VDS.80-A-8-K

Accessories on request

ECB.D: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VDS.125, VDS.150 and VDS.175 (see table).

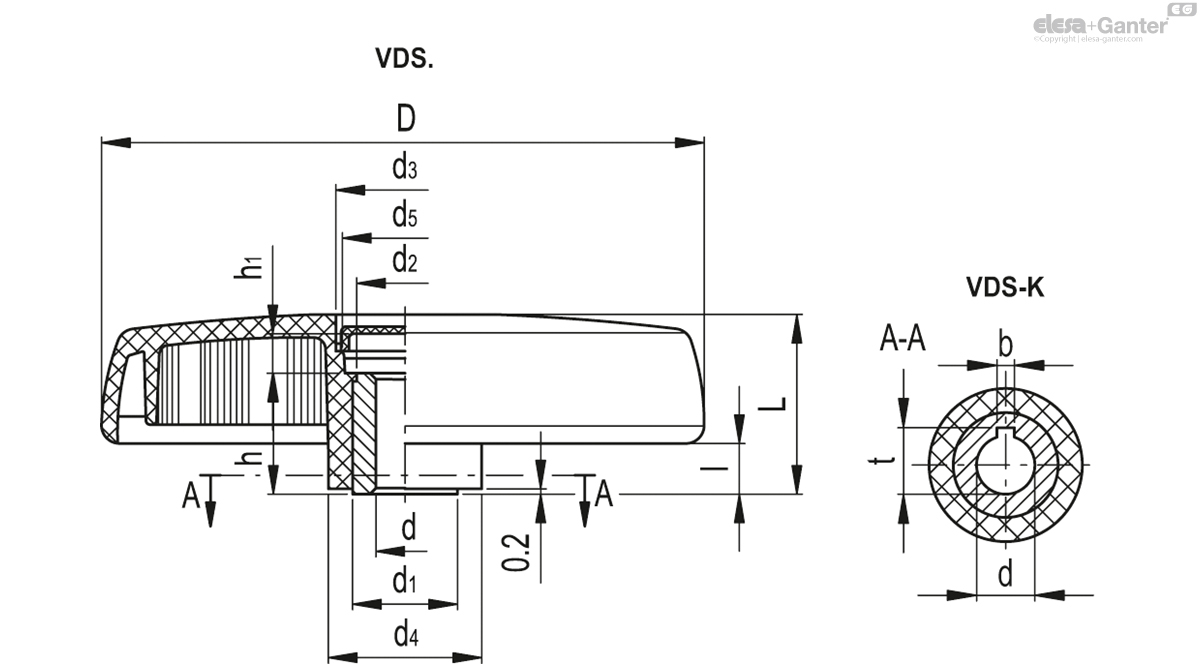

		D	d_H7	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	C# [Nm]	L# [J]
Code	Description															Actions
72641-R	VDS.80-A8	83	8	29	18	16	21	26	19	9	17	8	34	6	80
72642-R	VDS.80-A10	83	10	29	18	16	21	26	19	9	17	8	34	6	75
72660-R	VDS.100-A8	102	8	34	22	20	27	30	25	10	22	9	60	13	134
72661-R	VDS.100-A10	102	10	34	22	20	27	30	25	10	22	9	60	13	131
72662-R	VDS.100-A12	102	12	34	22	20	27	30	25	10	22	9	60	13	124
72740-R	VDS.150-A8	150	8	44	26	24	34	38	30	12	30	10	180	26	315
72741-R	VDS.150-A14	150	14	44	26	24	34	38	30	12	30	10	180	26	267
72840-R	VDS.200-A8	200	8	53	40	38	44	50	40	14	36	13	320	27	660
72841-R	VDS.200-A20	200	20	53	40	38	44	50	40	14	36	13	320	27	584

		D	d_H7	d_H9	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	t	b	C# [Nm]	L# [J]
Code	Description																		Actions
72641-R-K	VDS.80-A8-K	83	8	8	29	18	16	21	26	19	9	17	8	9	2	34	6	77
72642-R-K	VDS.80-A10-K	83	10	10	29	18	16	21	26	19	9	17	8	11.4	3	34	6	75
72660-R-K	VDS.100-A8-K	102	8	8	34	22	20	27	30	25	10	22	9	9	2	60	13	134
72661-R-K	VDS.100-A10-K	102	10	10	34	22	20	27	30	25	10	22	9	11.4	3	60	13	140
72662-R-K	VDS.100-A12-K	102	12	12	34	22	20	27	30	25	10	22	9	13.8	4	60	13	135
72740-R-K	VDS.150-A8-K	150	8	8	44	26	24	34	38	30	12	30	10	9	2	180	26	315
72741-R-K	VDS.150-A14-K	150	14	14	44	26	24	34	38	30	12	30	10	16.3	5	180	26	284
72840-R-K	VDS.200-A8-K	200	8	8	53	40	38	44	50	40	14	36	13	9	2	320	27	660
72841-R-K	VDS.200-A20-K	200	20	20	53	40	38	44	50	40	14	36	13	22.8	6	320	27	625

		D	d_H7	d_H9	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	C# [Nm]	L# [J]
Code	Description																Actions
72665-R	VDS.100-SST-10	102	10	10	34	22	20	27	30	25	10	22	9	60	13	140
72745-R	VDS.150-SST-14	150	14	14	44	26	24	34	38	30	12	30	10	180	26	296
72845-R	VDS.200-SST-20	200	20	20	53	40	38	44	50	40	14	36	13	320	27	625

		D	d_H7	d_H9	L	d₁	d₂	d₃	d₄	d₅	l	h	h₁	t	b	C# [Nm]	L# [J]
Code	Description																		Actions
72665-R-K	VDS.100-SST-10-K	102	10	10	34	22	20	27	30	25	10	22	9	11.4	3	60	13	140
72745-R-K	VDS.150-SST-14-K	150	14	14	44	26	24	34	38	30	12	30	10	16.3	5	180	26	296
72845-R-K	VDS.200-SST-20-K	200	20	20	53	40	38	44	50	40	14	36	13	22.8	6	320	27	625
