Home Rotary Controls Handwheels with indicator VDC-XX

VDC-XX

Handwheels for positions indicators

Duroplast

Enquire Now

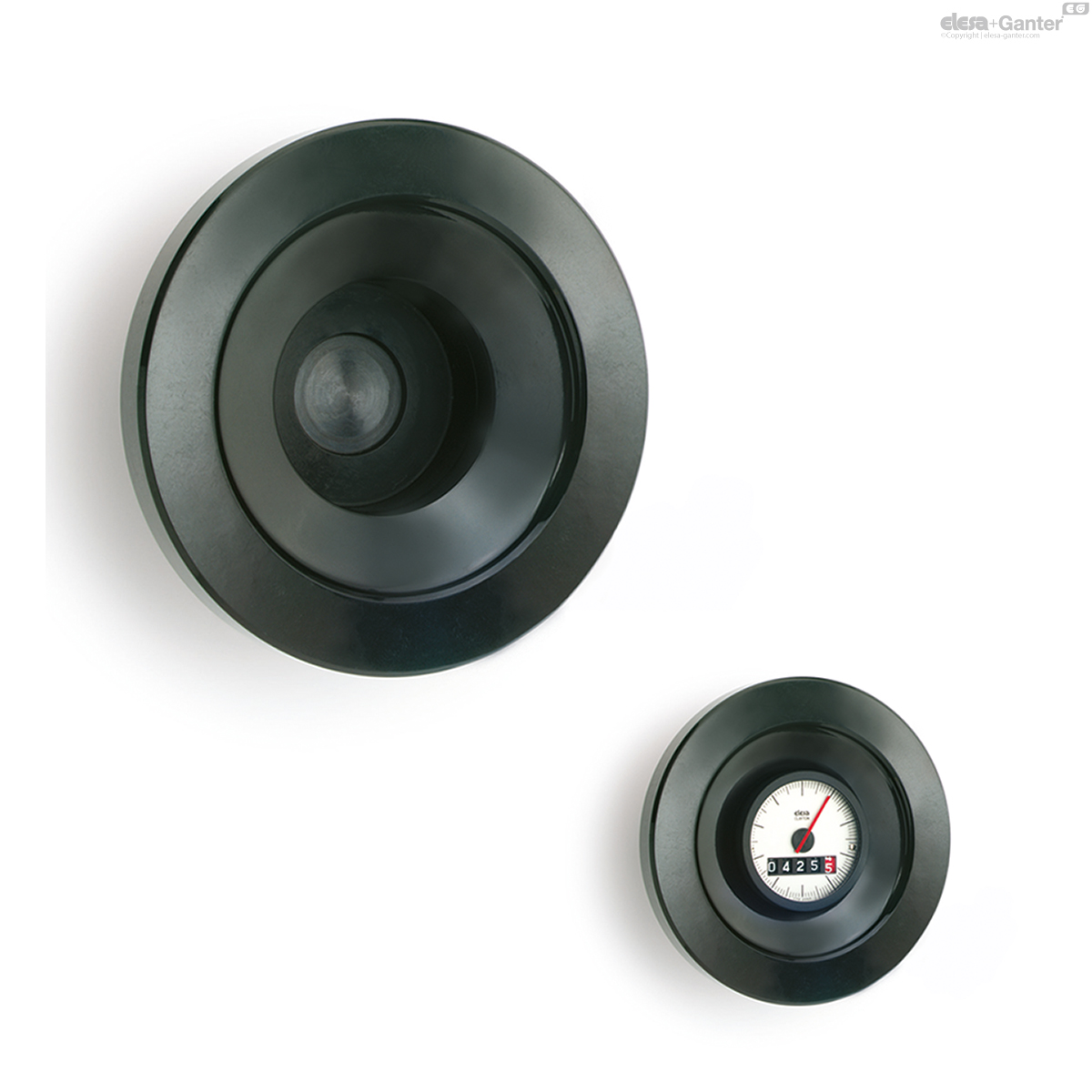

VDC-GXX

Handwheels for positions indicators

For gravity drive indicators, without handle

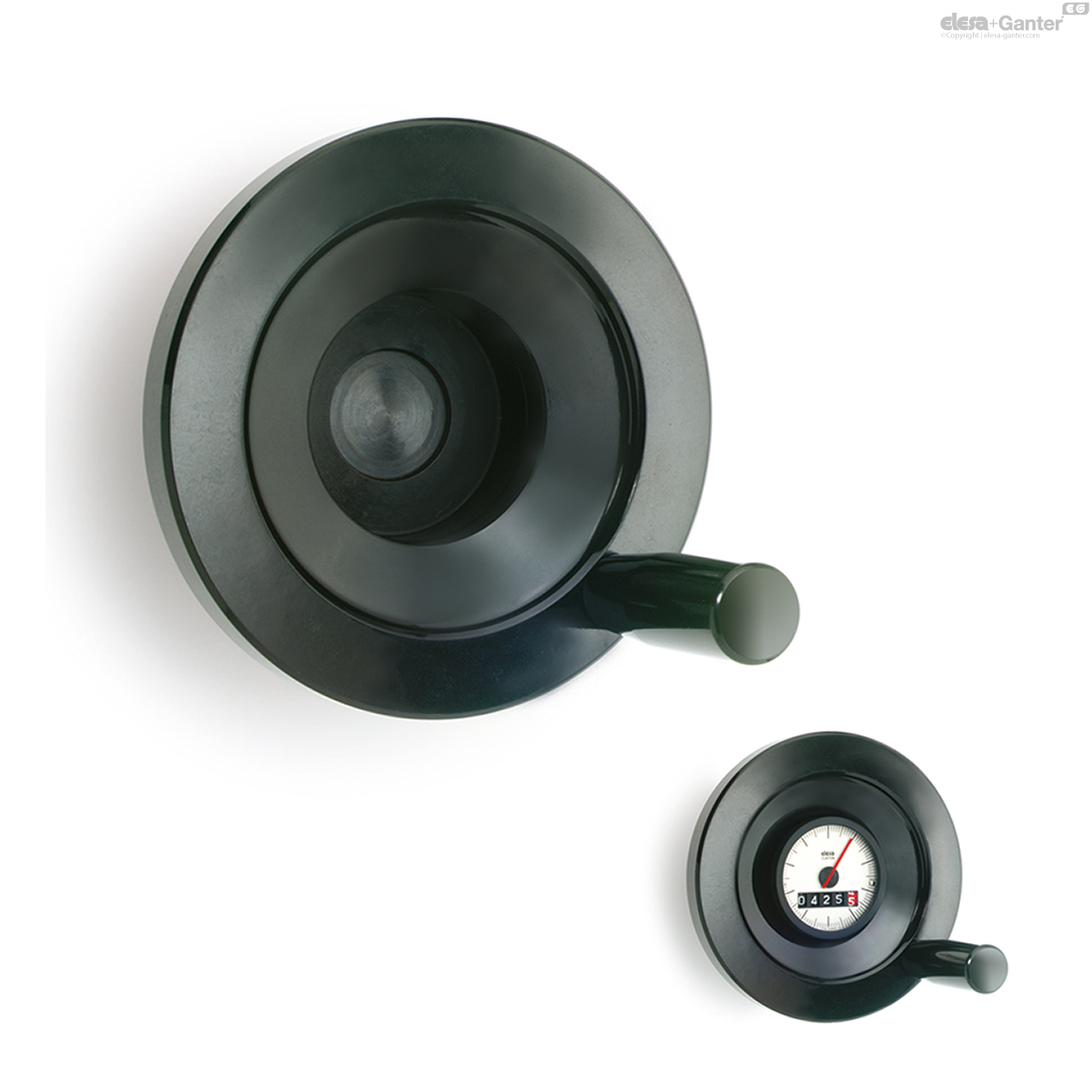

VDC-GXX+I

Handwheels for positions indicators

For gravity drive indicators, with revolving handle

VDC-PXX+I

Handwheels for positions indicators

For positive drive indicators, with revolving handle

Description

General information

Material

High-resistance reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

Black-oxide steel hub.

VDC-GXX: for gravity indicators.

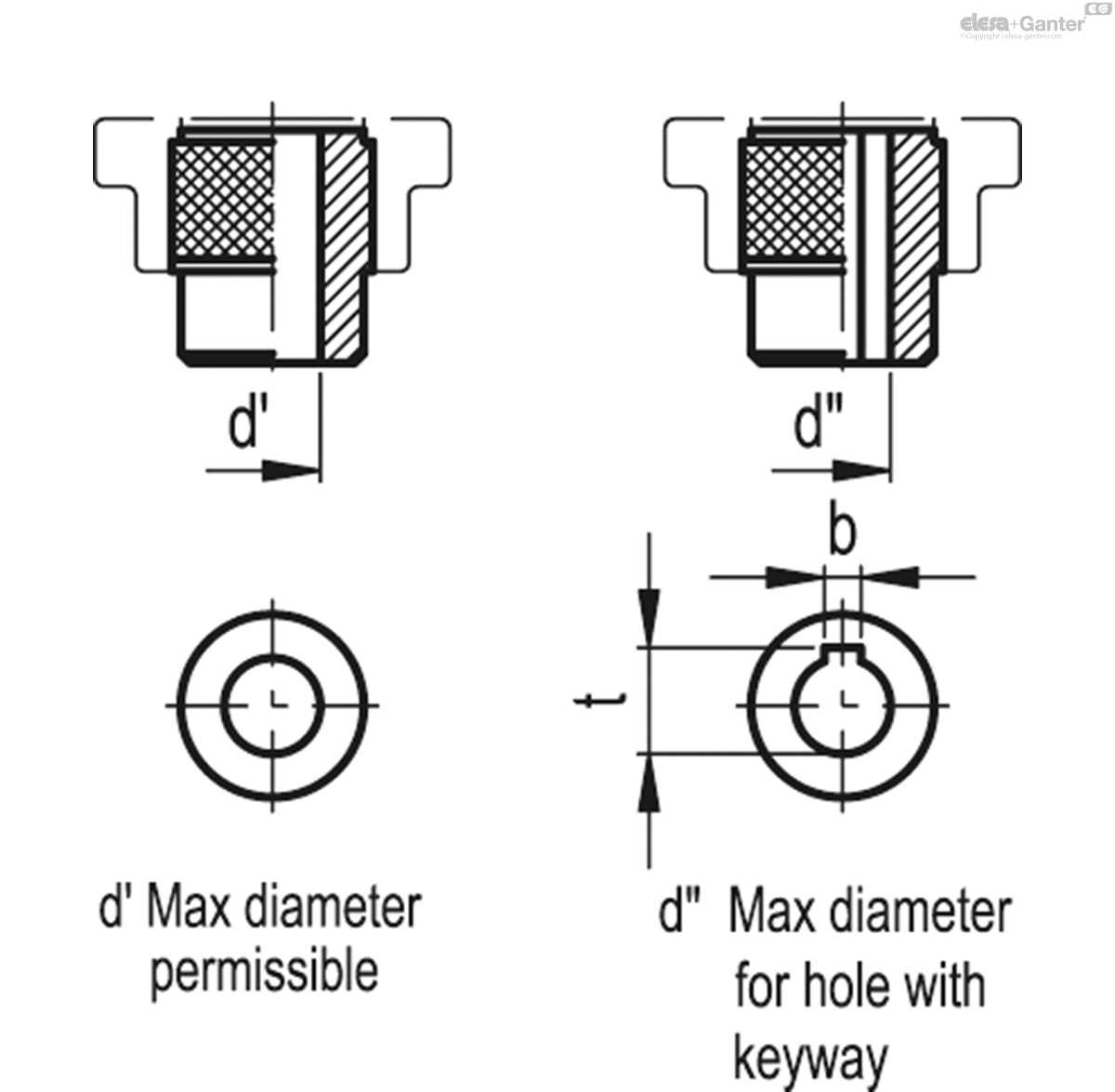

Not drilled hub, see table for maximum permissible boring diameters d' and d''.

VDC-GXX+I: for gravity indicators.

Not drilled hub, see table for maximum permissible boring diameters d' and d''.

Revolving handle I.301+x- in Duroplast, black colour, glossy finish.

VDC-PXX+I: for positive drive indicators.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

Hub with H7 reamed through hole.

Revolving handle I.301+x- in Duroplast, black colour, glossy finish.

General information

Ergonomy

The rim with internal rear scallops (for models with diameter D ≥ 125 mm) makes the grip and the manoeuvre of the handwheel easier especially in the versions without handle.

Indicator choice (to be ordered separately)

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions' for gravity indicators type G or positive drive indicators type P.

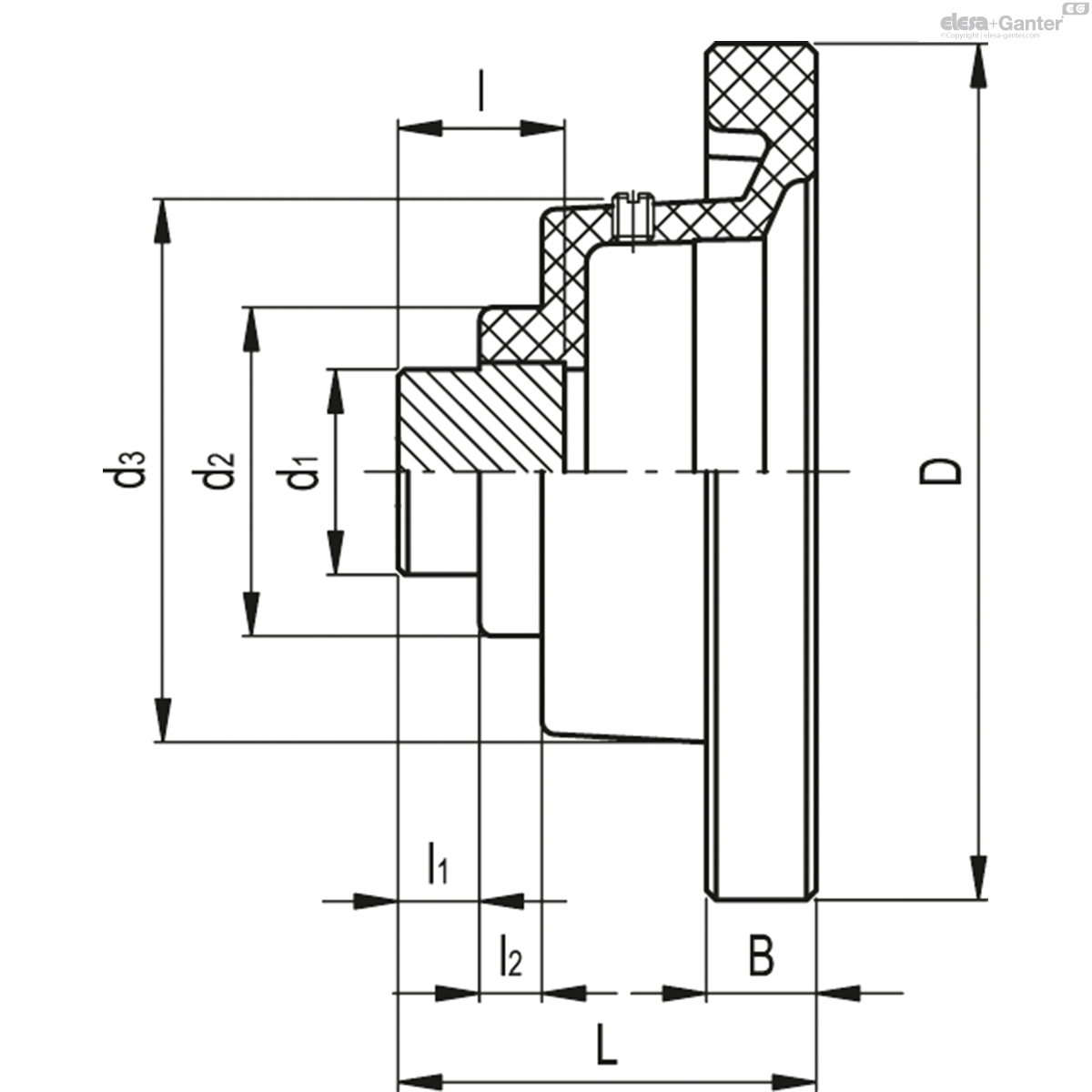

VDC-GXX

		D	L	d'	d''	t	b	d₁	d₂	d₃	l	l₁	l₂	B		Handwheel indicator combinations
Code	Description																Actions
CE.30501	VDC.125-GXX2	125	61	25	20	22.8	6	30	48	82	25	12	9	16	395	GA02 - GA12 - GW12
CE.30601	VDC.140-GXX2	140	65	25	20	22.8	6	30	50	82	25	12	9	17	470	GA02 - GA12 - GW12
CE.30701	VDC.160-GXX2	160	72	30	24	27.3	8	35	53	84	30	15	10	18	654	GA02 - GA12 - GW12
CE.30901	VDC.160-GXX5	160	71	31	25	28.3	8	36	53	123	34	14	11	18	725	GA05
CE.31001	VDC.180-GXX5	180	78	31	25	28.3	8	36	56	127	34	14	12	19	940	GA05
CE.31101	VDC.200-GXX5	200	79	35	29	32.3	8	40	59	127	34	13	15	20	1066	GA05
