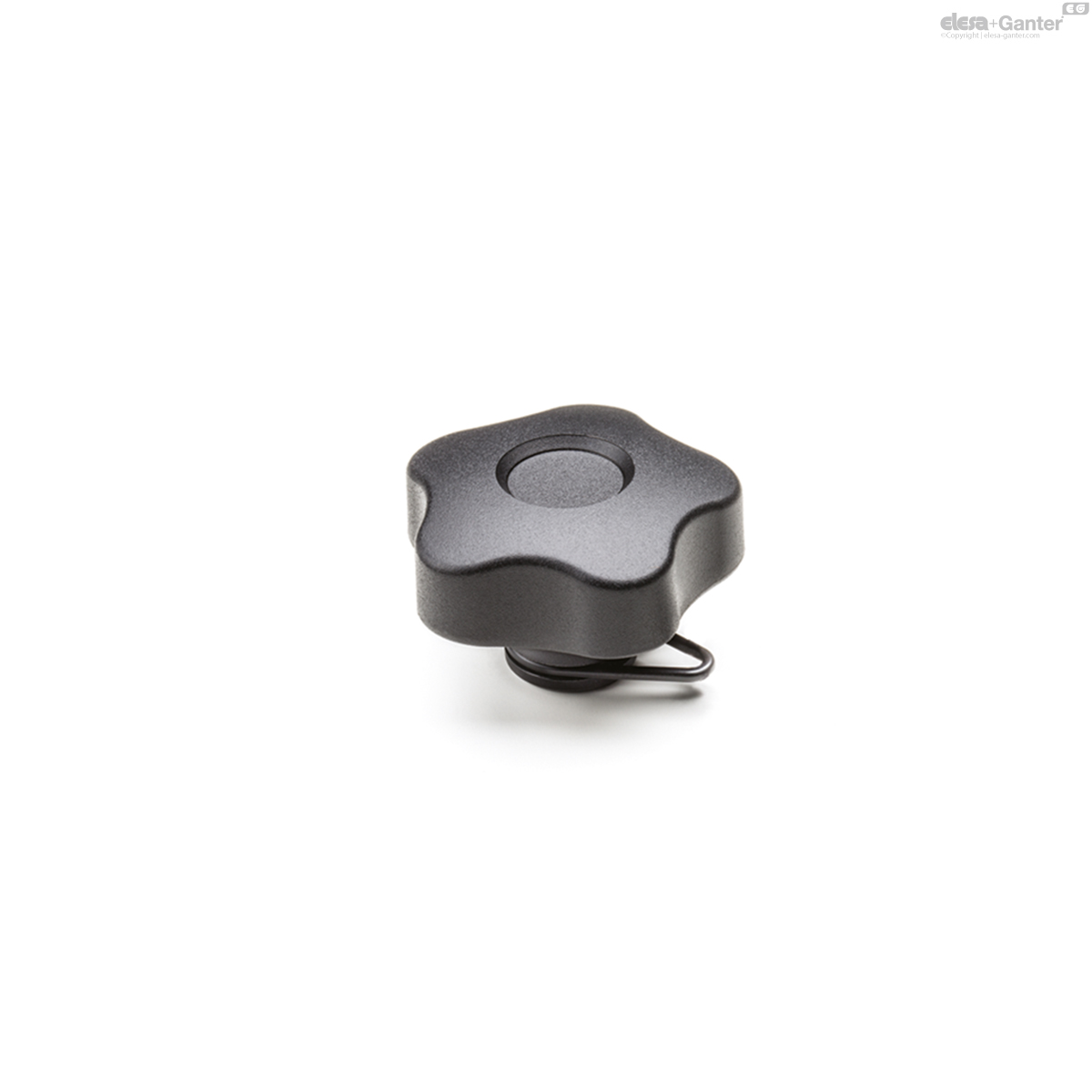

VCT-RC
Lobe knobs
with elastic fork, technopolymer
Description
Main specifications
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
Technopolymer centre cap, black colour, matte finish. Not available for VCT.25.
Elastic fork in acetal based technopolymer (POM), black colour.
Standard executions
- VCT-B-RC: brass boss, threaded through hole.
- VCT-p-RC: polished zinc-plated steel threaded stud, chamfered flat end UNI EN ISO 947 : 4753 (see Technical data).
General information
Features and applications
Suitable where it is necessary to prevent the loss of the knob.
The elastic fork, housed in the groove of the knob can turn freely.
Accessories
Accessories on request
- CT-SÂ technopolymer and stainless steel ball chains.
- GN 111Â stainless steel and brass ball chains.
- CV-TÂ polyethylene and stainless steel retaining cables.
- GN 111.2Â stainless steel retaining cables.
- GN 111.4Â polyurethane and stainless steel spiral retaining cables.
VCT-B-RC

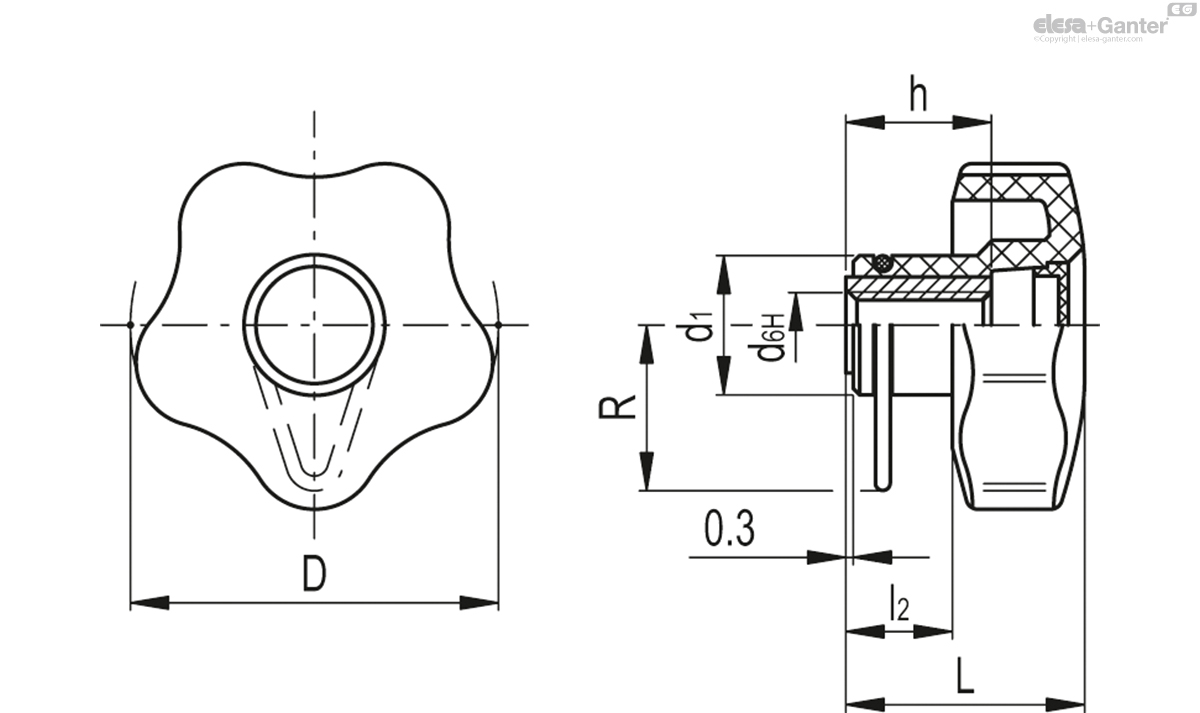

| D | d6H | L | d1 | l2 | h | R | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 68901-C9 | VCT.25 B-M5-RC-C9 | 25 | M5 | 19 | 13 | 8 | 10 | 20 | 7 | 14 |
|
| 68911-C9 | VCT.32 B-M6-RC-C9 | 32 | M6 | 23 | 15 | 10 | 12 | 21 | 10 | 16 |
|
| 68921-C9 | VCT.40 B-M8-RC-C9 | 40 | M8 | 27 | 17 | 12 | 18 | 21.5 | 18 | 24 |
|
| 68931-C9 | VCT.50 B-M10-RC-C9 | 50 | M10 | 32 | 19 | 14 | 20 | 22.5 | 27 | 36 |
|
| 68941-C9 | VCT.63 B-M12-RC-C9 | 63 | M12 | 37 | 22 | 16 | 26 | 24 | 50 | 52 |
|
