Home Clamping Knobs Star and lobe knobs VCT.AE-V0

VCT.AE-V0

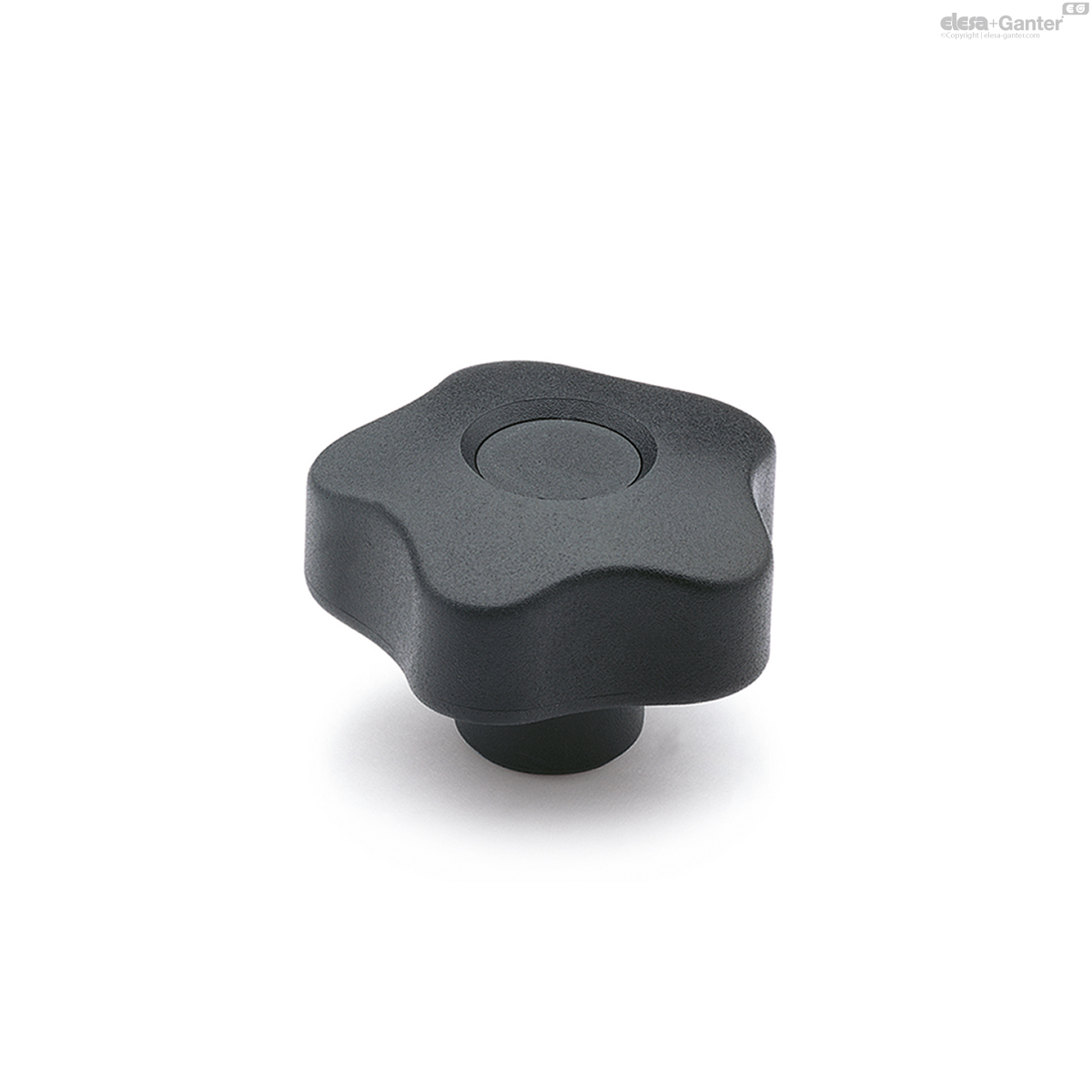

Lobe knobs

Technopolymer certified self-extinguish

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0.

Standard execution

Brass boss with threaded blind hole (VCT.25) or pass-through hole (VCT. from 32 to 50).

General information

Technical Data

In long-term thermal ageing tests, with a maximum decrease in critical mechanical properties by 50%, the relative temperature index UL 746 B (RTI) was equal to 65.

The 'V0' certification in accordance with UL-94 V (Underwriters Laboratories) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.

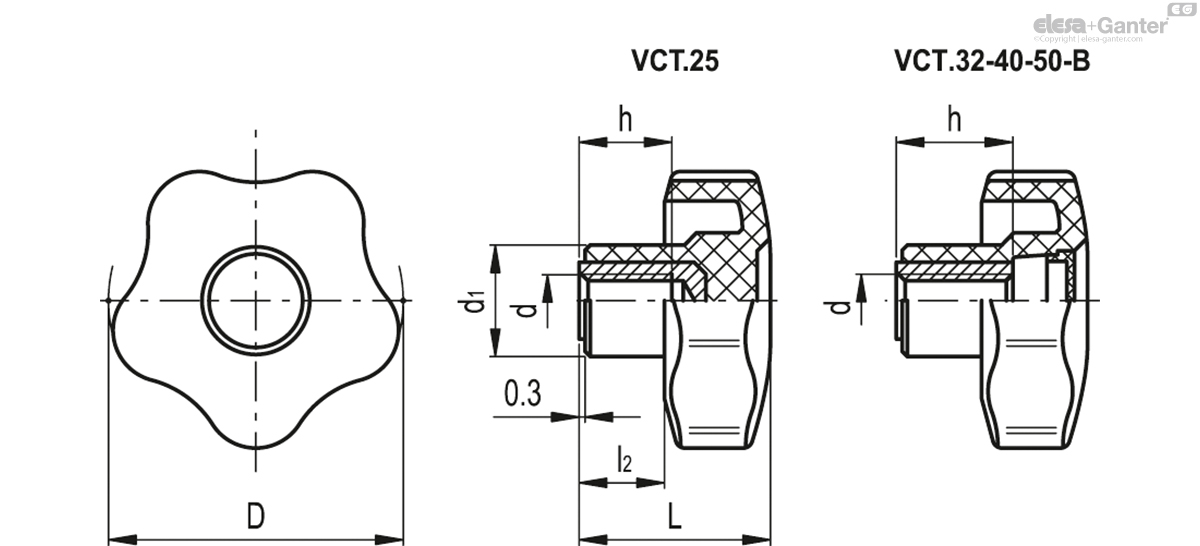

		D	d_6H	L	d₁	l₂	h
Code	Description								Actions
150534	VCT.25 AE-V0 B-M5	25	M5	19	13	8	10	10
150544	VCT.32 AE-V0 B-M6	32	M6	23	15	10	12	17
150564	VCT.40 AE-V0 B-M8	40	M8	27	17	12	18	28
150584	VCT.50 AE-V0 B-M10	50	M10	32	19	14	26	46
