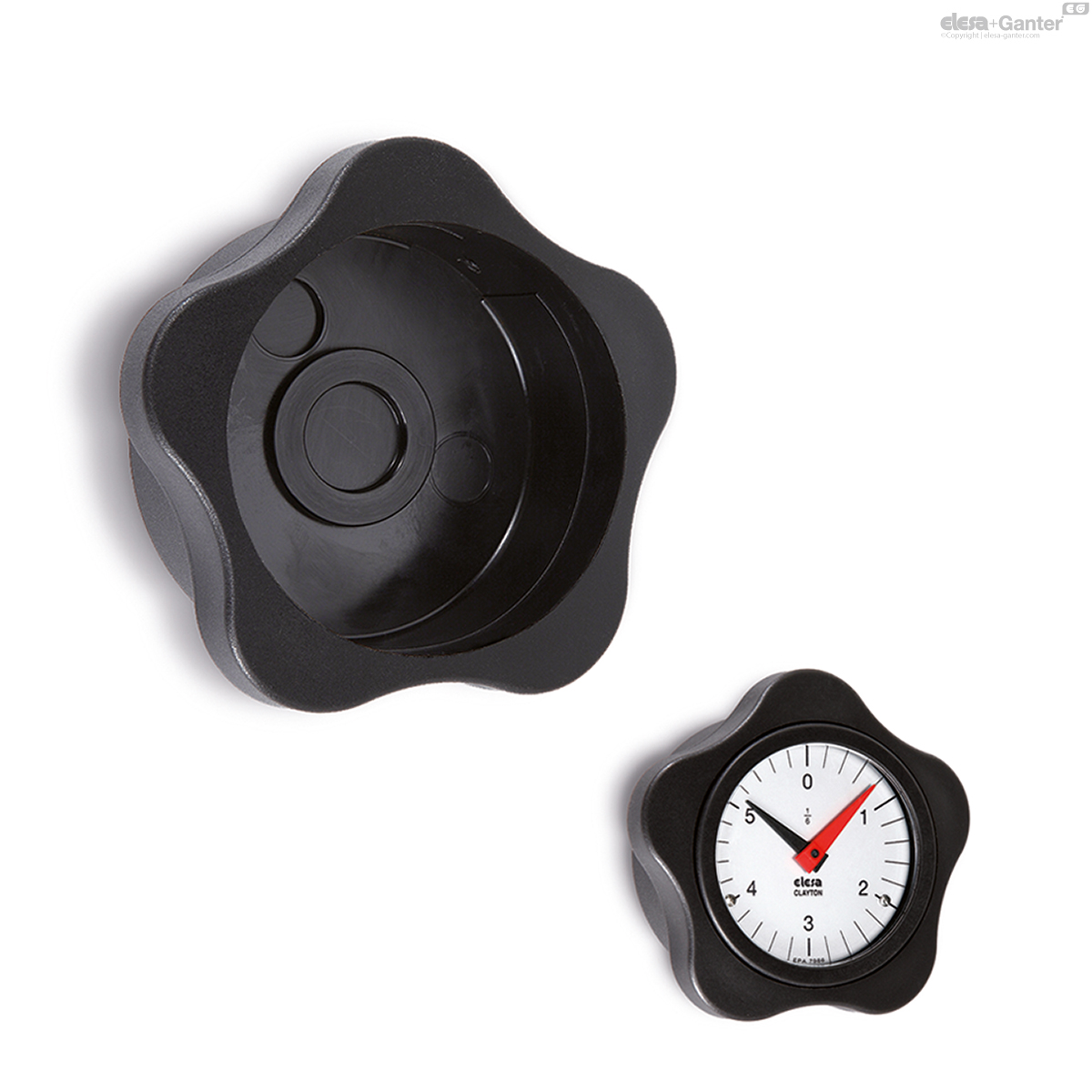

VC.792-XX

Lobe knobs for position indicators

Technopolymer

Enquire Now

VC.792-GXX

Lobe knobs for position indicators

Knobs for gravity indicators

VC.792-PXX

Lobe knobs for position indicators

Knobs for positive drive indicators

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

VC.792-GXX: for gravity indicators.
VC.792-PXX: for positive drive indicators.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

General information

Features and applications

The ergonomic design enables an effective grip. The lobed shape with no cavities prevents unhealthy residues from depositing and guarantees perfect cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.

Indicator choice (to be ordered separately)

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions' for gravity indicators type G or positive drive indicators type P.

Accessories on request

Cover CP-XX- for use without the indicator.

Special executions on request

Knob with stainless steel boss.

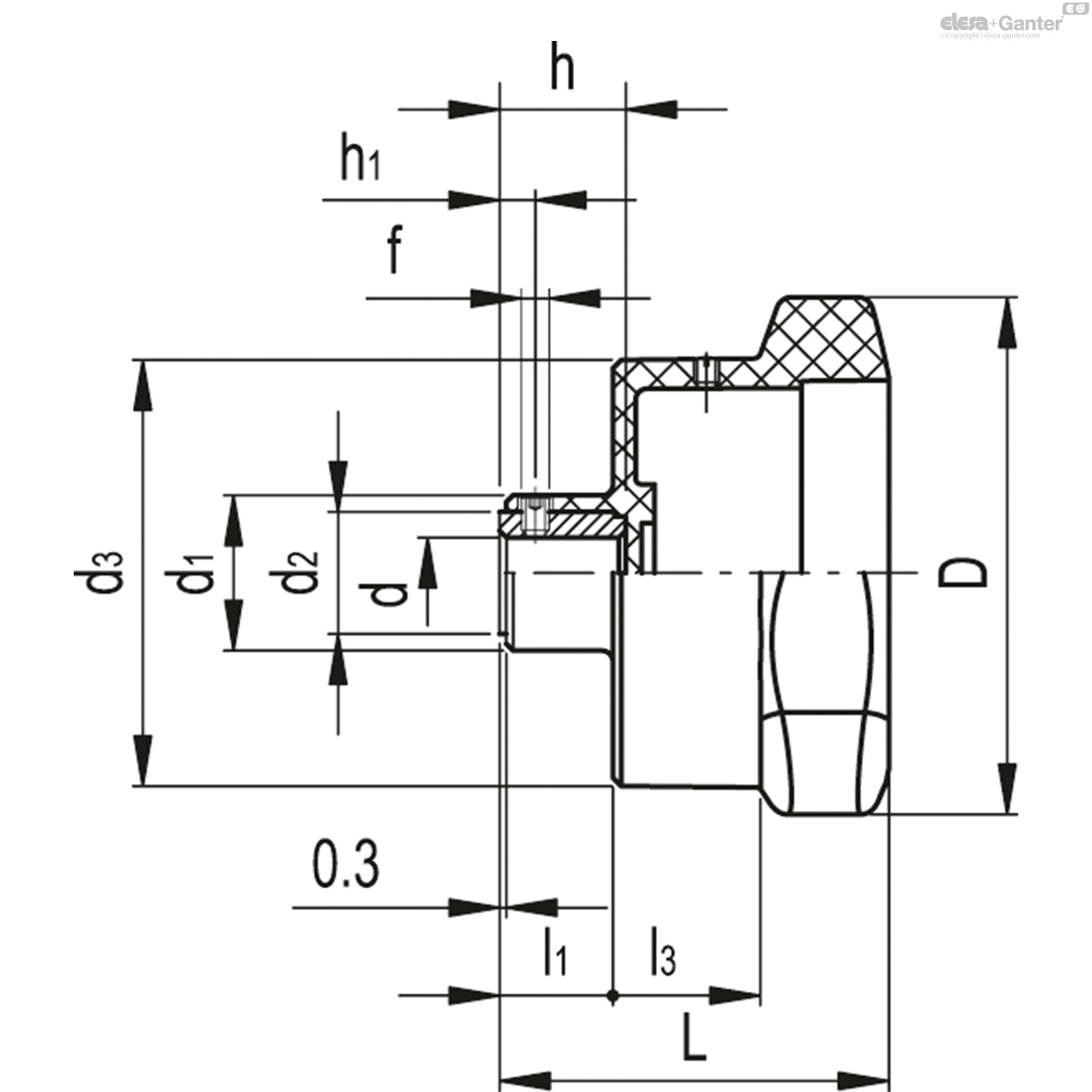

VC.792-GXX

		D	L	d_H7	h	d₁	d₂	d₃	f	h₁	l₁	l₃		Handwheel indicator combinations
Code	Description														Actions
CE.30071	VC.792/72-GXX1 A-10	72	52	10	17	24	18	56	M5	6	15.9	19	82	GA01 - GA11
CE.30081	VC.792/98-GXX2 A-12	98	58	12	22	27.5	22	76.5	M5	6	20.5	19	152	GA02 - GA12 - GW12
