VC.692-CR

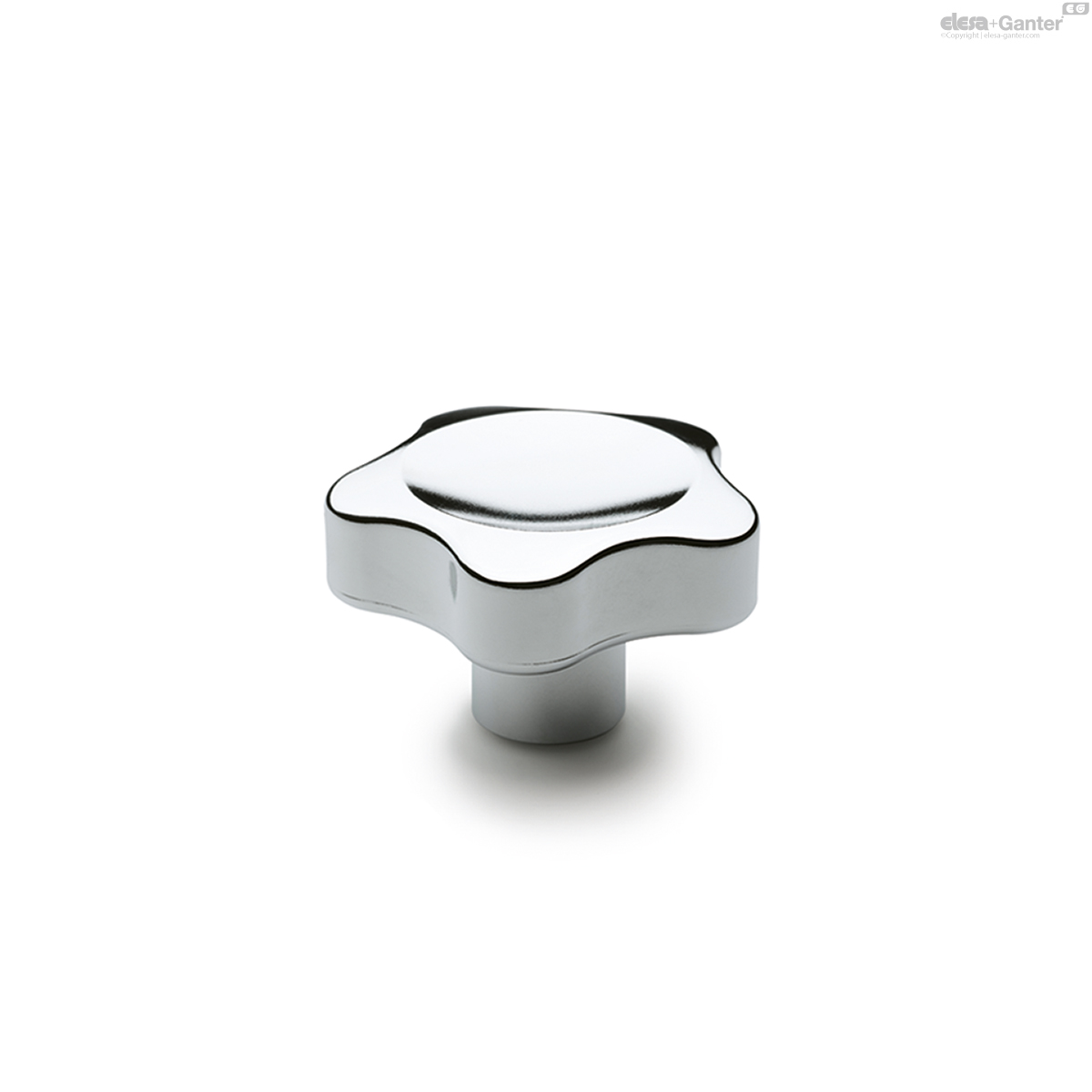

Lobe knobs
Technopolymer chrome-plate
__logo__ELE_OD__ __logo__chromium__ __logo__RoHS__ __logo__PA__ __logo__g13030__

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, chrome-plated, glossy finish.

Standard execution

Brass boss, threaded blind hole.

General information

Features and applications

The exclusive five-lobe shape (ELESA original design) offers the operator's fingers a proper grip and prevents unhealthy residues from depositing thanks to its solid shape without cavities.

Chemical agents resistance

This knob is particularly suitable for applications on machines and equipment whose parts, for hygienic reasons, must be frequently cleaned also using water or steam jets. The chrome-plating makes the surface finish semi-glossy and homogeneous to facilitate cleaning operations. The chrome-plated surface is resistant to wear, scrapes and shocks. In laboratory tests carried out at ambient temperature (23°C), the chrome-plated surface revealed to be resistant to: sea water, detergents, acetone, ethyl alcohol, formic acid, chlorine solutions.

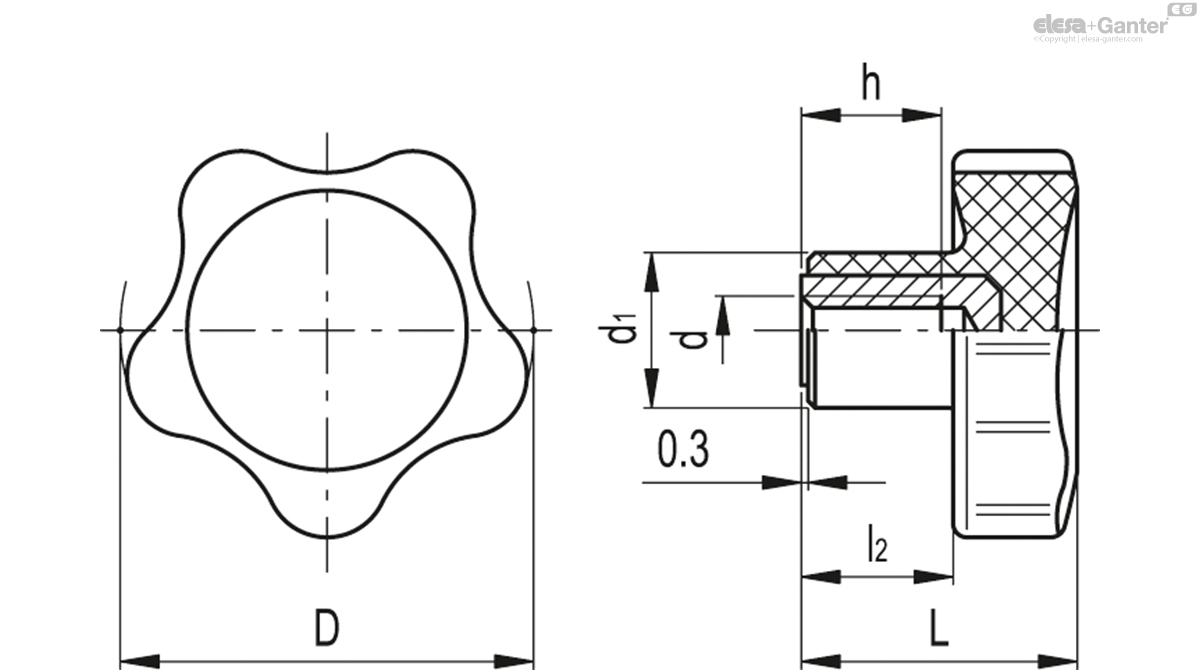

D d6H L d1 l2 h __logo__weight__
Code Description Actions
152702 VC.692/32-CR-B-M6 32 M6 22.5 14 12.5 10 17 cart-icon
152712 VC.692/40-CR-B-M8 40 M8 26 15 14 13 26 cart-icon
152722 VC.692/50-CR-B-M10 50 M10 31 18 17 17 46 cart-icon
152731 VC.692/60-CR-B-M10 60 M10 36.5 21 21 20 71 cart-icon
