VAD-XX

Handwheels for position indicators

Aluminium

Enquire Now

Description

Main specifications

Aluminium, epoxy resin coating, black colour, matte finish.

H7 reamed through hole.

Revolving handle (for +I versions)I.621+x- in polyamide based (PA) technopolymer, black colour, matte finish.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

General information

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions' for gravity indicators type G or positive drive indicators type P.

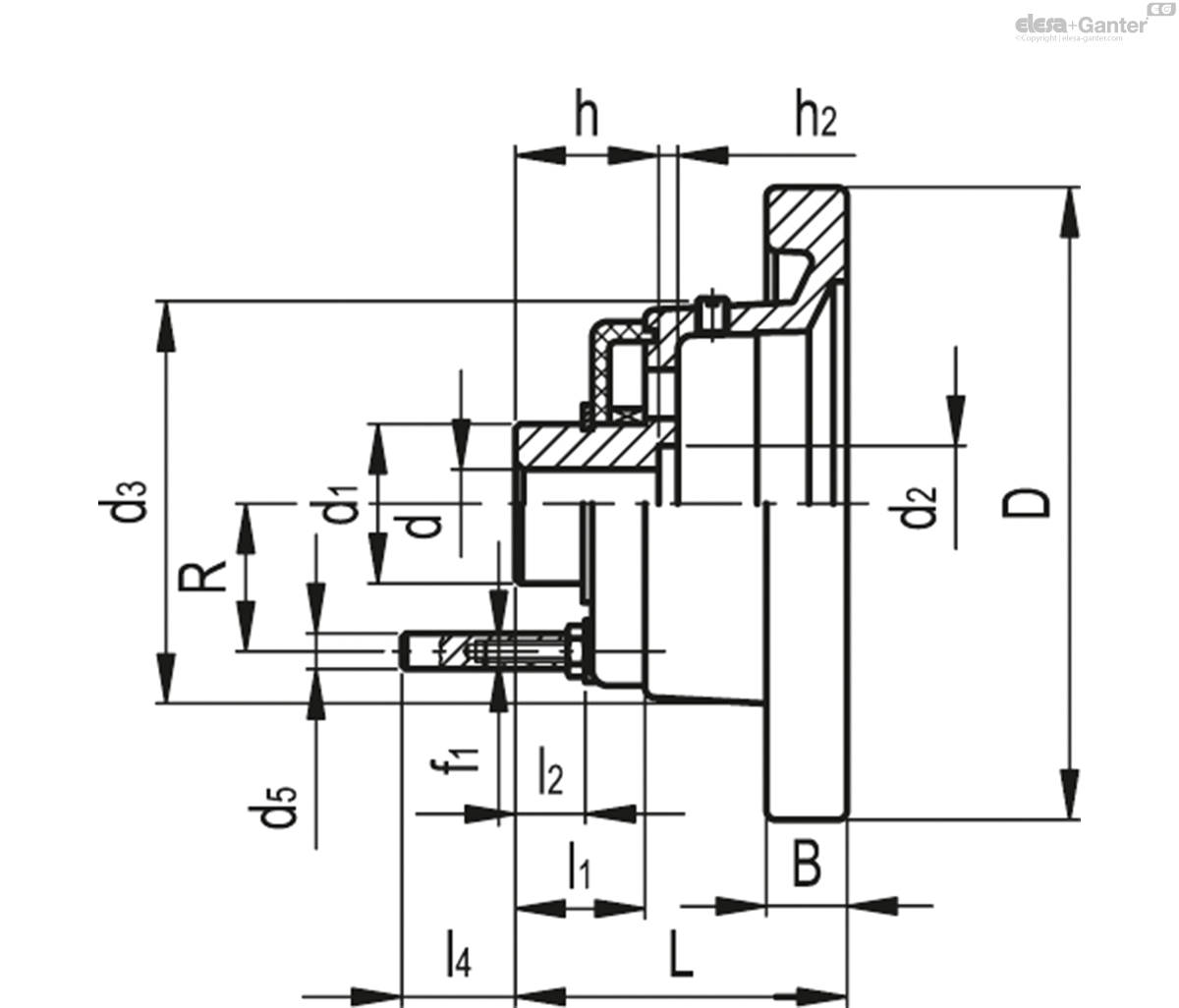

		D	L	d_H7	h	d₁	d₂	d₃	d₅	f₁	h₂	l₁	l₂	l₄	B	R		Handwheel indicator combinations
Code	Description																		Actions
CE.28502	VAD.80-PXX1 A-10	80	55	10	22.5	20	20.5	56	6	M4	3.5	18.5	11.5	13.6	13	19	175	PA01 - PA11
CE.28552	VAD.100-PXX1 A-10	100	63.5	10	22.5	20	20.5	56	6	M4	3.5	18.5	11.5	13.6	14	19	240	PA01 - PA11
CE.28602	VAD.125-PXX2 A-12	125	65.5	12	22.5	32	22.5	76	6	M4	4	19	12	13.1	15	28.5	454	PA02 - PA12 - PW12
CE.28652	VAD.160-PXX2 A-14	160	71.5	14	23.5	32	25.5	78	6	M4	4	20	13	12.1	18	28.5	625	PA02 - PA12 - PW12
CE.28702	VAD.160-PXX5 A-14	160	64	14	23.5	32	25.5	120	6	M4	4	20	13	12.1	18	28.5	785	PA05
