VAD-XX

Handwheels for position indicators

Aluminium

Enquire Now

Description

Main specifications

Aluminium, epoxy resin coating, black colour, matte finish.

H7 reamed through hole.

Revolving handle (for +I versions)I.621+x- in polyamide based (PA) technopolymer, black colour, matte finish.

Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.

General information

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions' for gravity indicators type G or positive drive indicators type P.

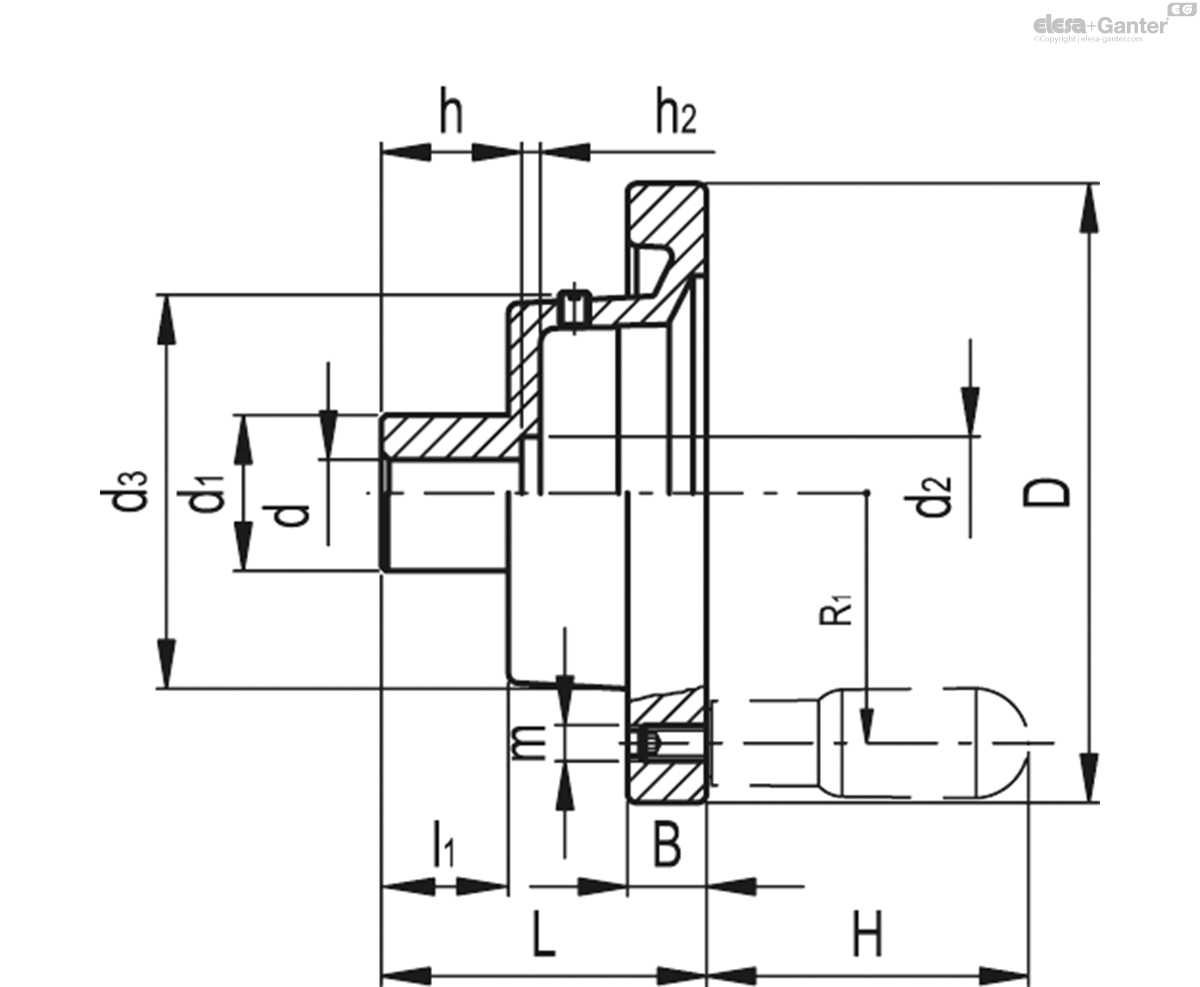

		D	L	d_H7	h	d₁	d₂	d₃	h₂	l₁	B	H	m	R₁		Handwheel indicator combinations
Code	Description																Actions
CE.28511	VAD.80-GXX1 A-10+I	80	48	10	16	26	20.5	56	3.5	15.5	13	45	M6	33.5	199	GA01 - GA11
CE.28561	VAD.100-GXX1 A-10+I	100	58	10	17	28	20.5	56	3.5	17.5	14	45	M6	42.5	275	GA01 - GA11
CE.28611	VAD.125-GXX2 A-12+I	125	61	12	18	31	25.5	76	4	18	15	65	M8	54	435	GA02 - GA12 - GW12
CE.28661	VAD.160-GXX2 A-14+I	160	68	14	20	36	28	78	4	19	18	80	M10	71	717	GA02 - GA12 - GW12
CE.28711	VAD.160-GXX5 A-14+I	160	64	14	23.5	36	25.5	120	4	20	18	80	M10	71	828	GA05
CE.28726	VAD.200-GXX2 A-18+I	200	75	18	24	42	33	79	4.5	21	20.5	90	M10	89	1067	GA02 - GA12 - GW12
CE.28736	VAD.250-GXX2 A-22+I	250	81.5	22	28	48	37	80	4.5	24.5	23	90	M10	113	1594	GA02 - GA12 - GW12
