UTR

Roller transfer units

Technopolymer

Enquire Now

Description

Main specifications

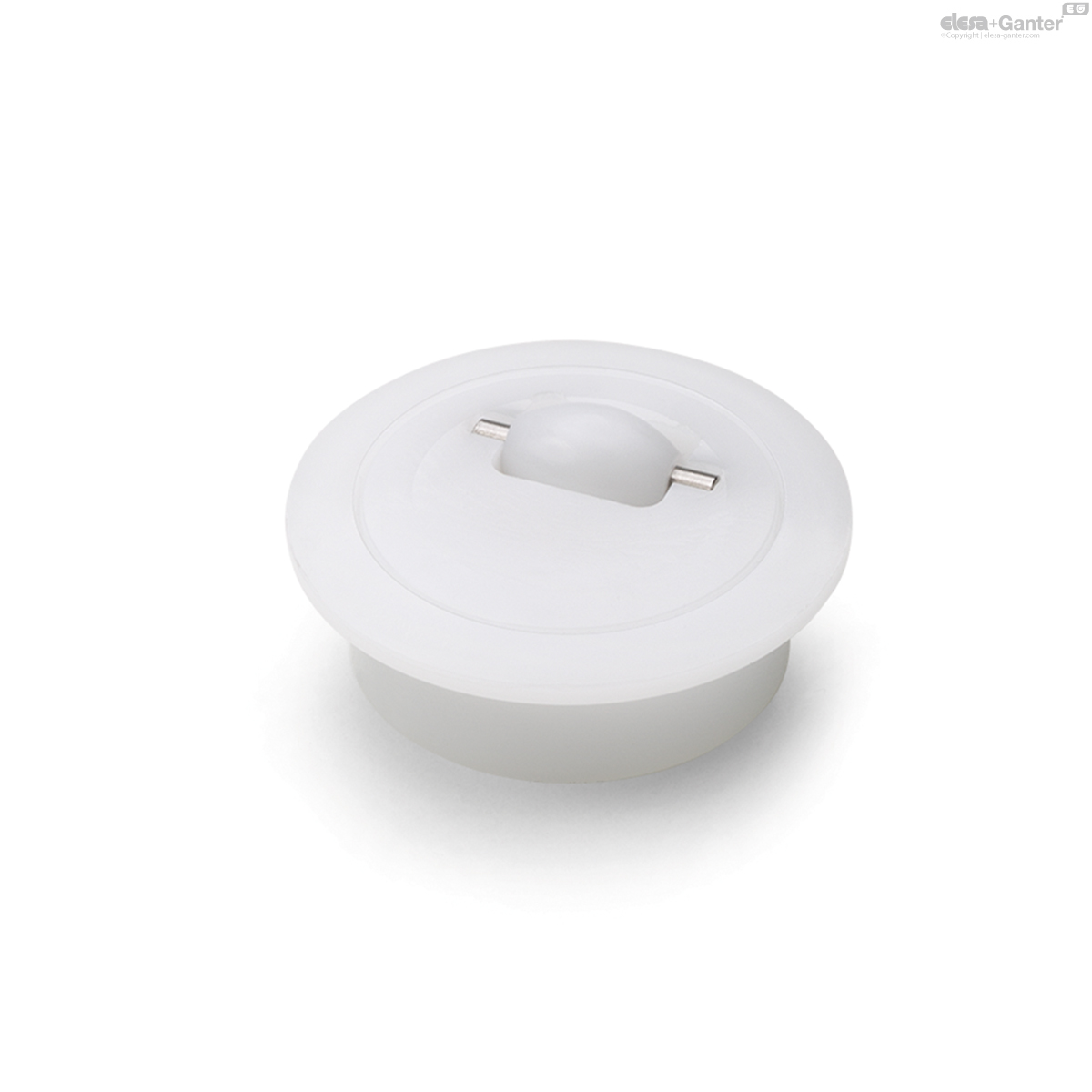

External body and central body for roller holder in acetal-based technopolymer, white colour.

Internal support and rotation balls of the central body in AISI 316 stainless steel.

General information

UTR roller transfer units are particularly suitable for applications on transfer and conveyor lines or end of production lines.

They facilitate both linear and rotary movements thanks to the central roller holder body which is free to rotate with respect to the external body.

The self-lubricating technopolymer structure ensures maximum cleanliness as it does not require lubrication with oils and greases.

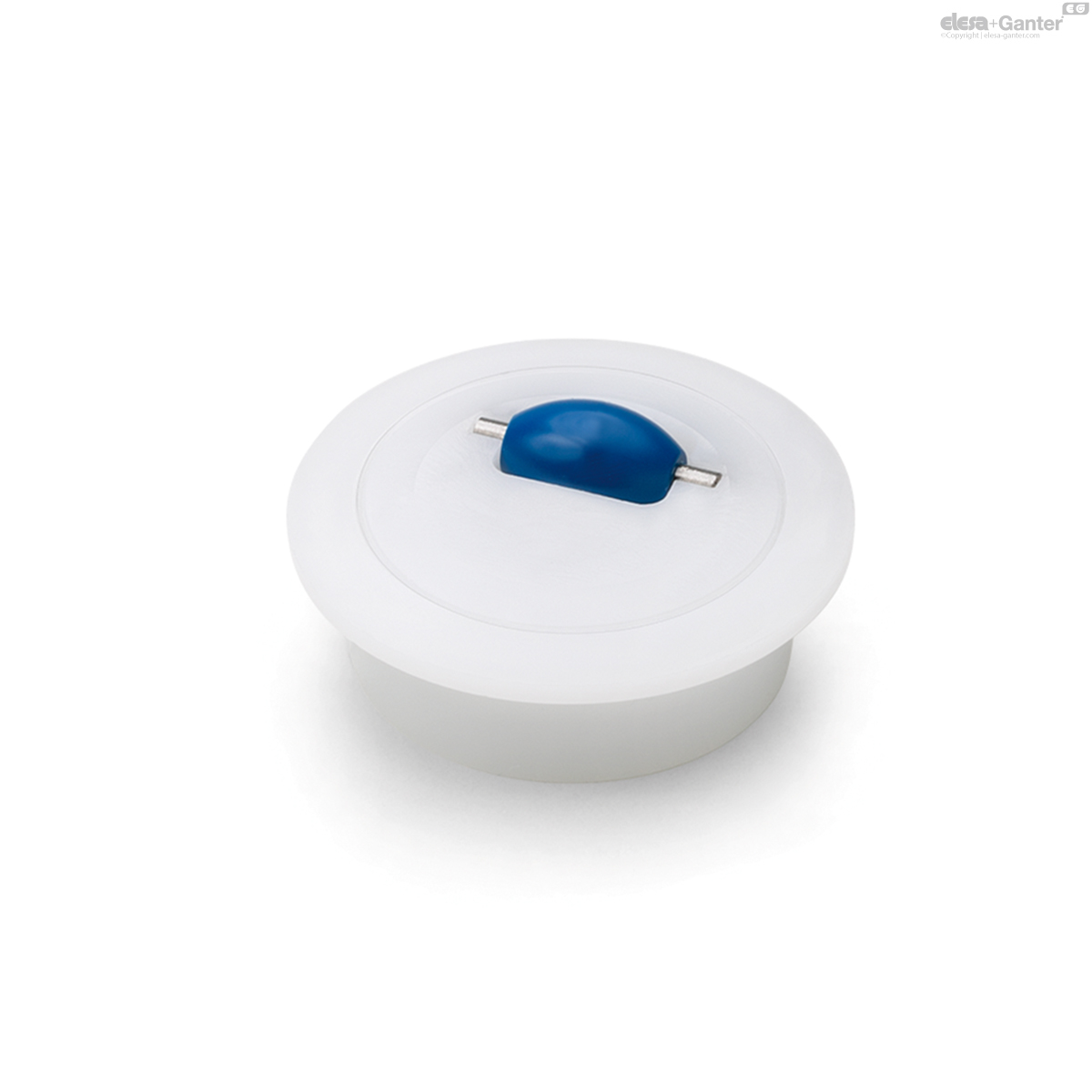

The soft technopolymer roller is suitable for handling loads with particularly delicate surfaces such as glass and ceramic.

Furthermore, since these are corrosion-resistant materials, it is possible to wash them, even frequently.

Accessories

GN 509.3: spring rings in stainless steel to allow easy, quick insertion and removal of UTR.

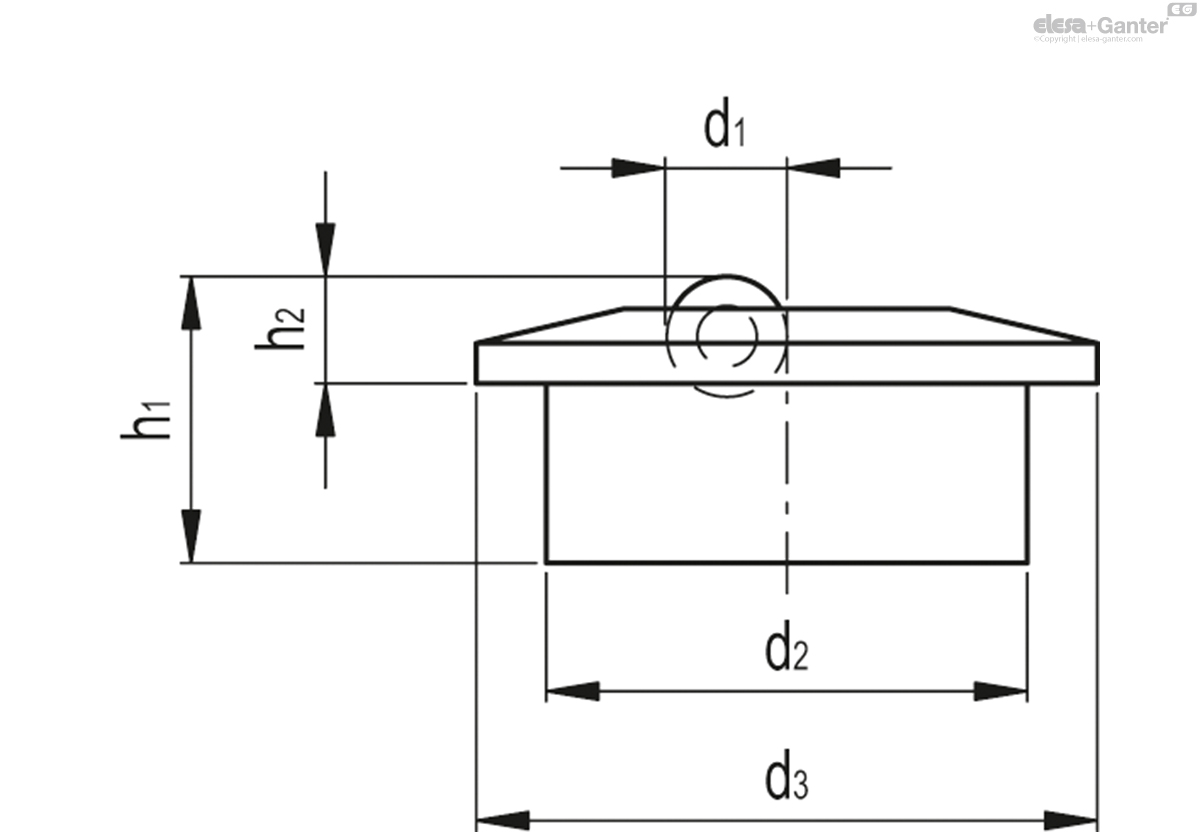

		d₁	d₂	d₃	h₁	h₂	Mounting hole _H7	Max. load [N]
Code	Description									Actions
470601	UTR.6-P	6	24	31	14.3	5.3	24	150	16
470611	UTR.10-P	10	36	45	21.25	7	36	300	26
