UTB

Ball transfer units

Technopolymer

Enquire Now

Description

Main specifications

Body in acetal-based technopolymer, white colour.

Internal support and transfer balls of the main ball in AISI 316 stainless steel.

General information

UTB ball transfer units are particularly suitable for applications on transfer and conveyor lines or end of production lines.

They facilitate both linear and rotational movements favouring maximum smoothness.

The self-lubricating technopolymer structure ensures maximum cleanliness as it does not require lubrication with oils and greases.

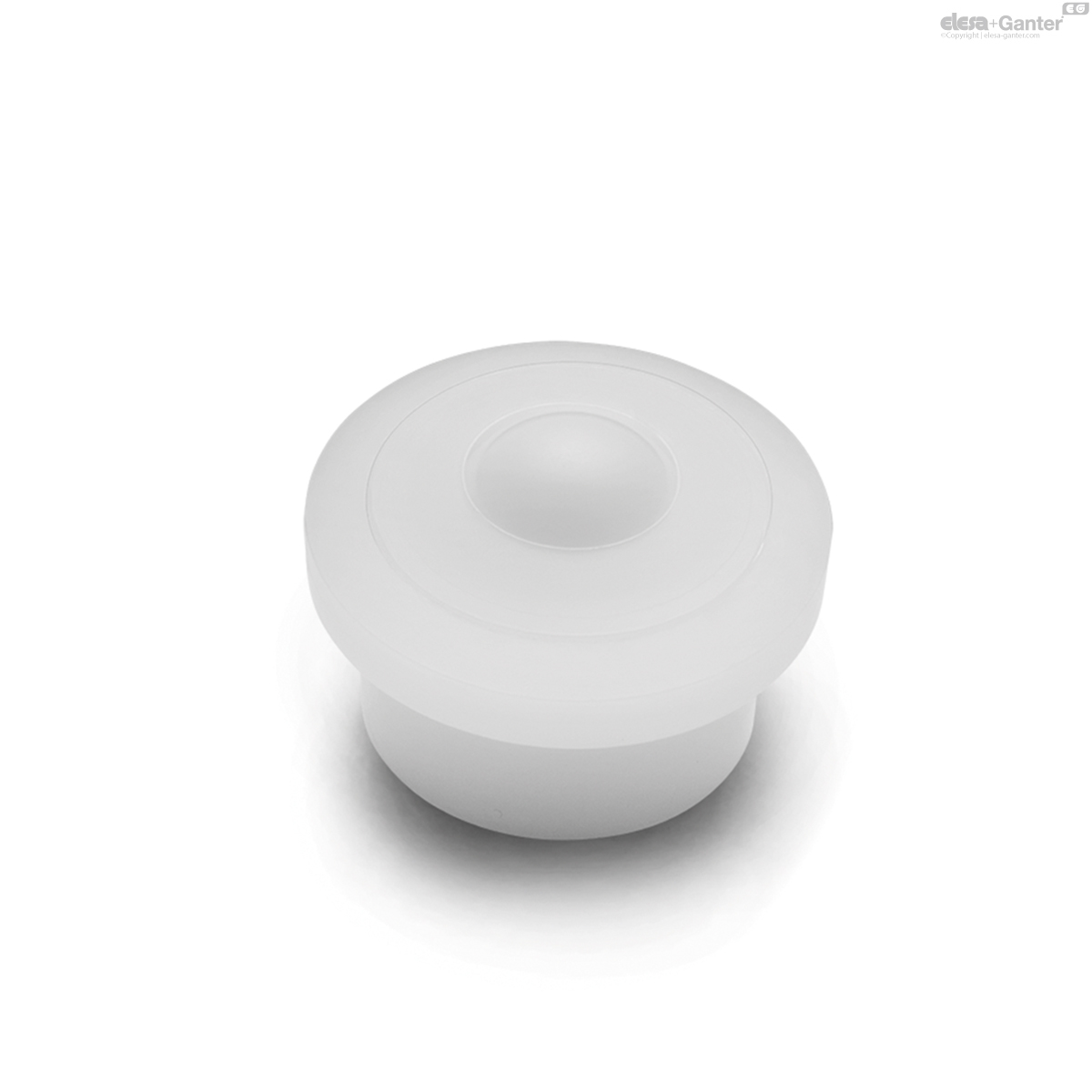

The technopolymer ball lends itself to handling loads with delicate surfaces.

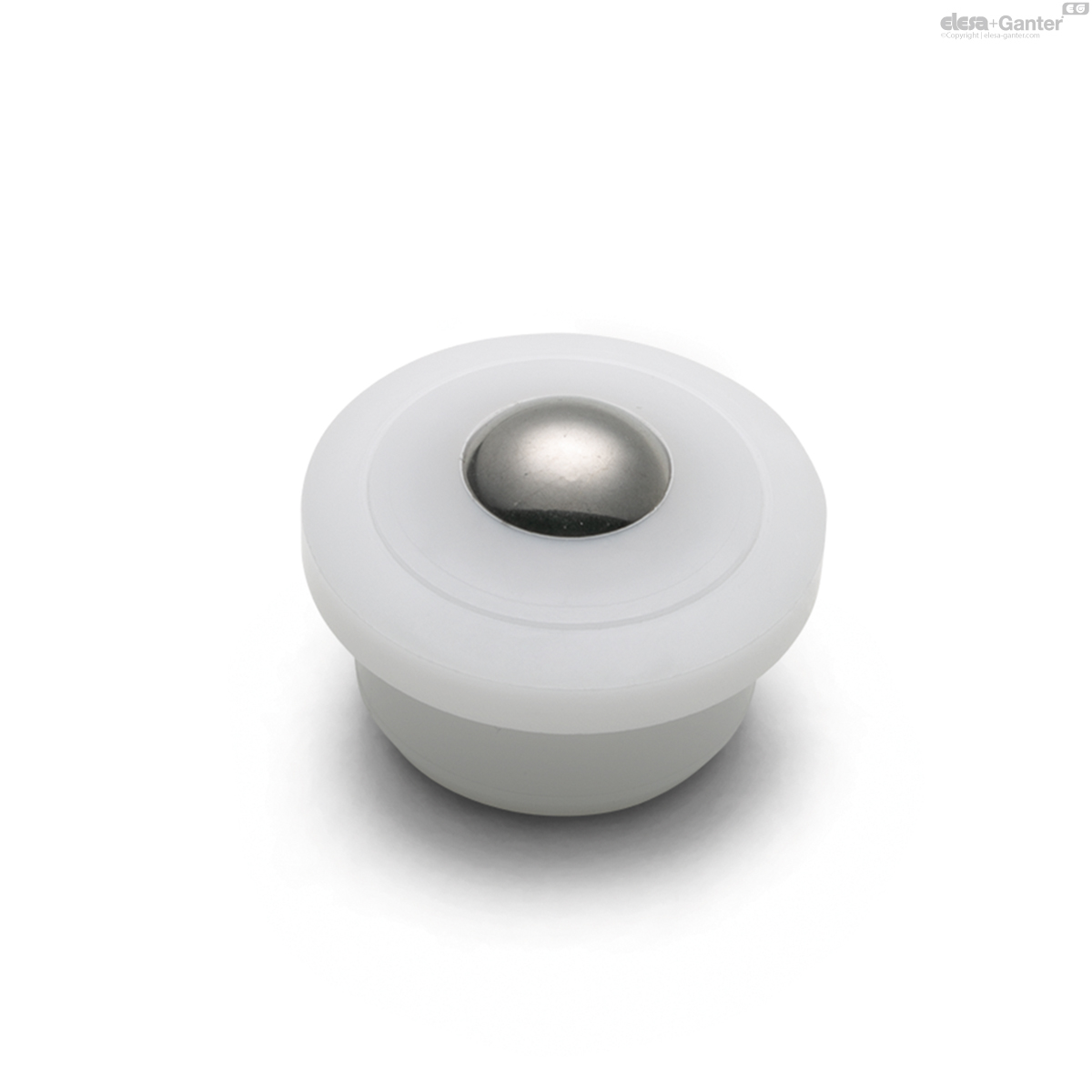

The stainless steel ball lends itself to handling loads with sharp and angular surfaces.

Furthermore, since these are corrosion-resistant materials, it is possible to wash them, even frequently.

Accessories

GN 509.3:spring rings in stainless steel to allow easy, quick insertion and removal of UTB units.

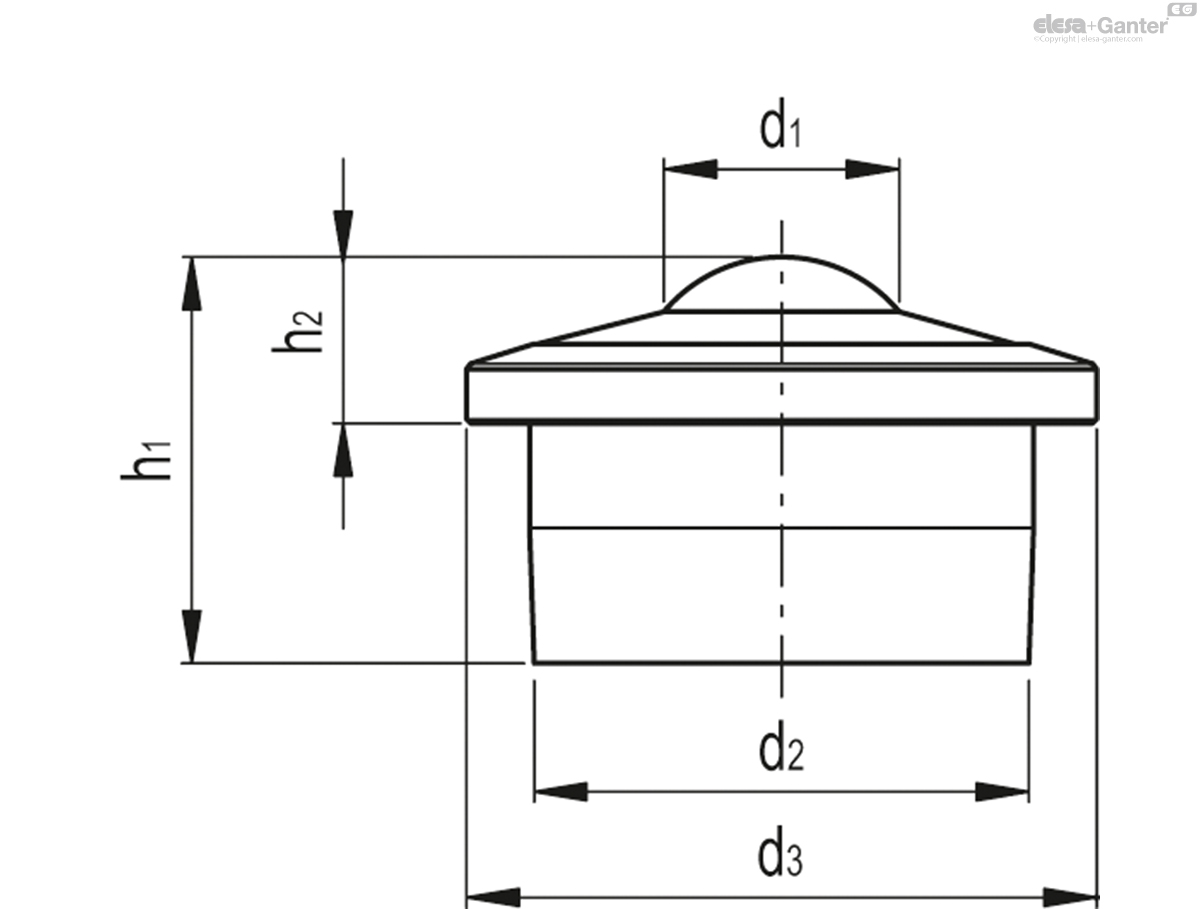

		d₁	d₂	d₃	h₁	h₂	Mounting hole _H7	Max. load [N]
Code	Description									Actions
470501	UTB.5-P	5.5	10.4	12	8.4	4.3	10.4	150	2
470506	UTB.15-P	15	24	31	21	9.8	24	300	12
470511	UTB.22-P	22	36	45	30	9.8	36	500	30
470516	UTB.30-P	30	45	55	37	13.8	45	950	69
