Description

The UCT hygienic bearings - solid version are made of additive-enhanced PBT for improved thermal expansion resistance and working temperature. The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert. Bearings are made in stainless steel, with 2,5° adjustment. They can be used at temperature between 0°C and +80°C.

Basic features

Series:	Hygienic
Type:	Watertight (cap)
Fixation:	M16
Material:	Plastic
Version:	Solid
Fixing method:	Grub screw
Unit of measure:	Ea
Box:	-

UCT Hygienic Grub screw Watertight Solid

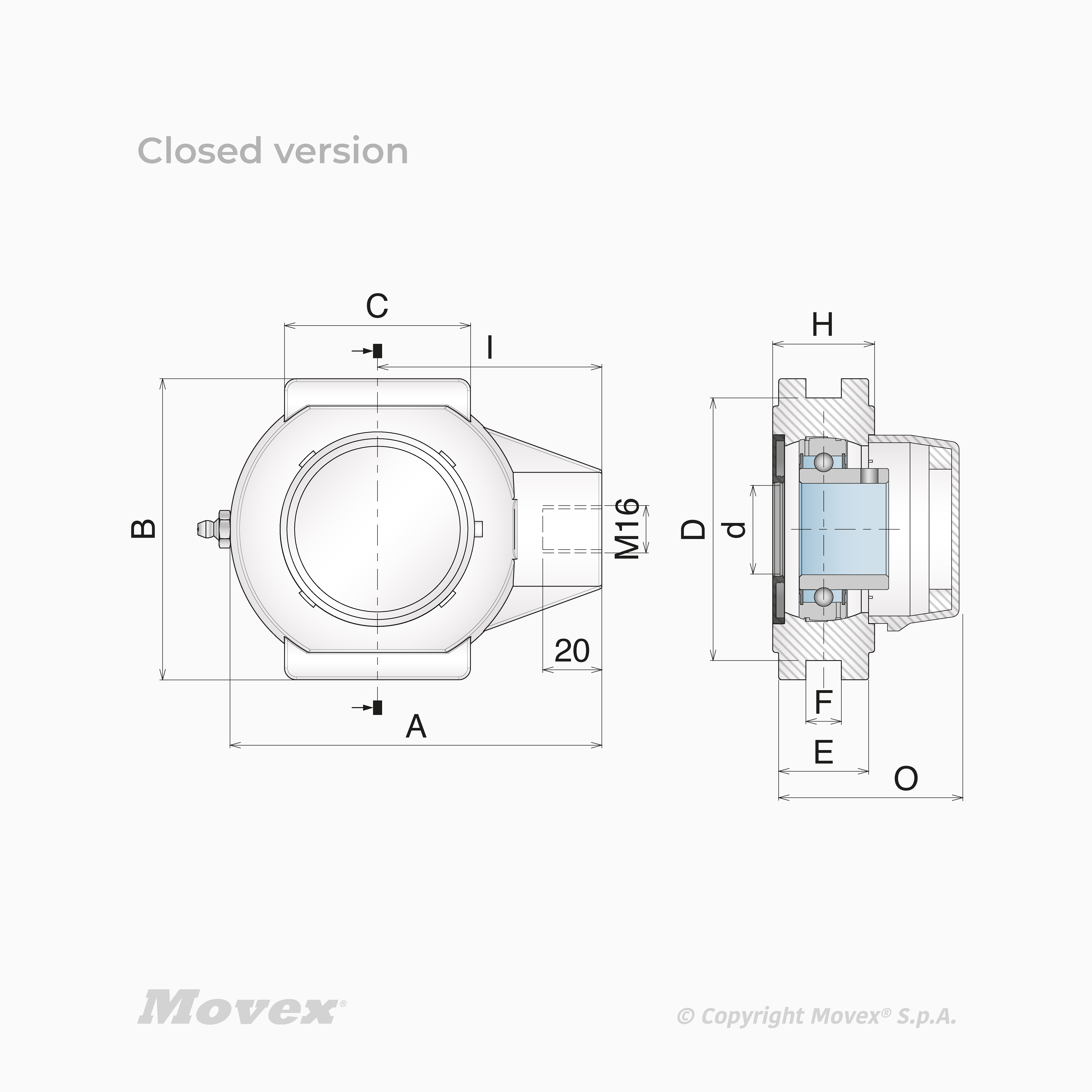

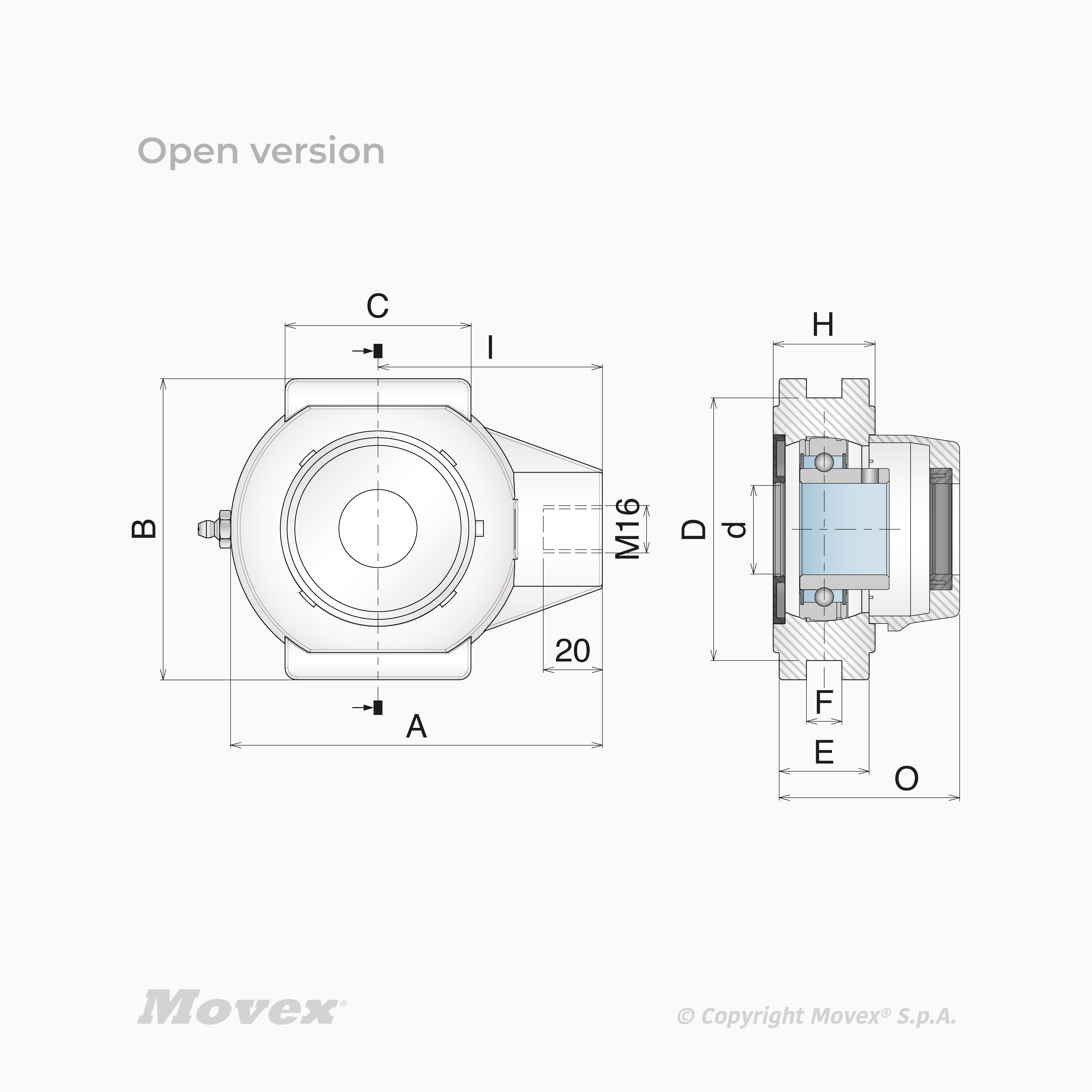

	A	B	Operating Temperature °C	D	E	Color	C	F	H	Bearing material	Watertight (Safety cap)	Shaft diameter	I (holes distance)	O	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Washers	Cap	Seal
Code																							Actions
P86020	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	Stainless steel	Yes, closed cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86020B	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	Stainless steel	Yes, closed cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86020BL	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	SS ProRun	Yes, closed cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86020L	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	SS ProRun	Yes, closed cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86021	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	Stainless steel	Yes, closed cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86021B	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	Stainless steel	Yes, closed cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86021BL	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	SS ProRun	Yes, closed cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86021L	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	SS ProRun	Yes, closed cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86022	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	Stainless steel	Yes, closed cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86022B	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	Stainless steel	Yes, closed cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86022BL	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	SS ProRun	Yes, closed cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86022L	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	SS ProRun	Yes, closed cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86023	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	Stainless steel	Yes, closed cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86023B	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	Stainless steel	Yes, closed cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86023BL	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	SS ProRun	Yes, closed cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86023L	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	SS ProRun	Yes, closed cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86024	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	White	102 mm	38.5 mm	70 mm	Stainless steel	Yes, closed cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86024B	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	Blue	102 mm	38.5 mm	70 mm	Stainless steel	Yes, closed cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86024BL	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	Blue	102 mm	38.5 mm	70 mm	SS ProRun	Yes, closed cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86024L	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	White	102 mm	38.5 mm	70 mm	SS ProRun	Yes, closed cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene closed cap with O-ring seal	NBR bottom seal
P86030	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	Stainless steel	Yes, open cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86030B	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	Stainless steel	Yes, open cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86030BL	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	SS ProRun	Yes, open cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86030L	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	SS ProRun	Yes, open cap	20 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86031	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	Stainless steel	Yes, open cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86031B	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	Stainless steel	Yes, open cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86031BL	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	Blue	47 mm	12 mm	27.5 mm	SS ProRun	Yes, open cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86031L	99 mm	88 mm	0÷80 °C	76 mm	23.5 mm	White	47 mm	12 mm	27.5 mm	SS ProRun	Yes, open cap	25 mm	64 mm	46.5 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86032	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	Stainless steel	Yes, open cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86032B	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	Stainless steel	Yes, open cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86032BL	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	SS ProRun	Yes, open cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86032L	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	SS ProRun	Yes, open cap	30 mm	76 mm	60 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86033	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	Stainless steel	Yes, open cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86033B	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	Stainless steel	Yes, open cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86033BL	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	Blue	63 mm	12 mm	34.5 mm	SS ProRun	Yes, open cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86033L	125 mm	102 mm	0÷80 °C	90 mm	30.5 mm	White	63 mm	12 mm	34.5 mm	SS ProRun	Yes, open cap	35 mm	76 mm	62 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86034	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	White	102 mm	38.5 mm	70 mm	Stainless steel	Yes, open cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86034B	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	Blue	102 mm	38.5 mm	70 mm	Stainless steel	Yes, open cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86034BL	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	Blue	102 mm	38.5 mm	70 mm	SS ProRun	Yes, open cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P86034L	114 mm	80 mm	0÷80 °C	33.5 mm	16 mm	White	102 mm	38.5 mm	70 mm	SS ProRun	Yes, open cap	40 mm	140 mm	76 mm	2.5°	Additive-enhanced PBT	Stainless steel ball bearing (pre-lubricated)	Stainless steel mounting hole spacers	Stainless steel grease nipple M6 conical	Washer for grease nipple in PE	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
