Description

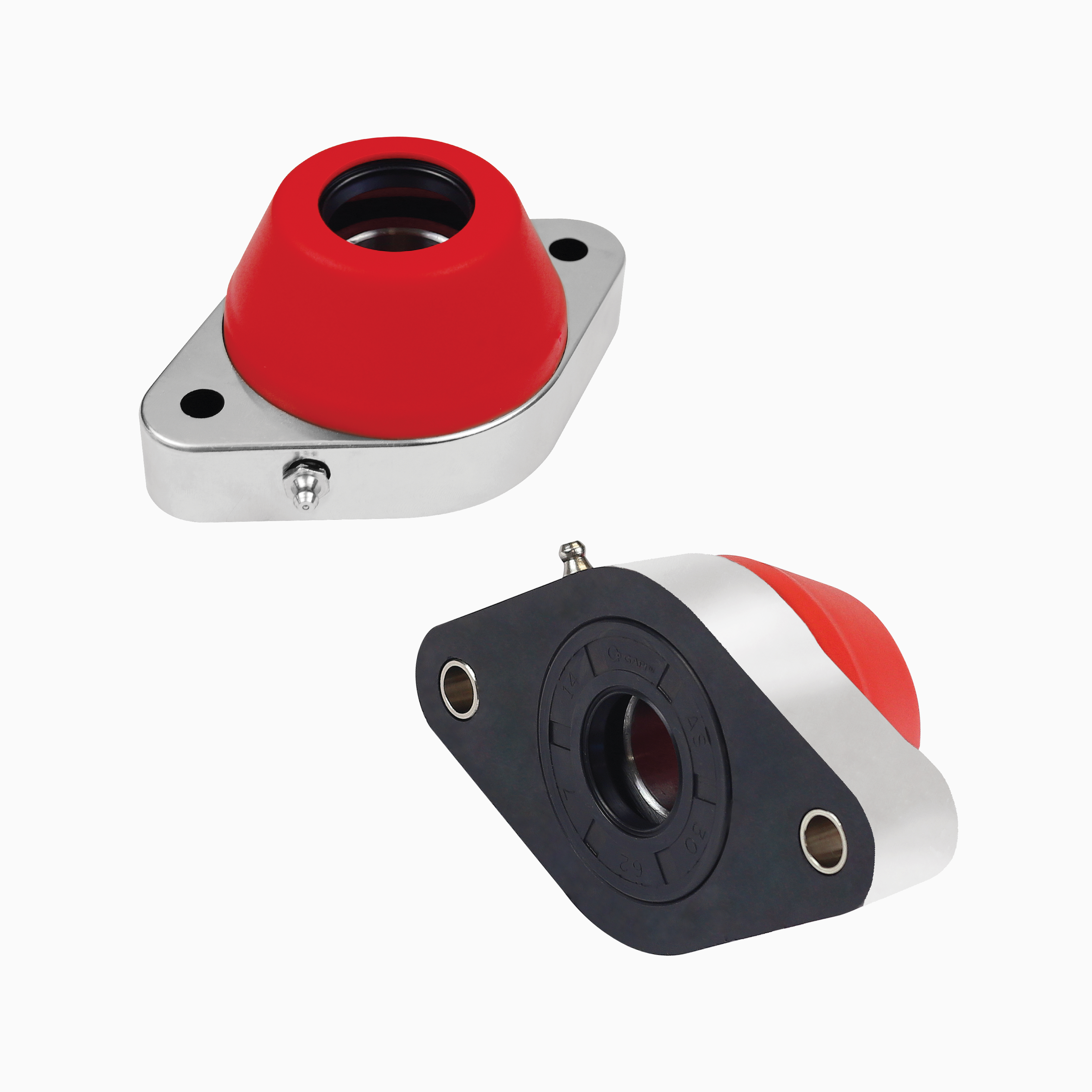

The UCFL-H watertight bearings - solid version are made in reinforced polypropylene and stainless steel cover with high mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol. The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert. Bearings are made in chrome steel, with 2,5° adjustment. They can be used at temperature between 0°C and +80°C.

Basic features

Series:	UCFL-H
Type:	Watertight (cap)
Fixation:	2-holes
Material:	Plastic
Version:	Solid
Fixing method:	Locking collar (eccentric ring)
Unit of measure:	Ea
Box:	-

UCFL-H Locking collar Watertight Solid

	A	B	Operating Temperature °C	D	E	C	F	G	H	Bearing material	Watertight (Safety cap)	Shaft diameter	I (holes distance)	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Cap	Seal
Code																					Actions
P82603H	94.7 mm	149.7 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, closed cap	35 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene close cap with O-ring seal	NBR bottom seal
P82604H	94.7 mm	149.7 mm	0÷80 °C	53 mm	19 mm	11 mm	26.85 mm	44 mm	67 mm	Chrome steel	Yes, closed cap	40 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene close cap with O-ring seal	NBR bottom seal
P82612H	86.7 mm	149.7 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26.85 mm	42 mm	61.5 mm	Chrome steel	Yes, closed cap	30 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene close cap with O-ring seal	NBR bottom seal
P82703H	94.7 mm	149.7 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, open cap	35 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P82704H	94.7 mm	149.7 mm	0÷80 °C	53 mm	19 mm	11 mm	26.85 mm	44 mm	67 mm	Chrome steel	Yes, open cap	40 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P82712H	86.7 mm	149.7 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26.85 mm	42 mm	61.5 mm	Chrome steel	Yes, open cap	30 mm	117 mm	2.5°	Housing in reinforced polypropylene & cover in SS	Chrome steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
