Home Bearings supports Bearings supports UCFL Grub screw Watertight Reinforced

UCFL Grub screw Watertight Reinforced

Bearings supports

Enquire Now

Description

The UCFL watertight bearings - reinforced version are made in reinforced polyamide with high mechanical strength and great resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol. The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert. Bearings are made in chrome steel or in stainless steel, with 2,5° adjustment. The grease nipple is made in nickel plated steel for chrome steel bearings and stainless steel for SS bearings, not available for the “Long life” version (without hole).

Basic features

Series:	UCFL
Type:	Watertight (cap)
Fixation:	2-holes
Material:	Plastic
Version:	Reinforced
Fixing method:	Grub screw
Unit of measure:	Ea
Box:	-

UCFL Grub screw Watertight Reinforced

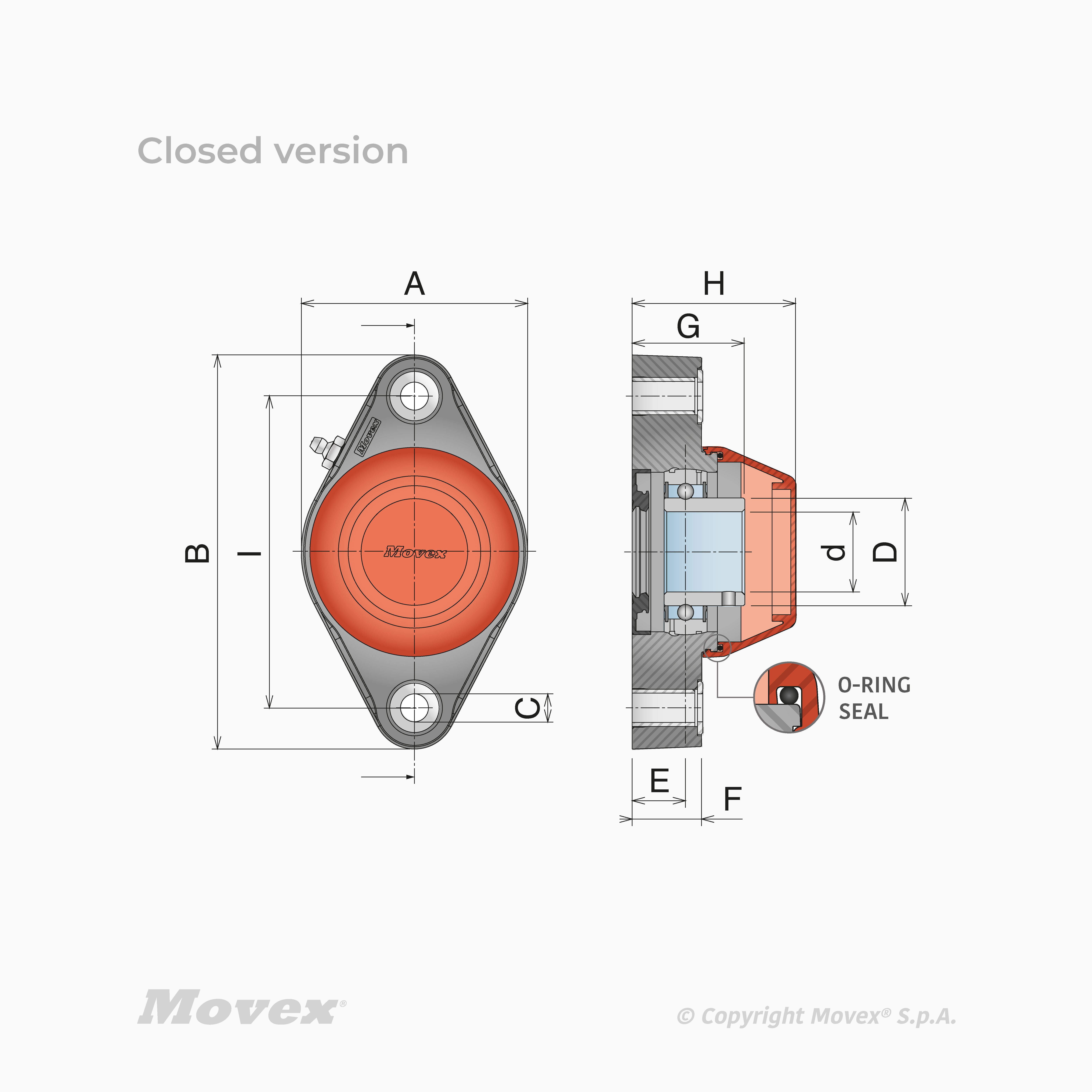

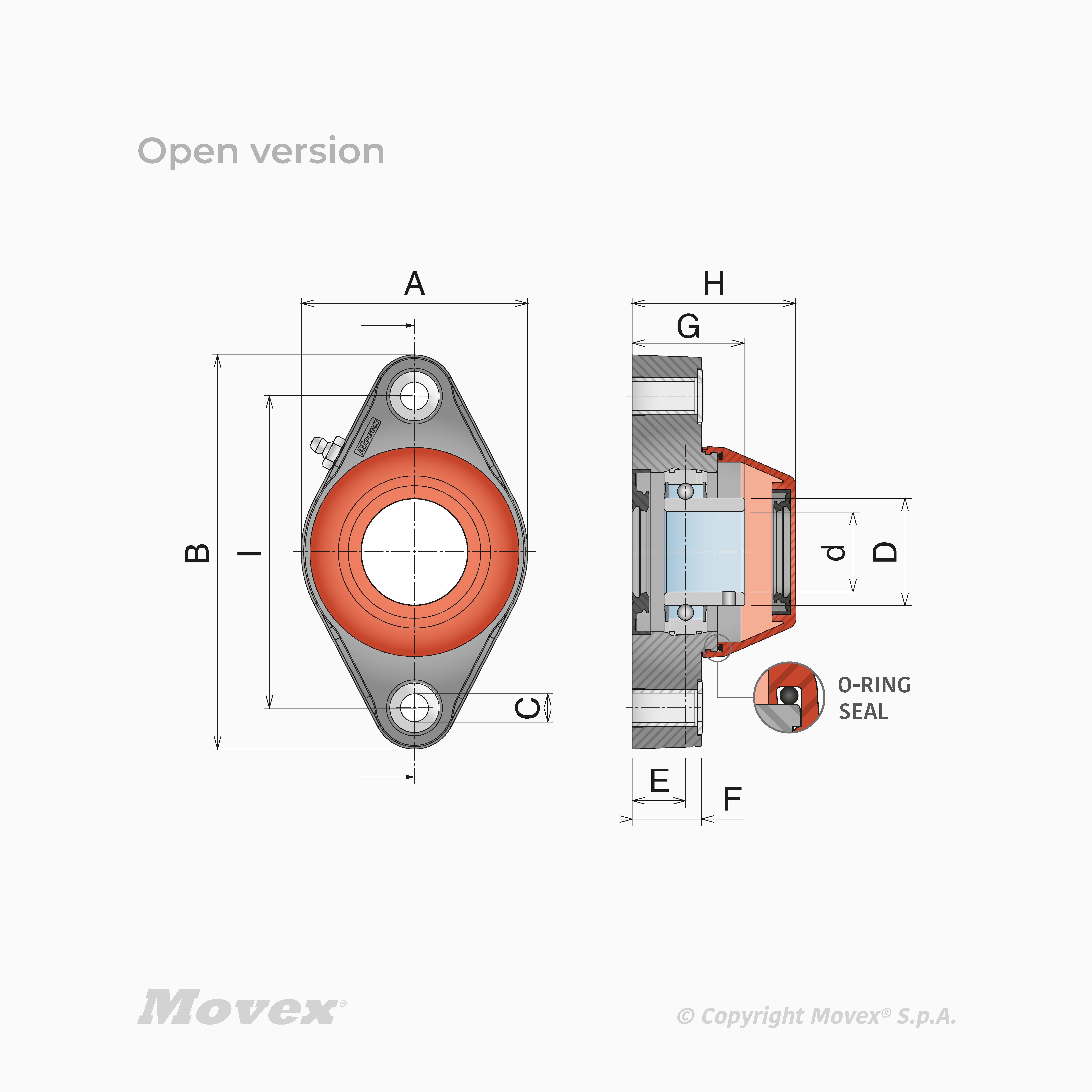

	A	B	Operating Temperature °C	D	E	C	F	G	H	Bearing material	Watertight (Safety cap)	Shaft diameter	I (holes distance)	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Washers	Cap	Seal
Code																						Actions
P80300	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Chrome steel	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80300L	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Chrome steel "Long life"	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80300SS	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Stainless steel	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80301	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80301L	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel "Long life"	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80301SS	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Stainless steel	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80302	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80302L	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80302SS	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80303	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, closed cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80303L	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel "Long life"	Yes, closed cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80303SS	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Stainless steel	Yes, closed cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80304	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel	Yes, closed cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80304L	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel "Long life"	Yes, closed cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80304SS	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Stainless steel	Yes, closed cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80310	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Chrome steel	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80310L	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Chrome steel "Long life"	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80310SS	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Stainless steel	Yes, closed cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80311	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel	Yes, closed cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80311L	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel "Long life"	Yes, closed cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80311SS	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Stainless steel	Yes, closed cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80312	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, closed cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80312L	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, closed cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80312SS	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, closed cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80313	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, closed cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80313L	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel "Long life"	Yes, closed cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80313SS	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Stainless steel	Yes, closed cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80314	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel	Yes, closed cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80314L	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel "Long life"	Yes, closed cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80314SS	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Stainless steel	Yes, closed cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80321	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Chrome steel	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80321L	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Chrome steel "Long life"	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80321SS	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Stainless steel	Yes, closed cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80322	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Chrome steel	Yes, closed cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80322L	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Chrome steel "Long life"	Yes, closed cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80322SS	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Stainless steel	Yes, closed cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80332	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80332L	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80332SS	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, closed cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P80400	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Chrome steel	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80400L	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Chrome steel "Long life"	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80400SS	71 mm	130 mm	0÷80 °C	29 mm	17.5 mm	11 mm	22.5 mm	33.5 mm	52 mm	Stainless steel	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80401	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80401L	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel "Long life"	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80401SS	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Stainless steel	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80402	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80402L	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80402SS	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80403	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, open cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80403L	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel "Long life"	Yes, open cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80403SS	93 mm	148 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Stainless steel	Yes, open cap	35 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80404	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel	Yes, open cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80404L	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel "Long life"	Yes, open cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80404SS	93 mm	148 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Stainless steel	Yes, open cap	40 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80410	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Chrome steel	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80410L	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Chrome steel "Long life"	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80410SS	62 mm	116 mm	0÷80 °C	29 mm	16 mm	11 mm	20 mm	34 mm	51.5 mm	Stainless steel	Yes, open cap	20 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80411	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel	Yes, open cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80411L	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Chrome steel "Long life"	Yes, open cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80411SS	71 mm	130 mm	0÷80 °C	34 mm	16.8 mm	11 mm	22.5 mm	36.3 mm	52 mm	Stainless steel	Yes, open cap	25 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80412	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, open cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80412L	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, open cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80412SS	85 mm	148 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, open cap	30 mm	117 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80413	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel	Yes, open cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80413L	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Chrome steel "Long life"	Yes, open cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80413SS	93 mm	162 mm	0÷80 °C	48 mm	19.5 mm	11 mm	26 mm	43 mm	66.5 mm	Stainless steel	Yes, open cap	35 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80414	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel	Yes, open cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80414L	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Chrome steel "Long life"	Yes, open cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80414SS	93 mm	162 mm	0÷80 °C	53 mm	19 mm	11 mm	26 mm	44 mm	66.5 mm	Stainless steel	Yes, open cap	40 mm	130 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80421	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Chrome steel	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80421L	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Chrome steel "Long life"	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80421SS	85 mm	116 mm	0÷80 °C	34 mm	14.5 mm	11 mm	20 mm	34 mm	55.5 mm	Stainless steel	Yes, open cap	25 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80422	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Chrome steel	Yes, open cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80422L	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Chrome steel "Long life"	Yes, open cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80422SS	85 mm	116 mm	0÷80 °C	40.3 mm	14.5 mm	11 mm	20 mm	36.5 mm	55.5 mm	Stainless steel	Yes, open cap	30 mm	90 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80432	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80432L	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Chrome steel "Long life"	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P80432SS	85 mm	130 mm	0÷80 °C	40.3 mm	20 mm	11 mm	26 mm	42 mm	61.5 mm	Stainless steel	Yes, open cap	30 mm	99 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical (No for “Long life”)	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
