UCFA Locking collar Watertight Solid

Bearings supports

Enquire Now

Description

The UCFA watertight bearings - solid version are made in reinforced polypropylene with good mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol. The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert. Bearings are made in chrome steel, with 2,5° adjustment. They can be used at temperature between 0°C and +80°C.

Basic features

Series:	UCFA
Type:	Watertight (cap)
Fixation:	3-holes
Material:	Plastic
Version:	Solid
Fixing method:	Locking collar (eccentric ring)
Unit of measure:	Ea
Box:	-

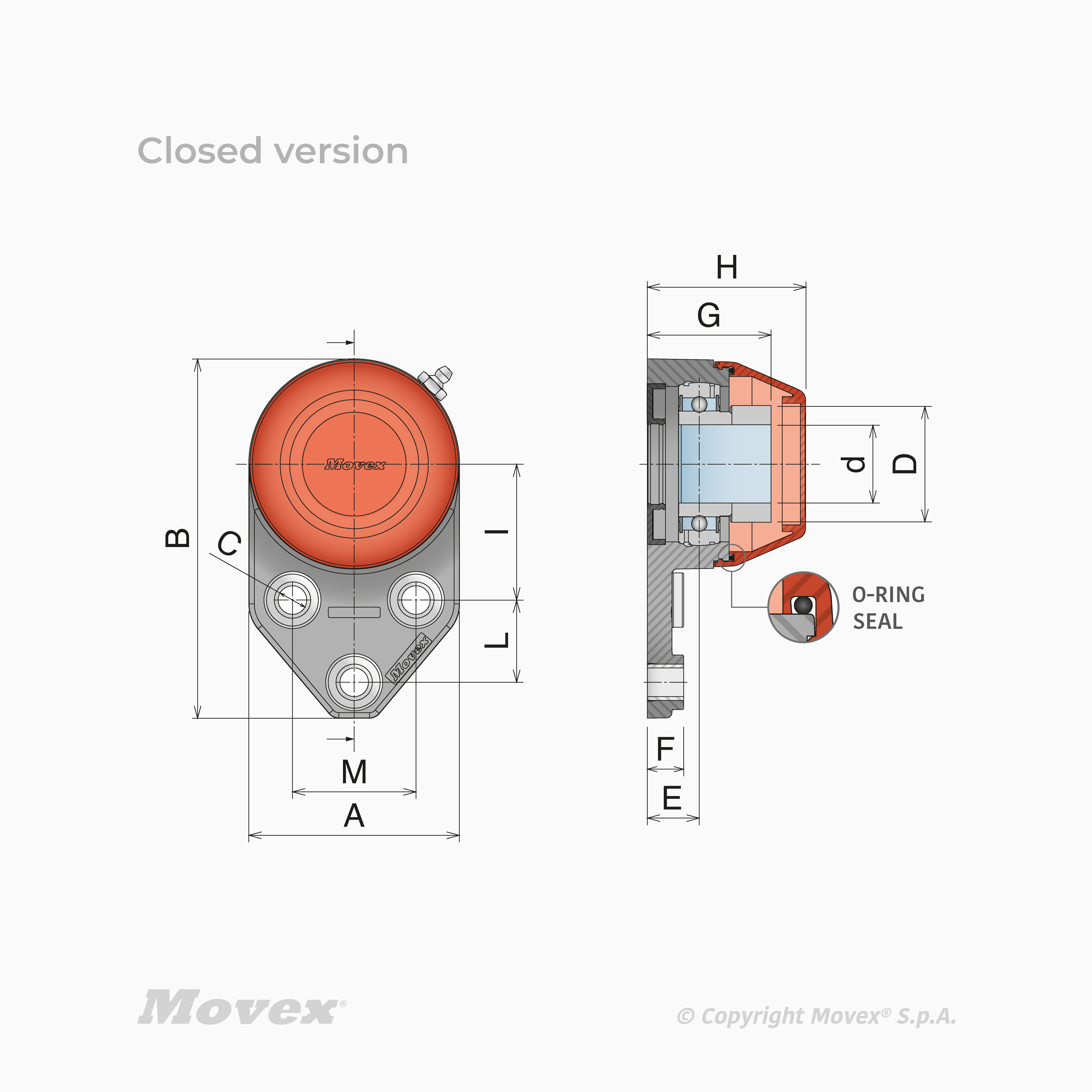

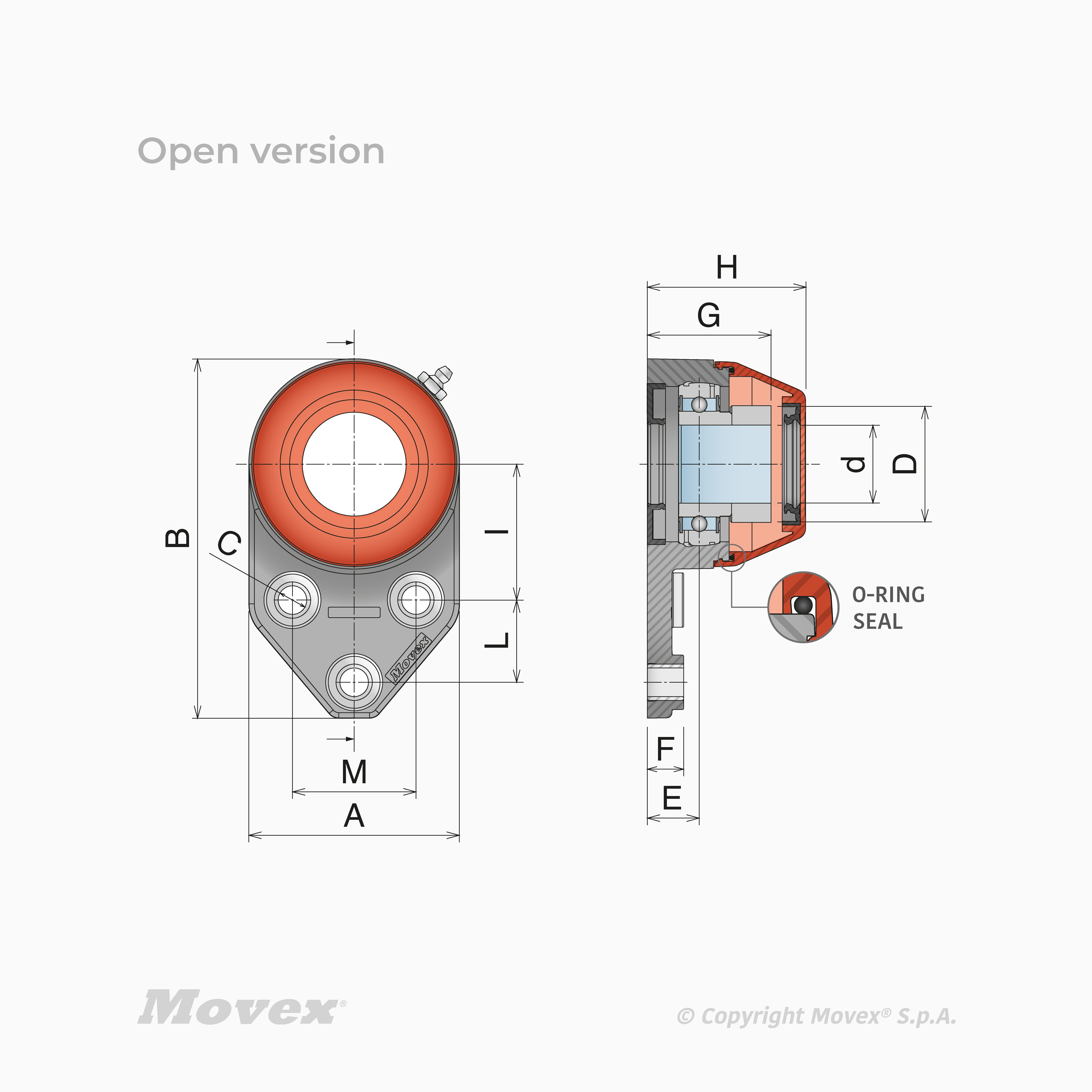

UCFA Locking collar Watertight Solid

	A	B	Operating Temperature °C	D	E	C	F	G	H	L	Bearing material	Watertight (Safety cap)	Shaft diameter	I (holes distance)	M	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Washers	Cap	Seal
Code																								Actions
P83800	68.8 mm	124.2 mm	0÷80 °C	33.3 mm	16.4 mm	11 mm	14 mm	40.3 mm	51.8 mm	28.6 mm	Chrome steel	Yes, closed cap	20 mm	46 mm	41.3 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P83801	68.8 mm	124.2 mm	0÷80 °C	38.1 mm	17.8 mm	11 mm	14 mm	41.2 mm	51.8 mm	28.6 mm	Chrome steel	Yes, closed cap	25 mm	46 mm	41.3 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P83802	81.3 mm	138.6 mm	0÷80 °C	44.5 mm	20 mm	11 mm	14 mm	47.7 mm	61 mm	31.7 mm	Chrome steel	Yes, closed cap	30 mm	52.4 mm	47.6 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene closed cap with O-ring seal	NBR bottom seal
P83900	68.8 mm	124.2 mm	0÷80 °C	33.3 mm	16.4 mm	11 mm	14 mm	40.3 mm	51.8 mm	28.6 mm	Chrome steel	Yes, open cap	20 mm	46 mm	41.3 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P83901	68.8 mm	124.2 mm	0÷80 °C	38.1 mm	17.8 mm	11 mm	14 mm	41.2 mm	51.8 mm	28.6 mm	Chrome steel	Yes, open cap	25 mm	46 mm	41.3 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
P83902	81.3 mm	138.6 mm	0÷80 °C	44.5 mm	20 mm	11 mm	14 mm	47.7 mm	61 mm	31.7 mm	Chrome steel	Yes, open cap	30 mm	52.4 mm	47.6 mm	2.5°	Housing in reinforced polypropylene	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel grease nipple M6 conical	Stainless steel washers	Polypropylene open cap with O-ring seal & NBR top seal	NBR bottom seal
