UCF Grub screw Watertight Reinforced
Bearings supports
Description
Description
The UCF watertight bearings - reinforced version are made in reinforced polyamide with high mechanical strength and great resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol.
The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert.
Bearings are made in chrome steel or in stainless steel, with 2,5° adjustment.
The grease nipple is made in nickel plated steel for chrome steel bearings and stainless steel for SS bearings, not available for the “Long life” version (without hole).
Basic features
| Series: | UCF |
|---|---|
| Type: | Watertight (cap) |
| Fixation: | 4-holes |
| Material: | Plastic |
| Version: | Reinforced |
| Fixing method: | Grub screw |
| Unit of measure: | Ea |
| Box: | - |
UCF Grub screw Watertight Reinforced

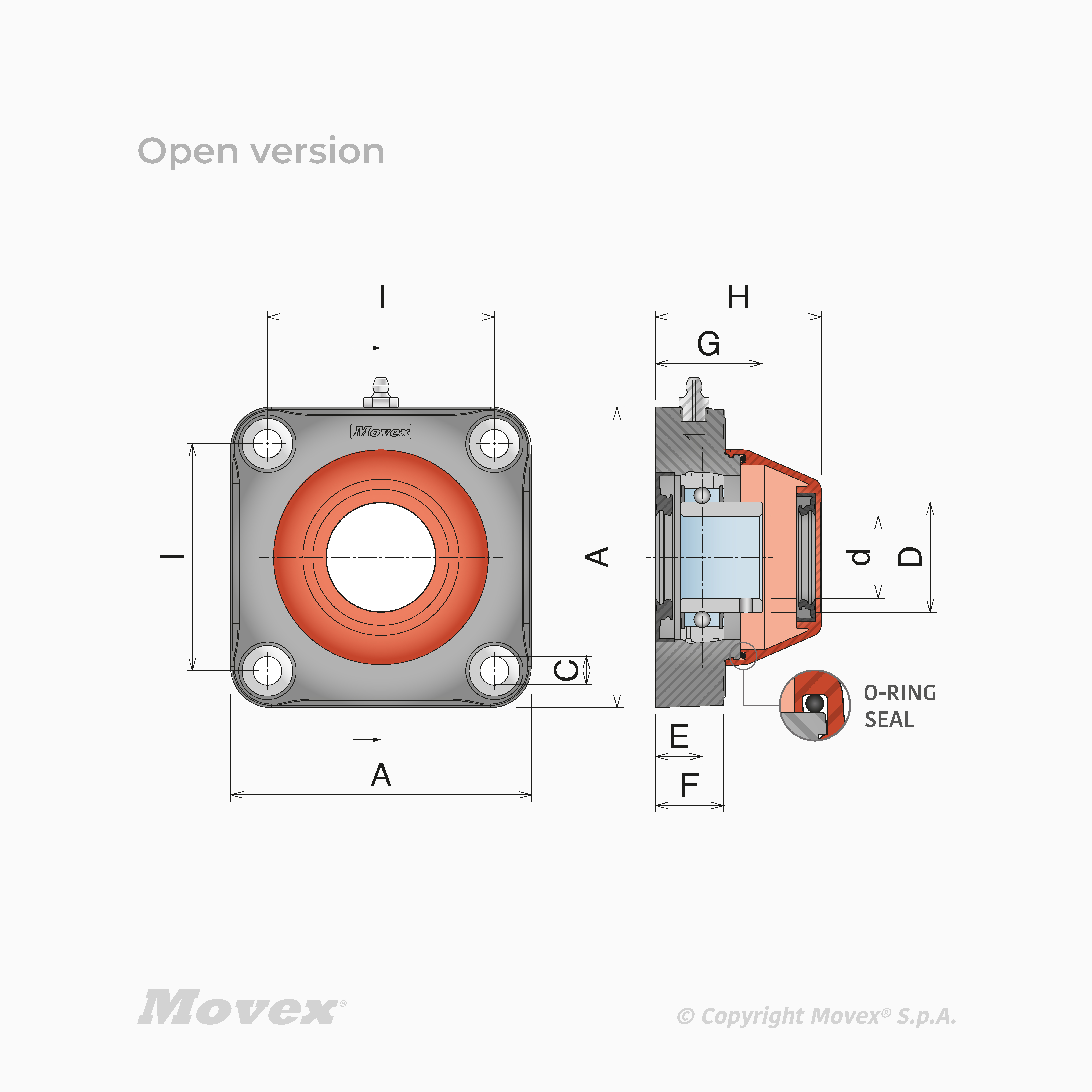

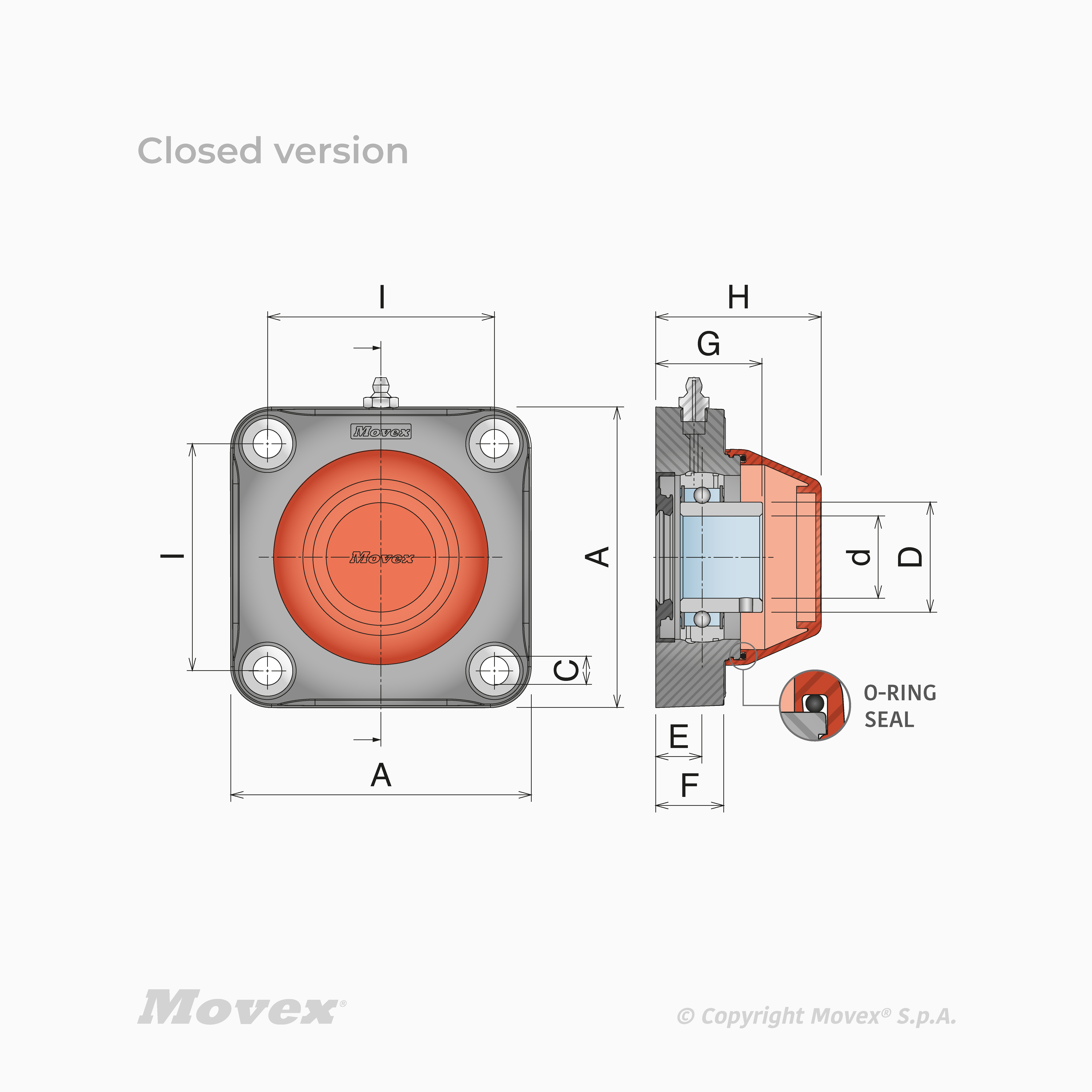

| A | Operating Temperature °C | D | E | C | F | G | Bearing material | Watertight (Safety cap) | Shaft diameter | I (holes distance) | Shaft adjustment | Housing | Bearing | Spacers | Grease nipple | Washers | Cap | Seal | H | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||||
| P80901 | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Chrome steel | Yes, closed cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80901L | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Chrome steel "Long life" | Yes, closed cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80901SS | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Stainless steel | Yes, closed cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80902 | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Chrome steel | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80902L | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Chrome steel "Long life" | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80902SS | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Stainless steel | Yes, closed cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80903 | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel | Yes, closed cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80903L | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel "Long life" | Yes, closed cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80903SS | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Stainless steel | Yes, closed cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80904 | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Chrome steel | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80904L | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Chrome steel "Long life" | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80904SS | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Stainless steel | Yes, closed cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80913 | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel | Yes, closed cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80913L | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel "Long life" | Yes, closed cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80913SS | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Stainless steel | Yes, closed cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80914 | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Chrome steel | Yes, closed cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80914L | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Chrome steel "Long life" | Yes, closed cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P80914SS | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Stainless steel | Yes, closed cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene closed cap with O-ring seal | NBR bottom seal | - |
|
| P81001 | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Chrome steel | Yes, open cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 51.5 mm |
|
| P81001L | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Chrome steel "Long life" | Yes, open cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 51.5 mm |
|
| P81001SS | 98 mm | 0÷80 °C | 34 mm | 16 mm | 11 mm | 22 mm | 35.5 mm | Stainless steel | Yes, open cap | 25 mm | 70 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 51.5 mm |
|
| P81002 | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Chrome steel | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 60.5 mm |
|
| P81002L | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Chrome steel "Long life" | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 60.5 mm |
|
| P81002SS | 110 mm | 0÷80 °C | 40.3 mm | 17 mm | 11 mm | 25 mm | 39 mm | Stainless steel | Yes, open cap | 30 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 60.5 mm |
|
| P81003 | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel | Yes, open cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81003L | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel "Long life" | Yes, open cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81003SS | 110 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Stainless steel | Yes, open cap | 35 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81004 | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Chrome steel | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81004L | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Chrome steel "Long life" | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81004SS | 110 mm | 0÷80 °C | 53 mm | 19.5 mm | 11 mm | 25 mm | 44.5 mm | Stainless steel | Yes, open cap | 40 mm | 83 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81013 | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel | Yes, open cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81013L | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Chrome steel "Long life" | Yes, open cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81013SS | 118 mm | 0÷80 °C | 48 mm | 20 mm | 11 mm | 25 mm | 43.5 mm | Stainless steel | Yes, open cap | 35 mm | 92 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81014 | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Chrome steel | Yes, open cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81014L | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Chrome steel "Long life" | Yes, open cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
| P81014SS | 130 mm | 0÷80 °C | 53 mm | 19 mm | 11 mm | 25 mm | 44 mm | Stainless steel | Yes, open cap | 40 mm | 102 mm | 2.5° | Housing in reinforced polyamide | Chrome steel or stainless steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacers | Nickel plated steel or SS grease nipple M6 conical (No for “Long life”) | Stainless steel washers | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal | 65.5 mm |
|
