UCF Grub screw Standard Reinforced

Bearings supports

Enquire Now

Description

The UCF standard bearings - reinforced version are made in reinforced polyamide with high mechanical strength and great resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol. Bearings are made in chrome steel or in stainless steel, with 2,5° adjustment. The grease nipple is made in nickel plated steel for chrome steel bearings and stainless steel for SS bearings. They can be used at temperature between 0°C and +80°C.

Basic features

Series:	UCF
Type:	Standard (no cap)
Fixation:	4-holes
Material:	Plastic
Version:	Reinforced
Fixing method:	Grub screw
Unit of measure:	Ea
Box:	-

UCF Grub screw Standard Reinforced

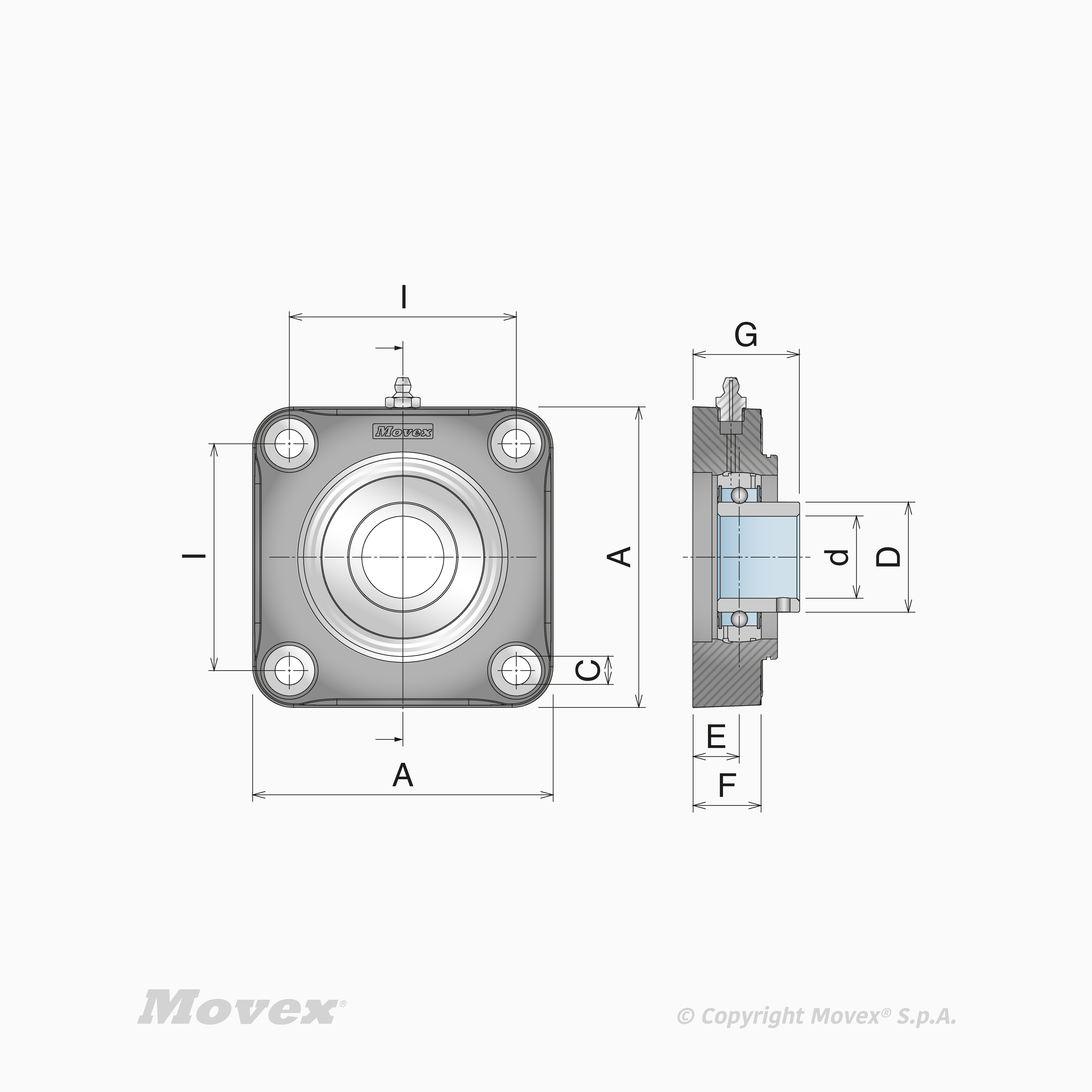

	A	Operating Temperature °C	D	E	C	F	G	Bearing material	Shaft diameter	I (holes distance)	Shaft adjustment	Housing	Bearing	Spacers	Grease nipple	Washers	Cap
Code																		Actions
P80701	98 mm	0÷80 °C	34 mm	16 mm	11 mm	22 mm	35.5 mm	Chrome steel	25 mm	70 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89001; Open cap: P89051-25
P80701SS	98 mm	0÷80 °C	34 mm	16 mm	11 mm	22 mm	35.5 mm	Stainless steel	25 mm	70 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89001; Open cap: P89051-25
P80702	110 mm	0÷80 °C	40.3 mm	17 mm	11 mm	25 mm	39 mm	Chrome steel	30 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89002; Open cap: P89052-30
P80702SS	110 mm	0÷80 °C	40.3 mm	17 mm	11 mm	25 mm	39 mm	Stainless steel	30 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89002; Open cap: P89052-30
P80703	110 mm	0÷80 °C	48 mm	20 mm	11 mm	25 mm	43.5 mm	Chrome steel	35 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-35
P80703SS	110 mm	0÷80 °C	48 mm	20 mm	11 mm	25 mm	43.5 mm	Stainless steel	35 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-35
P80704	110 mm	0÷80 °C	53 mm	19.5 mm	11 mm	25 mm	44.5 mm	Chrome steel	40 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-40
P80704SS	110 mm	0÷80 °C	53 mm	19.5 mm	11 mm	25 mm	44.5 mm	Stainless steel	40 mm	83 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-40
P80713	118 mm	0÷80 °C	48 mm	20 mm	11 mm	25 mm	43.5 mm	Chrome steel	35 mm	92 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-35
P80713SS	118 mm	0÷80 °C	48 mm	20 mm	11 mm	25 mm	43.5 mm	Stainless steel	35 mm	92 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-35
P80714	130 mm	0÷80 °C	53 mm	19 mm	11 mm	25 mm	44 mm	Chrome steel	40 mm	102 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-40
P80714SS	130 mm	0÷80 °C	53 mm	19 mm	11 mm	25 mm	44 mm	Stainless steel	40 mm	102 mm	2.5°	Housing in reinforced polyamide	Chrome steel or stainless steel ball bearing (pre-lubricated)	Nickel-plated brass mounting hole spacers	Nickel plated steel or SS grease nipple M6 conical	Stainless steel washers	Closed cap: P89003; Open cap: P89053-40
