TX.

Plugs

Polyethylene

Enquire Now

Description

Main specifications

Material

Polyethylene (PE), red colour.

Standard executions

TX.: without packing ring.

TX-G: with NBR synthetic rubber flat packing ring.

Maximum continuous working temperature

60°C.

General information

Features and applications

The product is used in pneumatic and hydraulic systems to protect against dust and humidity.

The TX-G is particularly suitable for applications on components that require painting, as the protruding flat gasket allows greater coverage of the counterbore hole, minimising losses.

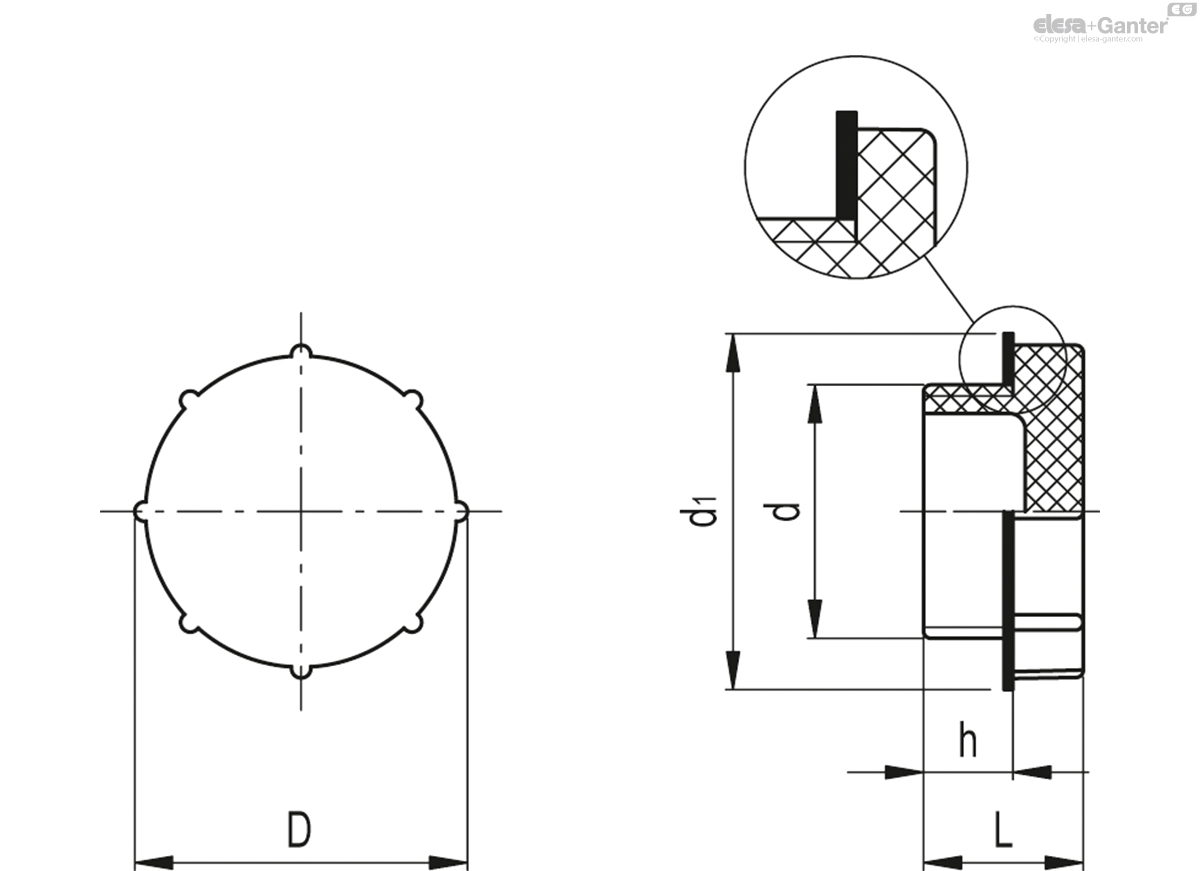

TX-G

		d	h	D	L	d₁
Code	Description							Actions
437201	TX.8x1-G	M8x1	9.5	12.5	14.5	13	1
437203	TX.10x1-G	M10x1	10.5	15.5	14.5	16	1
437205	TX.12x1-G	M12x1	11	18.5	17	18.5	2
437207	TX.12x1.5-G	M12x1.5	9	16.5	16.5	18.5	2
437209	TX.14x1.5-G	M14x1.5	9.5	18.5	17	22	4
437211	TX.16x1.5-G	M16x1.5	9.5	22	17	23	2
437213	TX.18x1.5-G	M18x1.5	12.5	24.4	18.5	24	3
437215	TX.20x1.5-G	M20x1.5	14	26.5	18	26	3
437217	TX.20x2.5-G	M20x2.5	14	26.5	18	26	4
437219	TX.22x1.5-G	M22x1.5	14	28	18.5	29	4
437221	TX.24x1.5-G	M24x1.5	14	31.5	18.5	30	4
437223	TX.25x1.5-G	M25x1.5	14	31.5	18.5	30	5
437225	TX.26x1.5-G	M26x1.5	14	33	19	32.5	5
437251	TX.1/8-G	G 1/8	4	19	13	16	2
437253	TX.1/4-G	G 1/4	6.5	23	12	19	2
437255	TX.3/8-G	G 3/8	10.5	28	17.5	22.5	2
437257	TX.1/2-G	G 1/2	14	31.5	18.5	28	5
437259	TX.5/8-G	G 5/8	11	32.5	17	30	5
437261	TX.3/4-G	G 3/4	13.5	38	18	31	6
437263	TX.7/8-G	G 7/8	11	40	17	37	6
437265	TX.1-G	G 1	15	50	21	40	6
437267	TX.1-1/4-G	G1 1/4	11	55	17	50	10
437269	TX.1-1/2-G	G1 1/2	11	74	17.5	54	10
437271	TX.2-G	G 2	11.5	105	16.5	74	19
437273	TX.3-G	G 3	11.3	105	16.5	103	36
