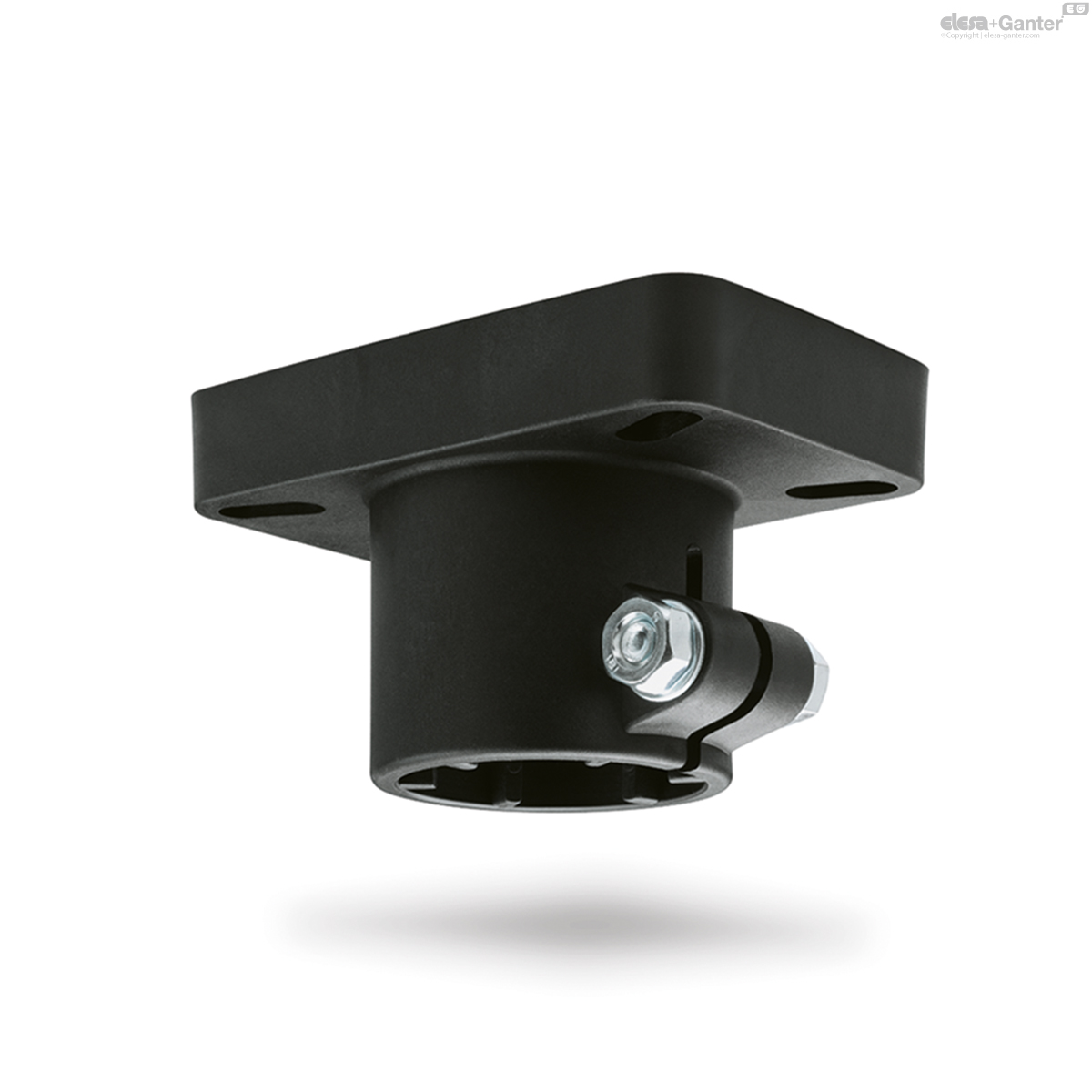

TTB.
Support bases
Technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- TTB-A: zinc-plated steel M10 screw, nut and washer.
- TTB-SST: AISI 304 stainless steel M10 screw, nut and washer.
General information
Features
Maximum tightening torque for screw assembly 35 Nm.

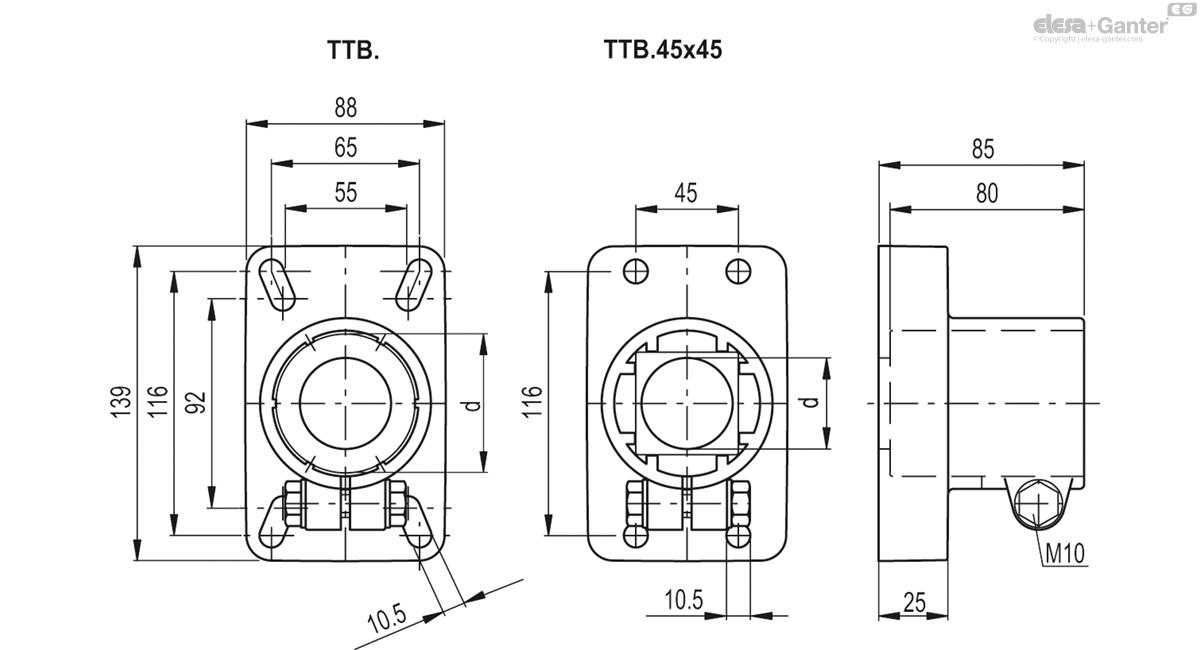

TTB-A
| d Tube (mm) | d Tube (GAS) | d Tube (inch) |  |
|||
|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||
| 419764 | TTB.60-A | 60.3 | 2' | - | 335 |
|
| 419766 | TTB.48-A | 48.3 | 1'1/2 | - | 340 |
|
| 419768 | TTB.42-A | 42.4 | 1'1/4 | - | 345 |
|
| 419770 | TTB.45x45-A | 45 | - | - | 340 |
|
| 419772 | TTB.50-A | 50.8 | - | 2' | 337 |
|
TTB-SST
| d Tube (mm) | d Tube (GAS) | d Tube (inch) | |
|||
|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||
| 419765 | TTB.60-SST | 60.3 | 2' | - | 335 |
|
| 419767 | TTB.48-SST | 48.3 | 1'1/2 | - | 340 |
|
| 419769 | TTB.42-SST | 42.4 | 1'1/4 | - | 345 |
|
| 419771 | TTB.45x45-SST | 45 | - | - | 340 |
|
| 419773 | TTB.50-SST | 50.8 | - | 2' | 335 |
|
