TSLB.

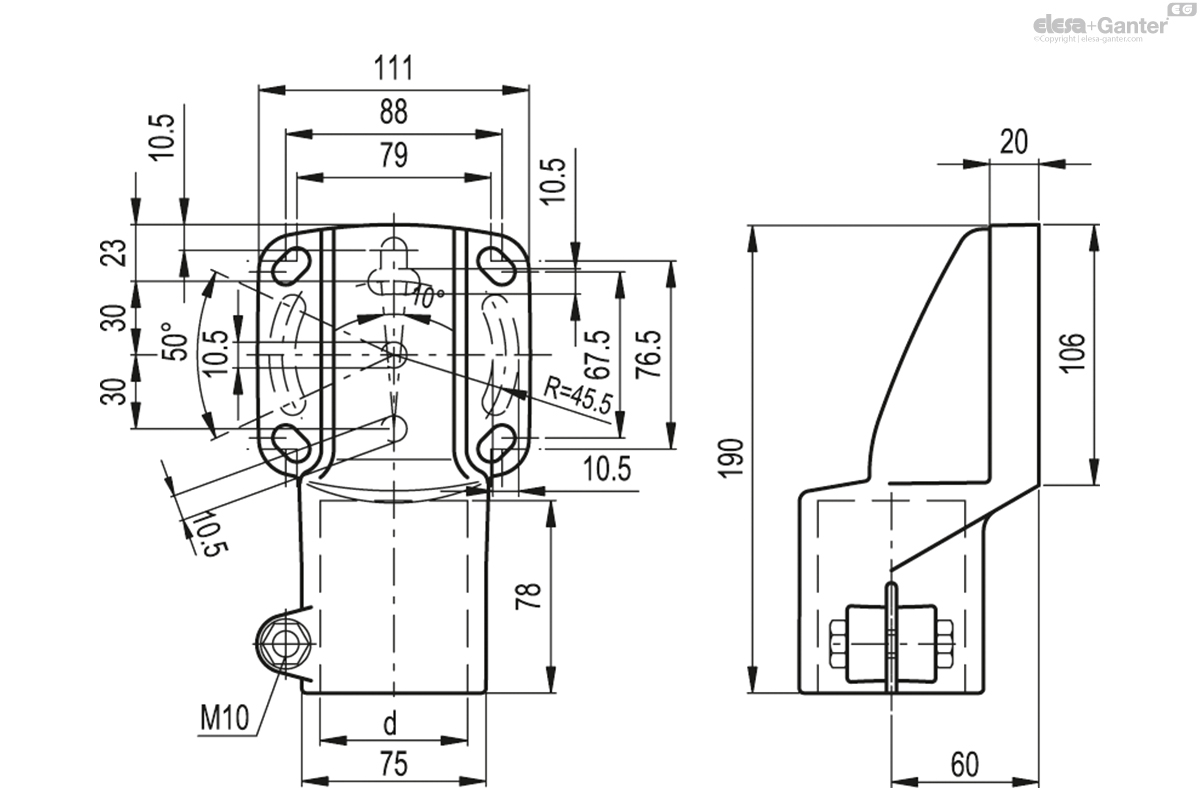

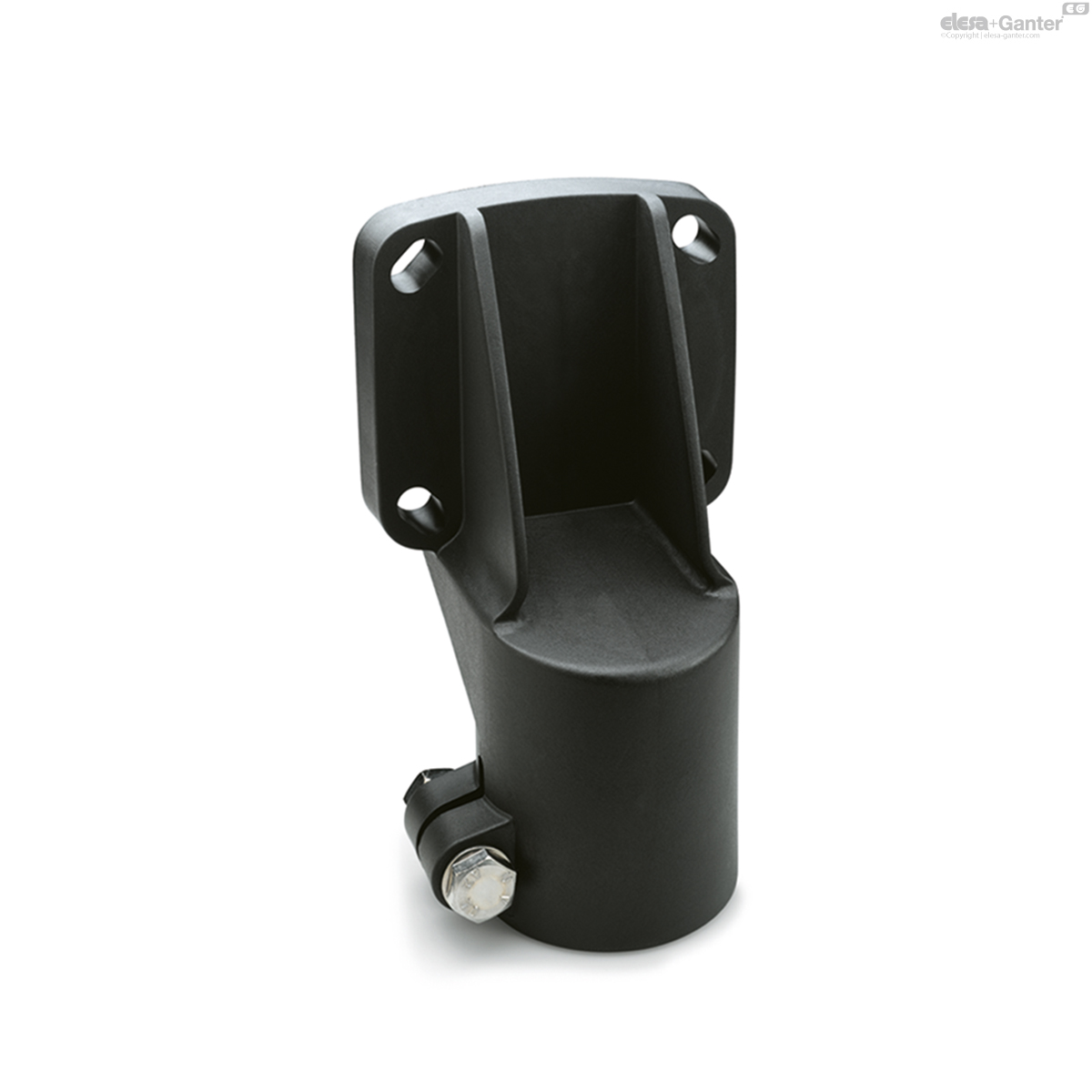

Side mounting top brackets
Technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- TSLB-A: zinc-plated steel M10 screw, nut and washer.
- TSLB-SST: AISI 304 stainless steel M10 screw, nut and washer.
General information
Features
Maximum tightening torque for screw assembly 35 Nm.
TSLB-A
| d Tube (mm) | d Tube (GAS) |  |
|||
|---|---|---|---|---|---|
| Code | Description | Actions | |||
| 419790 | TSLB-60-A | 60.3 | 2' | 425 |
|
| 419792 | TSLB-48-A | 48.3 | 1'1/2 | 430 |
|
| 419794 | TSLB-42-A | 42.4 | 1'1/4 | 435 |
|
| 419796 | TSLB-45x45-A | 45 | - | 430 |
|
TSLB-SST
| d Tube (mm) | d Tube (GAS) | |
|||
|---|---|---|---|---|---|
| Code | Description | Actions | |||
| 419791 | TSLB-60-SST | 60.3 | 2' | 425 |
|
| 419793 | TSLB-48-SST | 48.3 | 1'1/2 | 430 |
|
| 419795 | TSLB-42-SST | 42.4 | 1'1/4 | 435 |
|
| 419797 | TSLB-45x45-SST | 45 | - | 430 |
|
