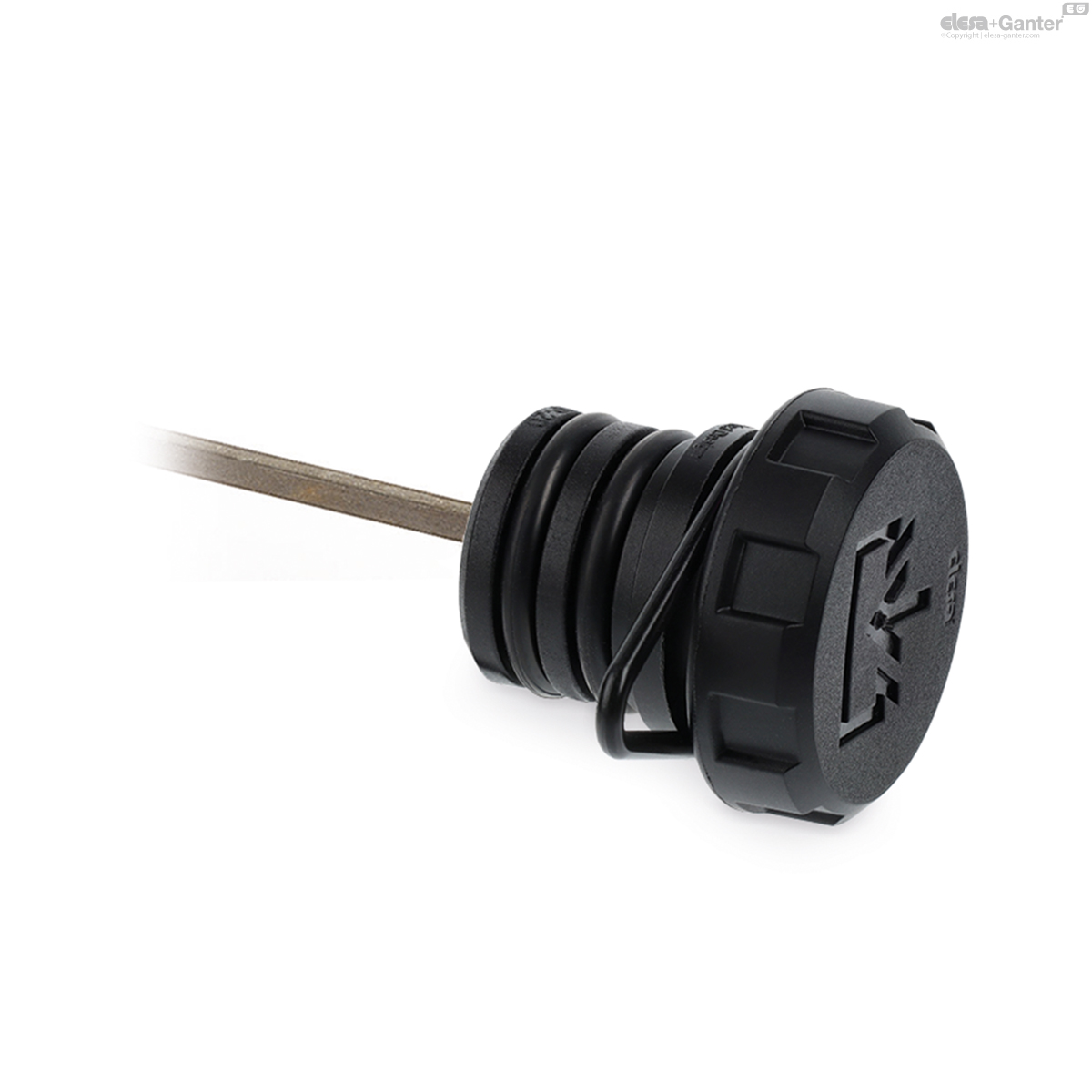

TP-C+a-RC

Push-fit caps

with elastic fork and flat dipstick, fill symbol, technopolymer

Enquire Now

Description

Main specifications

Polyamide-based (PA) technopolymer, black colour RAL 9005, matte finish.

Acetal-based technopolymer (POM), black colour.

Two NBR synthetic rubber O-rings.

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

60°C.

According to DIN regulations.

Push-fit avoids the need to screw/unscrew.

General information

Suitable for use when it is necessary to avoid the loss of the cap. The elastic fork, housed in the special groove of the cap, can rotate freely.

Accessories

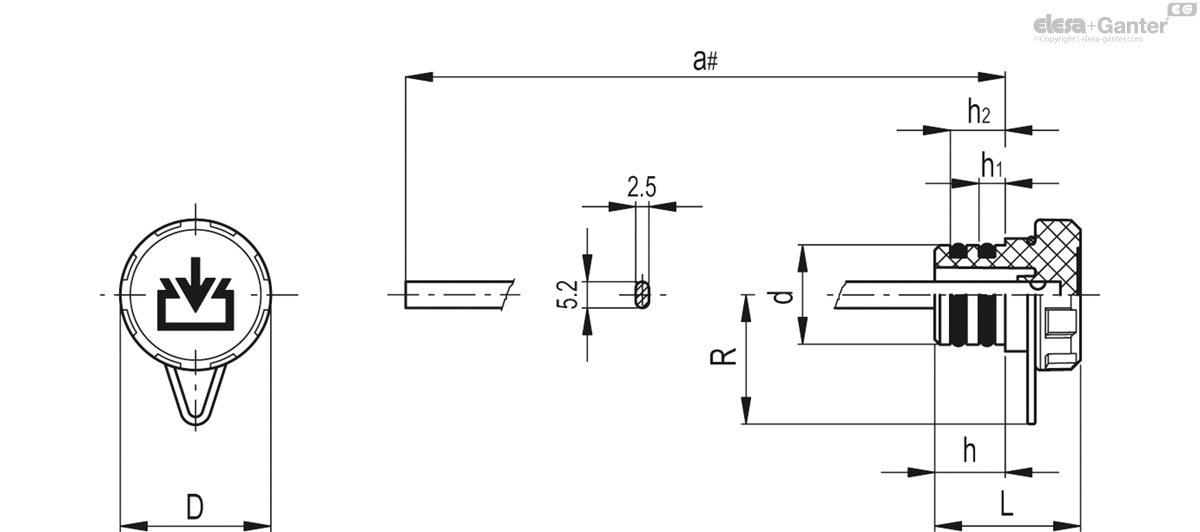

		D	d	a#	h	L	R	h₁	h₂	Mounting hole d_+0.2
Code	Description											Actions
60505-C9	TP-C.18+A-RC-C9	26	18	189	13	28	22.5	4.5	10	18	35
60515-C9	TP-C.20+A-RC-C9	30	20	189	14	29	24	5	11	20	38
60535-C9	TP-C.26+A-RC-C9	35	26	189	14	29.5	26.5	5	11	26	40
