TP-C+a

Push-fit caps

with flat dipstick, fill symbol, technopolymer

Enquire Now

Description

Main specifications

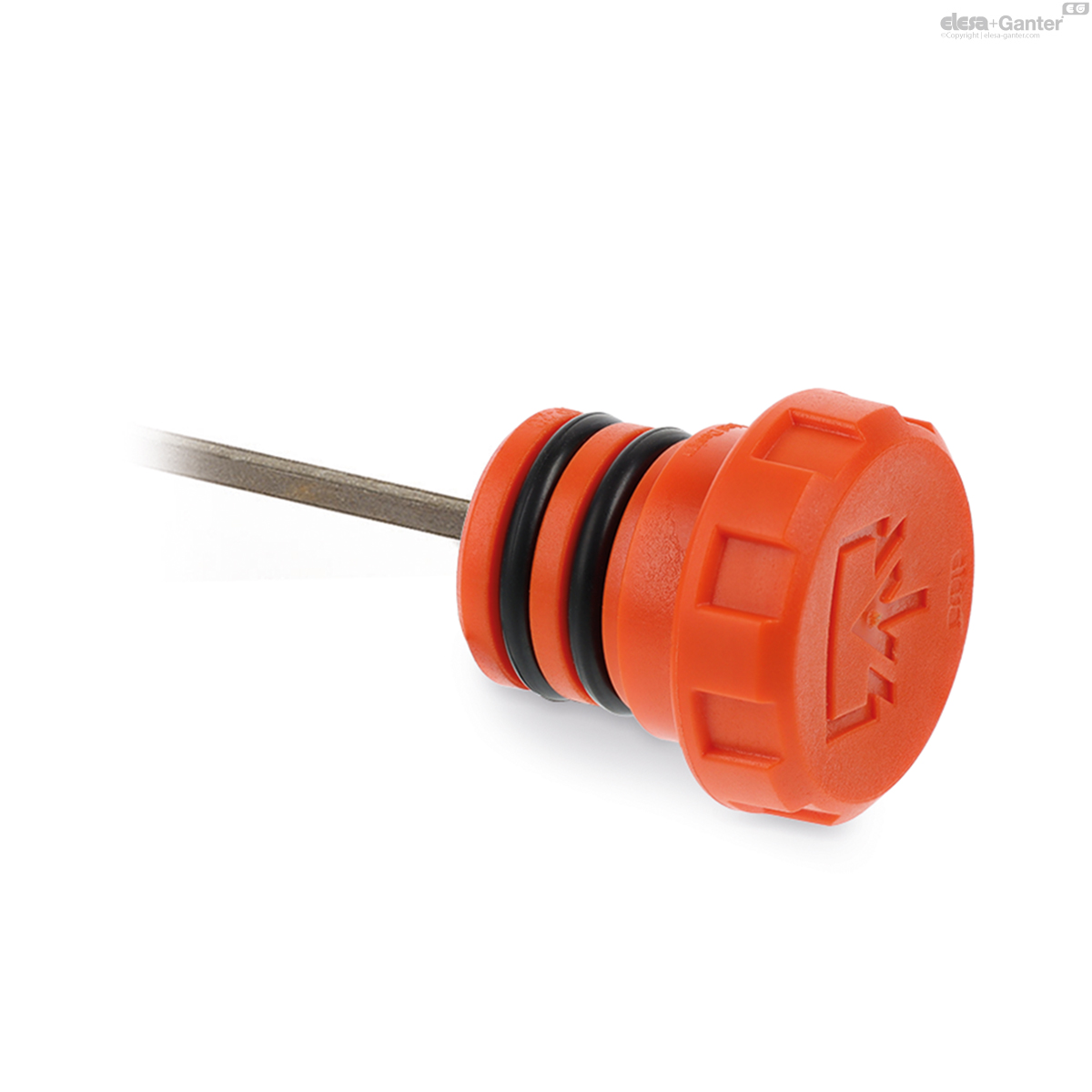

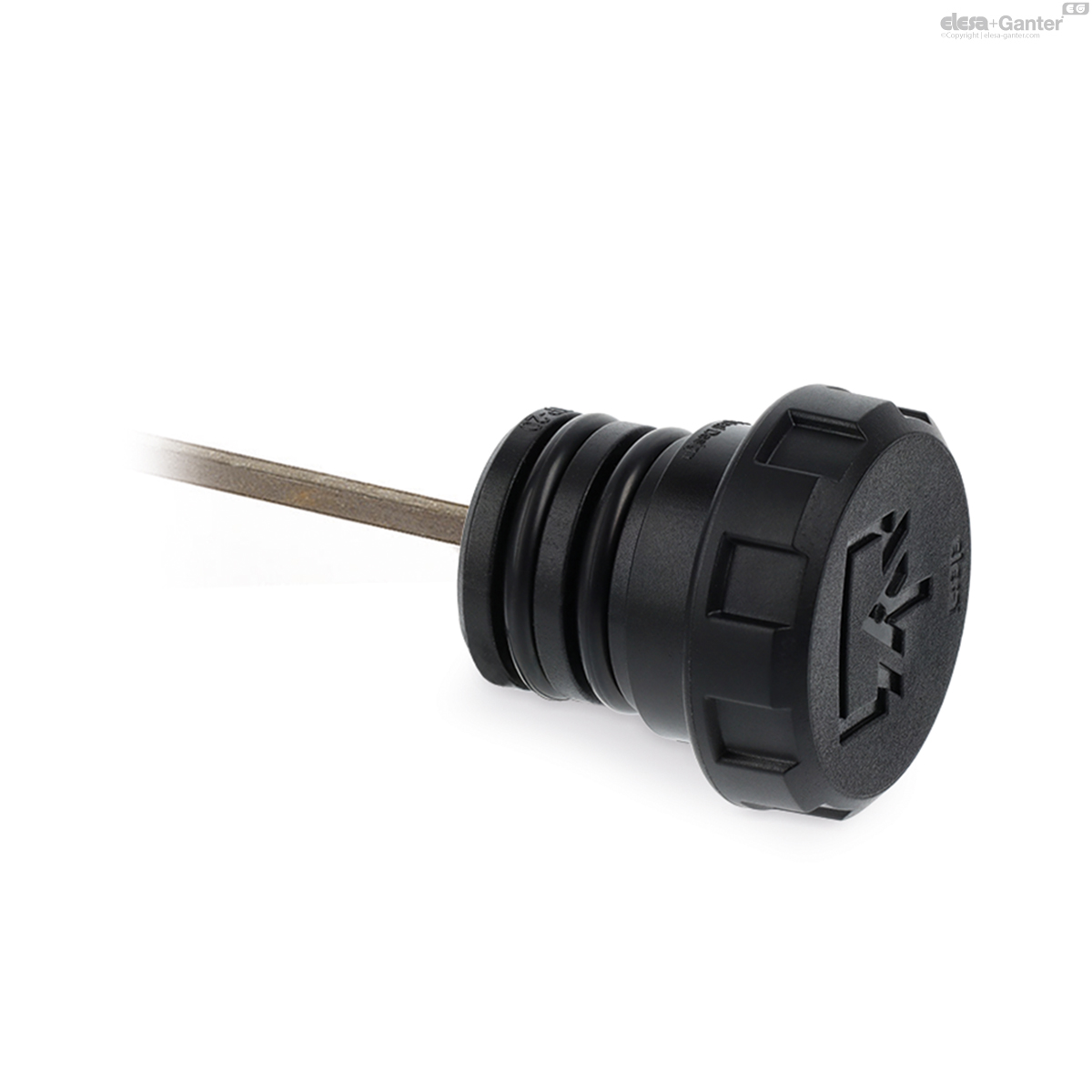

Polyamide based (PA) technopolymer, black colour RAL 9005 (C9) or orange colour RAL 2004 (C2), matte finish.

Two NBR synthetic rubber O-rings.

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

100°C.

According to DIN regulations.

Push-fit avoids the need to screw/unscrew.

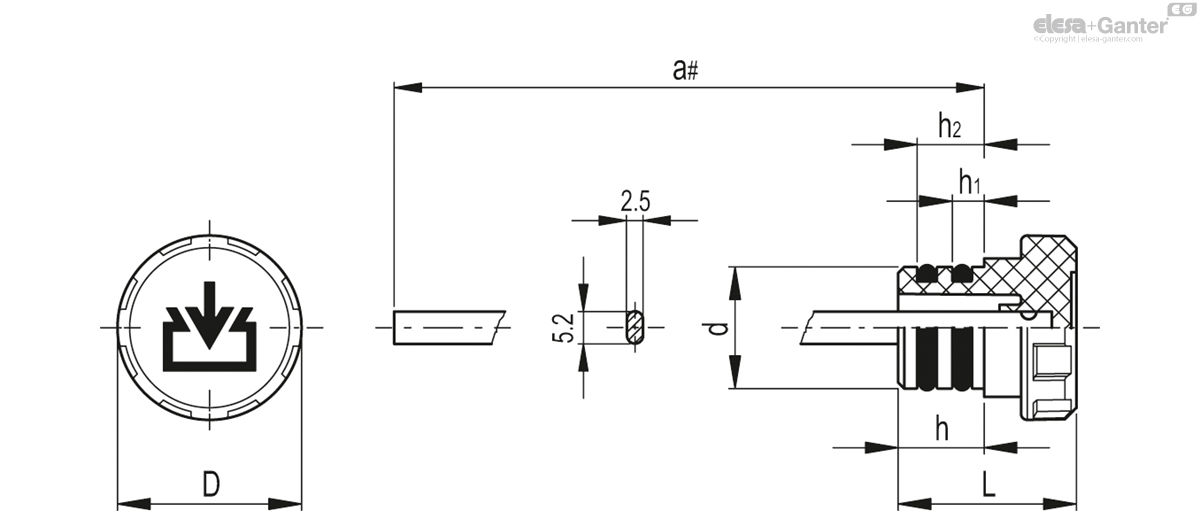

		Color	D	d	a#	h	L	h₁	h₂	Mounting hole d_+0.2
Code	Description											Actions
59855-R-C2	TP-C.18+a-C2	C2 - RAL 2004	26	18	189	13	28	4.5	10	18	32
59855-R-C9	TP-C.18+a-C9	C9 - RAL 9005	26	18	189	13	28	4.5	10	18	32
59865-R-C2	TP-C.20+a-C2	C2 - RAL 2004	30	20	189	14	29	5	11	20	16
59865-R-C9	TP-C.20+a-C9	C9 - RAL 9005	30	20	189	14	29	5	11	20	16
59885-R-C2	TP-C.26+a-C2	C2 - RAL 2004	35	26	189	14	29.5	5	11	26	40
59885-R-C9	TP-C.26+a-C9	C9 - RAL 9005	35	26	189	14	29.5	5	11	26	40
