TP-C

Push-fit caps

fill symbol, technopolymer

Enquire Now

Description

Main specifications

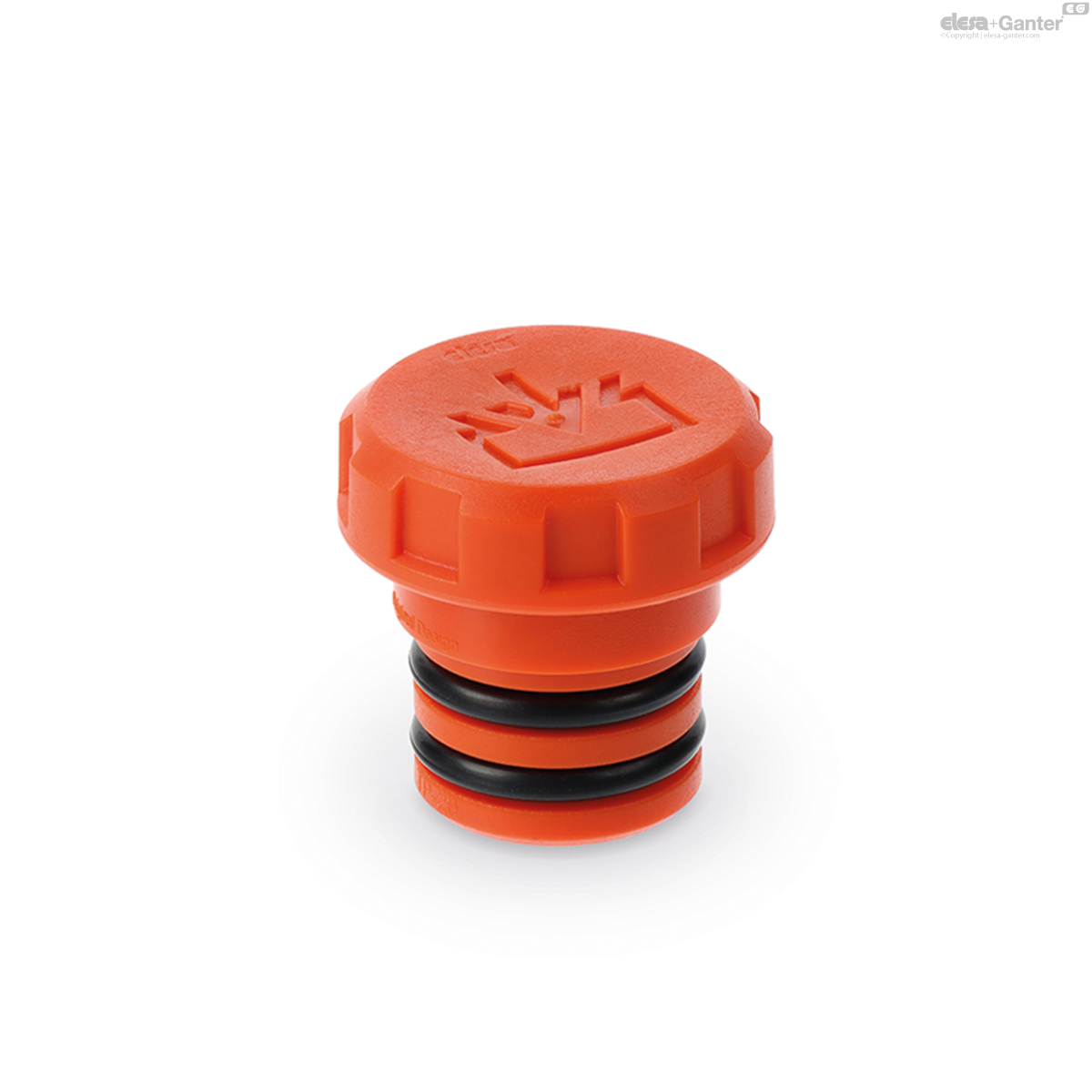

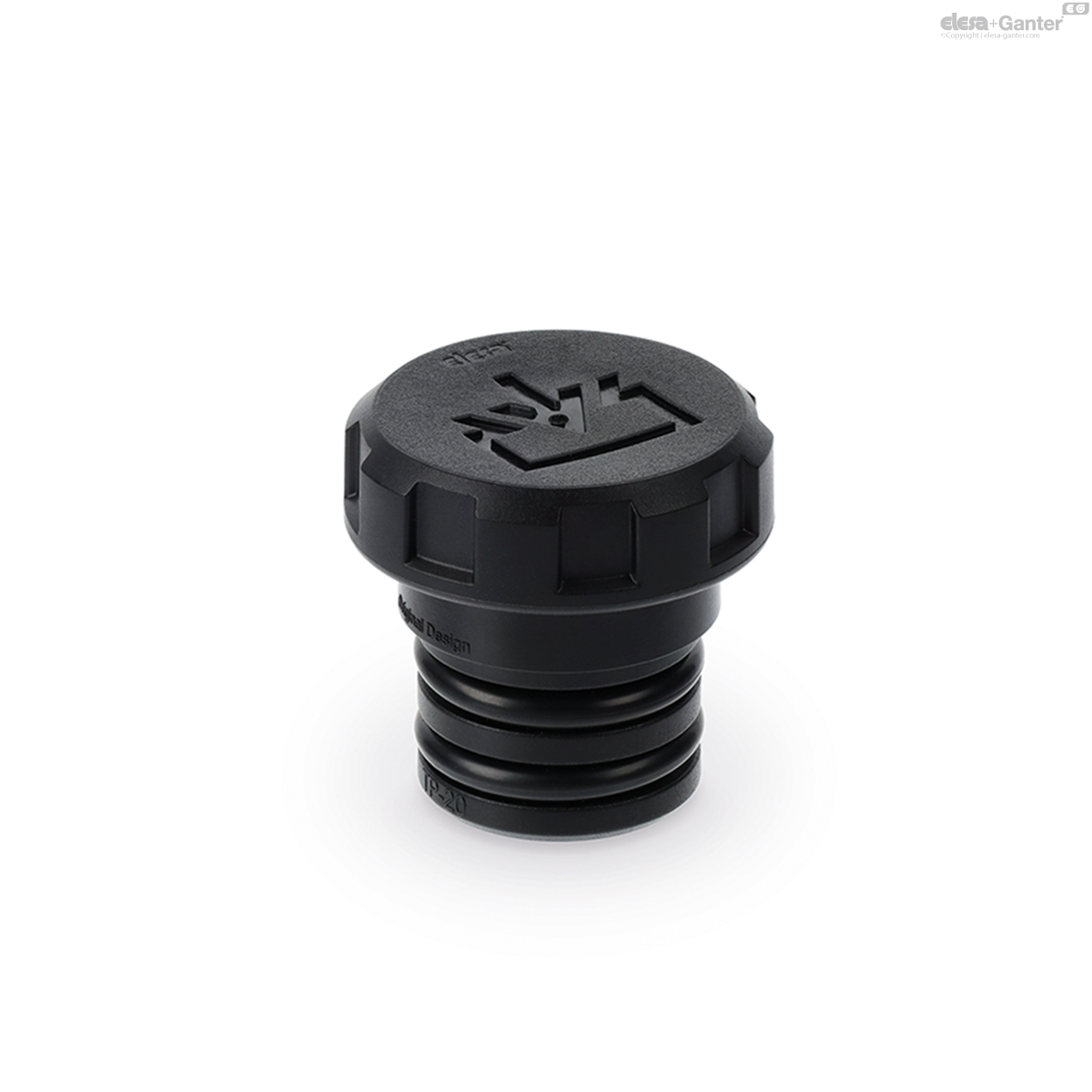

Polyamide based (PA) technopolymer, black colour RAL 9005 (C9) or orange colour RAL 2004 (C2), matte finish.

Two NBR synthetic rubber O-rings.

100°C.

According to DIN regulations.

Push-fit avoids the need to screw/unscrew.

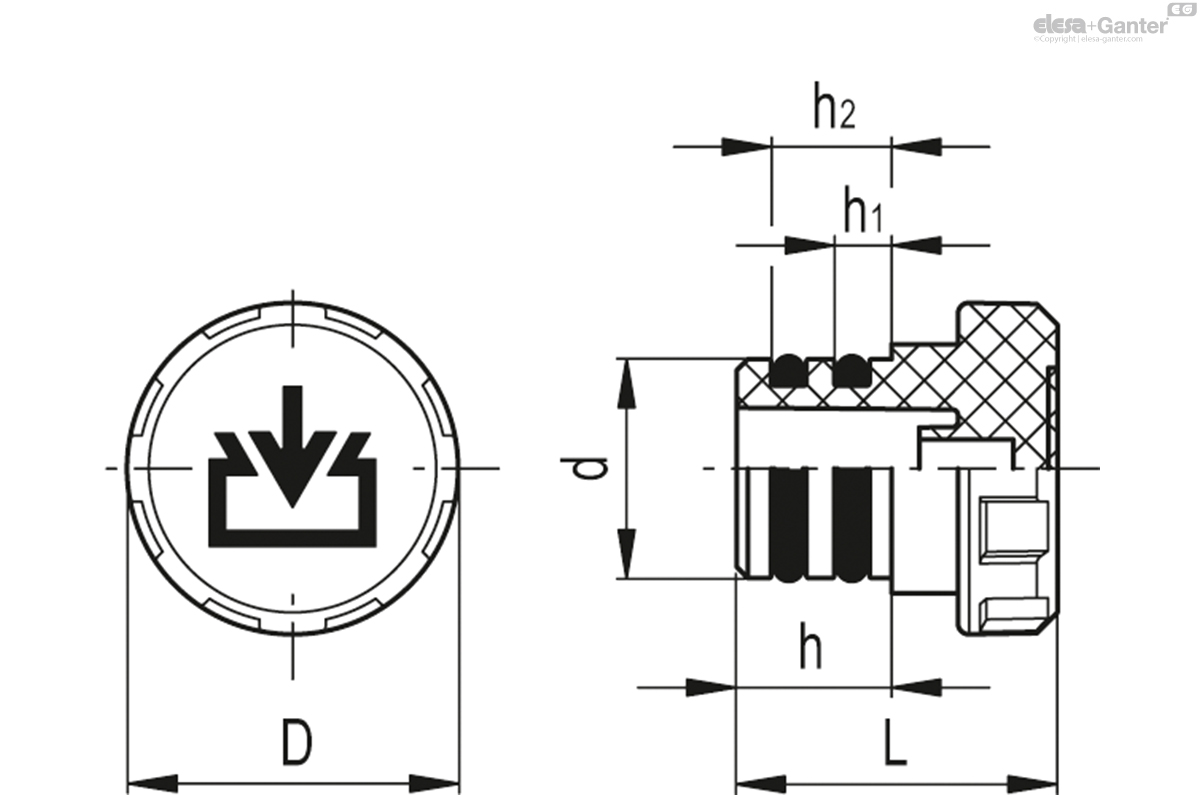

		Color	D	d	h	L	h₁	h₂	Mounting hole d_+0.2
Code	Description										Actions
59851-R-C2	TP-C.12-C2	C2 - RAL 2004	20	12	11	26	4	8	12	8
59851-R-C9	TP-C.12-C9	C9 - RAL 9005	20	12	11	26	4	8	12	8
59853-R-C2	TP-C.18-C2	C2 - RAL 2004	26	18	13	28	4.5	10	18	13
59853-R-C9	TP-C.18-C9	C9 - RAL 9005	26	18	13	28	4.5	10	18	13
59861-R-C2	TP-C.20-C2	C2 - RAL 2004	30	20	14	29	5	11	20	16
59861-R-C9	TP-C.20-C9	C9 - RAL 9005	30	20	14	29	5	11	20	16
59881-R-C2	TP-C.26-C2	C2 - RAL 2004	35	26	14	29.5	5	11	26	21
59881-R-C9	TP-C.26-C9	C9 - RAL 9005	35	26	14	29.5	5	11	26	21
