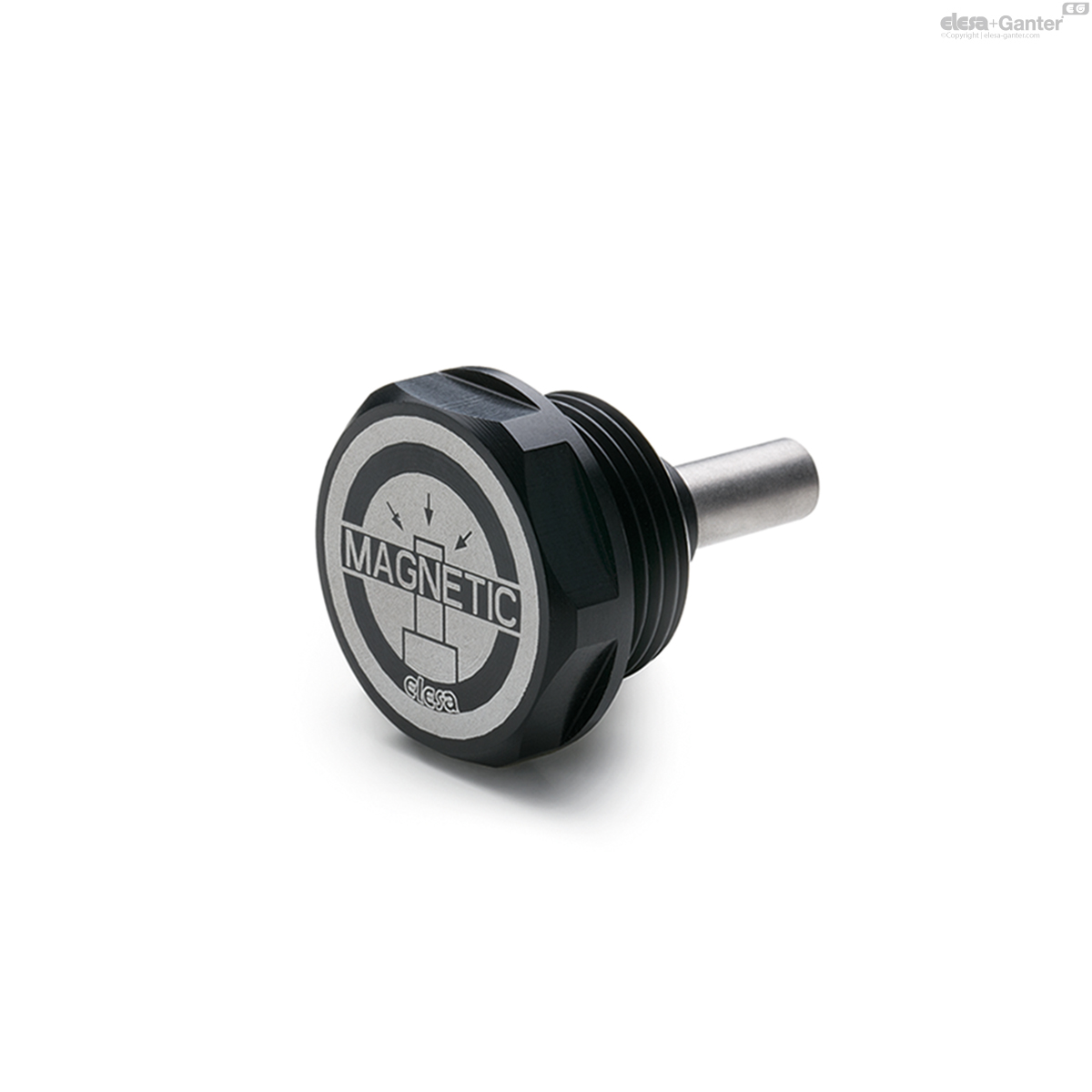

Magnetic plugs
Aluminium up to 180°C
Description
Main specifications
Material
Black anodised aluminium.
Marked 'MAGNETIC' and graphic symbol, laser engraved.
Permanent magnetic element
(AINiCo) Aluminium-nickel-cobalt with a high attractive power, to keep metal particles in oil.
Standard executions
- TMB: NBR synthetic rubber flat packing ring. Max working temperature 100°C.
- TMB-HT: FKM synthetic rubber flat packing ring. Max working temperature 180°C.
General information
Technical data
The positioning of the packing ring in its housing guarantees a high tightening torque, therefore the plug can be used even in pressurised reservoirs.
TMB.

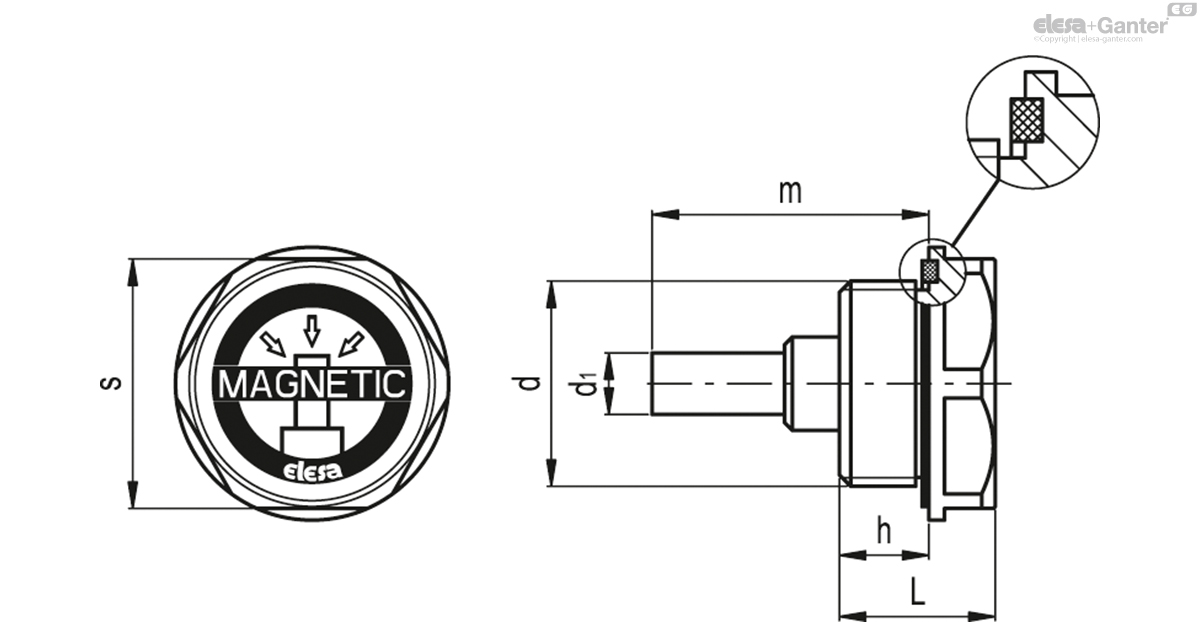

| d | h | s | L | d1 | m |  |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 59701 | TMB.M14x1,5 | M14x1.5 | 9 | 19 | 16.5 | 6 | 30 | 17 |
|
| 59703 | TMB.M16x1,5 | M16x1.5 | 9 | 22 | 16.5 | 8 | 31 | 25 |
|
| 59705 | TMB.M20x1,5 | M20x1.5 | 11 | 24 | 18.5 | 8 | 34 | 33 |
|
| 59707 | TMB.M26x1,5 | M26x1.5 | 11.5 | 32 | 20 | 8 | 35.5 | 50 |
|
| 59709 | TMB.M27x1,5 | M27x1.5 | 11.5 | 32 | 20 | 8 | 35.5 | 50 |
|
| 59711 | TMB.M33x1,5 | M33x1.5 | 11.5 | 38 | 20 | 8 | 35.5 | 69 |
|
| 59713 | TMB.M40x1,5 | M40x1.5 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59715 | TMB.M42x1,5 | M42x1.5 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59717 | TMB.M42x2 | M42x2 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59721 | TMB.1/4 | G 1/4 | 9 | 19 | 16.5 | 6 | 30 | 18 |
|
| 59723 | TMB.3/8 | G 3/8 | 9 | 22 | 16.5 | 8 | 31 | 27 |
|
| 59725 | TMB.1/2 | G 1/2 | 11 | 24 | 18.5 | 8 | 34 | 32 |
|
| 59727 | TMB.3/4 | G 3/4 | 11.5 | 32 | 20 | 8 | 35.5 | 48 |
|
| 59729 | TMB.1 | G 1 | 11.5 | 38 | 20.5 | 8 | 35.5 | 69 |
|
| 59731 | TMB.1 1/4 | G 1 1/4 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59733 | TMB.1 1/2 | G 1 1/2 | 13 | 50 | 24 | 8 | 37 | 135 |
|
TMB-HT
| d | h | s | L | d1 | m | |
|||
|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||
| 59751 | TMB-HT.M14x1,5 | M14x1.5 | 9 | 19 | 16.5 | 6 | 30 | 18 |
|
| 59753 | TMB-HT.M16x1,5 | M16x1.5 | 9 | 22 | 16.5 | 8 | 31 | 26 |
|
| 59755 | TMB-HT.M20x1,5 | M20x1.5 | 11 | 24 | 18.5 | 8 | 34 | 33 |
|
| 59757 | TMB-HT.M26x1,5 | M26x1.5 | 11.5 | 32 | 20 | 8 | 35.5 | 50 |
|
| 59759 | TMB-HT.M27x1,5 | M27x1.5 | 11.5 | 32 | 20 | 8 | 35.5 | 50 |
|
| 59761 | TMB-HT.M33x1,5 | M33x1.5 | 11.5 | 38 | 20 | 8 | 35.5 | 69 |
|
| 59763 | TMB-HT.M40x1,5 | M40x1.5 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59765 | TMB-HT.M42x1,5 | M42x1.5 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59767 | TMB-HT.M42x2 | M42x2 | 13 | 46 | 24 | 8 | 37 | 114 |
|
| 59771 | TMB-HT.1/4 | G 1/4 | 9 | 19 | 16.5 | 6 | 30 | 18 |
|
| 59773 | TMB-HT.3/8 | G 3/8 | 9 | 22 | 16.5 | 8 | 31 | 26 |
|
| 59775 | TMB-HT.1/2 | G 1/2 | 11 | 24 | 18.5 | 8 | 34 | 32 |
|
| 59777 | TMB-HT.3/4 | G 3/4 | 11.5 | 32 | 20 | 8 | 35.5 | 49 |
|
| 59779 | TMB-HT.1 | G 1 | 11.5 | 38 | 20.5 | 8 | 35.5 | 69 |
|
| 59781 | TMB-HT.1 1/4 | G 1 1/4 | 13 | 46 | 24 | 8 | 37 | 112 |
|
| 59783 | TMB-HT.1 1/2 | G 1 1/2 | 13 | 50 | 24 | 8 | 37 | 137 |
|
