TLAS

Hook clamps
Steel or stainless steel
__logo__INOX__ __logo__RoHS__
Enquire Now
tlas-z
TLAS.Z
Hook clamps
Lever body and bracket in zinc-plated steel with spring
tlas-nh
TLAS.NH
Hook clamps
Lever body and bracket in nickel-plated steel, technopolymer push button
tlas-sst-16-4
TLAS.SST-16.4
Hook clamps
Lever body and bracket in stainless steel with spring
tlas-sst-30
TLAS.SST-30
Hook clamps
Lever body and bracket in stainless steel, technopolymer push button
  • TLAS Hook clamps
  • TLAS Hook clamps
  • TLAS Hook clamps

Description

Main specifications

Standard executions

  • TLAS.Z: lever body and bracket in zinc-plated steel with spring.

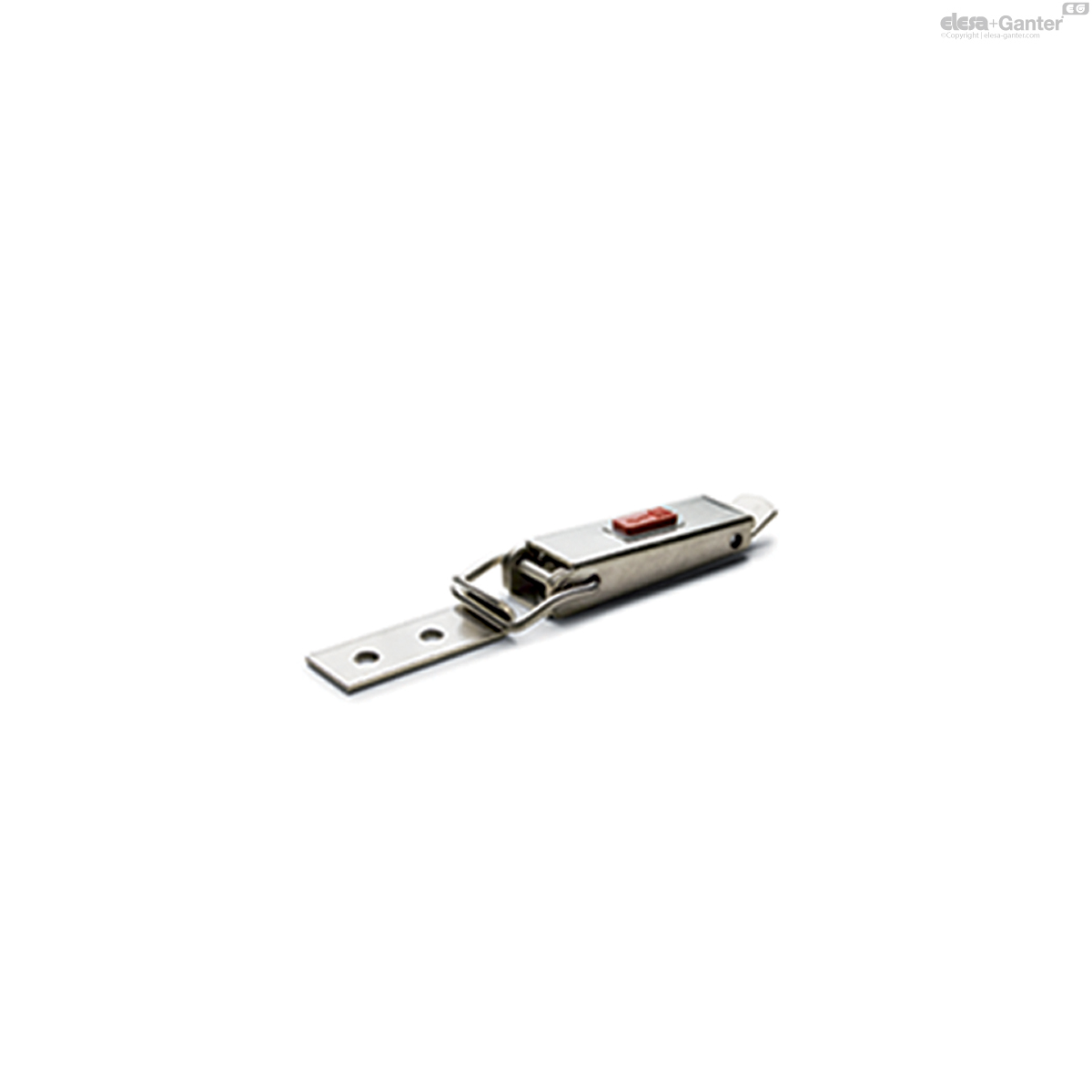

  • TLAS.NH: lever body and bracket in nickel-plated steel, RAL 3000 red technopolymer push button.
  • TLAS.SST-16.4: lever body and bracket in AISI 304 stainless steel with spring.
  • TLAS.SST-30: lever body and bracket in AISI 304 stainless steel, RAL 3000 red technopolymer push button.
Other executions

Special executions on request

  • Hook clamps in unplated steel.
  • Catch brackets in different shapes and finishes.

TLAS.

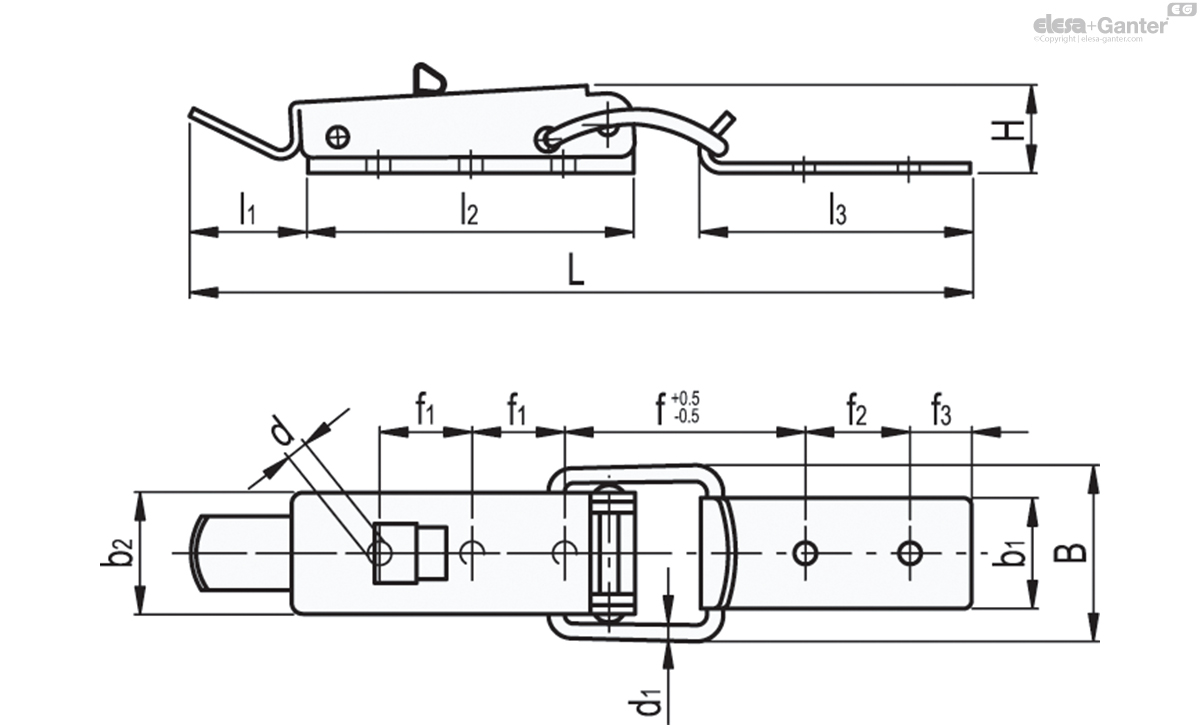

b2 L B H d d1 b1 l1 l2 l3 f f1 f2 f3 Max. working load
[N]		 Load at breakage
[N]		 __logo__weight__
Code Description Actions
420083 TLAS.Z-16.4/102+R 16.4 102 23 11 3.2 2 13 16 44 30 34.5 12.5 12 5 550 1200 33 cart-icon
