TLAS

Hook clamps

Steel or stainless steel

Enquire Now

Description

Main specifications

TLAS.Z: lever body and bracket in zinc-plated steel with spring.
TLAS.NH: lever body and bracket in nickel-plated steel, RAL 3000 red technopolymer push button.
TLAS.SST-16.4: lever body and bracket in AISI 304 stainless steel with spring.
TLAS.SST-30: lever body and bracket in AISI 304 stainless steel, RAL 3000 red technopolymer push button.

Other executions

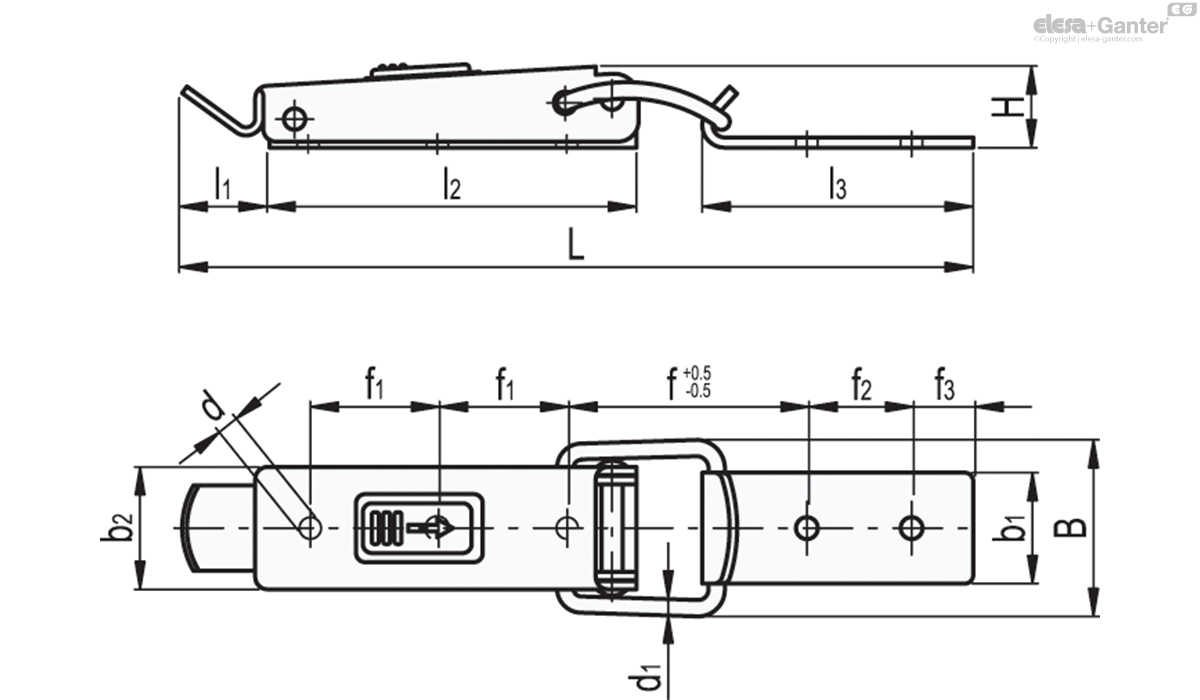

		b₂	L	B	H	d	d₁	b₁	l₁	l₂	l₃	f	f₁	f₂	f₃	Max. working load [N]	Load at breakage [N]
Code	Description																		Actions
420055	TLAS.NH-30/193.5+R	30	193.5	43	19	5.3	4	27	21.5	90	66	58.5	31.5	25.5	15	2000	4000	196
