TGL

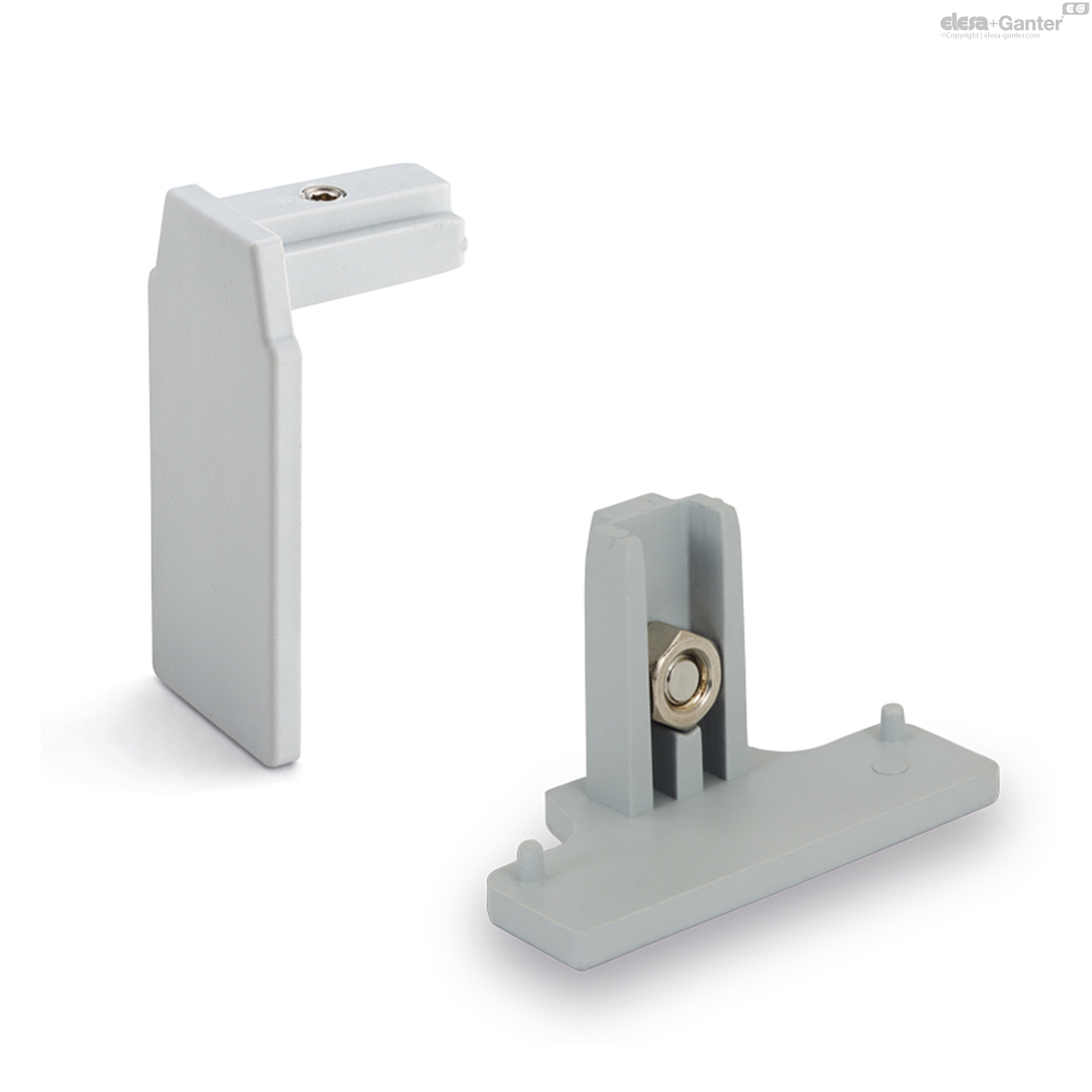

Closing cap for GLA and GCA guides
Technopolymer and stainless steel
Description
Main specifications
Material
Polyamide-based (PA) technopolymer, grey colour.
Screw and nut
AISI 304 stainless steel.
General information
Features and applications

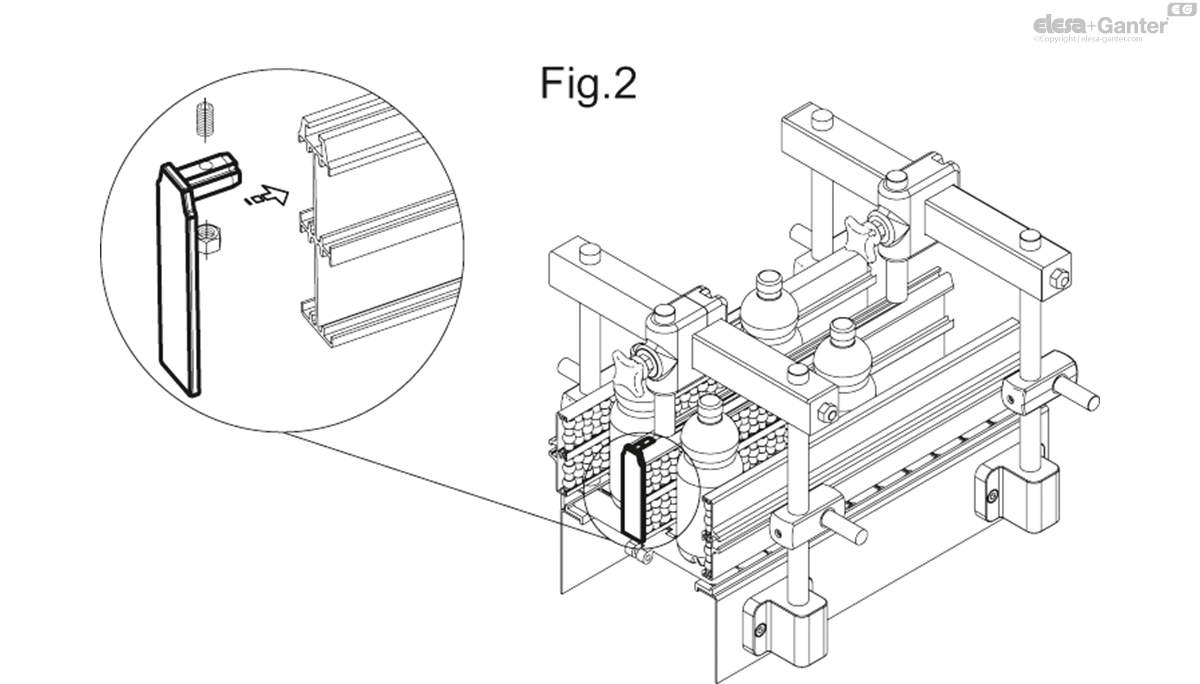

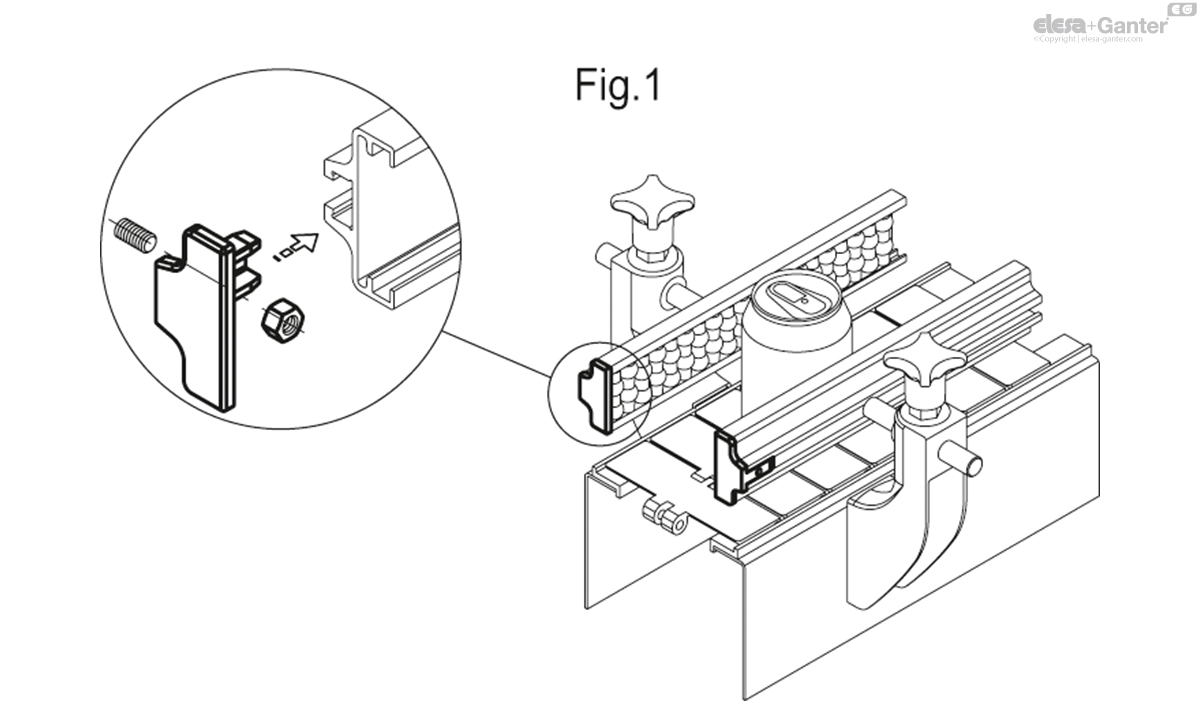

TGL closing cap is used at the ends of GLA side guides (Fig.1) and GCA central guides (Fig.2).

 TGL

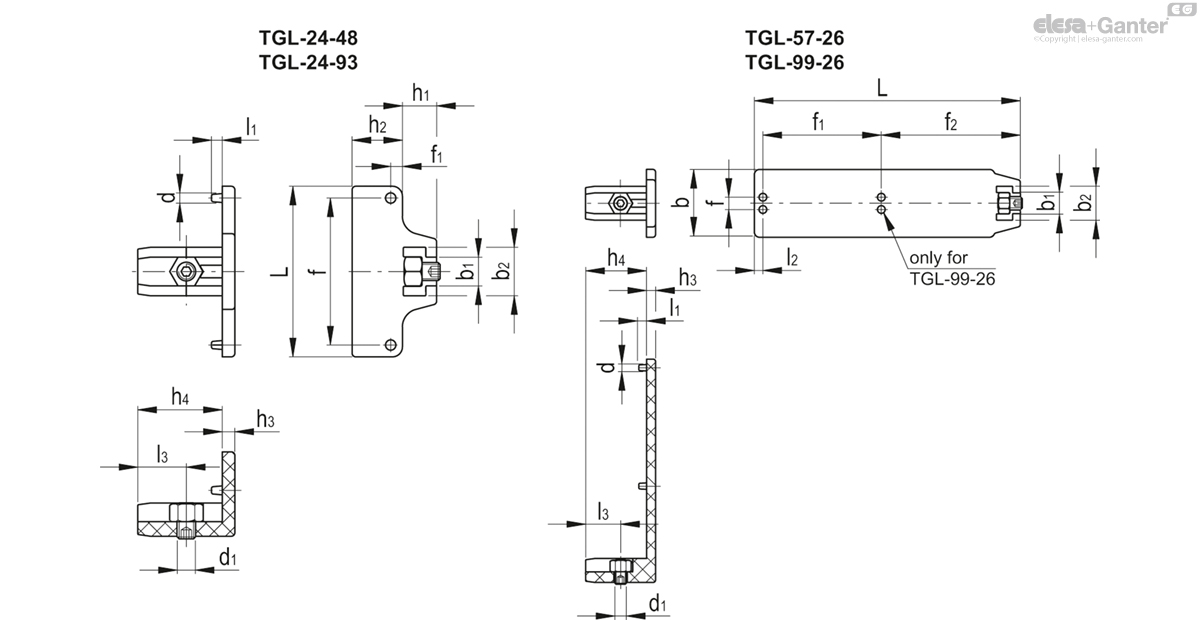

| d | d1 | f1 | L | b | f | f2 | b1 | b2 | h1 | h2 | h3 | h4 | l1 | l2 | l3 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||||||
| 419140 | TGL-99-26 | 2.5 | M5 | 45.7 | 102.7 | 26.2 | 4.7 | 53.7 | 8 | 13 | - | - | 3.5 | 23.5 | 3 | 3.3 | 13.5 | 40 |
|
| 419142 | TGL-57-26 | 2.5 | M5 | - | 57.4 | 26.2 | 4.7 | - | 8 | 13 | - | - | 3.5 | 23.5 | 3 | 3.3 | 13.5 | 20 |
|
| 419143 | TGL-24-48 | 2.5 | M5 | 3.2 | 47.5 | - | 40.9 | - | 8 | 13.5 | 9.5 | 14 | 3.5 | 23.5 | 3 | - | 13.5 | 9 |
|
| 419144 | TGL-24-93 | 2.5 | M5 | 3.2 | 93 | - | 86 | - | 8 | 13 | 9.5 | 14 | 3.5 | 23.5 | 3 | - | 13.5 | 13 |
|
