TCC-TS-PR

Connecting clamps with connector for profiles

Technopolymer and aluminium

Enquire Now

TCC-TS-PR-1

Connecting clamps with connector for profiles

One connecting clamp

TCC-TS-PR-2

Connecting clamps with connector for profiles

Two connecting clamps

Description

Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish. Supplied assembled.

The handle shank connection to the tube avoids tube rotation.

Tube

Anodised aluminium, natural colour.

Connecting clamp

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.

Self-locking nuts in AISI 304 stainless steel. Supplied assembled.

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket.

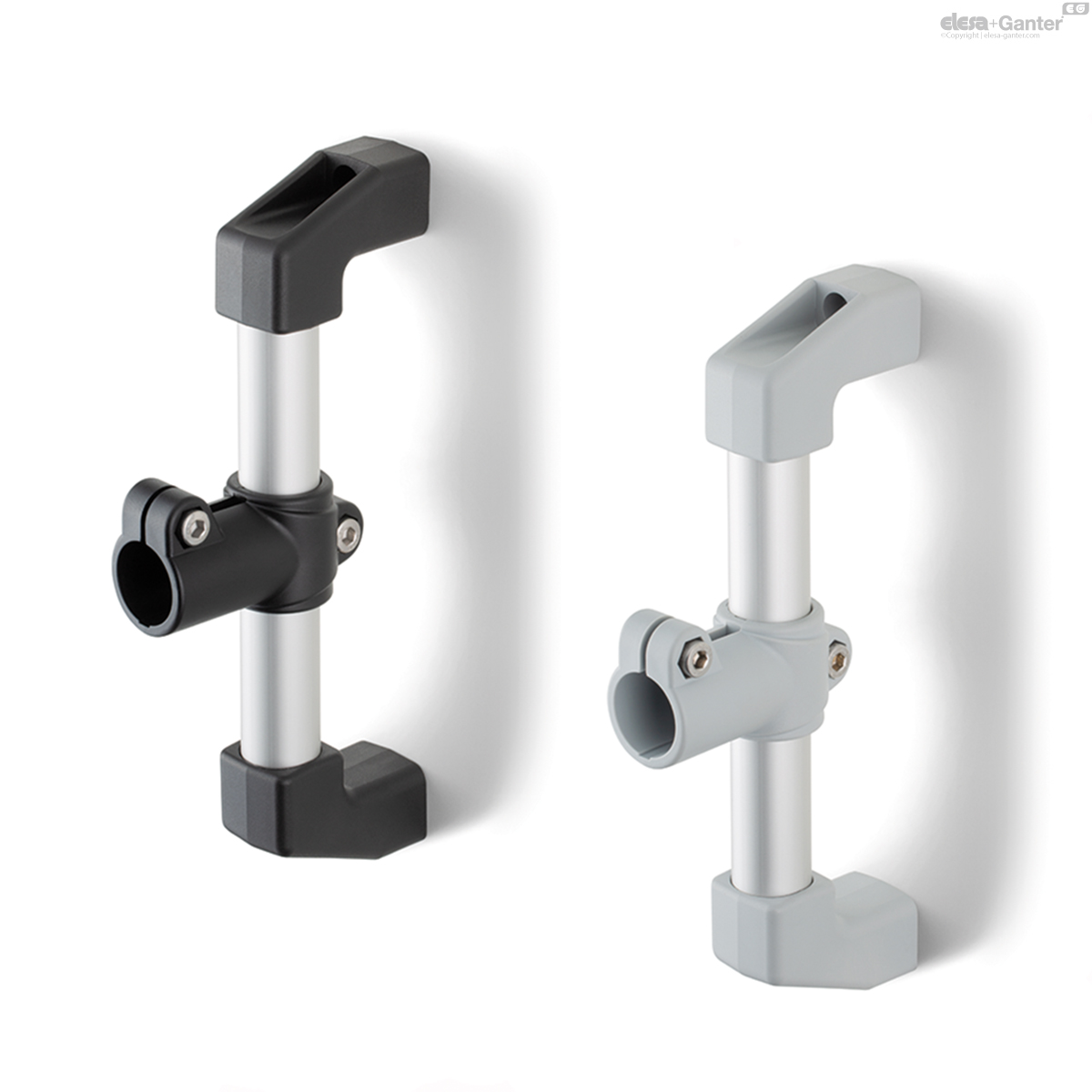

TCC-TS-PR-1: one connecting clamp.

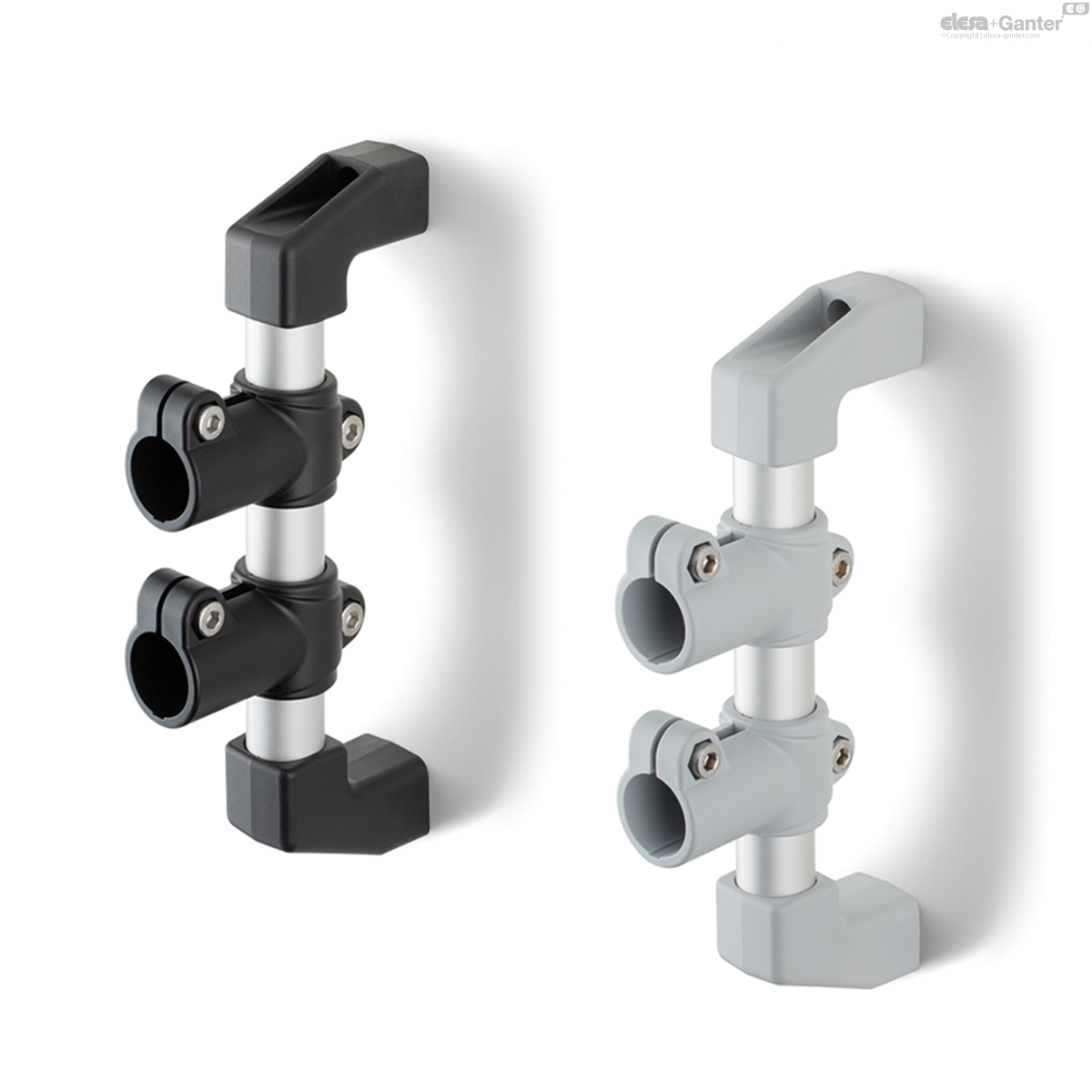

TCC-TS-PR-2: two connecting clamps.

General information

Features and applications

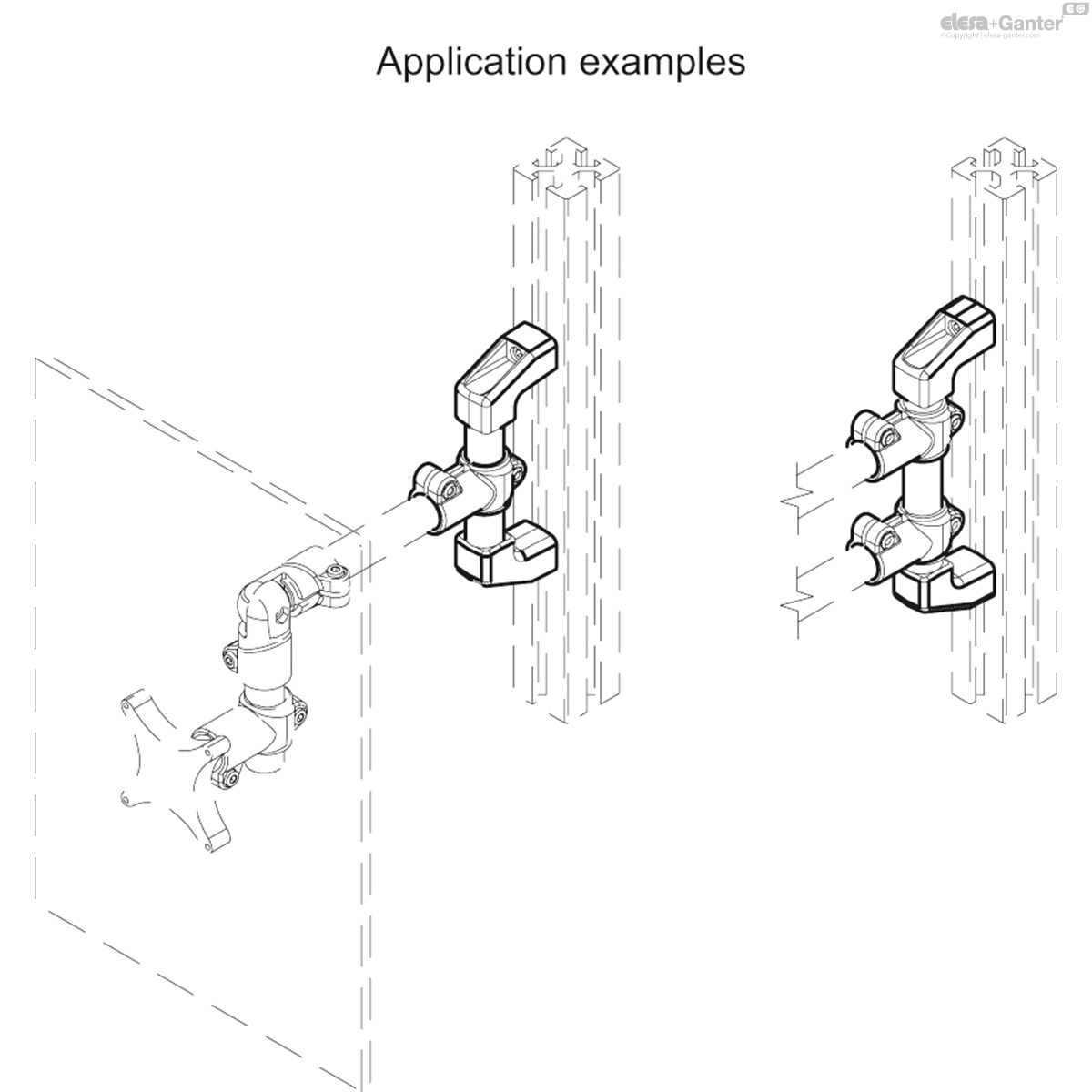

The clamps enable various types of assembly (see examples).

Technical data

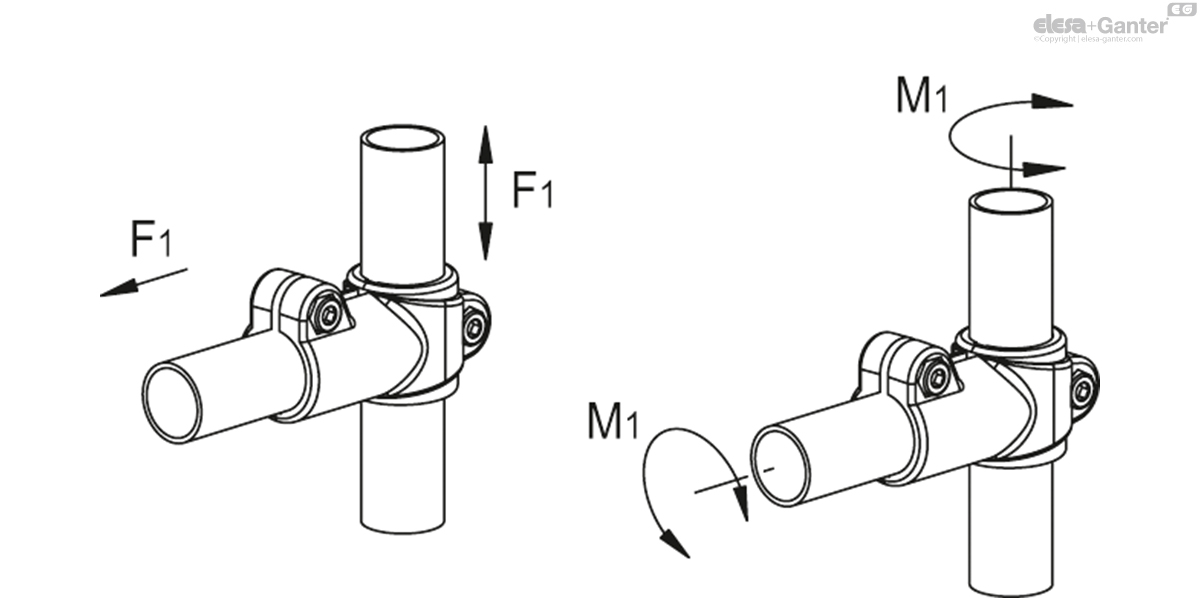

Pull-out and rotational resistance: the F1 and M1 values shown in the table were measured using special dynamometer apparatus by tightening the screws to the recommended torque 'C#' under the test conditions shown and at room temperature.

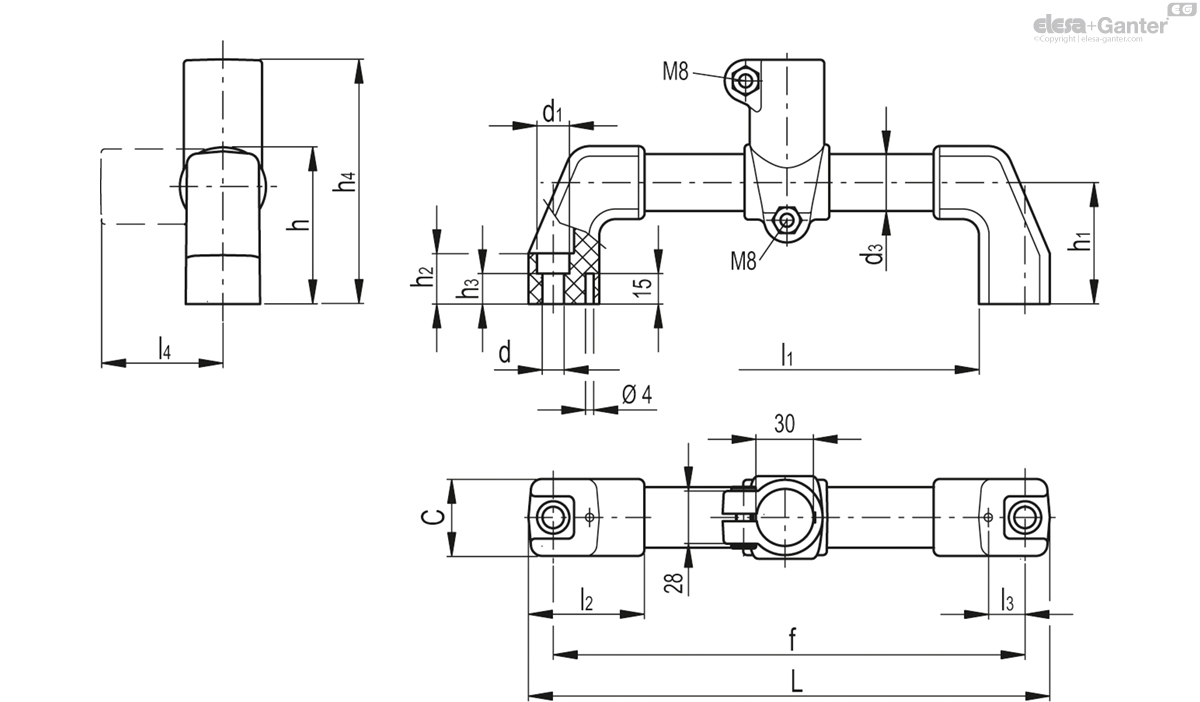

TCC-TS-PR-1

		Color	d	L	C	d₁	d₃	f _±1	h	h₁	h₂	h₃	h₄	l₁	l₂	l₃	l₄	C# [Nm]	F1* [N]	M1** [Nm]
Code	Description																					Actions

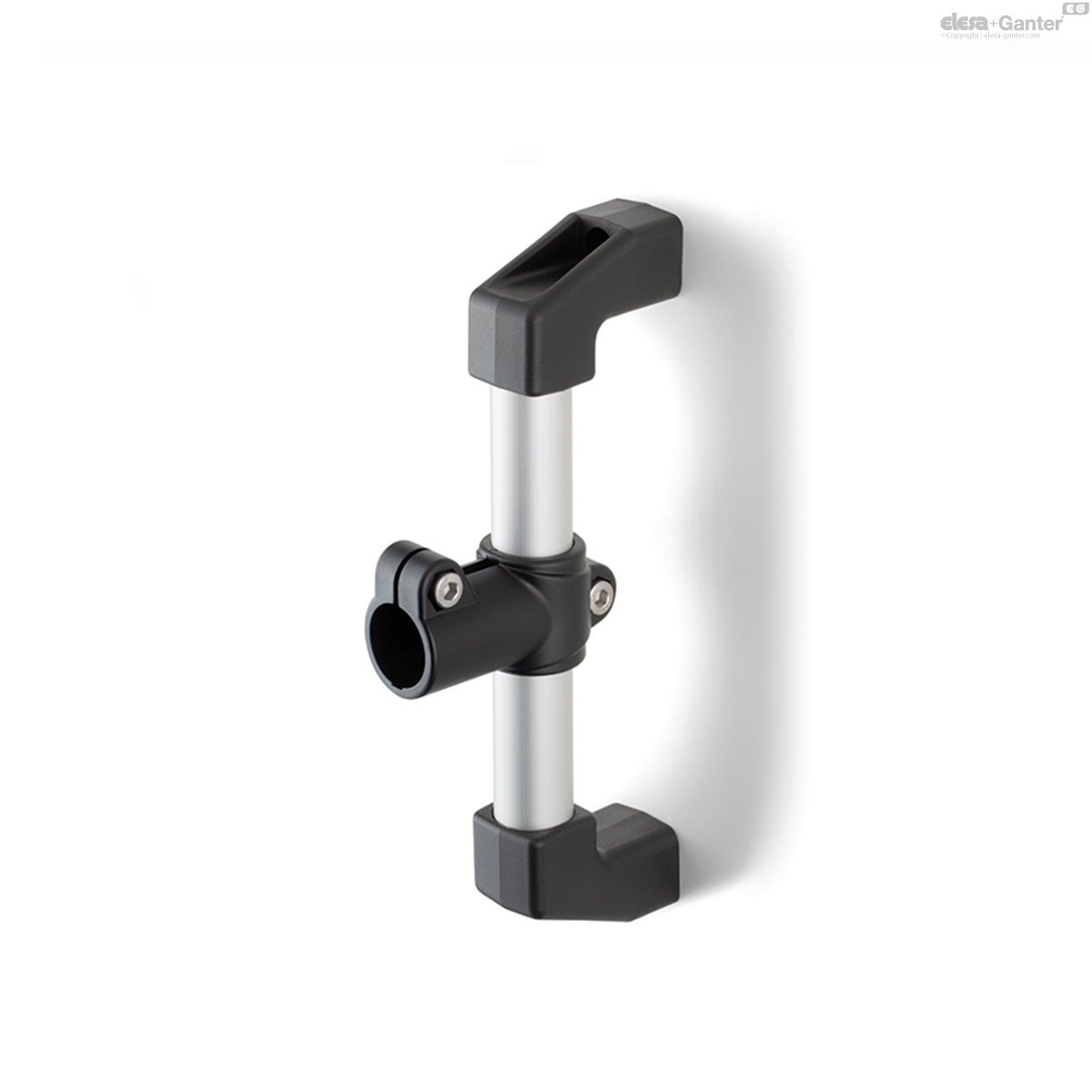

600907-C9	TCC-TS-30-PR-1-C9	C9 - RAL 9005	8.5	224	38	13.5	30	200	82	60	25	14.5	124.5	154	57	18	64.5	12	1650	17	354

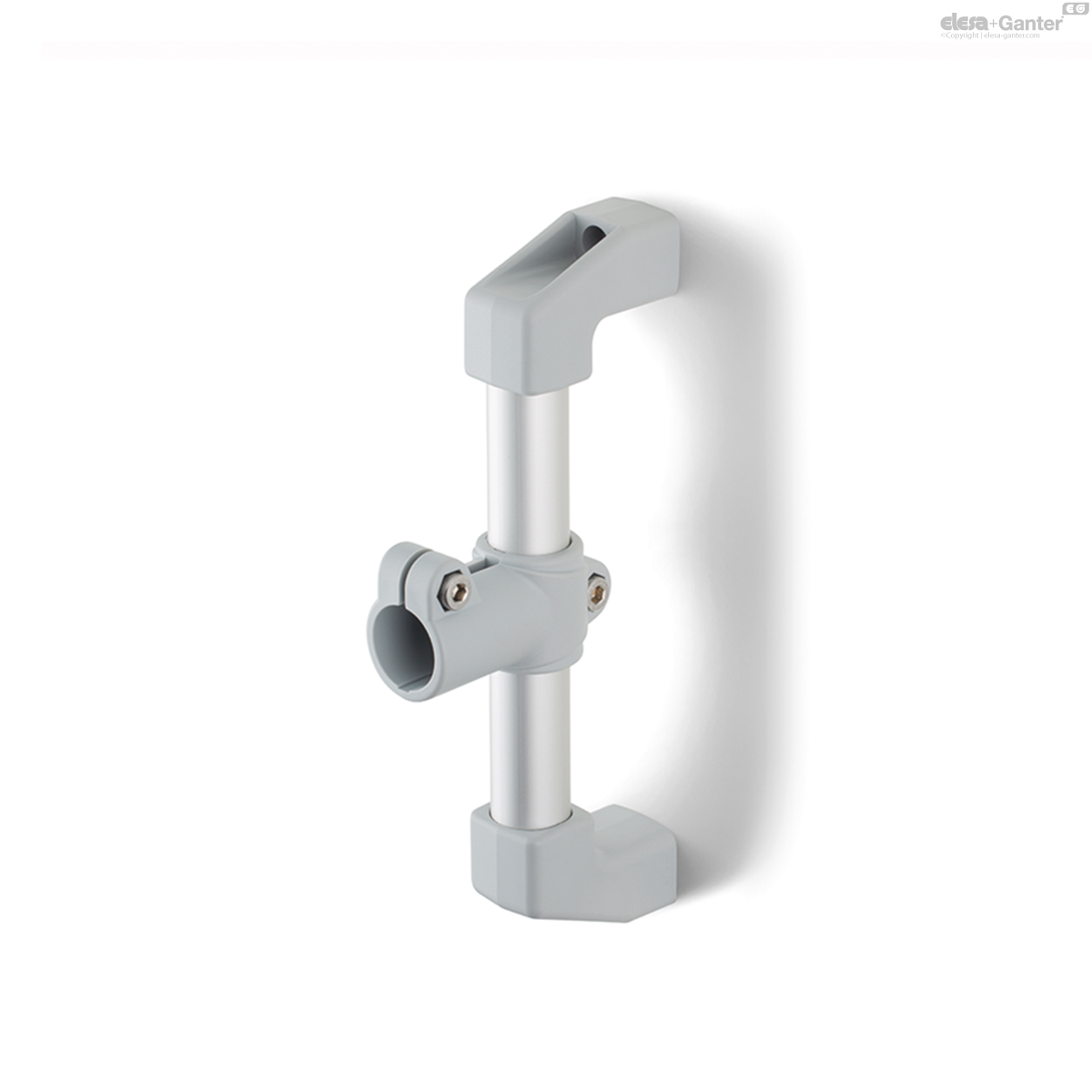

600907-C33	TCC-TS-30-PR-1-C33	C33 - RAL 7040	8.5	224	38	13.5	30	200	82	60	25	14.5	124.5	154	57	18	64.5	12	1650	17	354
