TCC-TS

T-shaped connecting clamps

Technopolymer

Enquire Now

Description

Main specifications

Clamp

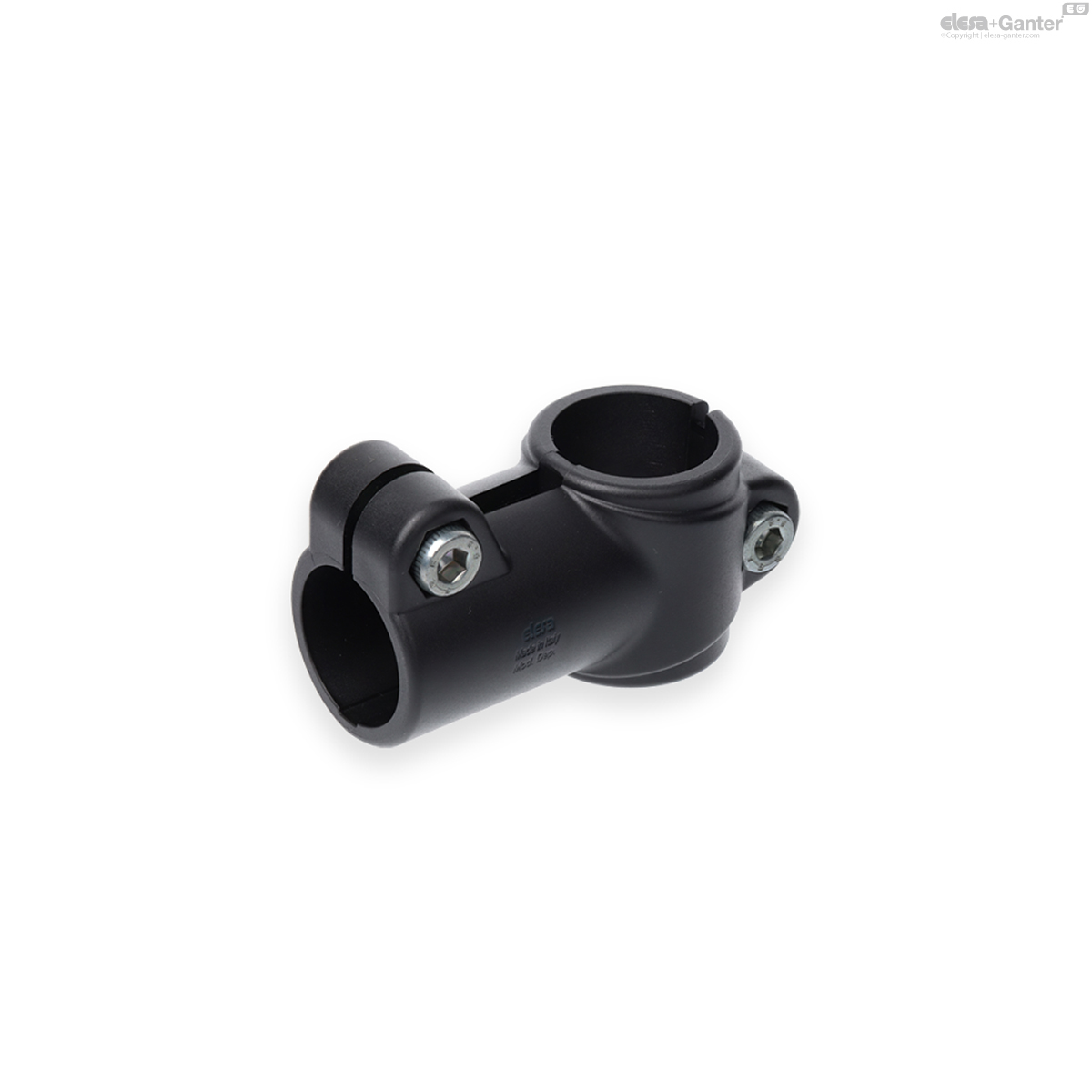

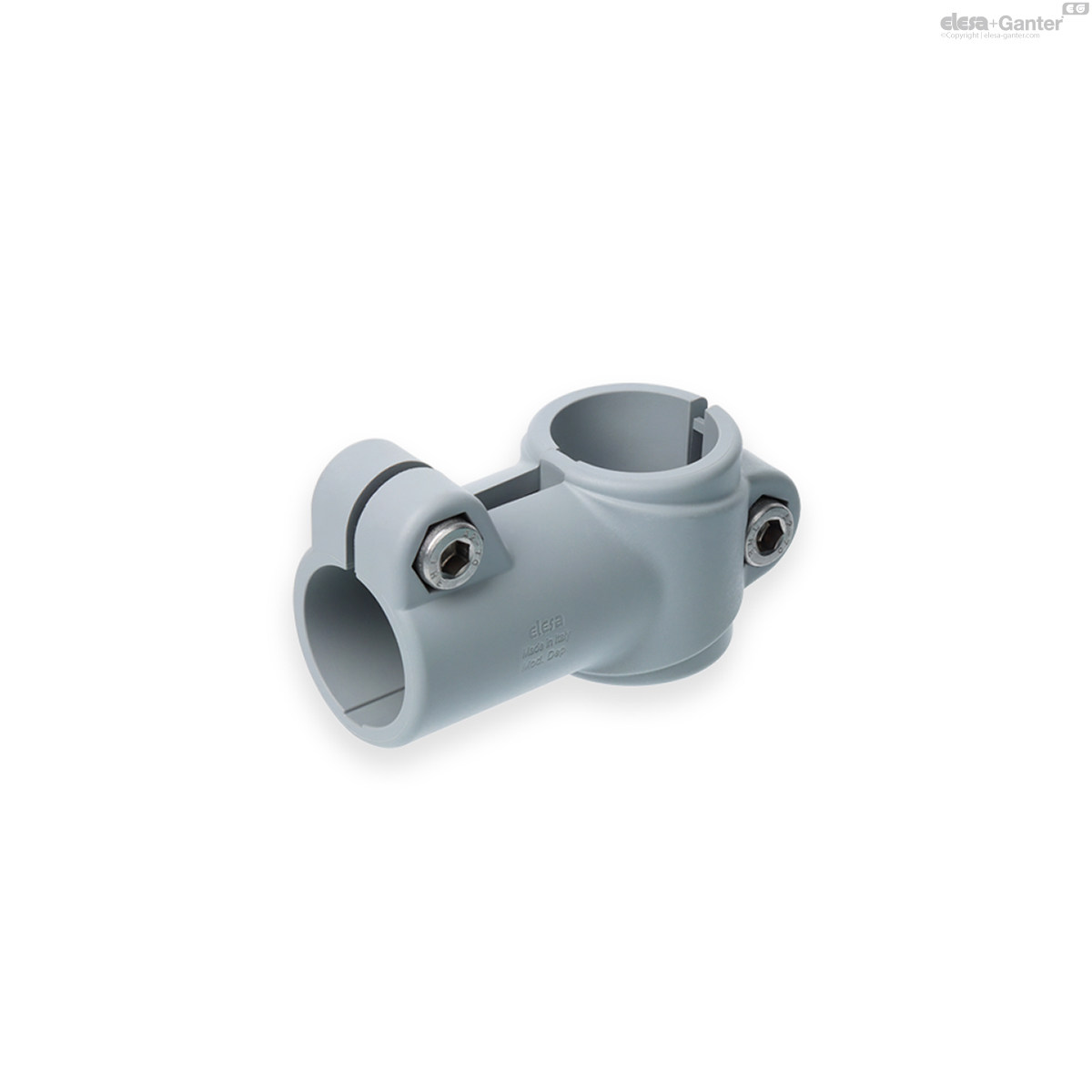

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.

Screws and nuts (supplied)

Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.

Self-locking nuts in AISI 304 stainless steel.

General information

Features

Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm.

For smaller diameter tubes, the hole reduction sleeve TCC-A can be used (ordered separately).

The 's' grub screws may be replaced by the kit TCC-KS.

Technical data

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.

Accessories

Accessories on request (to be ordered separately)

TCC-A: reduction sleeves.

TCC-KS: clamping kit.

TCC-KV: screws and clamping nuts.

GN 990: connecting tubes.

TCC-TS

		Color	d	L	B	H	f	h₁	l₁	l₂	l₃	l₅	s	C# [Nm]	F1* [N]	M1** [Nm]
Code	Description																	Actions
600151-C9	TCC-TS-18-18-C9	C9 - RAL 9005	18	65	29	34	49	26	26.5	43.5	20.5	30.5	M6	5	1450	14	31
600151-C33	TCC-TS-18-18-C33	C33 - RAL 7040	18	65	29	34	49	26	26.5	43.5	20.5	30.5	M6	5	1450	14	31
600251-C9	TCC-TS-30-30-C9	C9 - RAL 9005	30	96	44	53	74	42	40.5	64.5	27	45.5	M8	12	1650	17	114
600251-C33	TCC-TS-30-30-C33	C33 - RAL 7040	30	96	44	53	74	42	40.5	64.5	27	45.5	M8	12	1650	17	114
