TCC-TP-PB
Hinged joint with mounting base and clamp
Technopolymer
TCC-TP-PB-T
Hinged joint with mounting base and clamp
With teeth
TCC-TP-PB-S
Hinged joint with mounting base and clamp
Without teeth
Description
Main specifications
Clamp and base

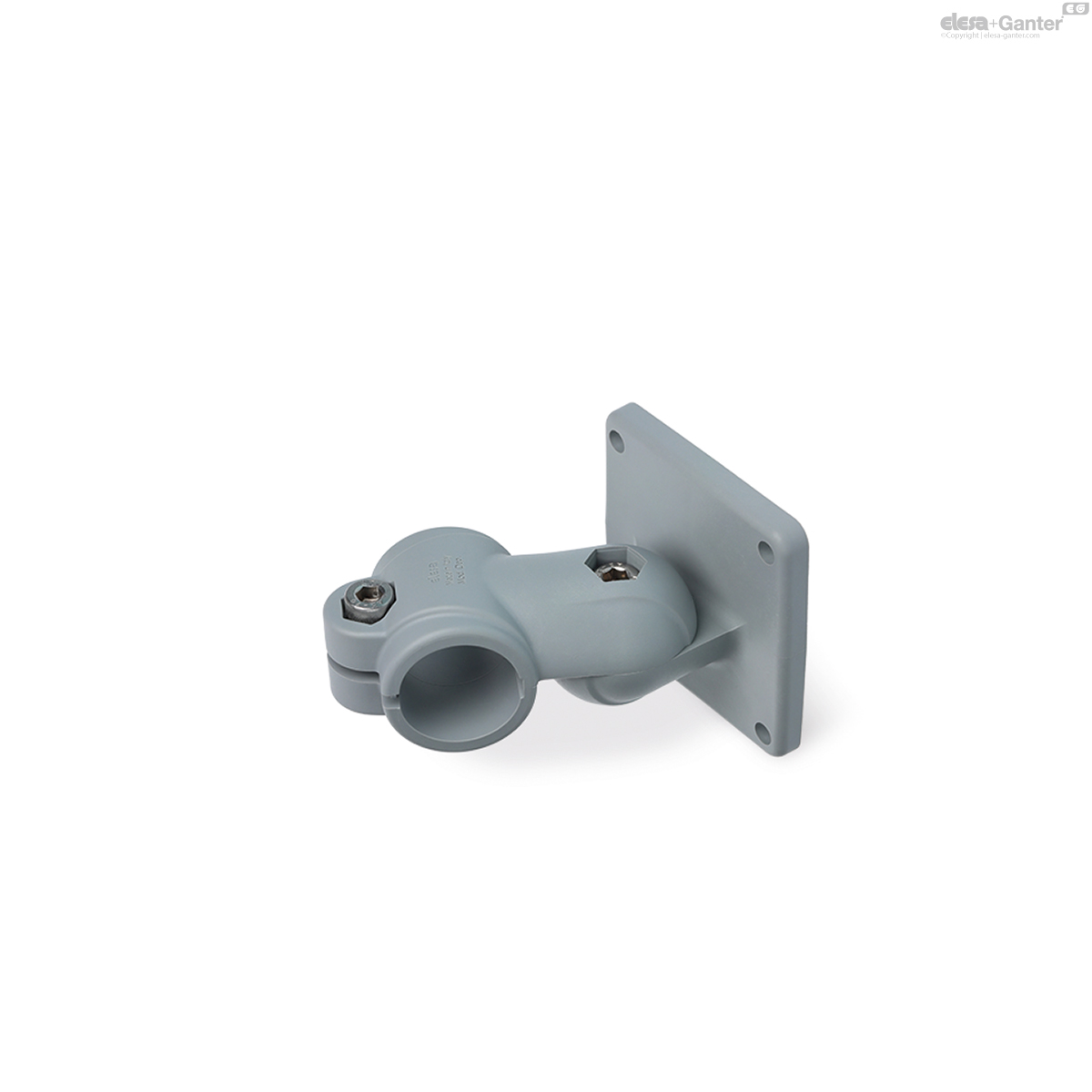

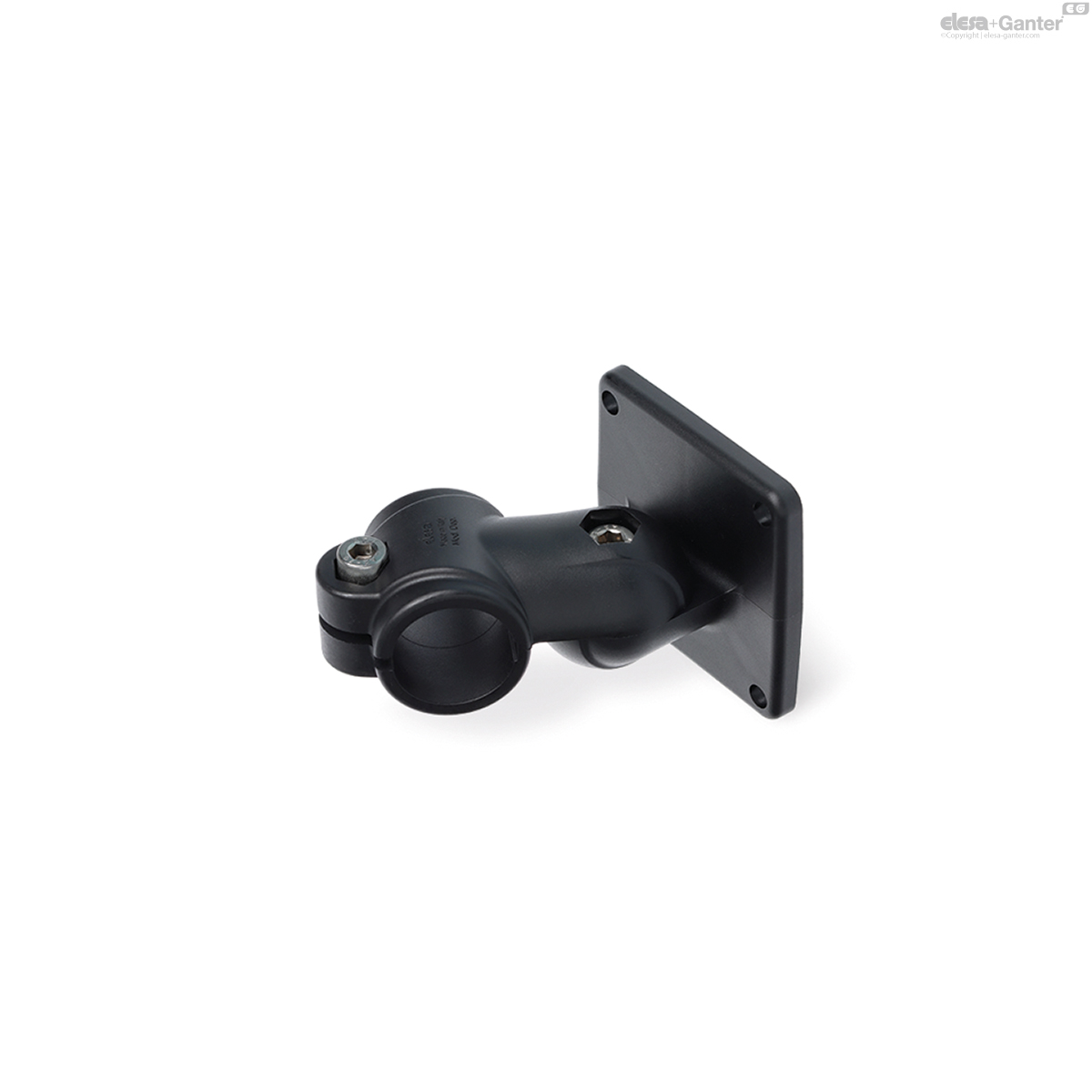

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screws and nuts  (supplied)
Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nuts in AISI 304 stainless steel.
Standard executions
- TCC-TP-PB-T:Â with teeth.
- TCC-TP-PB-S:Â without teeth.
General information
Features
Joints comprising bases with external teeth and clamps with internal teeth (36 teeth) have a 10° adjustment angle.
Joints comprising bases and clamps without teeth can be positioned at any angle.
Clamps for tubes with a diameter of 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeve can be used TCC-A (to be ordered separately).

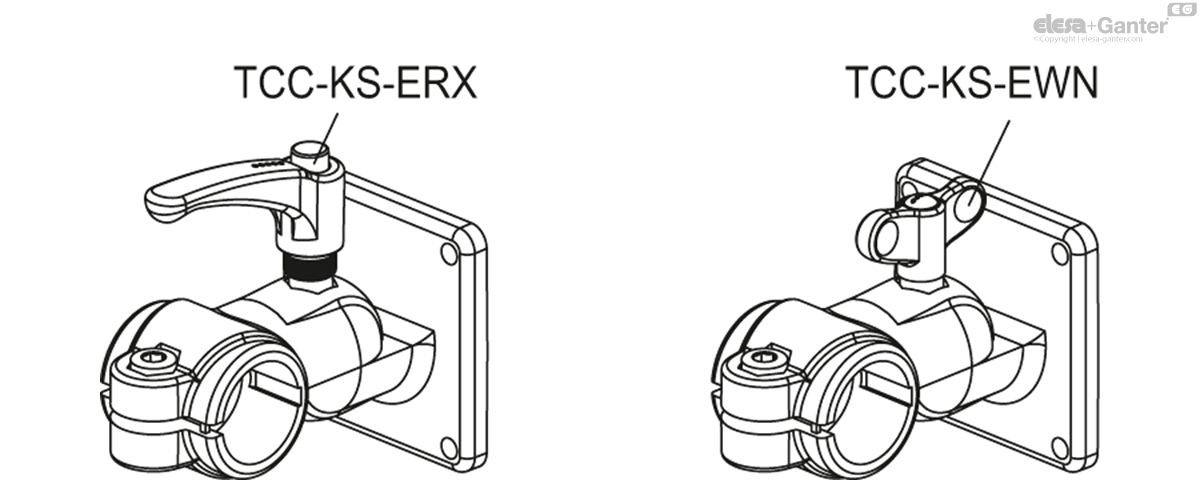

The 's' grub screws may be replaced by the kit TCC-KS.
Technical data

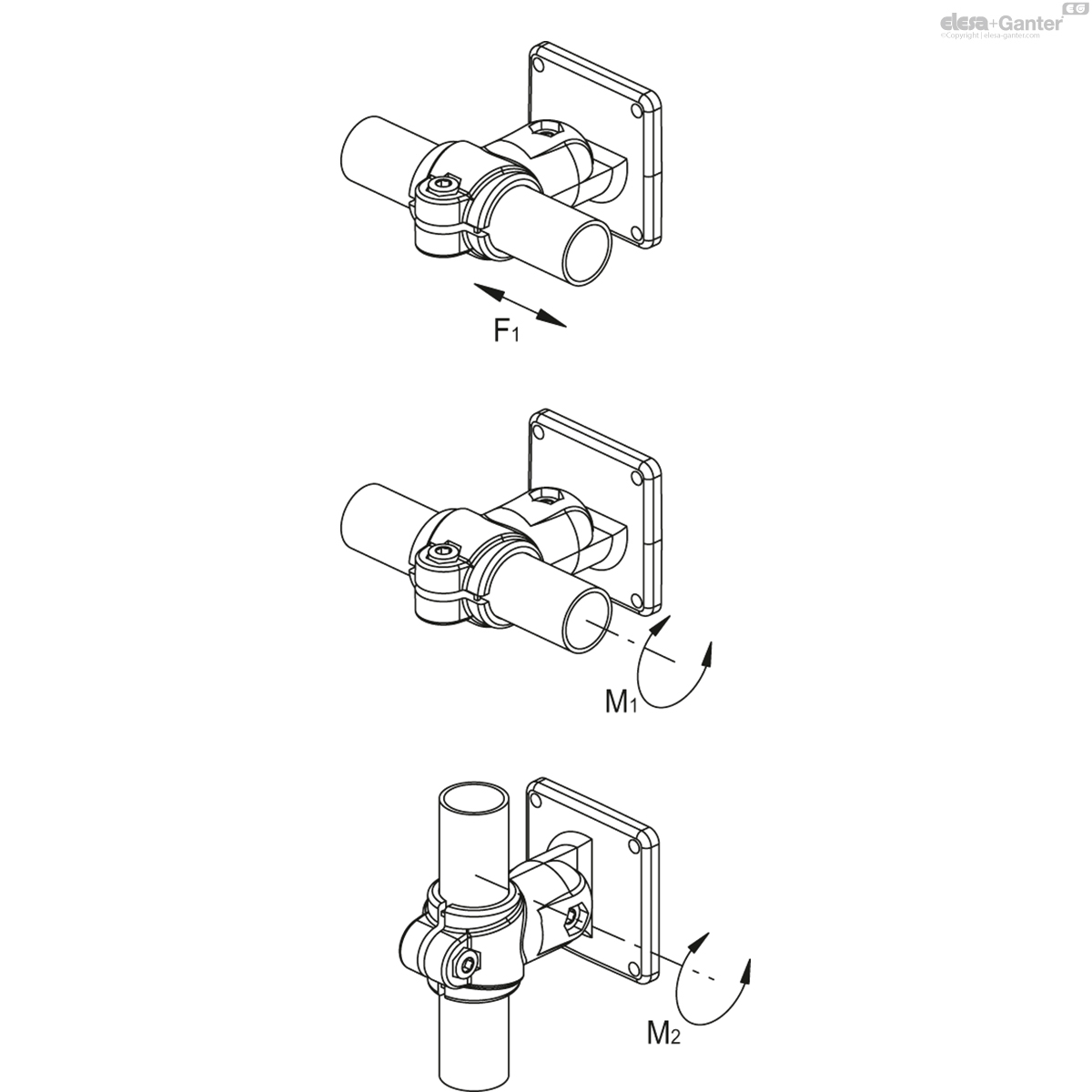

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
Accessories
Accessories on request (to be ordered separately)
- TCC-A: reduction sleeves.
- TCC-KS: clamping kit.

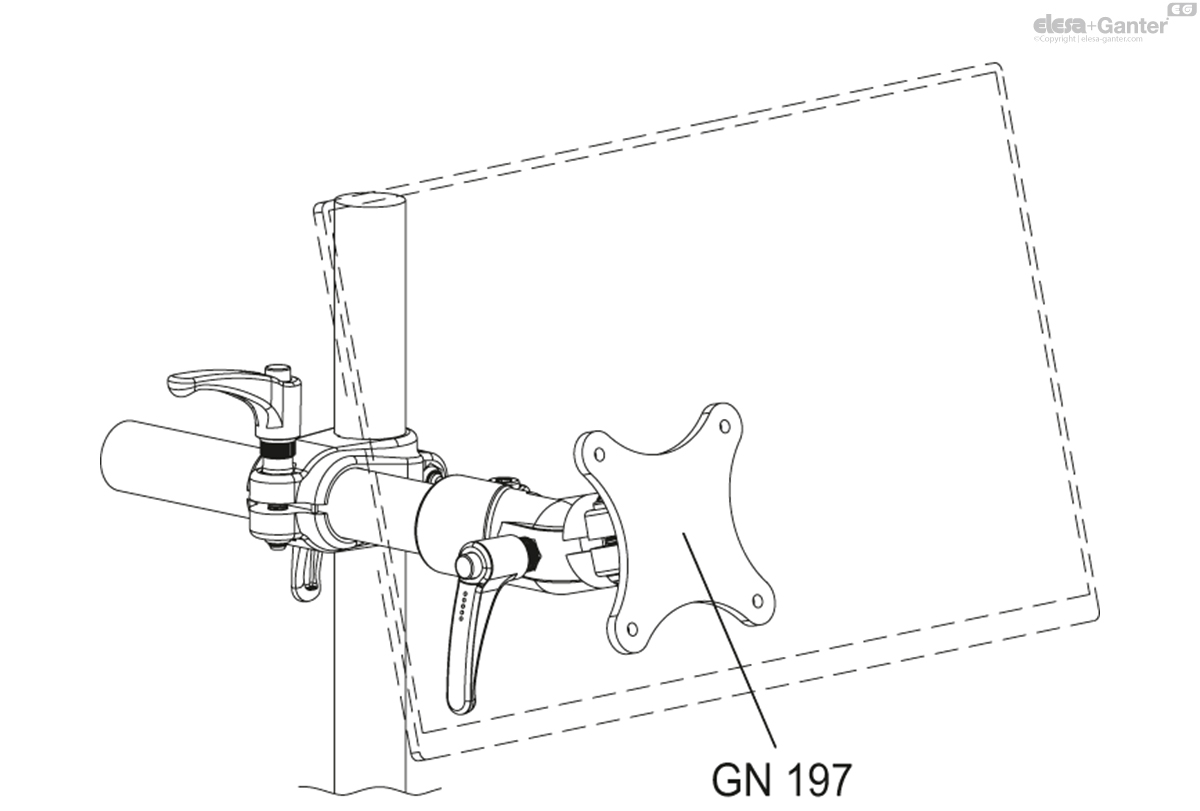

- GN 197: monitor mounts.
- TCC-KV: screws and clamping nuts.
- GN 990: connecting tubes.
TCC-TP-PB-T

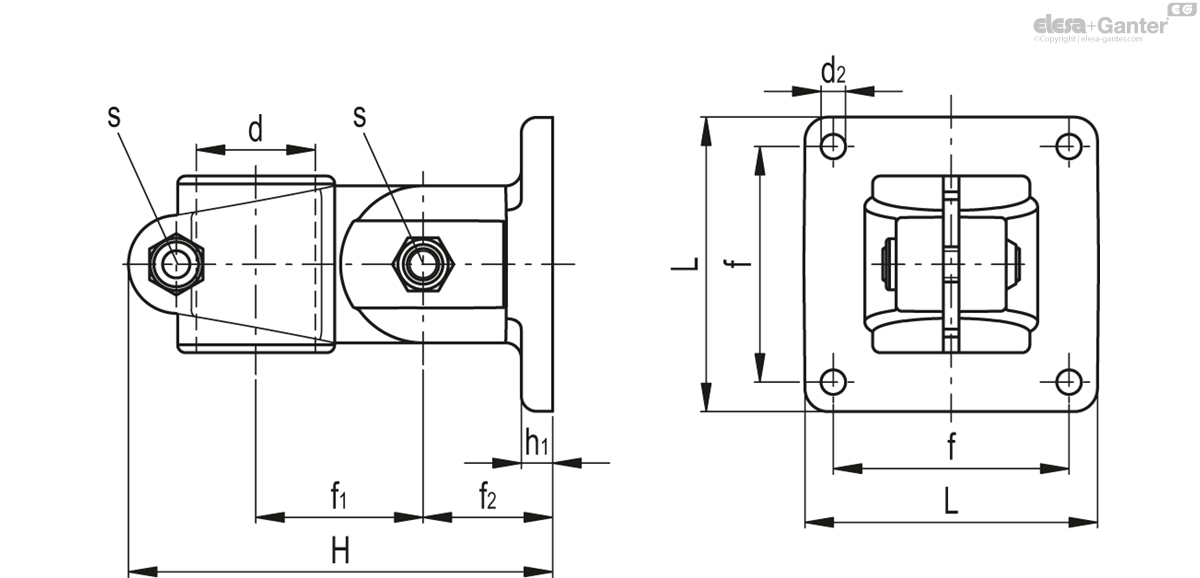

| Color | d | L | H | d2 | f ±0.2 | f1 | f2 | h1 | s | C# [Nm] |
F1* [N] |
M1** [Nm] |
M2*** [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||||
| 600741-C9 | TCC-TP-PB-18-T-C9 | C9 - RAL 9005 | 18 | 45 | 70.5 | 5.5 | 30 | 28.5 | 20 | 5 | M6 | 5 | 1100 | 11 | 35 | 62 |
|
| 600741-C33 | TCC-TP-PB-18-T-C33 | C33 - RAL 7040 | 18 | 45 | 70.5 | 5.5 | 30 | 28.5 | 20 | 5 | M6 | 5 | 1100 | 11 | 35 | 62 |
|
| 600841-C9 | TCC-TP-PB-30-T-C9 | C9 - RAL 9005 | 30 | 75 | 107 | 6.5 | 60 | 42 | 33 | 7.5 | M8 | 12 | 3000 | 33 | 100 | 118 |
|
| 600841-C33 | TCC-TP-PB-30-T-C33 | C33 - RAL 7040 | 30 | 75 | 107 | 6.5 | 60 | 42 | 33 | 7.5 | M8 | 12 | 3000 | 33 | 100 | 118 |
|
