TCC-PBF
Mounting base for hinged joints
Technopolymer
TCC-PBF-E
Mounting base for hinged joints
External teeth
TCC-PBF-S
Mounting base for hinged joints
Without teeth
Description
Main specifications
Base
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screw and nut  (supplied)
Cylindrical-head screws with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nut in AISI 304 stainless steel.
Standard executions
- TCC-PBF-E:Â external teeth.
- TCC-PBF-S:Â without teeth.
General information
Features
A base with external teeth can be joined to a clamp with internal teeth, or a base without teeth to a clamp without teeth, to create a hinged joint.
Joints comprising bases with external teeth and clamps with internal teeth (36 teeth) have a 10° adjustment angle.
Joints comprising bases and clamps without teeth can be positioned at any angle.
The 's' grub screw may be replaced by the kit TCC-KS.
Technical data

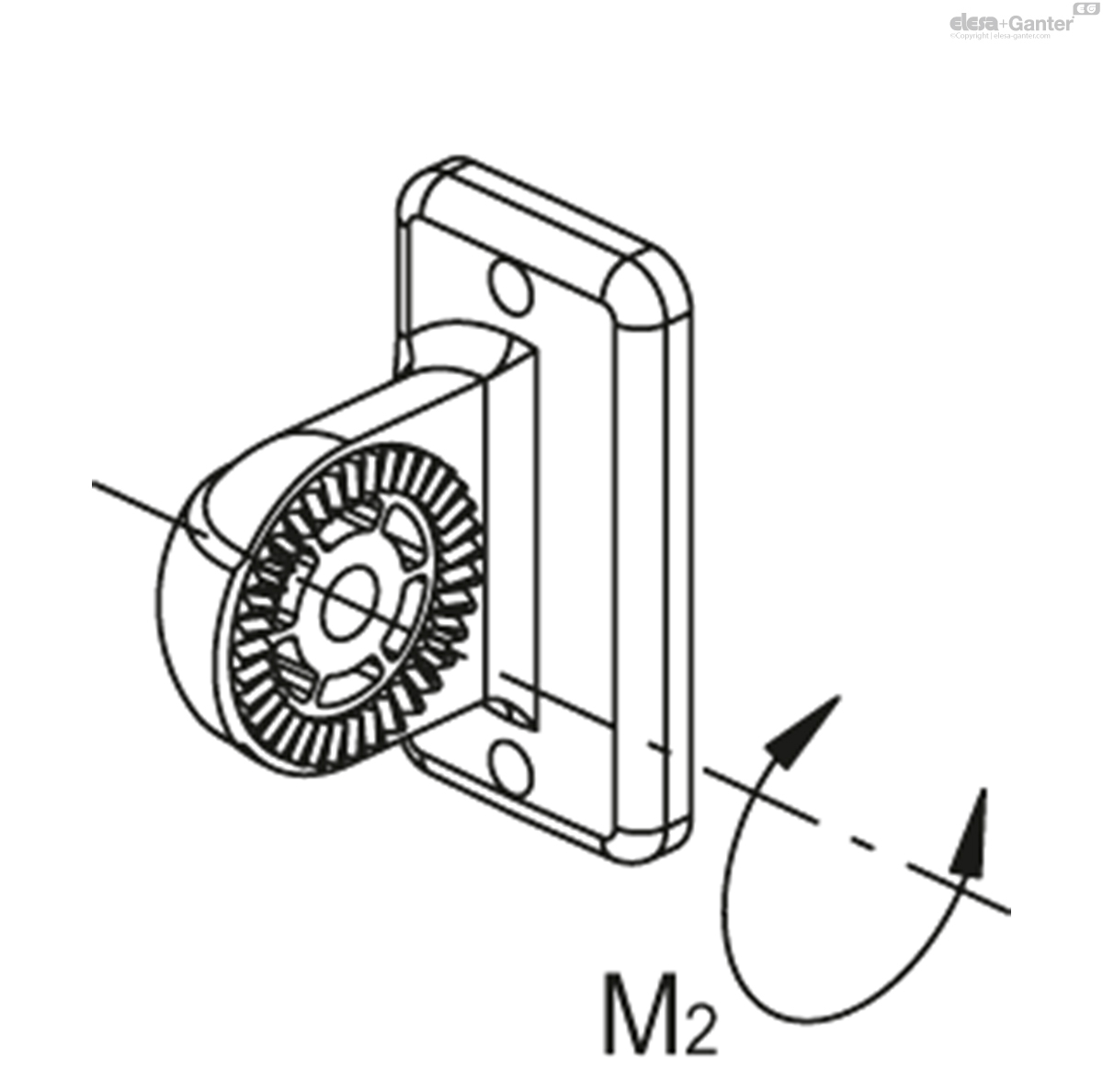

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
Accessories
Accessories on request (to be ordered separately)
- TCC-KS: clamping kit.
- TCC-KV: screws and clamping nuts.

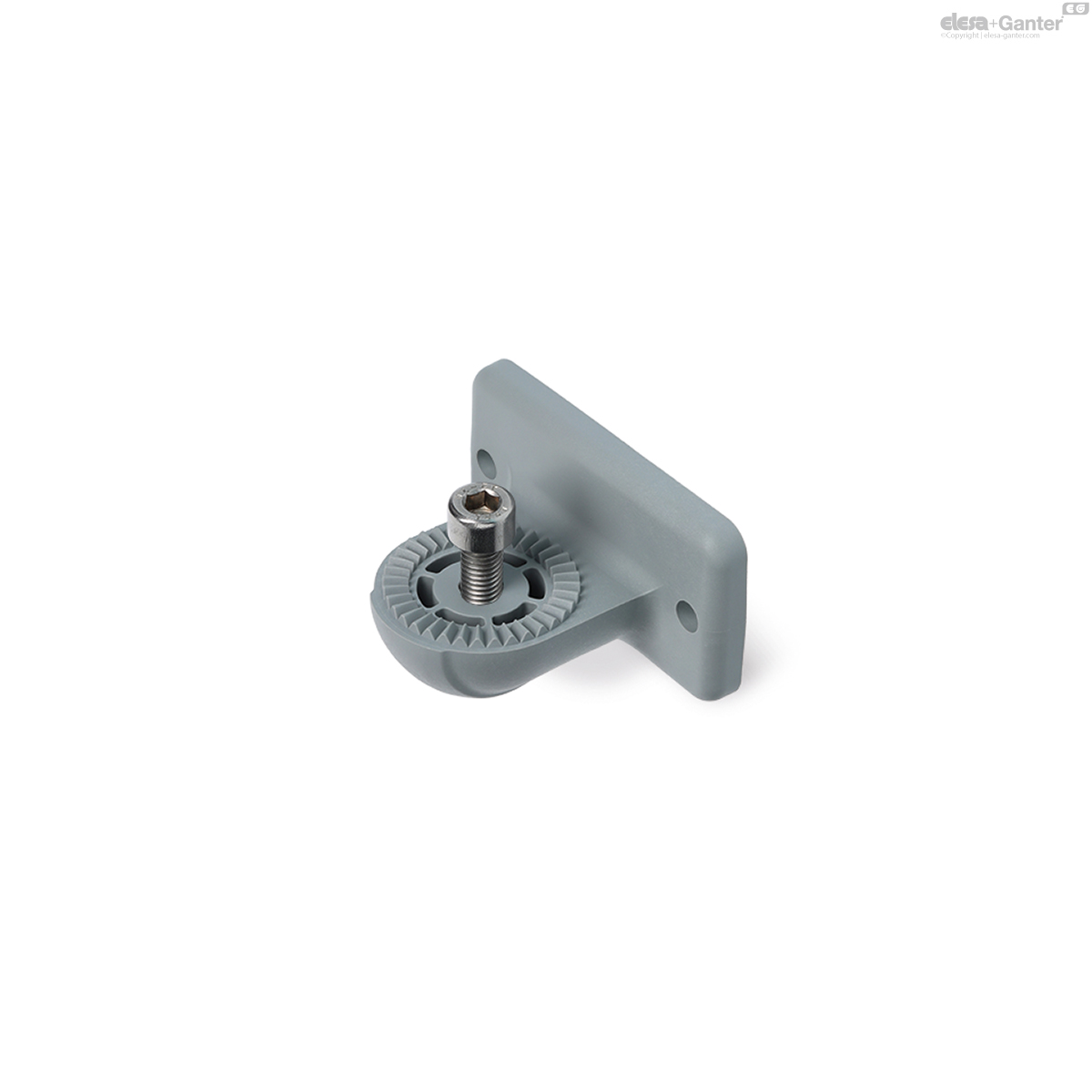

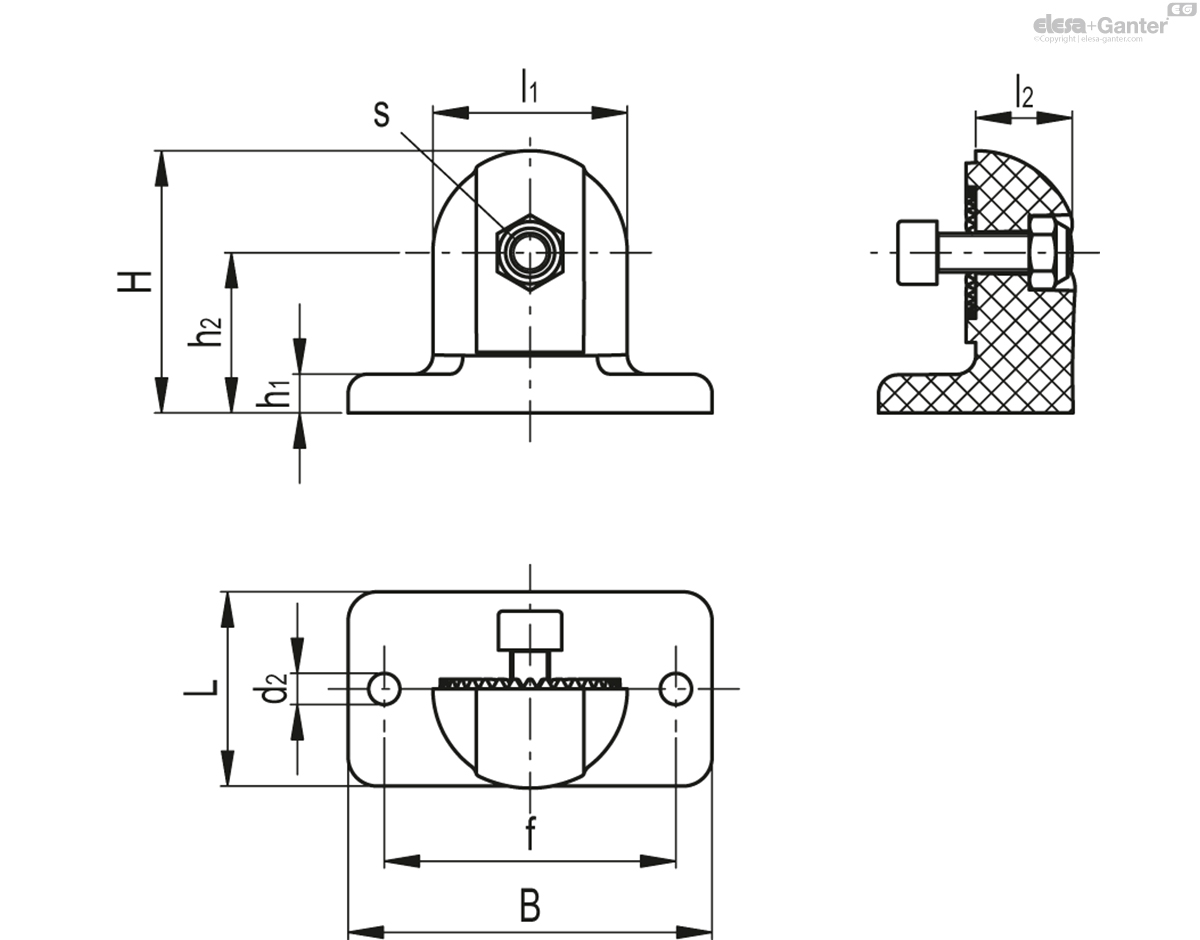

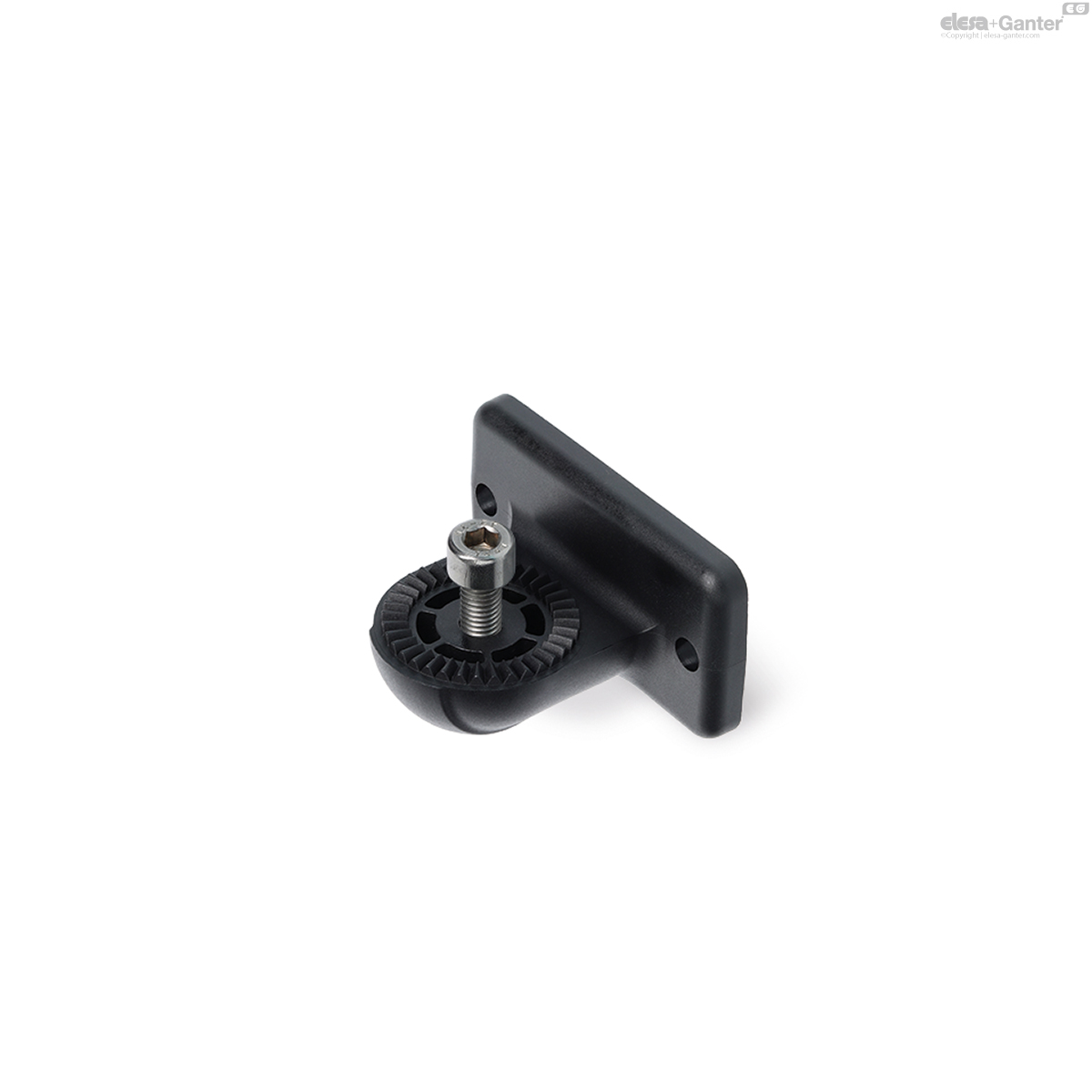

TCC-PBF-E
| Color | L | B | H | d2 | f ±0.2 | h1 | h2 | l1 | l2 | s | C# [Nm] |
M2*** [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||||
| 600331-C9 | TCC-PBF-18-E-C9 | C9 - RAL 9005 | 26.5 | 54 | 34 | 5.5 | 40 | 5 | 20 | 26.5 | 13 | M6 | 5 | 32 | 25 |
|
| 600331-C33 | TCC-PBF-18-E-C33 | C33 - RAL 7040 | 26.5 | 54 | 34 | 5.5 | 40 | 5 | 20 | 26.5 | 13 | M6 | 5 | 32 | 25 |
|
| 600431-C9 | TCC-PBF-30-E-C9 | C9 - RAL 9005 | 40 | 75 | 54 | 6.5 | 60 | 7.5 | 32.5 | 40 | 20 | M8 | 12 | 100 | 44 |
|
| 600431-C33 | TCC-PBF-30-E-C33 | C33 - RAL 7040 | 40 | 75 | 54 | 6.5 | 60 | 7.5 | 32.5 | 40 | 20 | M8 | 12 | 100 | 44 |
|
