TCC-AB
Connecting clamps with mounting base
Technopolymer
Description
Main specifications
Clamp
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screw and nut  (supplied)
Cylindrical-head screws with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nut in AISI 304 stainless steel.
General information
Features
Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeves TCC-A can be used (ordered separately).
The 's' grub screw may be replaced by the kit TCC-KS.
Technical data
The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
Accessories
Accessories on request (to be ordered separately)
- TCC-A: reduction sleeves.
- TCC-KS: clamping kit.
- TCC-KV: screws and clamping nuts.
- GN 990: connecting tubes.
| Color | d | L | H | d2 | f ±0.2 | h1 | h2 | l1 | l2 | l3 | s | C# [Nm] |
F1* [N] |
M1** [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||||||

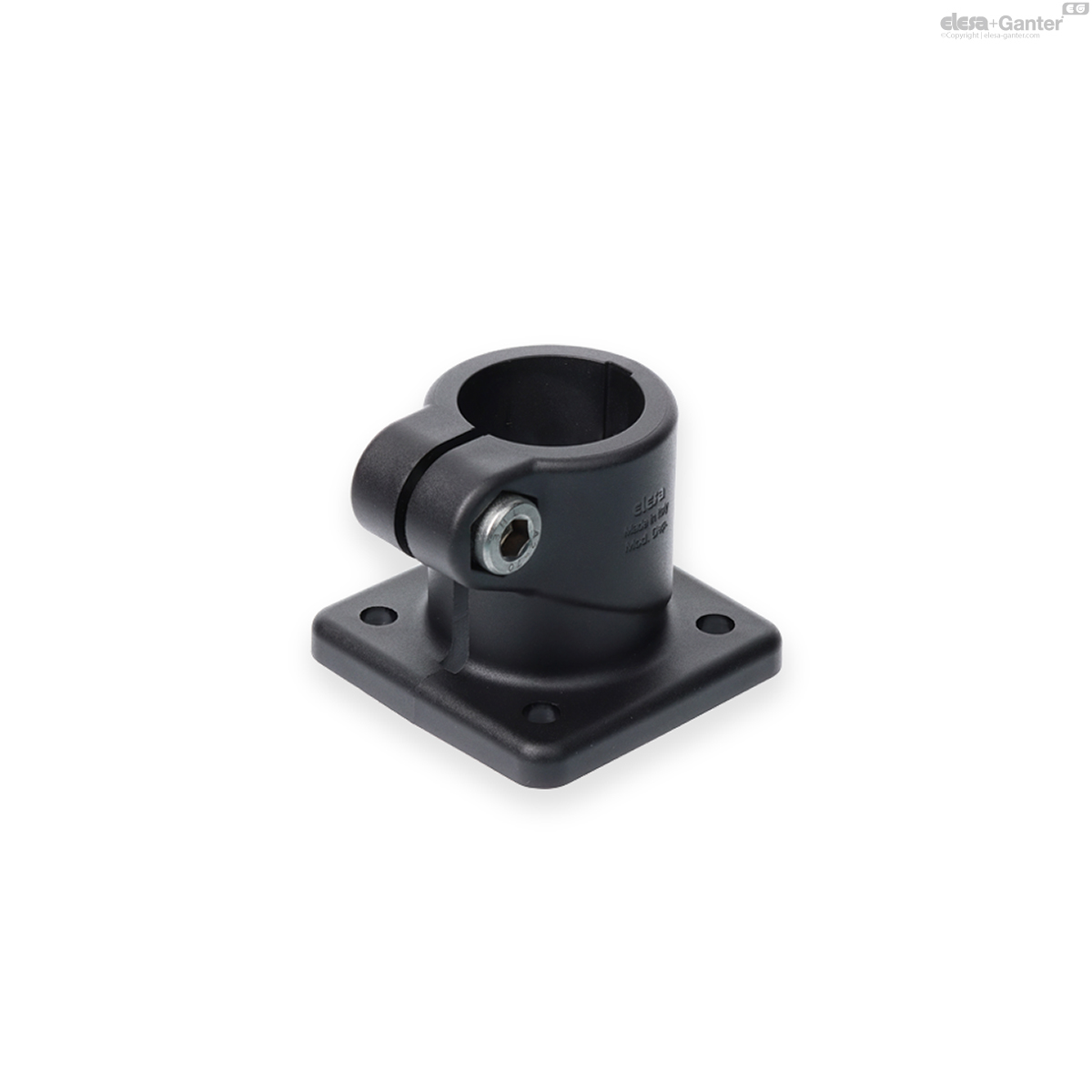

| 600111-C9 | TCC-AB-18-C9 | C9 - RAL 9005 | 18 | 45 | 34 | 5.3 | 30 | 5 | 25 | 26 | 36.5 | 20 | M6 | 5 | 1050 | 8 | 31 |
|

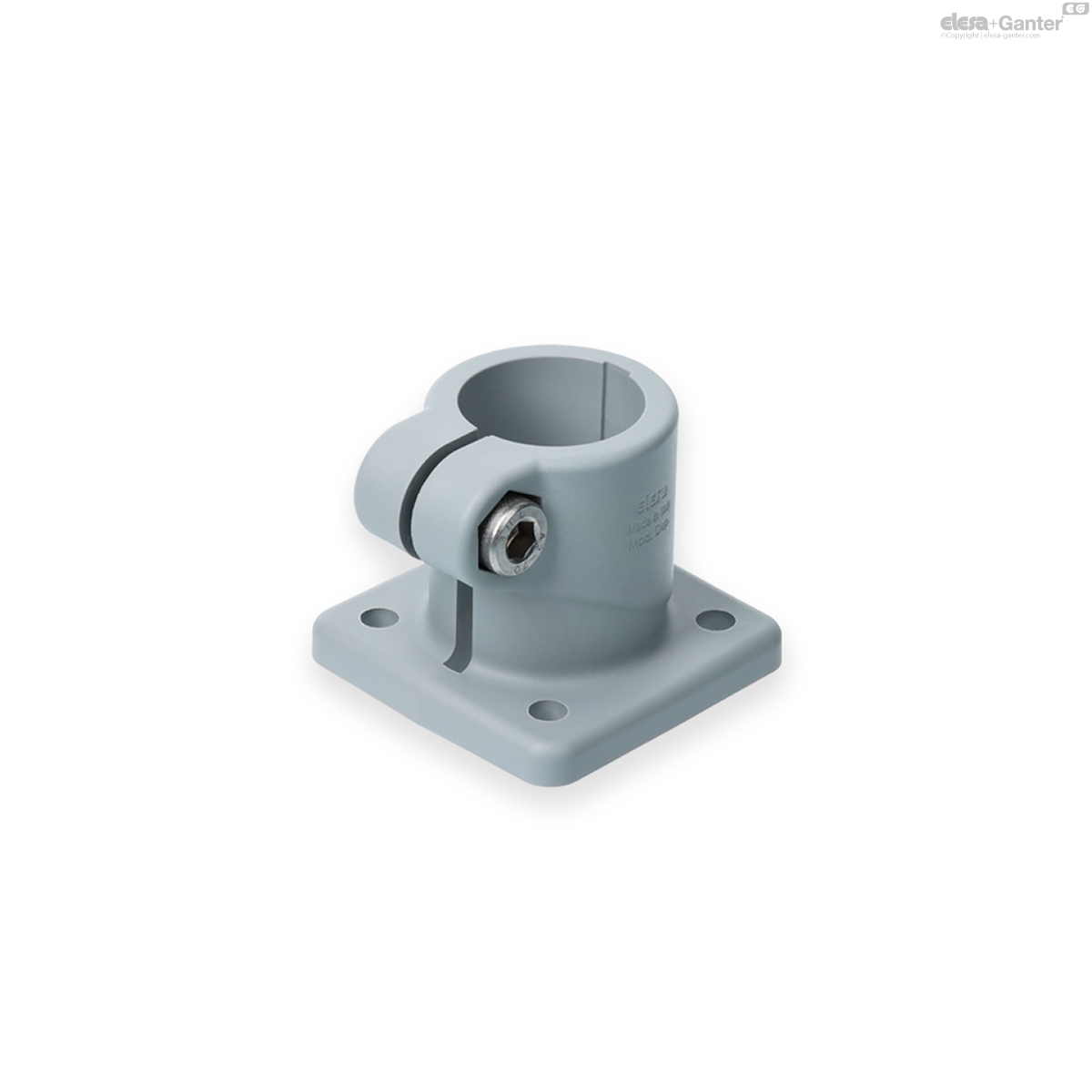

| 600111-C33 | TCC-AB-18-C33 | C33 - RAL 7040 | 18 | 45 | 34 | 5.3 | 30 | 5 | 25 | 26 | 36.5 | 20 | M6 | 5 | 1050 | 8 | 25 |
|
| 600211-C9 | TCC-AB-30-C9 | C9 - RAL 9005 | 30 | 60 | 50 | 6.5 | 40 | 8 | 40 | 42 | 53.5 | 27 | M8 | 12 | 1650 | 33 | 75 |
|
| 600211-C33 | TCC-AB-30-C33 | C33 - RAL 7040 | 30 | 60 | 50 | 6.5 | 40 | 8 | 40 | 42 | 53.5 | 27 | M8 | 12 | 1650 | 33 | 75 |
|
