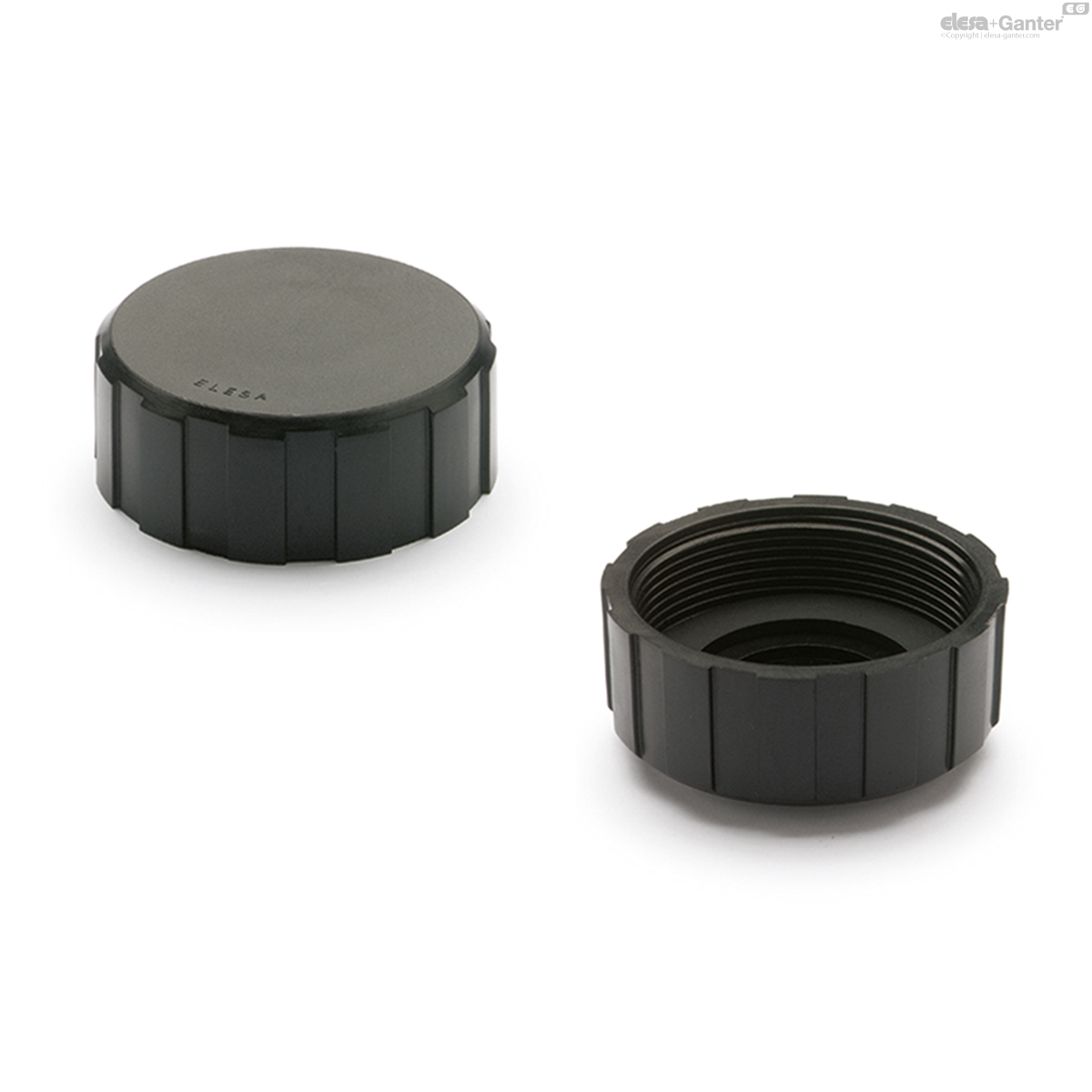

T.470
Plugs
Technopolymer up to 100°C
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Packing ring
NBR synthetic rubber.
Maximum continuous working temperature
100°C.
Special executions
Special executions on request
Words, marks and graphic symbols can be tampoprinted on the cap.
T.470

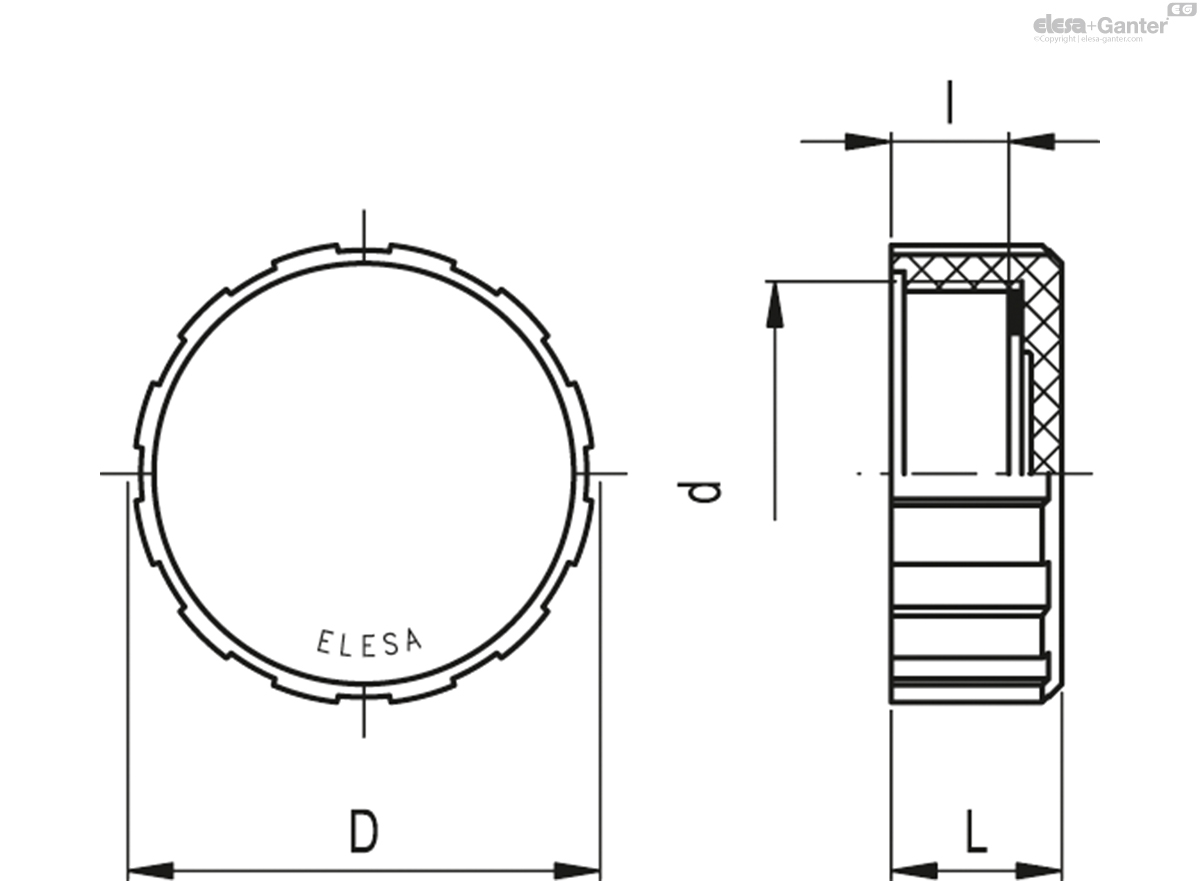

| d | l | D | L |  |
|||
|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||
| 58211 | T.470-33x2 | M33x2 | 9.5 | 42 | 16 | 18 |
|
| 58221 | T.470-48x2 | M48x2 | 15.5 | 56 | 21 | 27 |
|
| 58231 | T.470-60x2 | M60x2 | 19 | 70 | 26 | 55 |
|
| 58251 | T.470-1 | G 1 | 9.5 | 42 | 16 | 18 |
|
| 58271 | T.470-1.½ | G 1 1/2 | 15.5 | 56 | 21 | 28 |
|
| 58281 | T.470-2 | G 2 | 19 | 70 | 26 | 60 |
|
