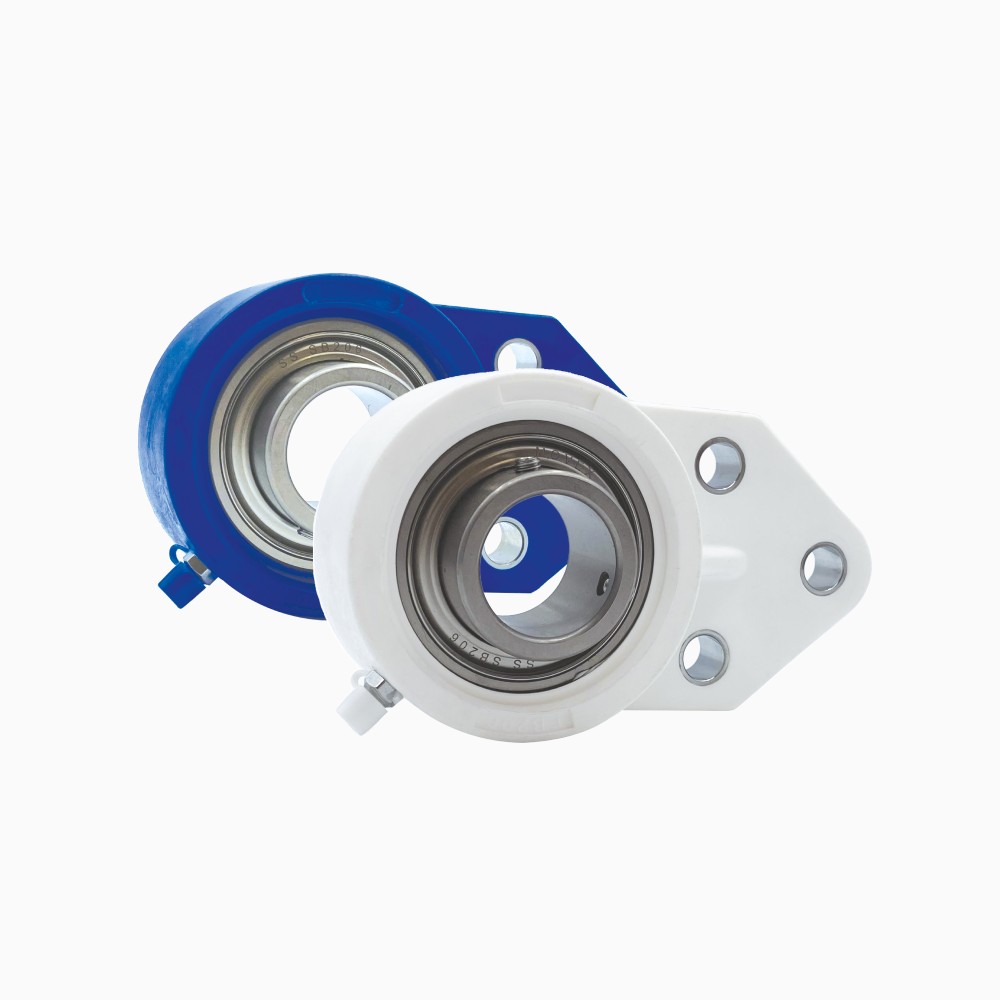

SUCFK Grub screw Standard Solid
Bearings supports
Description
Description
The SUCFK standard bearings are made in stainless steel with high mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol.
Bearings are made in stainless steel, with 2,5° adjustment. They can be used at temperature between -15°C and +100°C.
Basic features
| Series: | SUCFK |
|---|---|
| Type: | Standard (no cap) |
| Fixation: | 3-holes |
| Material: | Stainless steel |
| Version: | Solid |
| Fixing method: | Grub screw |
| Unit of measure: | Ea |
| Box: | - |
SUCFK Grub screw Standard Solid
| A | Operating Temperature °C | E | C | F | G | H | X | L | Bearing material | Shaft diameter | I (holes distance) | M | Shaft adjustment | Housing | Bearing | Grease nipple | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||
| P82100 | 110 mm | -15÷100 °C | 15 mm | 62 mm | 13 mm | 33.3 mm | 25.5 mm | 2.3 mm | 27 mm | Stainless steel | 20 mm | 42 mm | 32 mm | 2.5° | Housing in stainless steel | Stainless steel ball bearing (pre-lubricated) | Stainless steel grease nipple M6 |
|
| P82101 | 116 mm | -15÷100 °C | 16 mm | 68 mm | 13 mm | 35.8 mm | 27 mm | 1.7 mm | 27 mm | Stainless steel | 25 mm | 45 mm | 34 mm | 2.5° | Housing in stainless steel | Stainless steel ball bearing (pre-lubricated) | Stainless steel grease nipple M6 |
|
| P82102 | 130 mm | -15÷100 °C | 18 mm | 78 mm | 13 mm | 40.2 mm | 31 mm | 2.1 mm | 29 mm | Stainless steel | 30 mm | 50 mm | 40 mm | 2.5° | Housing in stainless steel | Stainless steel ball bearing (pre-lubricated) | Stainless steel grease nipple M6 |
|
| P82103 | 144 mm | -15÷100 °C | 19 mm | 90 mm | 15 mm | 44.4 mm | 34 mm | 1.5 mm | 32 mm | Stainless steel | 35 mm | 55 mm | 46 mm | 2.5° | Housing in stainless steel | Stainless steel ball bearing (pre-lubricated) | Stainless steel grease nipple M6 |
|
| P82104 | 164 mm | -15÷100 °C | 21 mm | 100 mm | 16 mm | 51.2 mm | 36 mm | 2 mm | 41 mm | Stainless steel | 40 mm | 60 mm | 50 mm | 2.5° | Housing in stainless steel | Stainless steel ball bearing (pre-lubricated) | Stainless steel grease nipple M6 |
|
