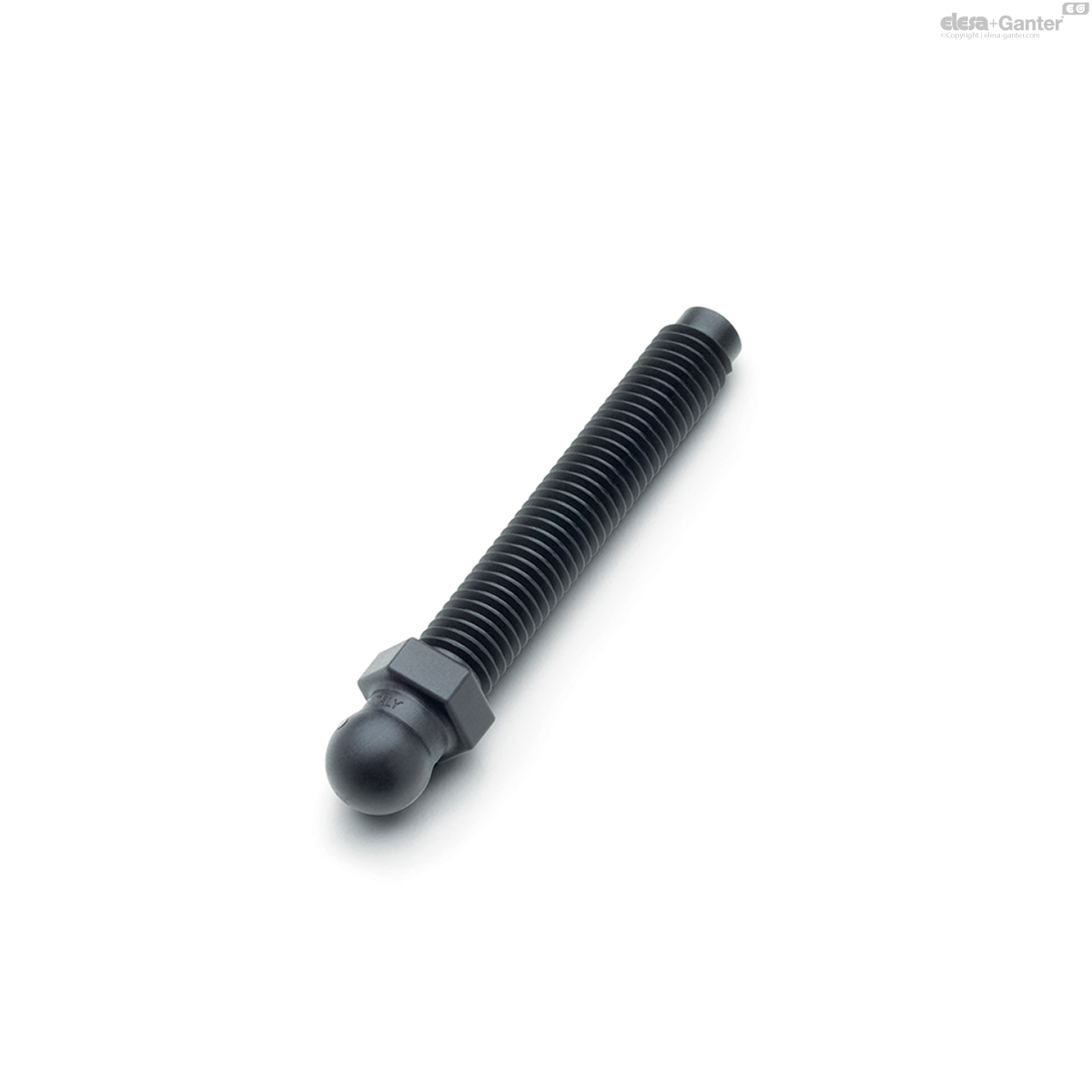

STP
Stems for levelling feet
SUPER-technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour.
General information
Features and applications
- Anti-rust.

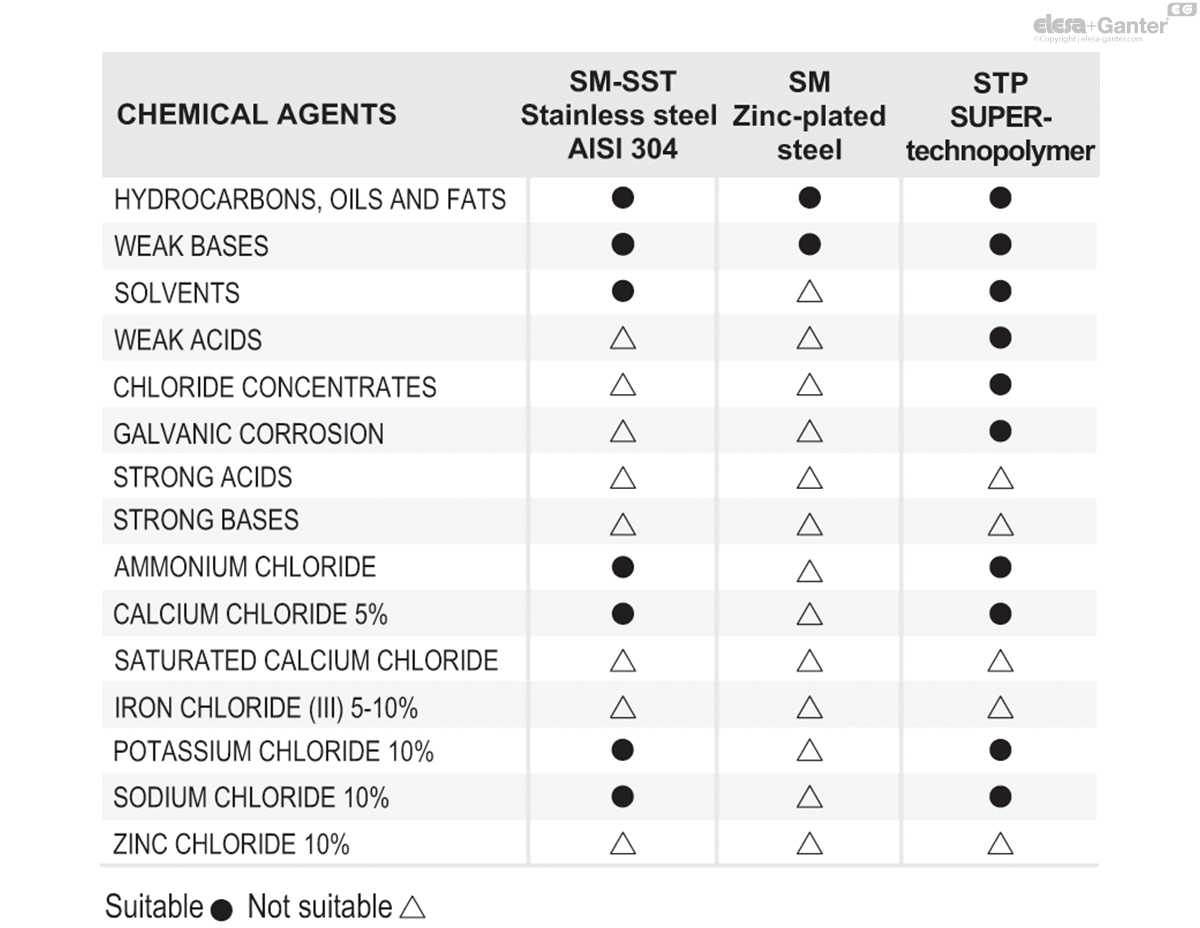

- Resistance to chemical agents (see table).
- Can also be used in outdoor conditions with excellent durability.
- High mechanical resistance.
- Lightness: suitable for applications that require reduced weight.

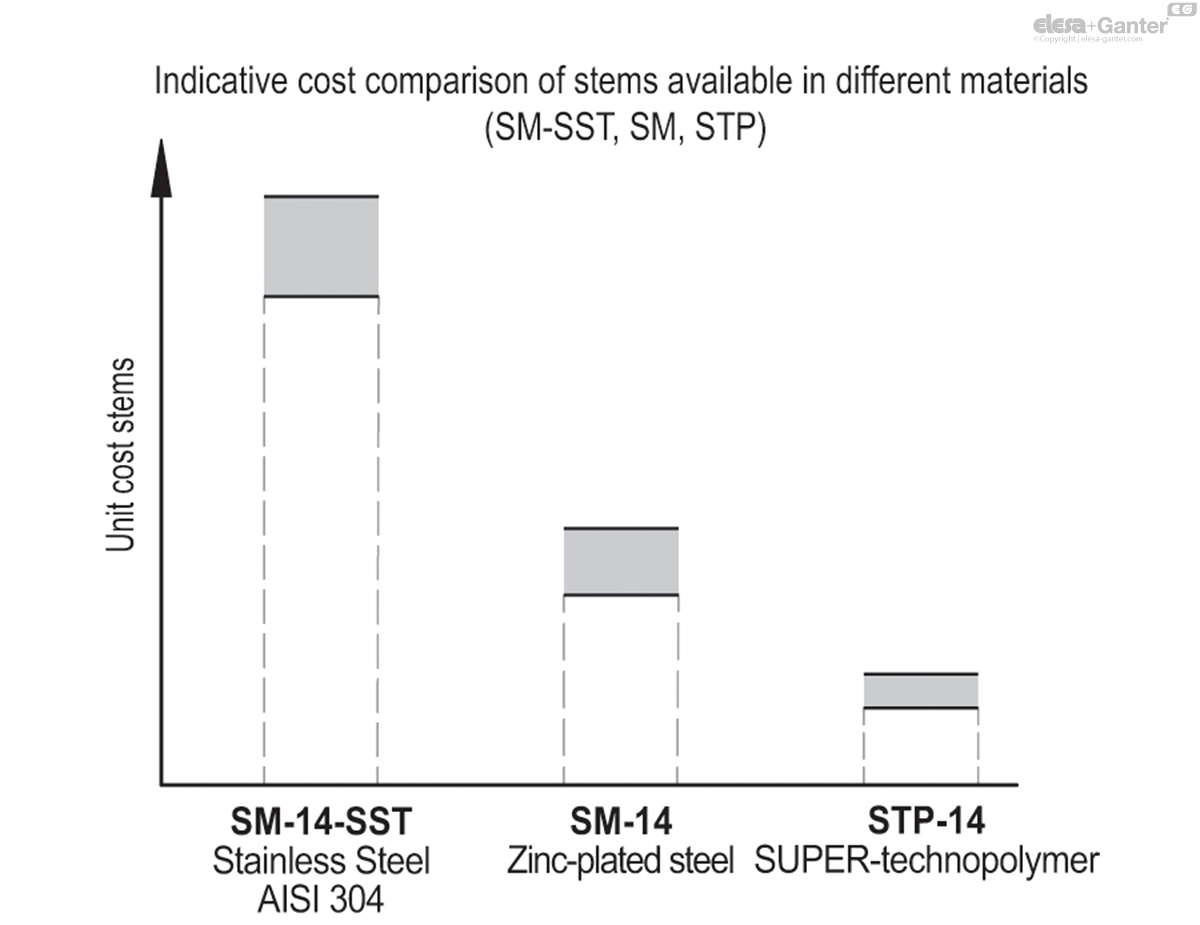

- Cost-effective solution (see graph).

 STP

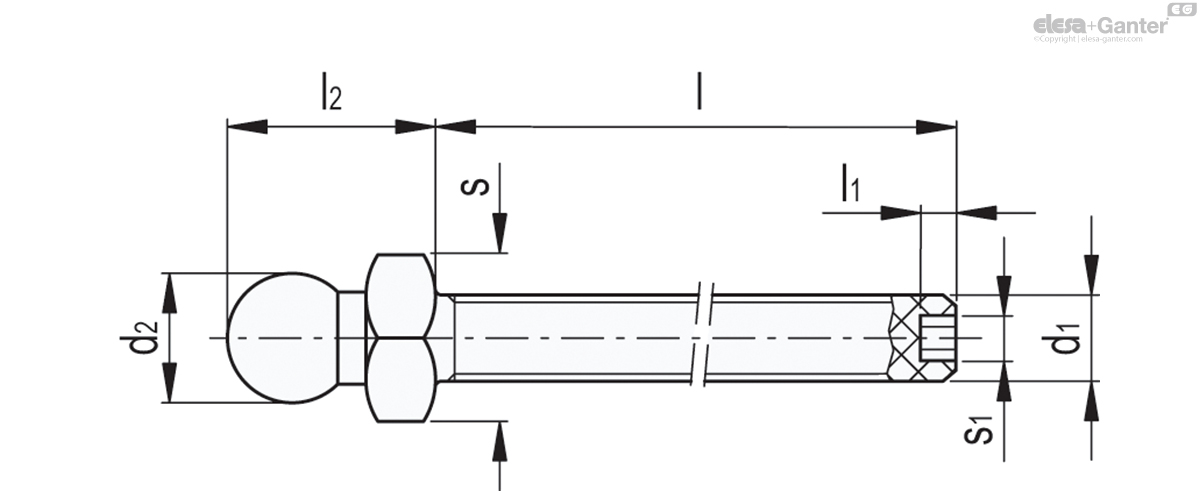

| d1 | l | l1 | l2 | d2 | s | s1 | Max. limit static load [N] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 317121 | STP-14-M8x44 | M8 | 44 | 5 | 21 | 14 | 16 | 3 | 2700 | 8 |
|
| 317125 | STP-14-M8x69 | M8 | 69 | 5 | 21 | 14 | 16 | 3 | 2700 | 10 |
|
| 317221 | STP-14-M10x44 | M10 | 44 | 6 | 21 | 14 | 16 | 4 | 4800 | 10 |
|
| 317225 | STP-14-M10x69 | M10 | 69 | 6 | 21 | 14 | 16 | 4 | 5000 | 12 |
|
| 317231 | STP-14-M10x99 | M10 | 99 | 6 | 21 | 14 | 16 | 4 | 5100 | 16 |
|
| 317321 | STP-14-M12x44 | M12 | 44 | 7 | 21 | 14 | 16 | 5 | 6800 | 12 |
|
| 317325 | STP-14-M12x69 | M12 | 69 | 7 | 21 | 14 | 16 | 5 | 7000 | 15 |
|
| 317331 | STP-14-M12x99 | M12 | 99 | 7 | 21 | 14 | 16 | 5 | 7000 | 20 |
|
