Steel Ø123 2 Fixing point
Steel
Description
Description
The STEEL series, with stamped baseplate and fully threaded spindle is the standard choice for the industrial environments, where a low level of hygiene and low load are required.
Ideal for heavy and dirthy production environments, the STEEL series can be provided without fixing holes, with 2 fixing holes or with 4 fixing holes.
The spindle is made with hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel.
Maximum compressive strength (static load) 10.000 N, maximum tensile strength (static load) 4.000 N.
Basic features
| Design: | Standard |
|---|---|
| Base material: | Metal |
| Diameter: | 123 mm |
| Max Load: | 10000÷19999 N |
| Fixing point: | 2 |
| Anti-slip: | No |
| Unit of measure: | Ea |
| Box: | - |

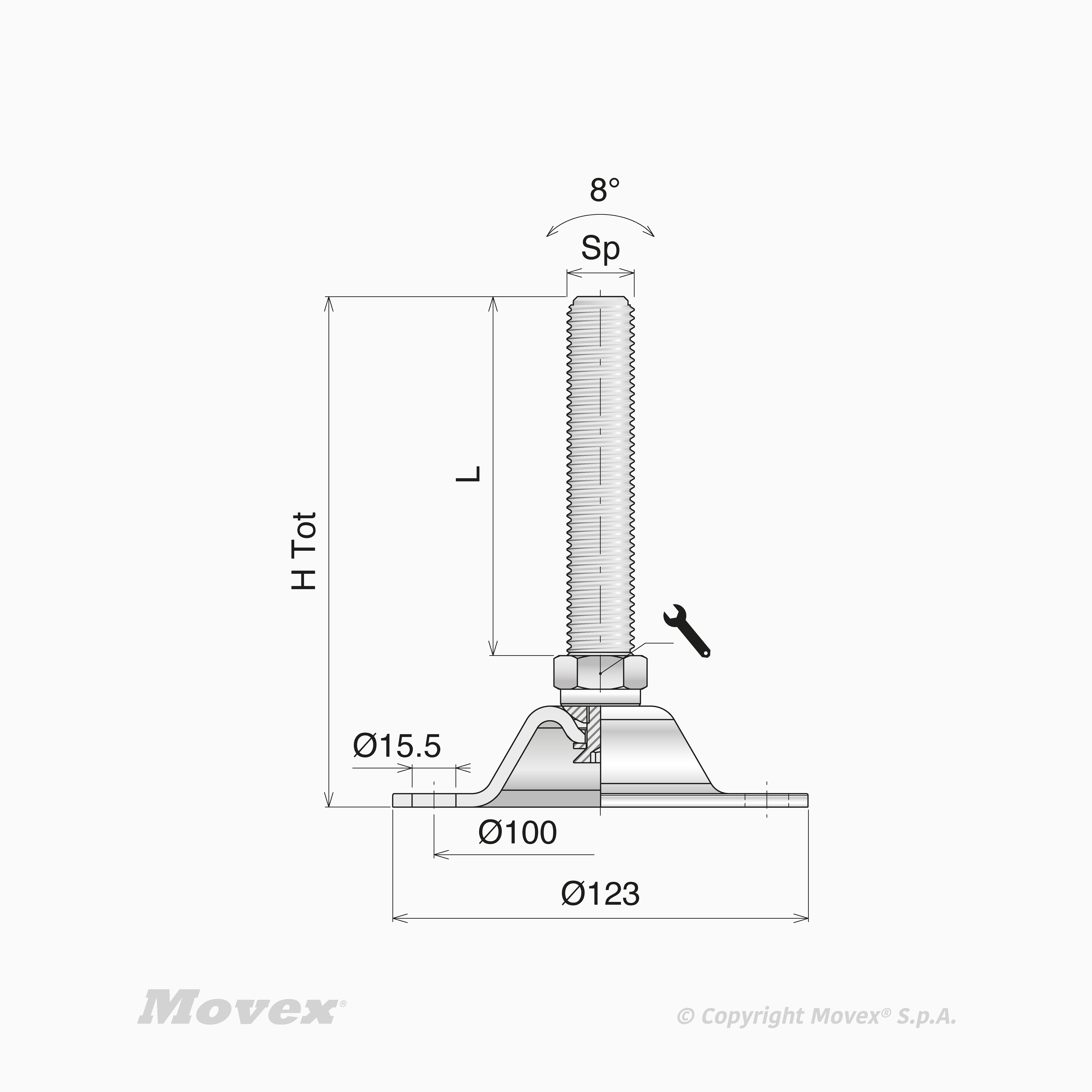

Steel Ø123 2 Fixing point
| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P96401H | 115 mm | Hexagonal | Stainless steel | M16 | 155 | Standard | 20 mm | -30÷400 °C | -30÷130 °C |
|
| P96401ZH | 115 mm | Hexagonal | Zinc Plated Steel | M16 | 155 | Standard | 20 mm | -30÷400 °C | -30÷130 °C |
|
| P96402H | 135 mm | Hexagonal | Stainless steel | M16 | 175 | Standard | 20 mm | -30÷400 °C | -30÷130 °C |
|
| P96402ZH | 135 mm | Hexagonal | Zinc Plated Steel | M16 | 175 | Standard | 20 mm | -30÷400 °C | -30÷130 °C |
|
| P96501H | 115 mm | Hexagonal | Stainless steel | M20 | 160 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96501ZH | 115 mm | Hexagonal | Zinc Plated Steel | M20 | 160 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96502H | 135 mm | Hexagonal | Stainless steel | M20 | 175 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96502ZH | 135 mm | Hexagonal | Zinc Plated Steel | M20 | 175 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96601H | 125 mm | Hexagonal | Stainless steel | M24 | 170 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96601ZH | 125 mm | Hexagonal | Zinc Plated Steel | M24 | 170 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96602H | 185 mm | Hexagonal | Stainless steel | M24 | 230 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96602ZH | 185 mm | Hexagonal | Zinc Plated Steel | M24 | 230 | Standard | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P96701H | 125 mm | Hexagonal | Stainless steel | M30 | 170 | Standard | 32 mm | -30÷400 °C | -30÷130 °C |
|
| P96701ZH | 125 mm | Hexagonal | Zinc Plated Steel | M30 | 170 | Standard | 32 mm | -30÷400 °C | -30÷130 °C |
|
| P96702H | 185 mm | Hexagonal | Stainless steel | M30 | 230 | Standard | 32 mm | -30÷400 °C | -30÷130 °C |
|
| P96702ZH | 185 mm | Hexagonal | Zinc Plated Steel | M30 | 230 | Standard | 32 mm | -30÷400 °C | -30÷130 °C |
|
