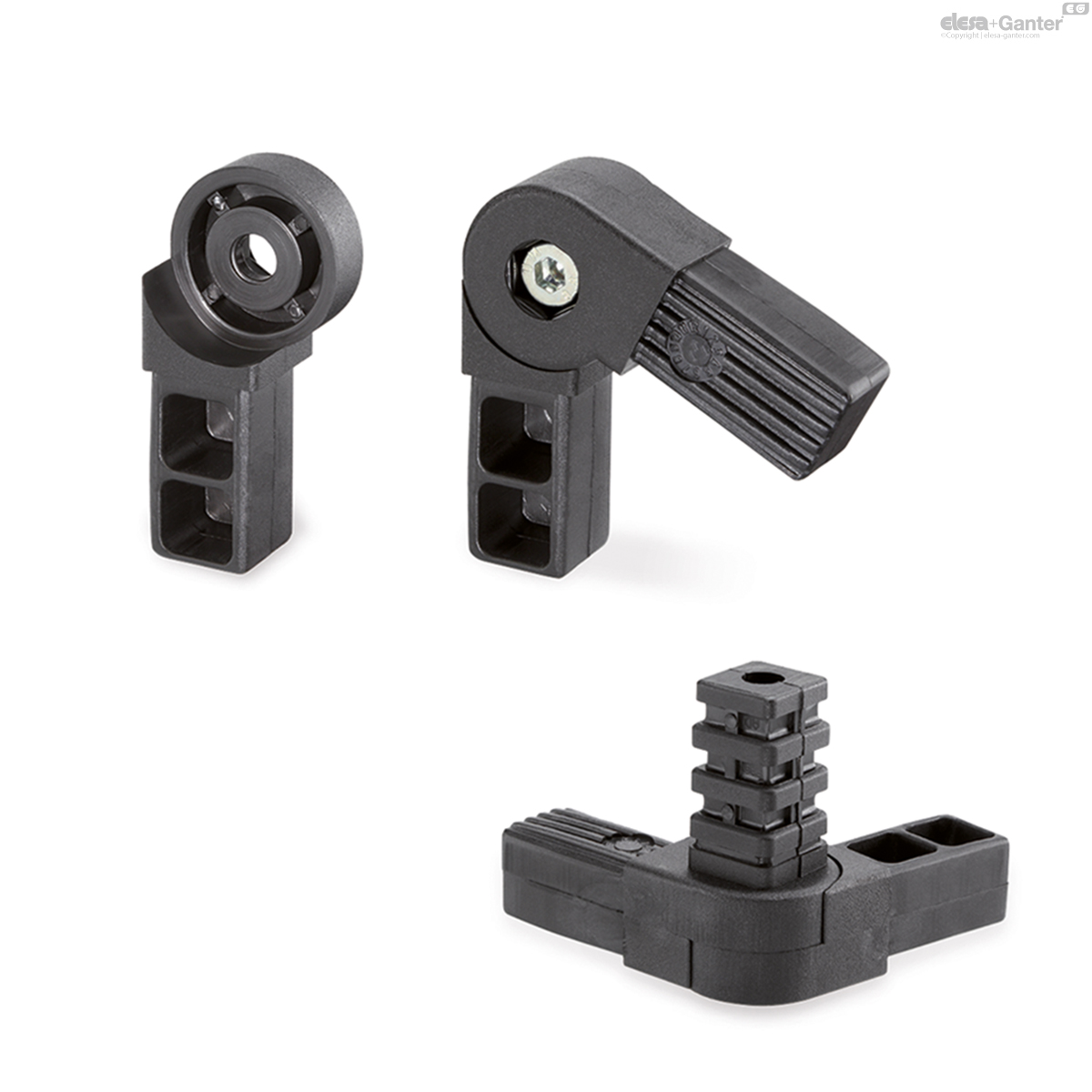

STC-A
Square tube connectors
with adjustable angle, technopolymer
Description
Main specifications
Connector
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- 2A-2W: bidimensional two-way connector.
- 3A-3W: tridimensional three-way connector.
General information
Features and applications
Suitable for creating structures composed by square profiles. The assembly can be performed simply by positioning the connector, forcing it, inside the profile, with no need of screws or other fasteners.

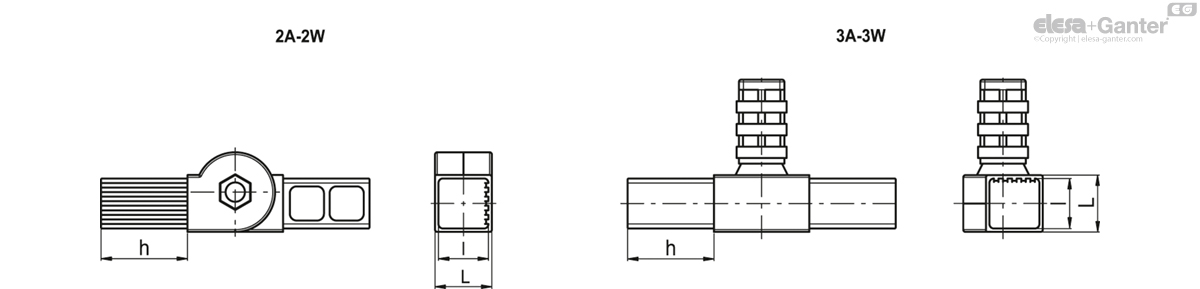

STC-2A-2W
| L | h | l | ß min-max | External tube diameter | Internal tube diameter | Thickness |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 430003 | STC.20-2A-2W-A-C9 | 20 | 35 | 17+/-0.15 | 0 ÷ 190 | 20 | 17 | 1.5 | 55 |
|
| 430053 | STC.25-2A-2W-A-C9 | 25 | 38 | 22+/-0.15 | 45 ÷ 195 | 25 | 22 | 1.5 | 65 |
|
STC-3A-3W
| L | h | l | ß min-max | External tube diameter | Internal tube diameter | Thickness | |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 430103 | STC.25-3A-3W-A-C9 | 25 | 38 | 22+/-0.15 | 45 ÷ 195 | 25 | 22 | 1.5 | 86 |
|
