SMQ-SST
Stems for adjustable feet
Stainless steel
Description
Main specifications

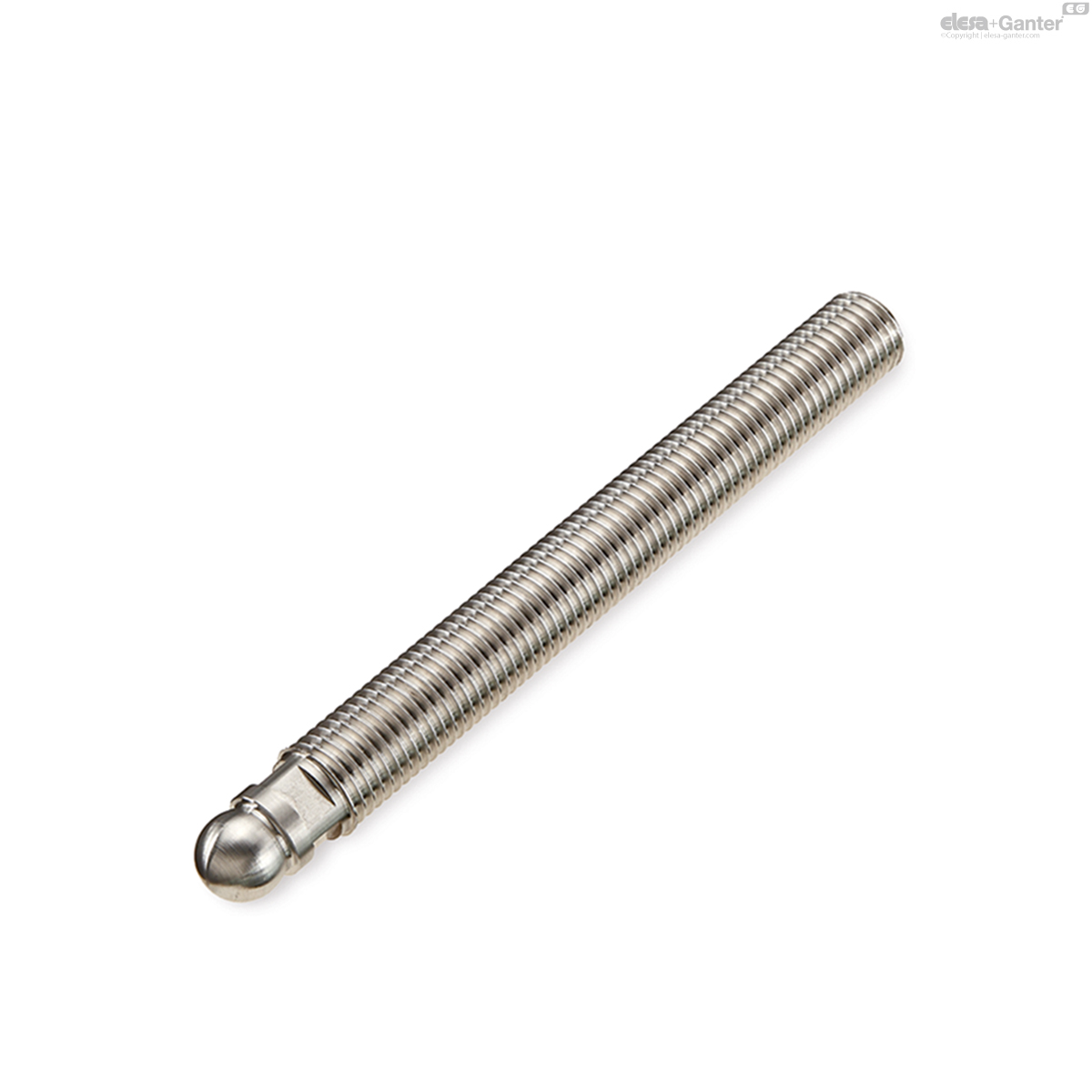

Spheric articulated and threaded stem with adjusting square
AISI 304 stainless steel
General information
Note
To choose the base see:
table of the possible combinations Bases/Stems
The stems are usually supplied in a packing of four pieces compacted by means of a shrink film to avoid any damaging movement during transport.
For big quantities, the stems are supplied in wooden boxes and are placed in order, to avoid any damaging movement during transport.
SMQ-SST

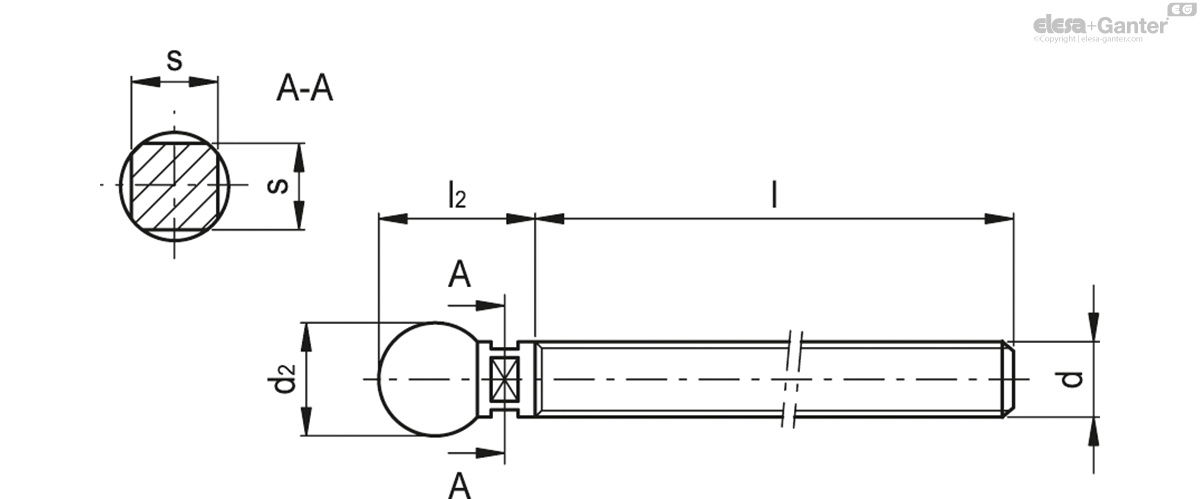

| d | l | l2 | d2 | s |  |
|||
|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||
| 322891 | SMQ-8.5-SST-M8x48 | M8 | 48 | 15 | 8.5 | 7 | 21 |
|
| 322894 | SMQ-8.5-SST-M8x73 | M8 | 73 | 15 | 8.5 | 7 | 29 |
|
| 322901 | SMQ-8.5-SST-M10x48 | M10 | 48 | 15 | 8.5 | 7 | 29 |
|
| 322904 | SMQ-8.5-SST-M10x73 | M10 | 73 | 15 | 8.5 | 7 | 42 |
|
| 322907 | SMQ-8.5-SST-M10x103 | M10 | 103 | 15 | 8.5 | 7 | 57 |
|
| 322911 | SMQ-8.5-SST-M12x48 | M12 | 48 | 15 | 8.5 | 9 | 41 |
|
| 322914 | SMQ-8.5-SST-M12x73 | M12 | 73 | 15 | 8.5 | 9 | 59 |
|
| 322917 | SMQ-8.5-SST-M12x103 | M12 | 103 | 15 | 8.5 | 9 | 81 |
|
| 322971 | SMQ-14-SST-M16x68 | M16 | 68 | 19.7 | 13.9 | 12 | 109 |
|
| 322974 | SMQ-14-SST-M16x108 | M16 | 108 | 19.7 | 13.9 | 12 | 161 |
|
| 322977 | SMQ-14-SST-M16x148 | M16 | 148 | 19.7 | 13.9 | 12 | 214 |
|
| 322979 | SMQ-14-SST-M16x168 | M16 | 168 | 19.7 | 13.9 | 12 | 240 |
|
| 322981 | SMQ-14-SST-M20x110 | M20 | 110 | 24.7 | 13.9 | 15 | 261 |
|
| 322984 | SMQ-14-SST-M20x150 | M20 | 150 | 24.7 | 13.9 | 15 | 341 |
|
| 322987 | SMQ-14-SST-M20x170 | M20 | 170 | 24.7 | 13.9 | 15 | 384 |
|
| 322989 | SMQ-14-SST-M20x210 | M20 | 210 | 24.7 | 13.9 | 15 | 465 |
|
| 322991 | SMQ-14-SST-M24x110 | M24 | 110 | 24.7 | 13.9 | 18 | 369 |
|
| 322994 | SMQ-14-SST-M24x170 | M24 | 170 | 24.7 | 13.9 | 18 | 546 |
|
| 322997 | SMQ-14-SST-M24x210 | M24 | 210 | 24.7 | 13.9 | 18 | 663 |
|
