Side Guide Rail Part 194
Extruded profiles
Description
Description
The Movex side guides, extruded with RAM extrusion technology, are the perfect choice to improve the conveyor performances.
Thanks to a new patented and innovative production process, we have further enhanced our range of profiles, improving performance and reducing the dust creation.
These profiles are available with height from 50 to 170 mm, and with many different shapes and types (with clamping system or label saver), and can also be extruded with our unique materials BluLub® and Titanium White®, providing unparalleled performance and reliability.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Basic features
| Series: | Side Guide Rail |
|---|---|
| Material: | Plastic profile |
| Unit of measure: | Meter |
| Box: | - |

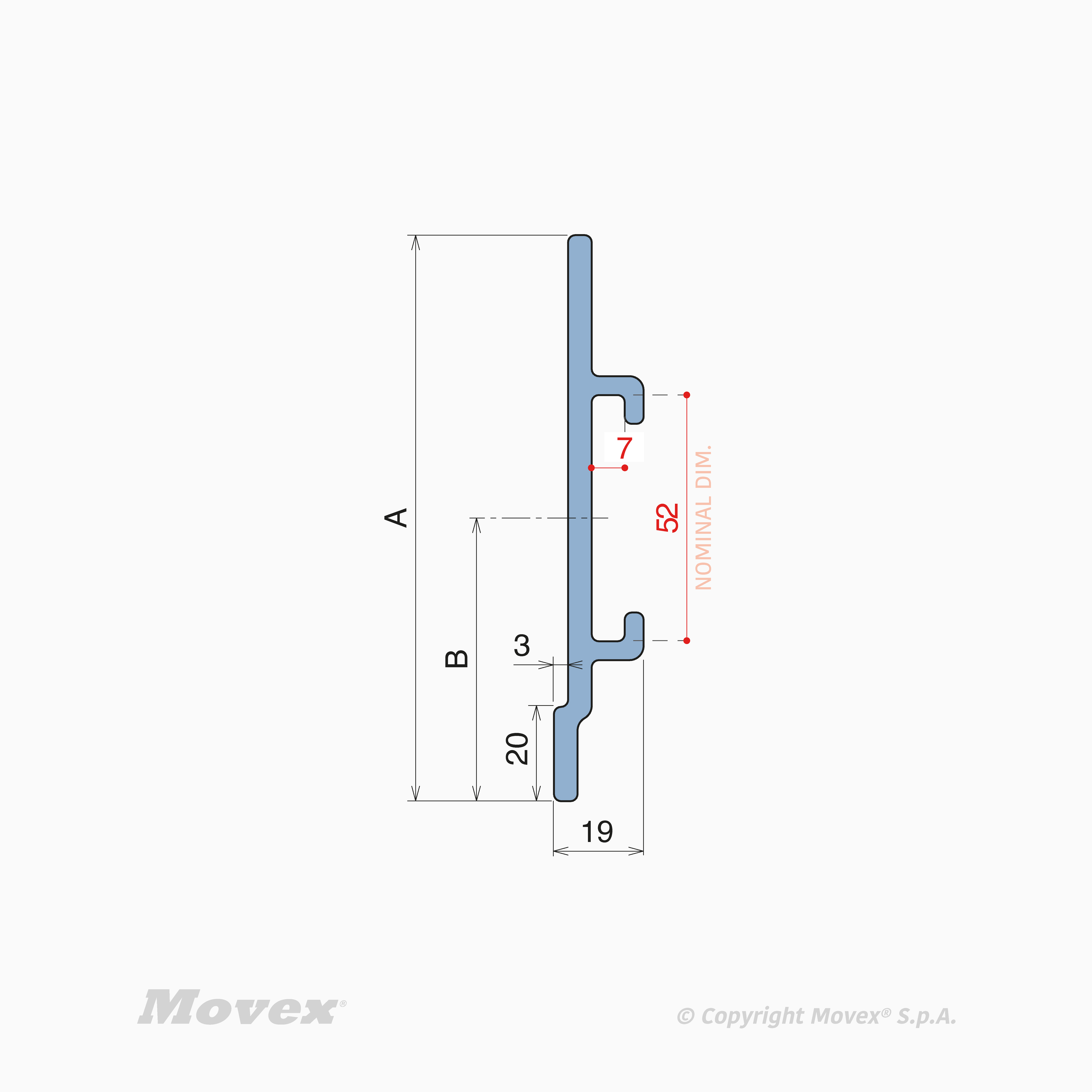

Side Guide Rail Part 194
| Part | Material & color | Supply length | Label saver | A | B | Operating Temperature °C | ||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| P19400BC | P194 | BluLub | 3 m / 10 ft bars | 20 | 90 mm | 45 mm | -40÷80 °C |
|
| P19400BLC | P194 | UHMW-PE Blue | 3 m / 10 ft bars | 20 | 90 mm | 45 mm | -40÷80 °C |
|
| P19400C | P194 | UHMW-PE Grey | 3 m / 10 ft bars | 20 | 90 mm | 45 mm | -40÷80 °C |
|
| P19403BC | P194 | BluLub | 3 m / 10 ft bars | 20 | 120 mm | 60 mm | -40÷80 °C |
|
| P19403BLC | P194 | UHMW-PE Blue | 3 m / 10 ft bars | 20 | 120 mm | 60 mm | -40÷80 °C |
|
| P19403C | P194 | UHMW-PE Grey | 3 m / 10 ft bars | 20 | 120 mm | 60 mm | -40÷80 °C |
|
| P19430C | P194 | Ti-White | 3 m / 10 ft bars | 20 | 90 mm | 45 mm | -40÷80 °C |
|
| P19433C | P194 | Ti-White | 3 m / 10 ft bars | 20 | 120 mm | 60 mm | -40÷80 °C |
|
