Side Guide Rail Part 159 / 1088 / 1089
Extruded profiles
Description
Description
The Movex side guides, extruded with RAM extrusion technology, are the perfect choice to improve the conveyor performances.
Thanks to a new patented and innovative production process, we have further enhanced our range of profiles, improving performance and reducing the dust creation.
These profiles are available with height from 50 to 170 mm, and with many different shapes and types (with clamping system or label saver), and can also be extruded with our unique materials BluLub® and Titanium White®, providing unparalleled performance and reliability.
Basic features
| Series: | Side Guide Rail |
|---|---|
| Material: | Metal profile |
| Unit of measure: | Meter |
| Box: | - |

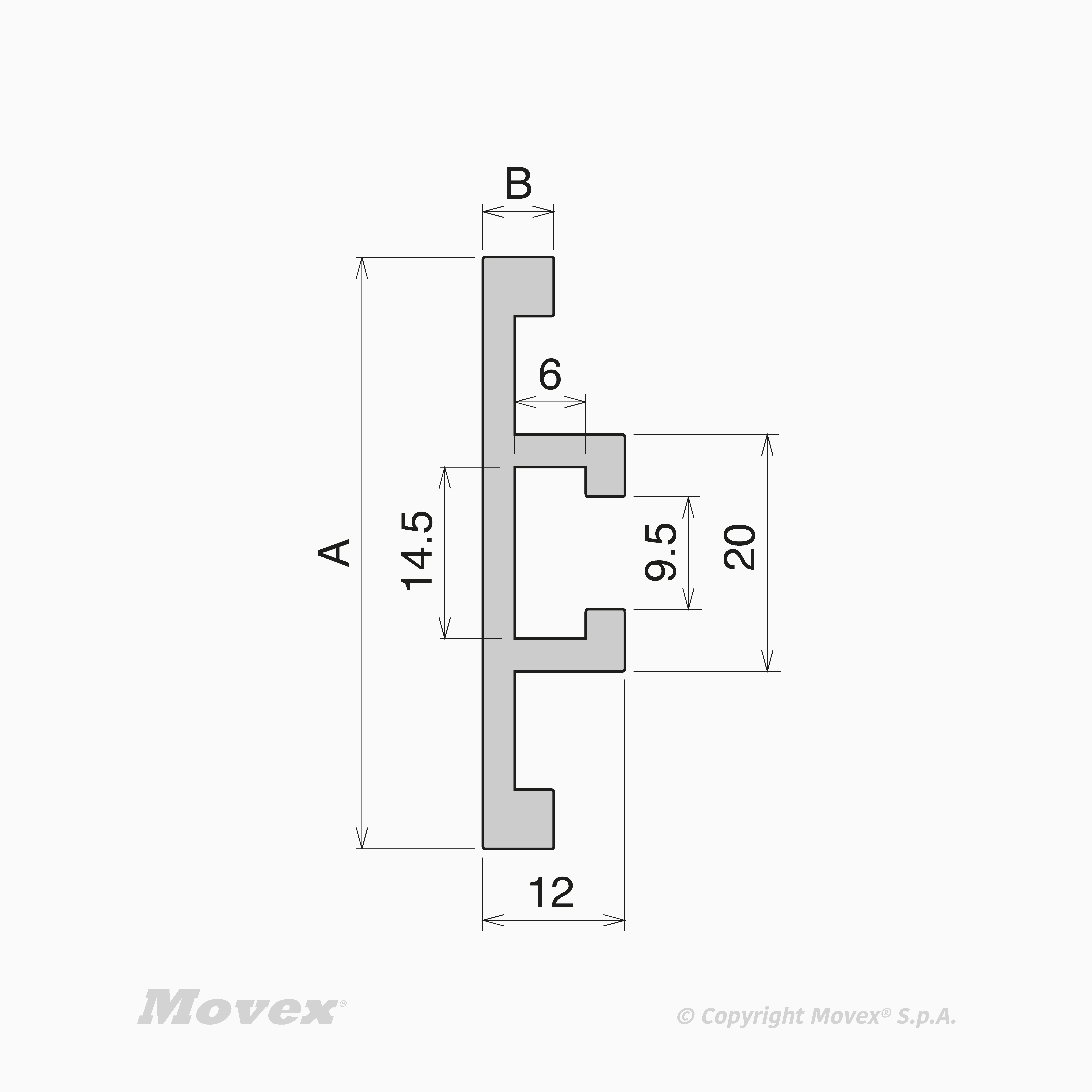

Side Guide Rail Part 159 / 1088 / 1089
| Part | Material & color | Supply length | A | B | ||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| P15901 | P159 | Aluminum | 6 m / 20 ft bars | 50 mm | 6 mm |
|
| P15901C | P159 | Aluminum | 3 m / 10 ft bars | 50 mm | 6 mm |
|
| P108801 | P1088 | Aluminum | 6 m / 20 ft bars | 60 mm | 5 mm |
|
| P108801C | P1088 | Aluminum | 3 m / 10 ft bars | 60 mm | 5 mm |
|
| P108901 | P1089 | Aluminum | 6 m / 20 ft bars | 60 mm | 6 mm |
|
| P108901C | P1089 | Aluminum | 3 m / 10 ft bars | 60 mm | 6 mm |
|
