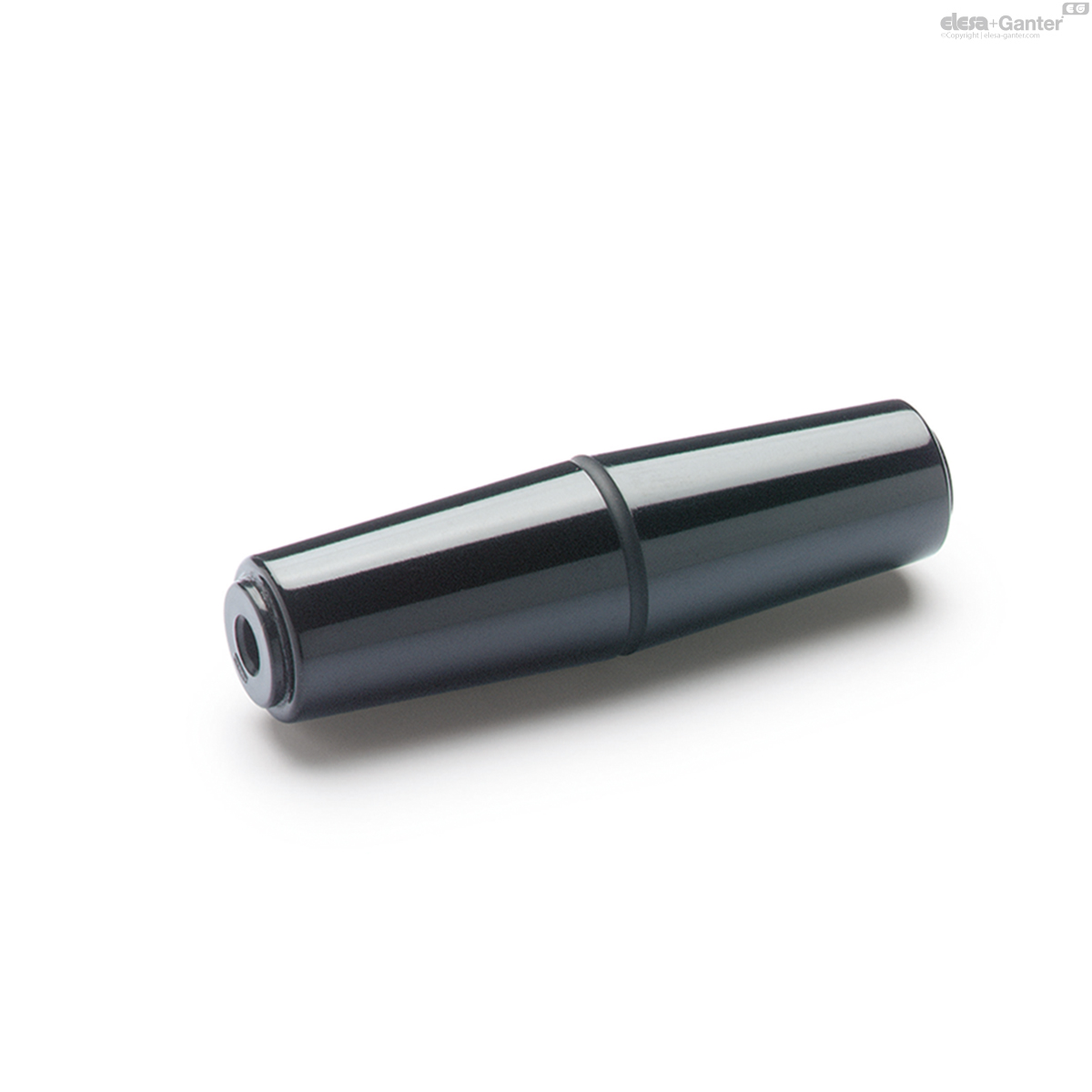

SI.134
Revolving handles
Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, matte finish with equatorial groove.
Standard execution
Plain pass-through hole with polyamide based (PA) technopolymer guide bosses in both ends.

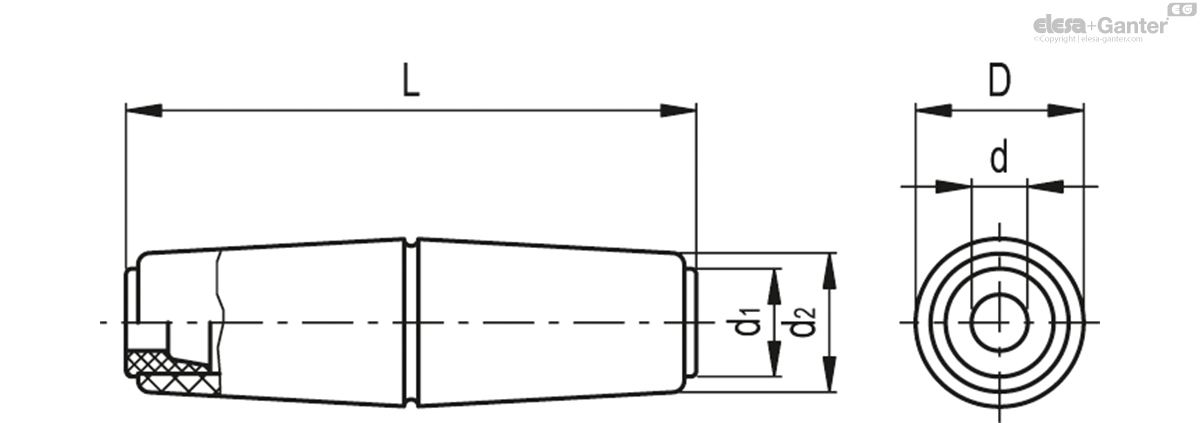

| D | L | d | d1 | d2 |  |
|||
|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||
| 55701 | SI.134/105-6 | 29 | 105 | 6 | 18 | 23 | 54 |
|
| 55711 | SI.134/105-7 | 29 | 105 | 7 | 18 | 23 | 53 |
|
| 55721 | SI.134/105-8 | 29 | 105 | 8 | 18 | 23 | 53 |
|
| 55731 | SI.134/105-10 | 29 | 105 | 10 | 18 | 23 | 52 |
|
