SFP.

Breather caps
with splash guard, technopolymer
__logo__ELE_OD__ __logo__IF80__ __logo__RoHS__ __logo__PA__ __logo__g10030__

Description

Main specifications

Cover

Polyamide based (PA) technopolymer, semi-matte finish.

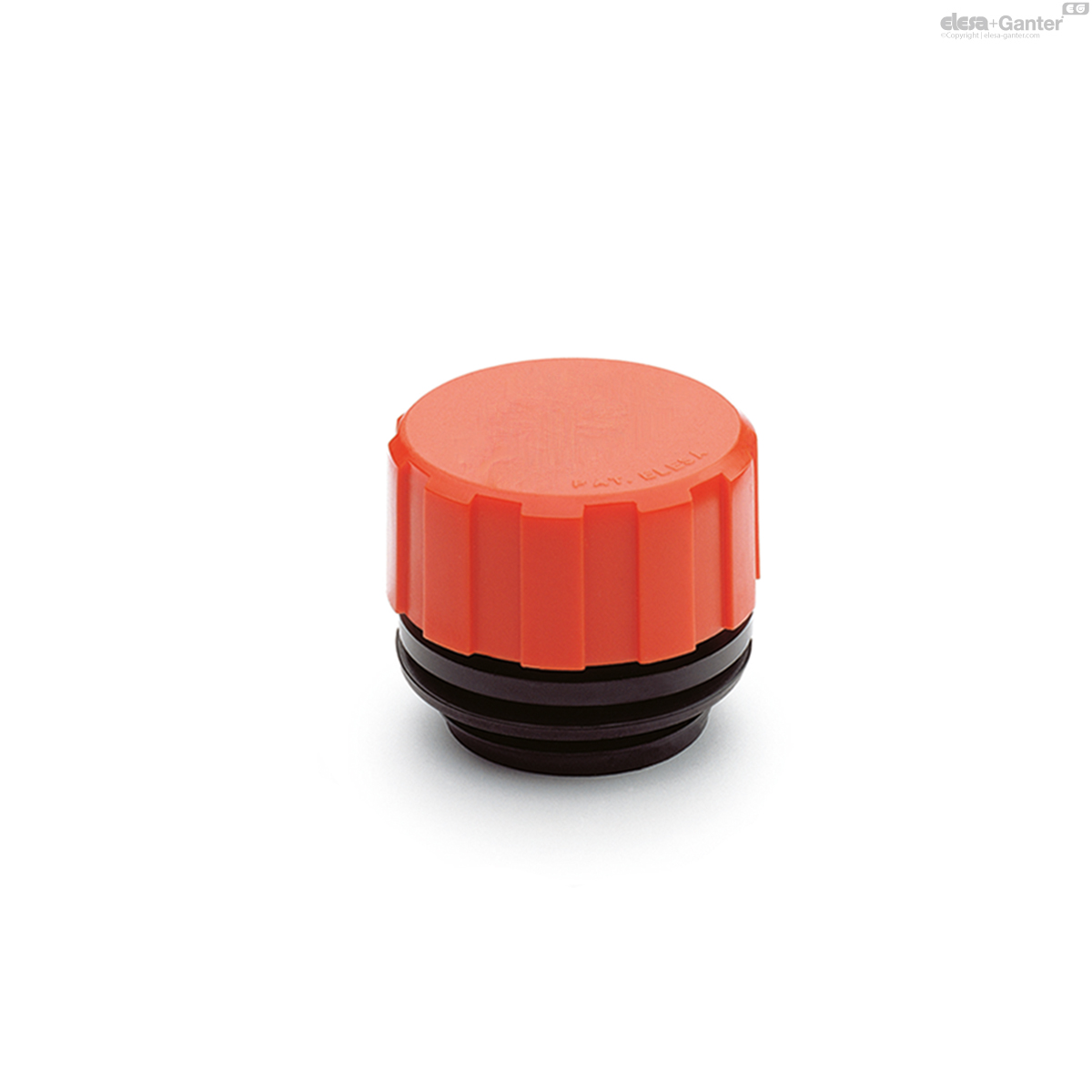

  • SFP......: RAL 2004 orange, marked 'OIL'.

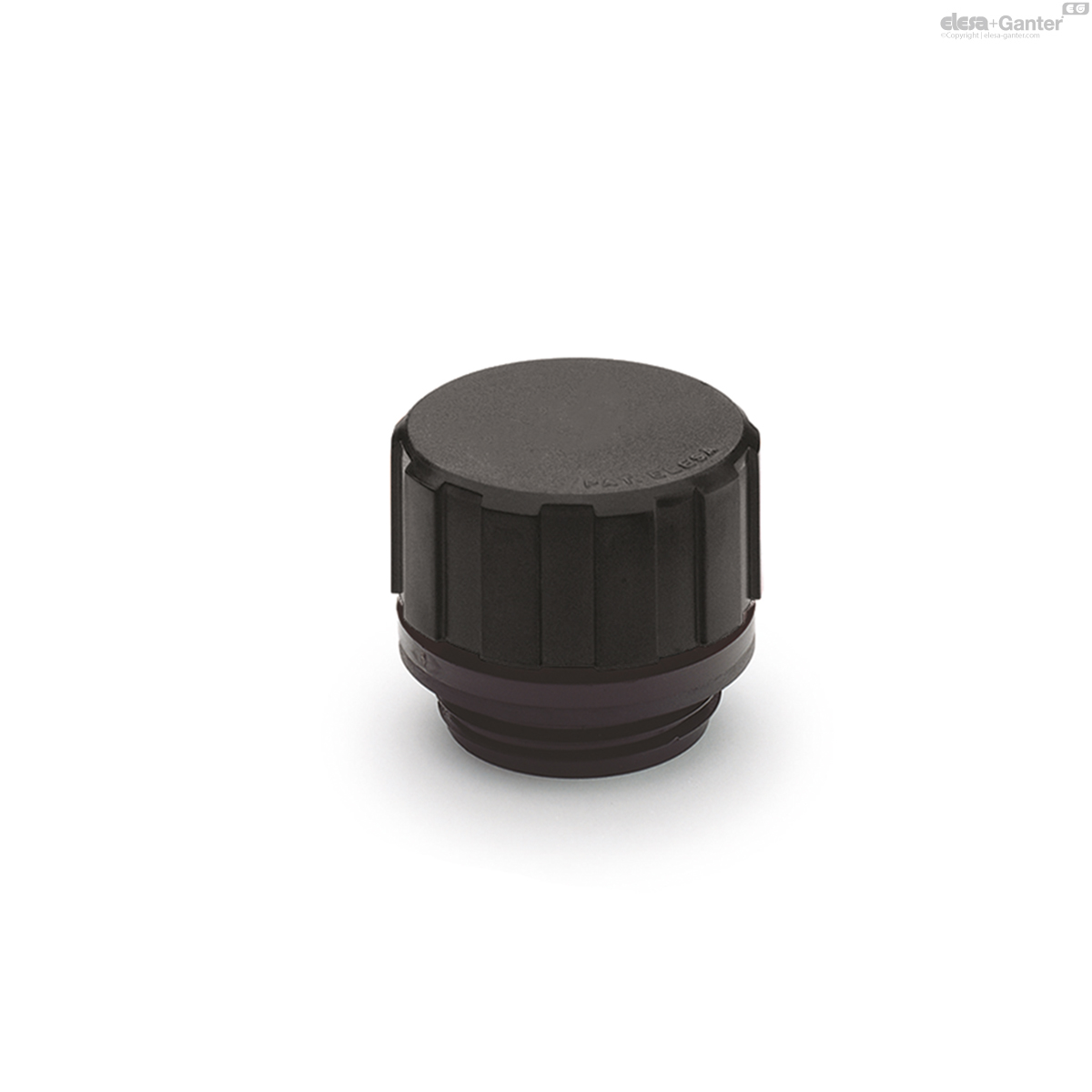

  • SFP.....-C9: RAL 9005 black colour, marked 'OIL'.
  • SFP.....-C2-N: RAL 2004 orange, without 'OIL' mark.
  • SFP.....-C9-N: RAL 9005 black colour, without 'OIL' mark.

Threaded fitting

Polyamide based (PA) technopolymer, black colour, semi-matte finish.

Packing ring

NBR synthetic rubber.

Splash guard

Technopolymer.

Standard executions

  • SFP.: without air filter (black splash guard).
  • SFP+F-FIL: with 'tech-fil' air filter in zinc-plated steel wire (orange splash guard).
  • SFP+F-FOAM: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).
  • SFP-BA+F: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

Zinc-plated steel sheet bayonet.

Chrome-plated steel safety chain.

Maximum continuous working temperature

100°C.

General information

Features and applications

SFP. breather caps come complete with splash guard device (ELESA original design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against breather cap.

Technical data

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.

Other executions

Special execution on request

Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.

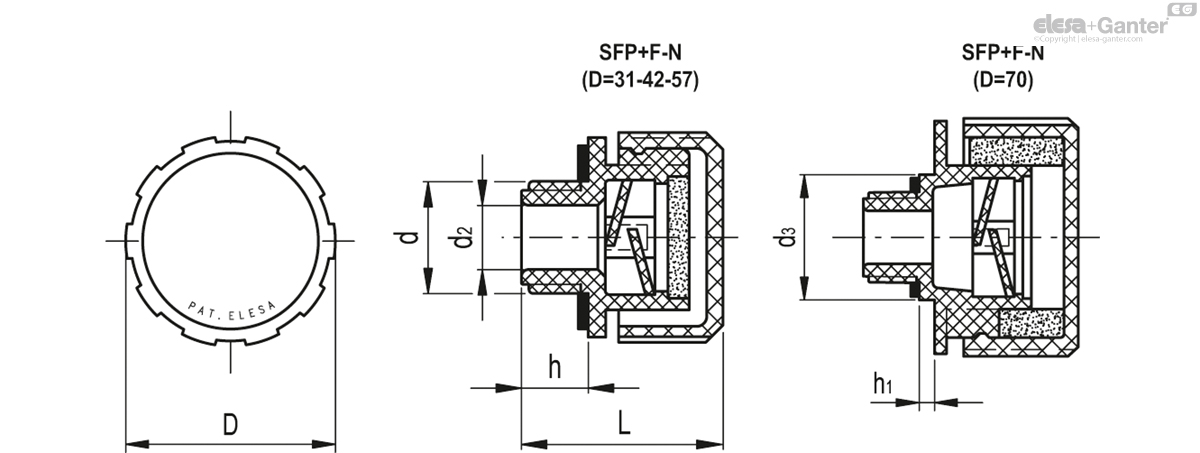

SFP+F-FOAM-N

Color d D L d2 d3 h h1 __logo__weight__
Code Description Actions
53938-C2-N SFP.30-1/4+F FOAM-C2-N C2 - RAL 2004 G1/4 31 29.5 8 - 9.5 - 11 cart-icon
53938-C9-N SFP.30-1/4+F FOAM-C9-N C9 - RAL 9005 G1/4 31 29.5 8 - 9.5 - 11 cart-icon
53952-C2-N SFP.30-16x1.5+F FOAM-C2-N C2 - RAL 2004 M16x1.5 31 29.5 10 - 9.5 - 11 cart-icon
53952-C9-N SFP.30-16x1.5+F FOAM-C9-N C9 - RAL 9005 M16x1.5 31 29.5 10 - 9.5 - 11 cart-icon
53972-C2-N SFP.30-18x1.5+F FOAM-C2-N C2 - RAL 2004 M18x1.5 31 29.5 10 - 9.5 - 12 cart-icon
53972-C9-N SFP.30-18x1.5+F FOAM-C9-N C9 - RAL 9005 M18x1.5 31 29.5 10 - 9.5 - 12 cart-icon
53987-C2-N SFP.30-20x1.5+F FOAM-C2-N C2 - RAL 2004 M20x1.5 31 29.5 12 - 9.5 - 12 cart-icon
53987-C9-N SFP.30-20x1.5+F FOAM-C9-N C9 - RAL 9005 M20x1.5 31 29.5 12 - 9.5 - 12 cart-icon
53997-C2-N SFP.30-22x1.5+F FOAM-C2-N C2 - RAL 2004 M22x1.5 31 29.5 12 - 9.5 - 13 cart-icon
53997-C9-N SFP.30-22x1.5+F FOAM-C9-N C9 - RAL 9005 M22x1.5 31 29.5 12 - 9.5 - 13 cart-icon
54022-C2-N SFP.30-3/8+F FOAM-C2-N C2 - RAL 2004 G3/8 31 29.5 10 - 9.5 - 12 cart-icon
54022-C9-N SFP.30-3/8+F FOAM-C9-N C9 - RAL 9005 G3/8 31 29.5 10 - 9.5 - 12 cart-icon
54122-C2-N SFP.30-1/2+F FOAM-C2-N C2 - RAL 2004 G1/2 31 29.5 12 - 9.5 - 12 cart-icon
54122-C9-N SFP.30-1/2+F FOAM-C9-N C9 - RAL 9005 G1/2 31 29.5 12 - 9.5 - 12 cart-icon
54152-C2-N SFP.30-12x1.5+F FOAM-C2-N C2 - RAL 2004 M12x1.5 31 29.5 6 - 9.5 - 11 cart-icon
54152-C9-N SFP.30-12x1.5+F FOAM-C9-N C9 - RAL 9005 M12x1.5 31 29.5 6 - 9.5 - 11 cart-icon
54172-C2-N SFP.30-14x1.5+F FOAM-C2-N C2 - RAL 2004 M14x1.5 31 29.5 8 - 9.5 - 11 cart-icon
54172-C9-N SFP.30-14x1.5+F FOAM-C9-N C9 - RAL 9005 M14x1.5 31 29.5 8 - 9.5 - 11 cart-icon
54222-C2-N SFP.40-3/4+F FOAM-C2-N# C2 - RAL 2004 G3/4 42 36.5 18 - 11.5 - 24 cart-icon
54222-C9-N SFP.40-3/4+F FOAM-C9-N# C9 - RAL 9005 G3/4 42 36.5 18 - 11.5 - 24 cart-icon
54322-C2-N SFP.40-1+F FOAM-C2-N C2 - RAL 2004 G1 42 36.5 18 - 11.5 - 27 cart-icon
54322-C9-N SFP.40-1+F FOAM-C9-N C9 - RAL 9005 G1 42 36.5 18 - 11.5 - 27 cart-icon
54422-C2-N SFP.57-1¼+F FOAM-C2-N C2 - RAL 2004 G1 1/4 57 44 28 - 16 - 47 cart-icon
54422-C9-N SFP.57-1¼+F FOAM-C9-N C9 - RAL 9005 G1 1/4 57 44 28 - 16 - 47 cart-icon
54522-C2-N SFP.57-1½+F FOAM-C2-N C2 - RAL 2004 G1 1/2 57 44 28 - 16 - 47 cart-icon
54522-C9-N SFP.57-1½+F FOAM-C9-N C9 - RAL 9005 G1 1/2 57 44 28 - 16 - 47 cart-icon
54851-C2-N SFP.70-3/4+F FOAM-C2-N# C2 - RAL 2004 G3/4 70 63 16 35 15 6 80 cart-icon
54851-C9-N SFP.70-3/4+F FOAM-C9-N# C9 - RAL 9005 G3/4 70 63 16 35 15 6 80 cart-icon
54861-C2-N SFP.70-1¼+F FOAM-C2-N C2 - RAL 2004 G1 1/4 70 59 23 - 17 - 83 cart-icon
54861-C9-N SFP.70-1¼+F FOAM-C9-N C9 - RAL 9005 G1 1/4 70 59 23 - 17 - 83 cart-icon
54878-C2-N SFP.70-2+F FOAM-C2-N C2 - RAL 2004 G2 70 59 23 - 17 - 88 cart-icon
54878-C9-N SFP.70-2+F FOAM-C9-N C9 - RAL 9005 G2 70 59 23 - 17 - 88 cart-icon
56662-C2-N SFP.40-3/8+F FOAM-C2-N# C2 - RAL 2004 G3/8 42 36.5 10 - 11.5 - 22 cart-icon
56662-C9-N SFP.40-3/8+F FOAM-C9-N# C9 - RAL 9005 G3/8 42 36.5 10 - 11.5 - 22 cart-icon
56682-C2-N SFP.40-1/2+F FOAM-C2-N# C2 - RAL 2004 G1/2 42 36.5 12 - 11.5 - 24 cart-icon
56682-C9-N SFP.40-1/2+F FOAM-C9-N# C9 - RAL 9005 G1/2 42 36.5 12 - 11.5 - 24 cart-icon
56712-C2-N SFP.57-3/4+F FOAM-C2-N# C2 - RAL 2004 G3/4 57 42 18 - 14 - 43 cart-icon
56712-C9-N SFP.57-3/4+F FOAM-C9-N# C9 - RAL 9005 G3/4 57 42 18 - 14 - 43 cart-icon
56742-C2-N SFP.57-1+F FOAM-C2-N C2 - RAL 2004 G1 57 42 23 - 14 - 43 cart-icon
56742-C9-N SFP.57-1+F FOAM-C9-N C9 - RAL 9005 G1 57 42 23 - 14 - 43 cart-icon
