SCM.

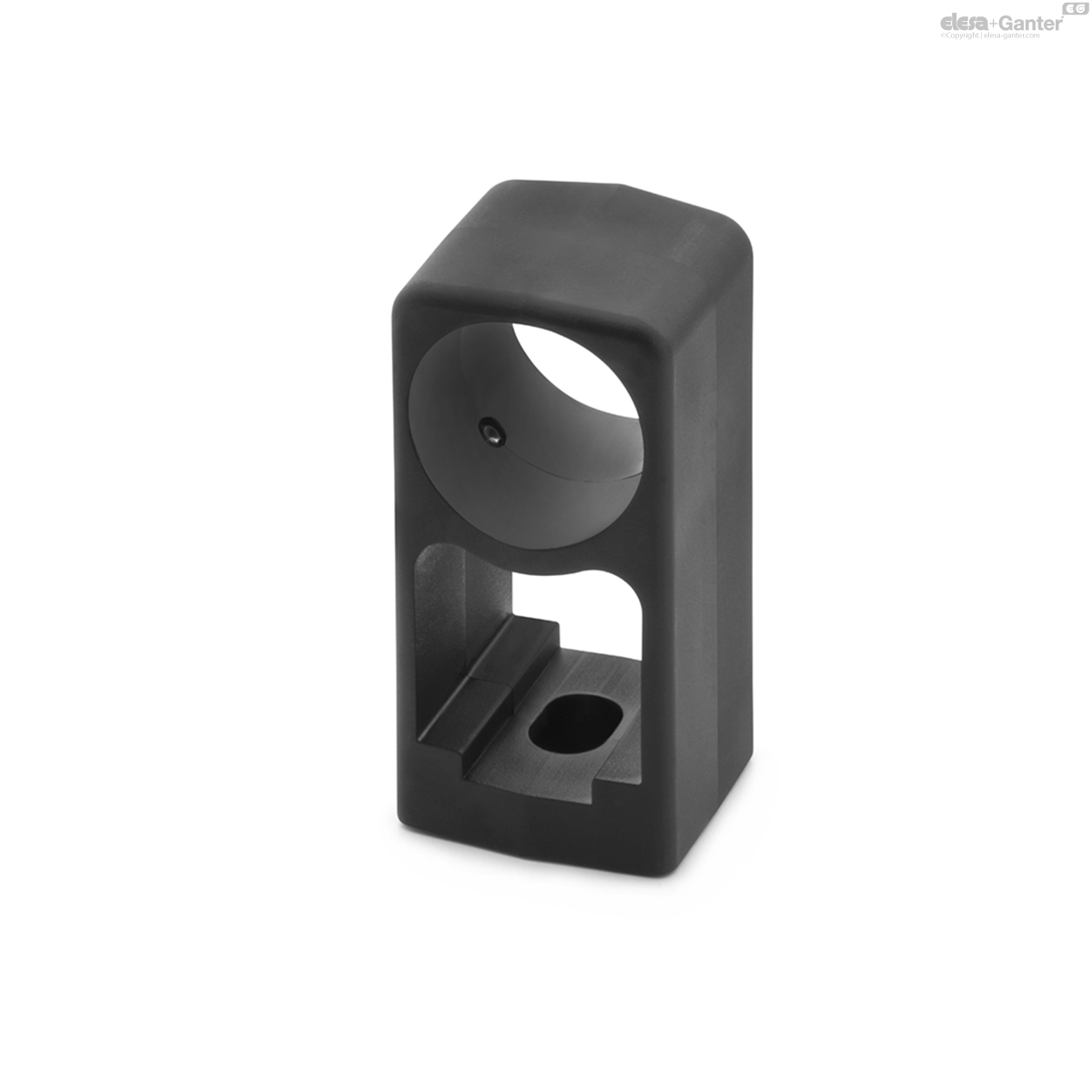

Intermediate shank
for M.1043, technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Screw
AISI 304 stainless steel.
General information
Features and applications
Intermediate shank for tube Ø20 and for tube Ø30, suggested for tube longer than 700 mm.

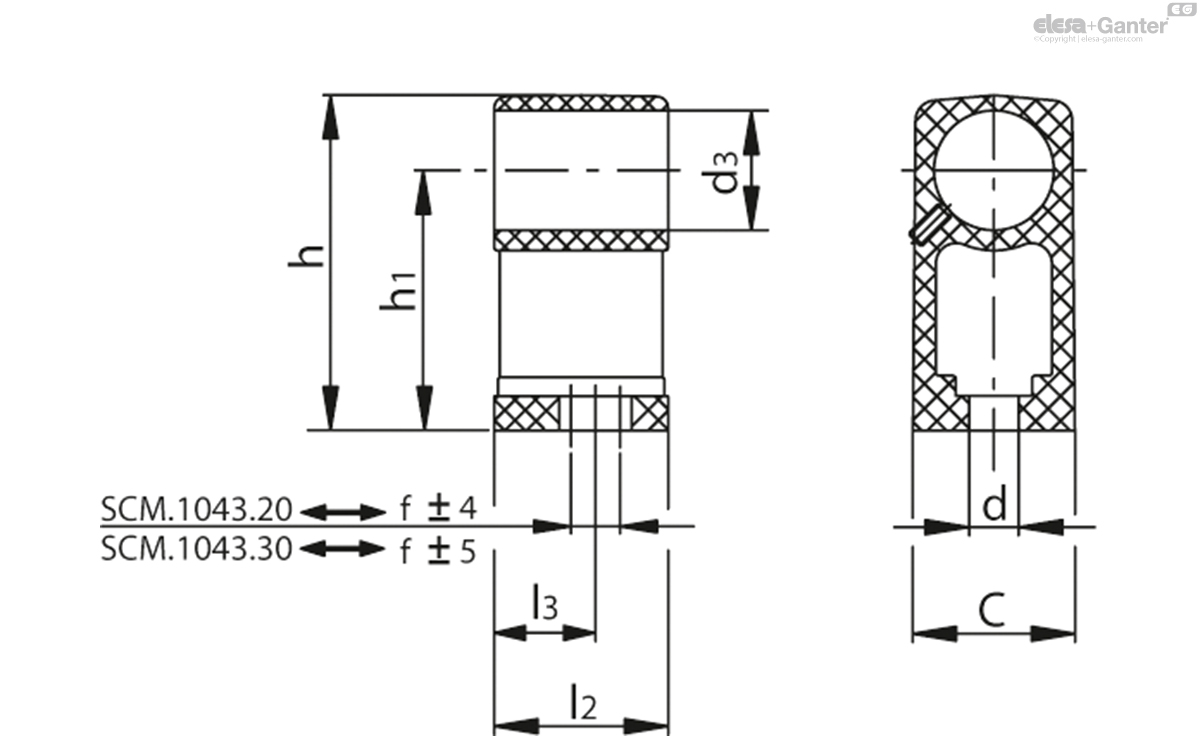

| f | d | h | h1 | l2 | l3 | d3 | C | For handle |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 15305 | SCM.1043-30 | 13 | 10.5 | 78 | 60 | 36 | 22 | 30 | 38 | M.1043/30 - M.1043 BM/30 | 52 |
|
| 15306 | SCM.1043-20 | 10 | 8.5 | 58 | 45 | 30 | 18 | 20 | 28 | M.1043/20 - M.1043 BM/20 | 48 |
|
