Safety cap
Bearings supports
Description
Description
Movex accessories for bearing supports.
A reliable solution for several markets, like beverage, food, pharmaceutical and industrial environments: based on the application requirements, almost 1500 different types can be found.
Basic features
| Series: | Safety cap |
|---|---|
| Material: | Plastic |
| Unit of measure: | Ea |
| Box: | - |

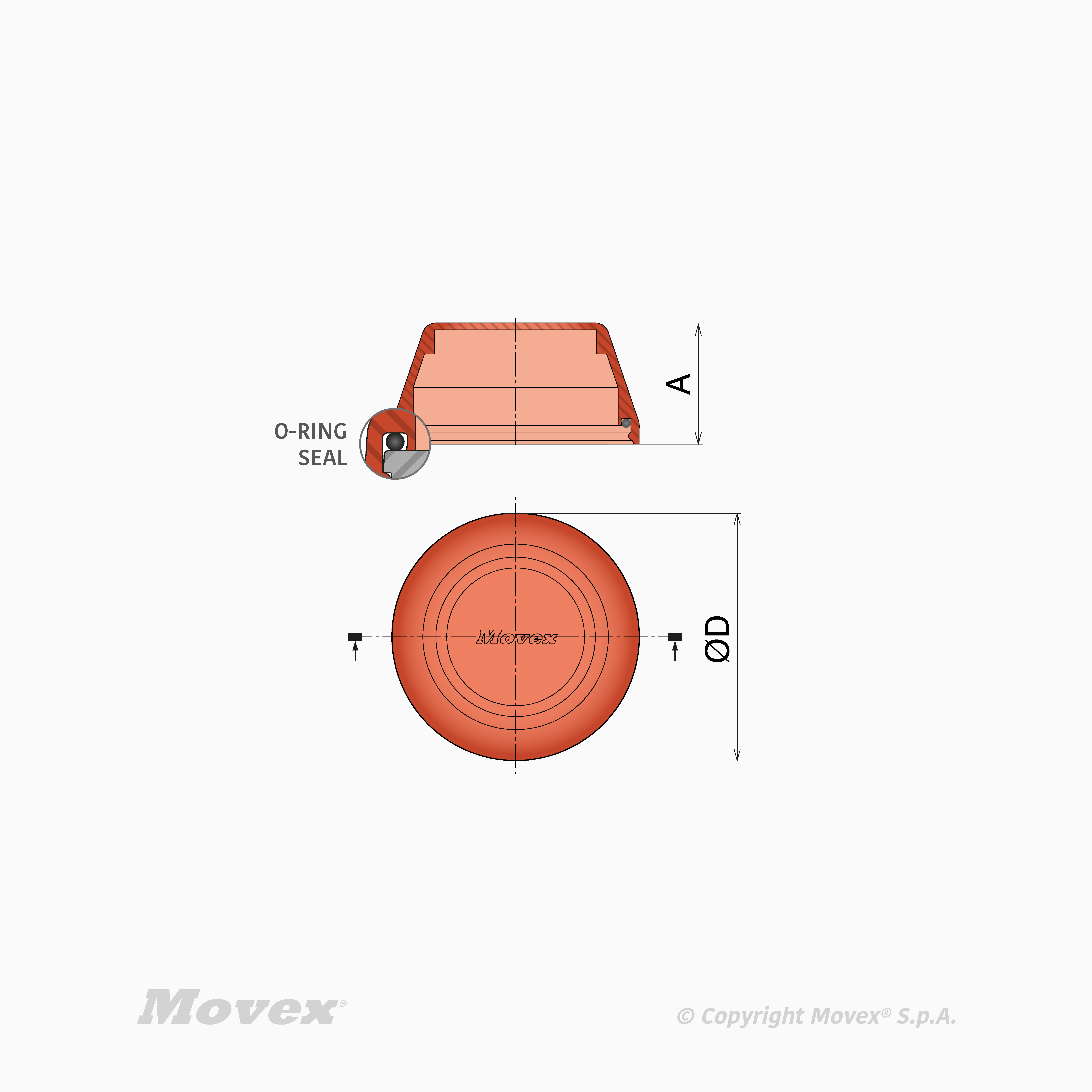

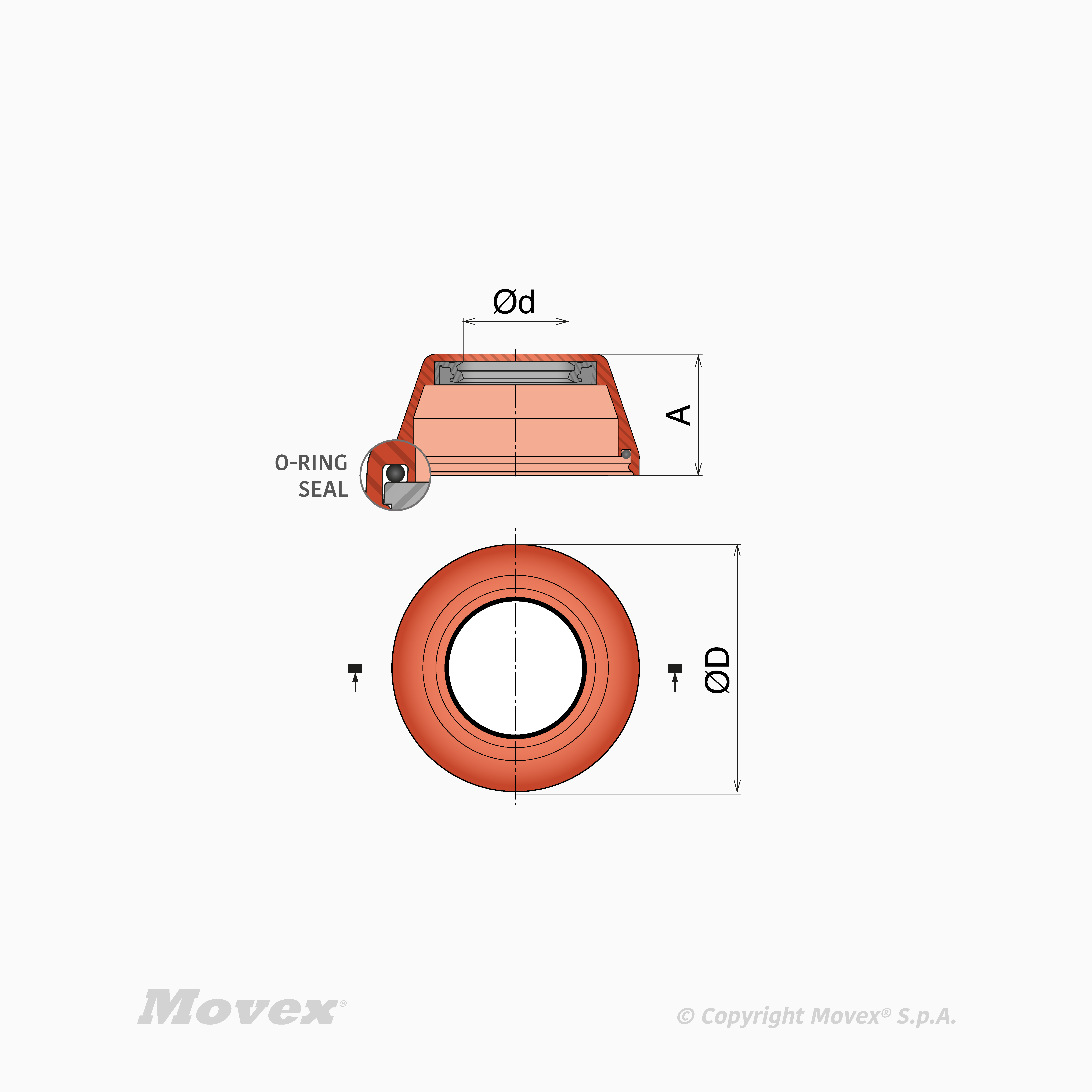

Safety cap
| A | Operating Temperature °C | D | Color | Watertight (Safety cap) | Shaft diameter | Cap | Seal | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P89001 | 29 mm | 0÷80 °C | 68 mm | Red | Yes, closed cap | - | Polypropylene closed cap with O-ring seal | - |
|
| P89002 | 35 mm | 0÷80 °C | 79 mm | Red | Yes, closed cap | - | Polypropylene closed cap with O-ring seal | - |
|
| P89003 | 40 mm | 0÷80 °C | 90 mm | Red | Yes, closed cap | - | Polypropylene closed cap with O-ring seal | - |
|
| P89004 | 31 mm | 0÷80 °C | 59 mm | Red | Yes, closed cap | - | Polypropylene closed cap with O-ring seal | - |
|
| P89005 | 35.2 mm | 0÷80 °C | 71 mm | Red | Yes, closed cap | - | Polypropylene closed cap with O-ring seal | - |
|
| P89051-20 | 29 mm | 0÷80 °C | 68 mm | Red | Yes, open cap | 20 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89051-25 | 29 mm | 0÷80 °C | 68 mm | Red | Yes, open cap | 25 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89052-30 | 35 mm | 0÷80 °C | 79 mm | Red | Yes, open cap | 30 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89053-35 | 40 mm | 0÷80 °C | 90 mm | Red | Yes, open cap | 35 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89053-40 | 40 mm | 0÷80 °C | 90 mm | Red | Yes, open cap | 40 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89054-20 | 31 mm | 0÷80 °C | 59 mm | Red | Yes, open cap | 20 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89055-25 | 35.2 mm | 0÷80 °C | 71 mm | Red | Yes, open cap | 25 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
| P89055-30 | 35.2 mm | 0÷80 °C | 71 mm | Red | Yes, open cap | 30 mm | Polypropylene open cap with O-ring seal & NBR top seal | NBR bottom seal |
|
